4th Gen New Release!
MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPC01C13
$4,952.00
$6,438.00
23% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
4th Gen New Release!
MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPC01C13
This item is in stock! Estimated Arrival: Sep 18 to Sep 24
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Ceiling Mounted

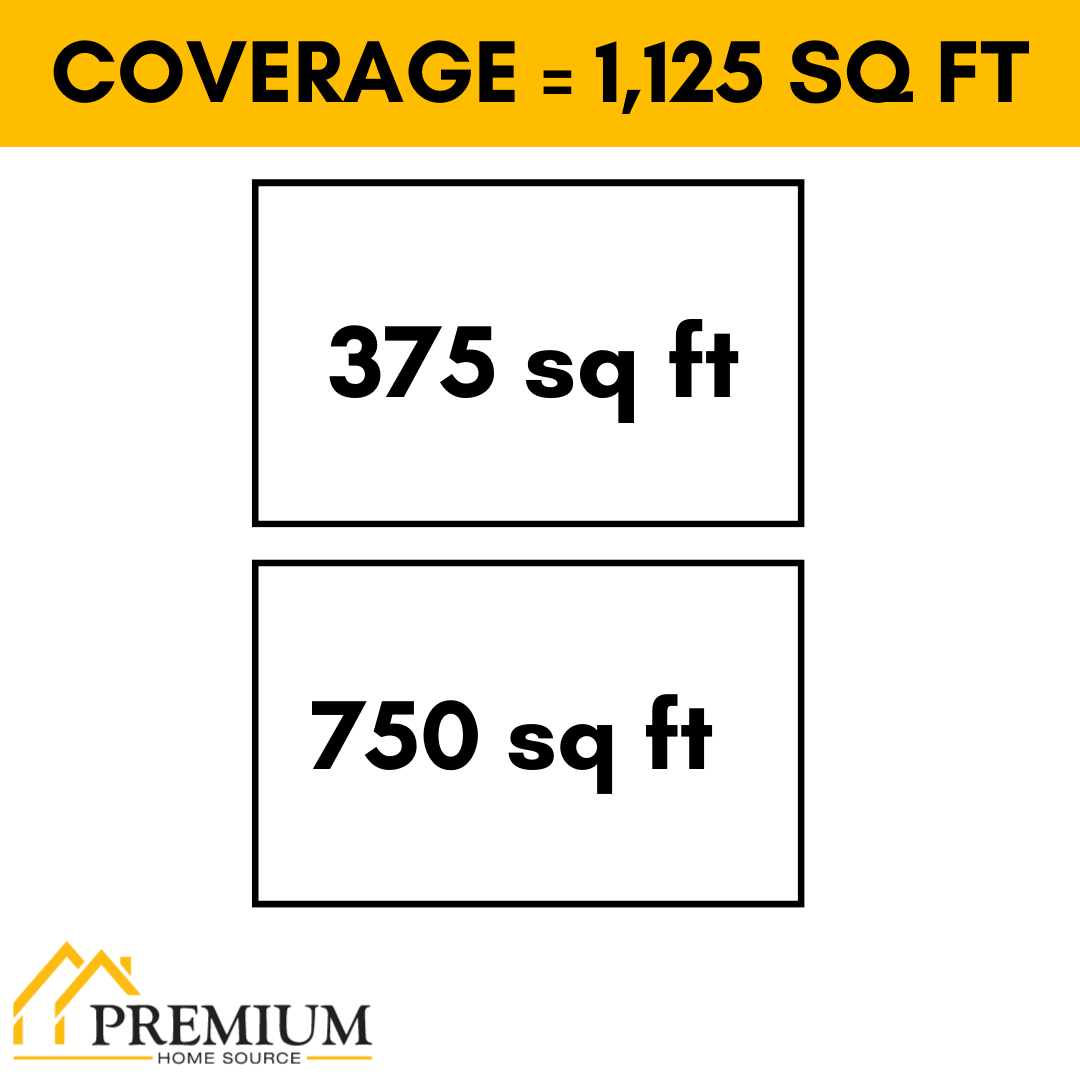

- Covers 1125 sq. ft.
- DIY Installation
- Number of Zones: 2
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F
Air Handler
Condenser
Line Set
Wall Sleeve
Communication Wire
Remote Control

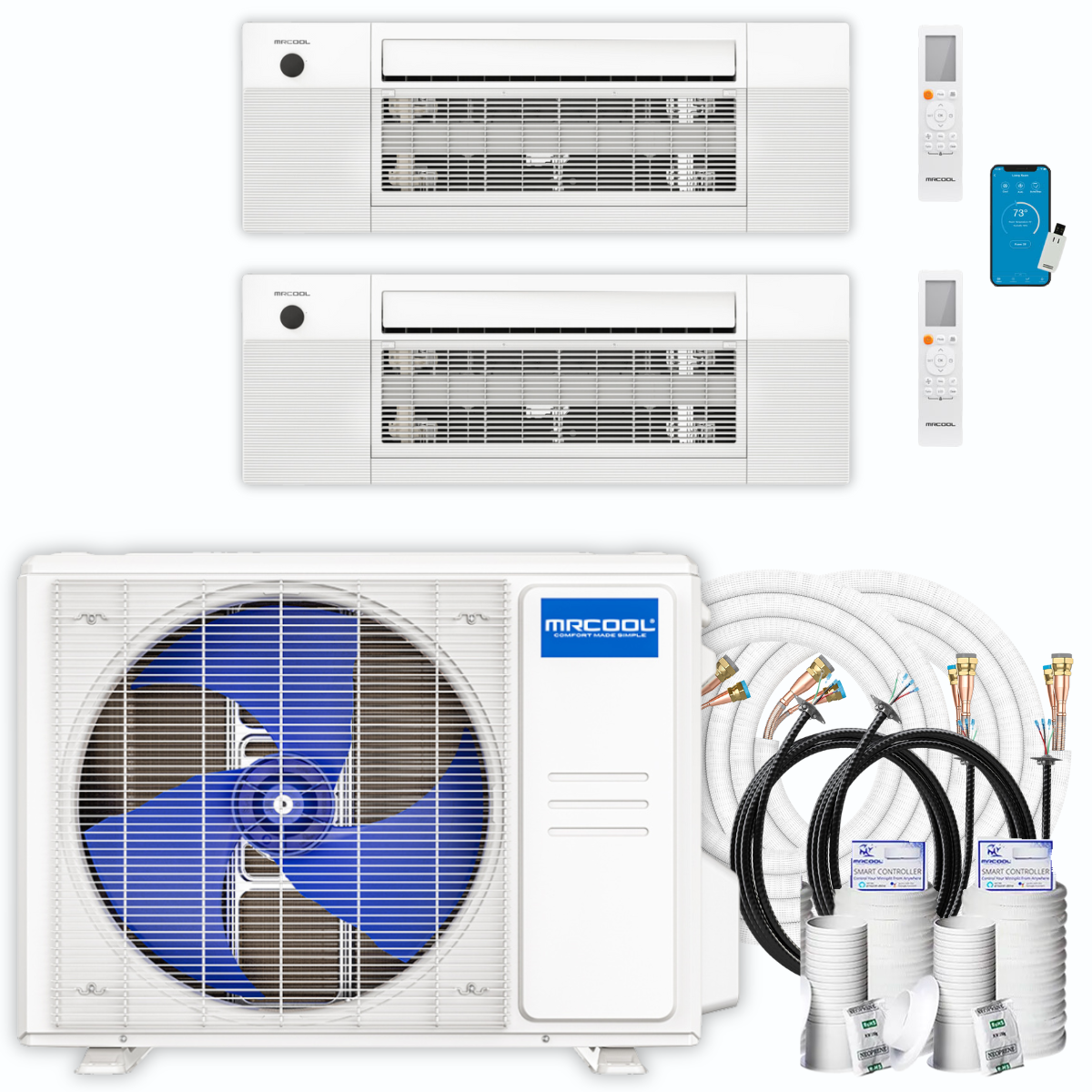

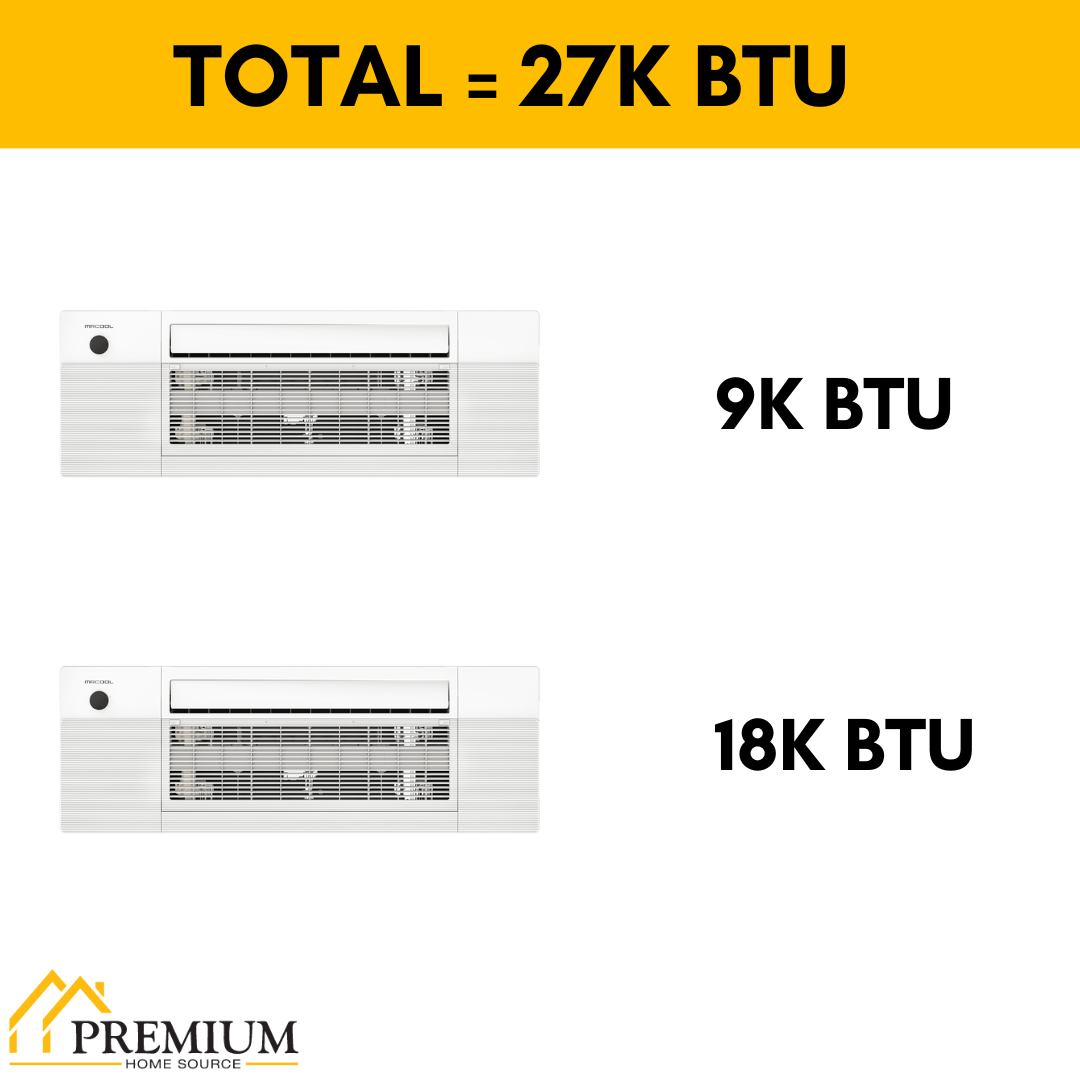

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 27K BTU Multi-Zone Condenser, 9K and 18K BTU Ceiling Cassette Air Handlers and a remote, lineset, communication wire for each air handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.
-
MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C
-
MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25
- MRCOOL DIY Series 18K BTU Ceiling Cassette, DIYCASSETTE18HP-230C25
- MRCOOL 35ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C x 2

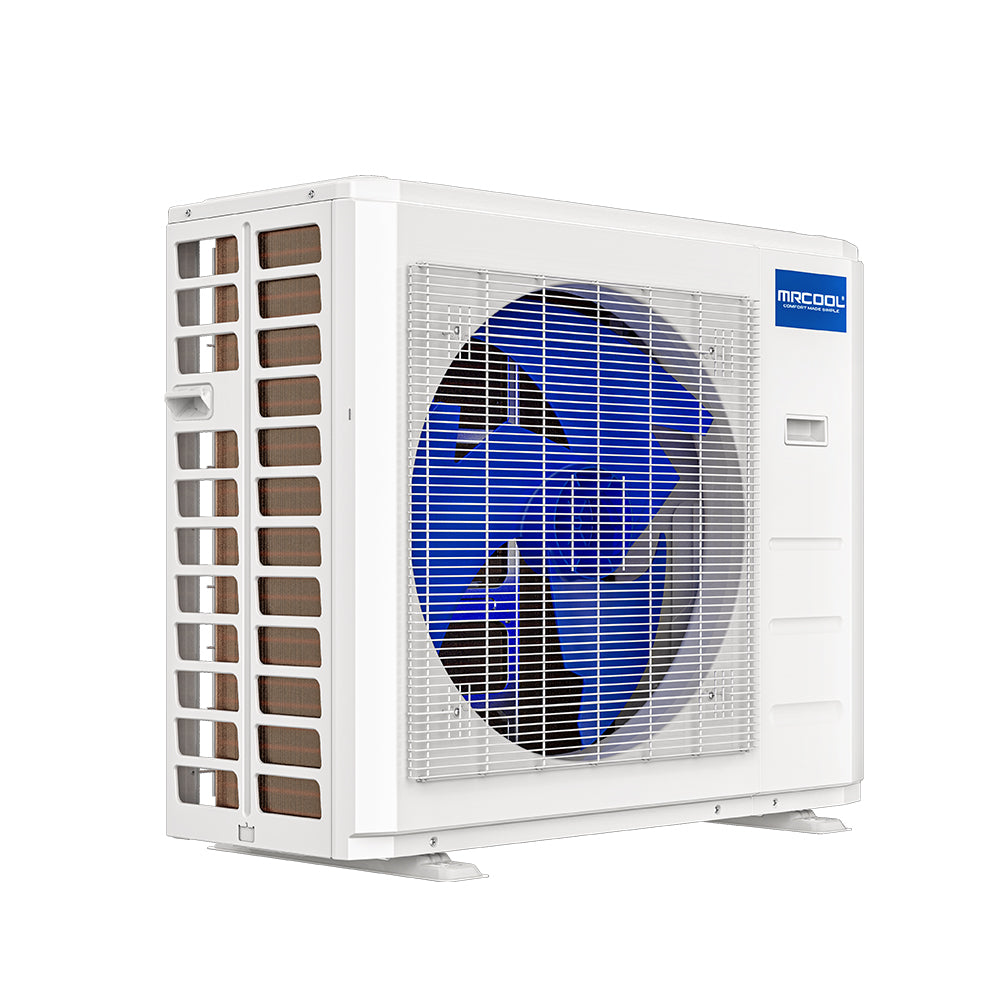

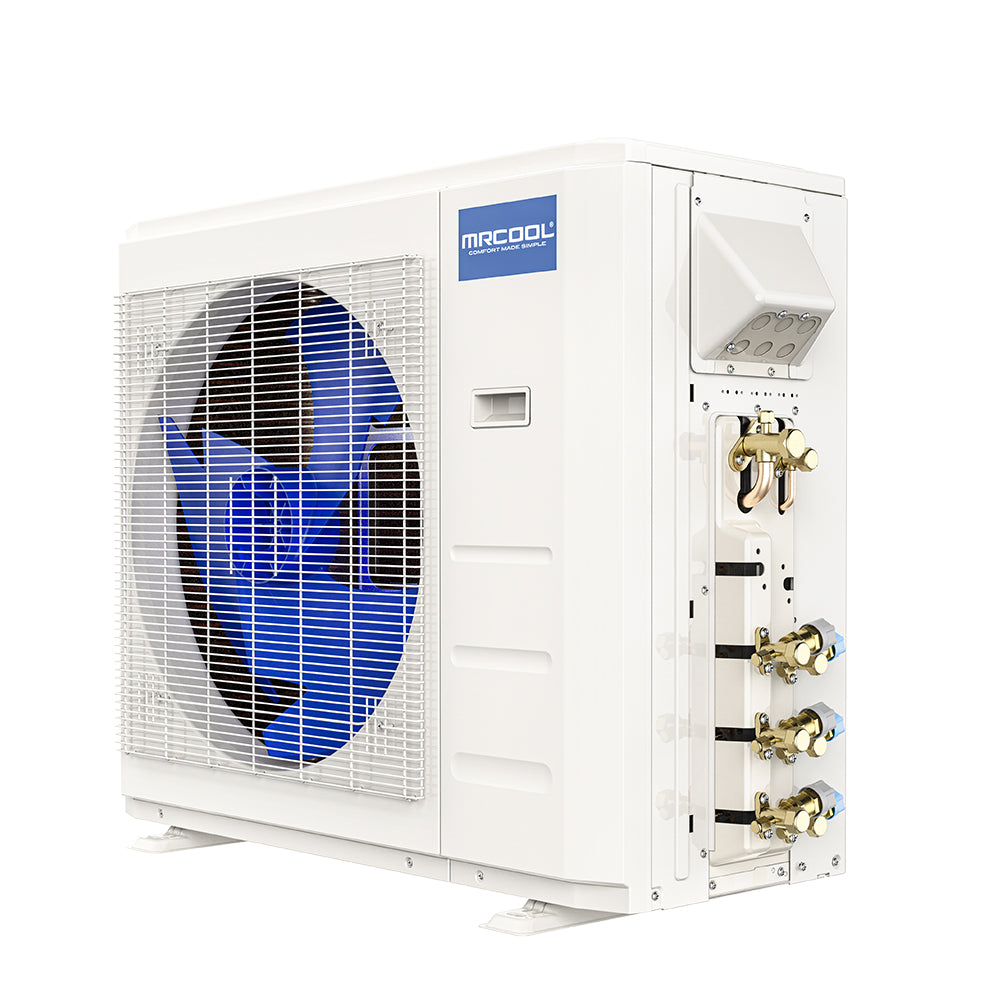

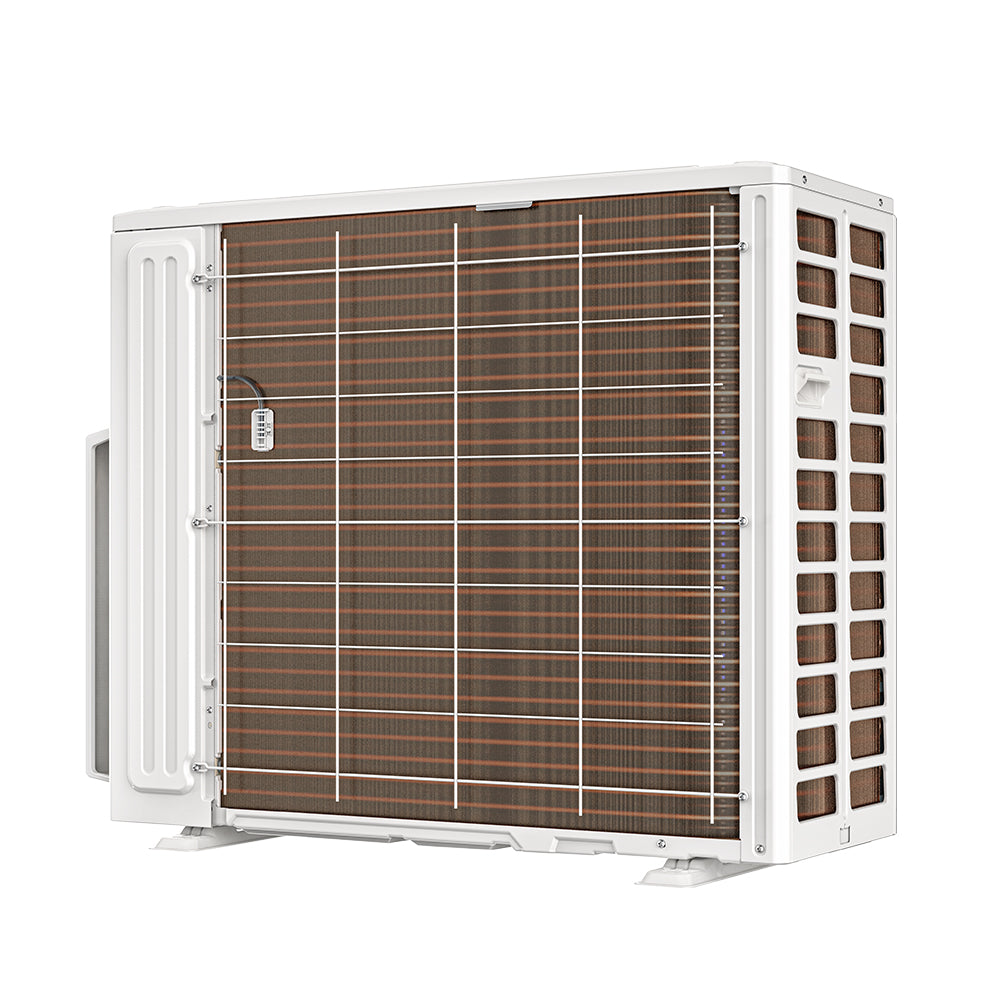

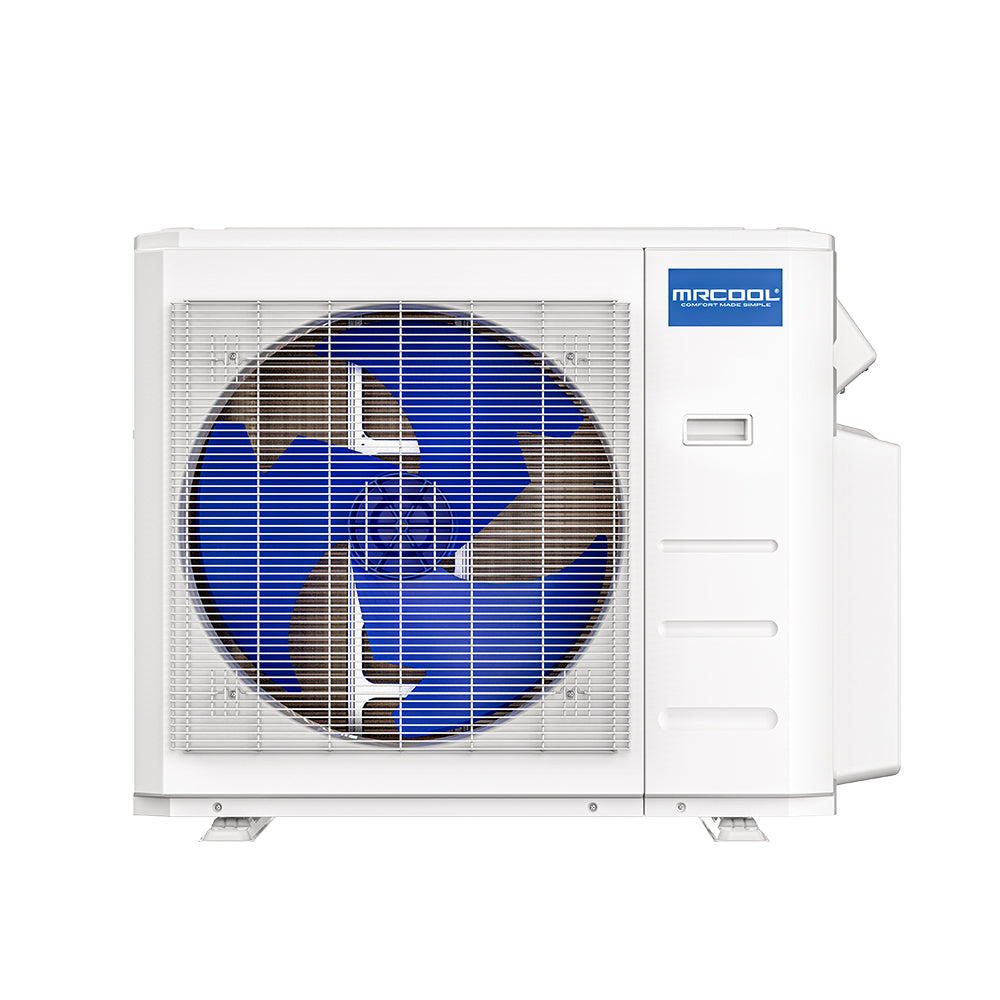

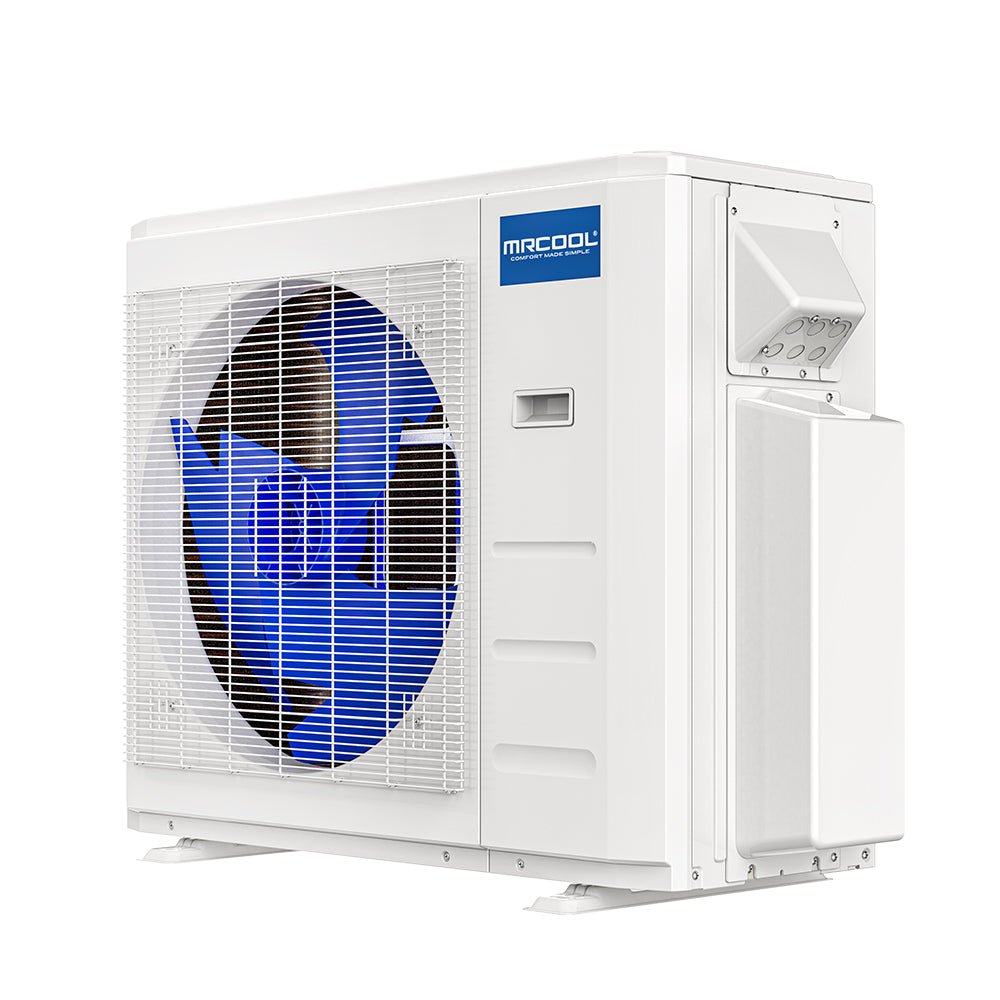

Condenser 27K BTU
- Energy Efficient. This 27K BTU condenser is capable of producing up to an impressive 22 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
- Works In Extreme Temperature. The ability to heat even when temperatures drop to -13°F.
- Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler 9K BTU
- Vast Coverage Area. The cassette covers an area between 180 to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.

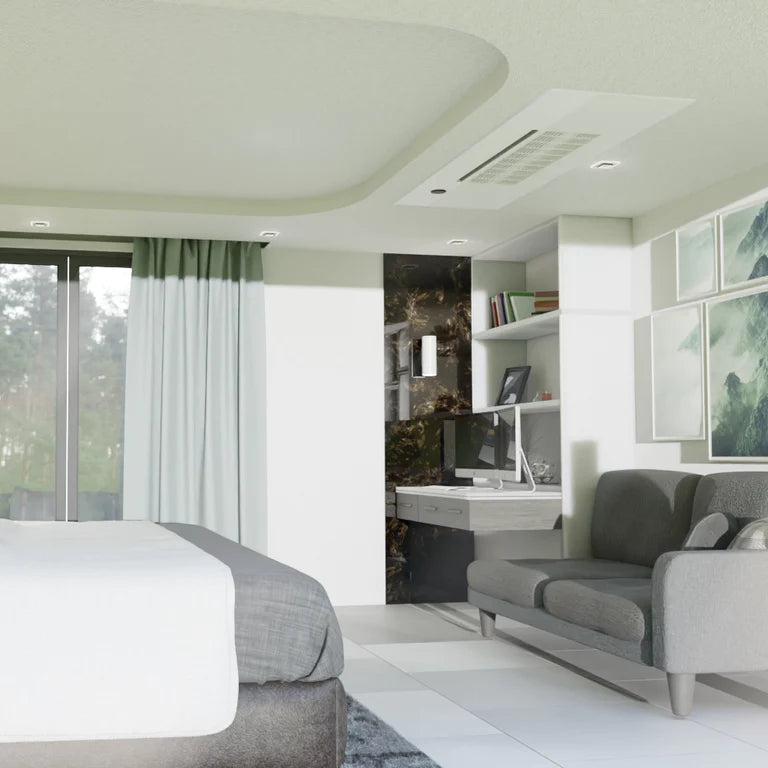

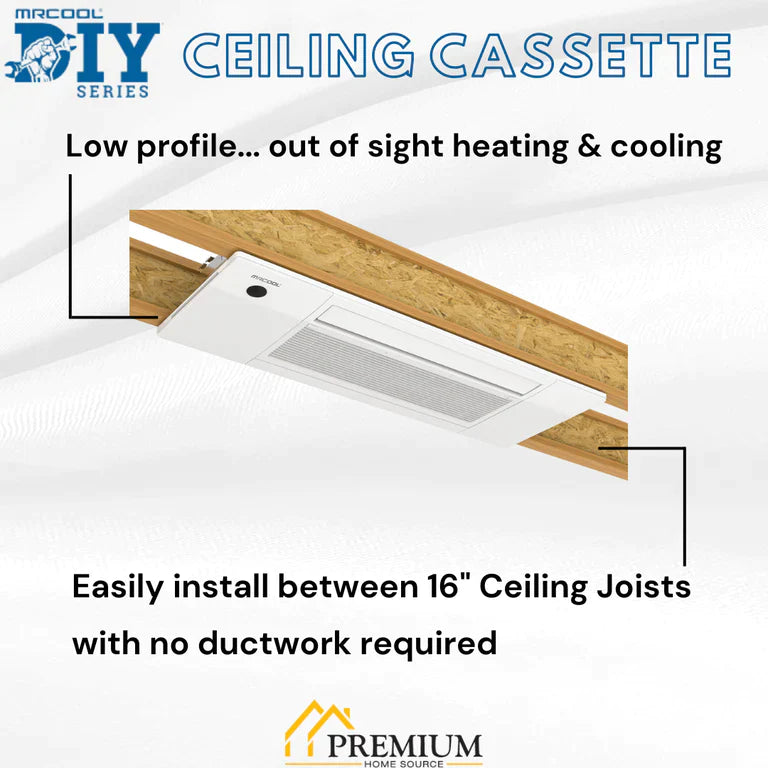

- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

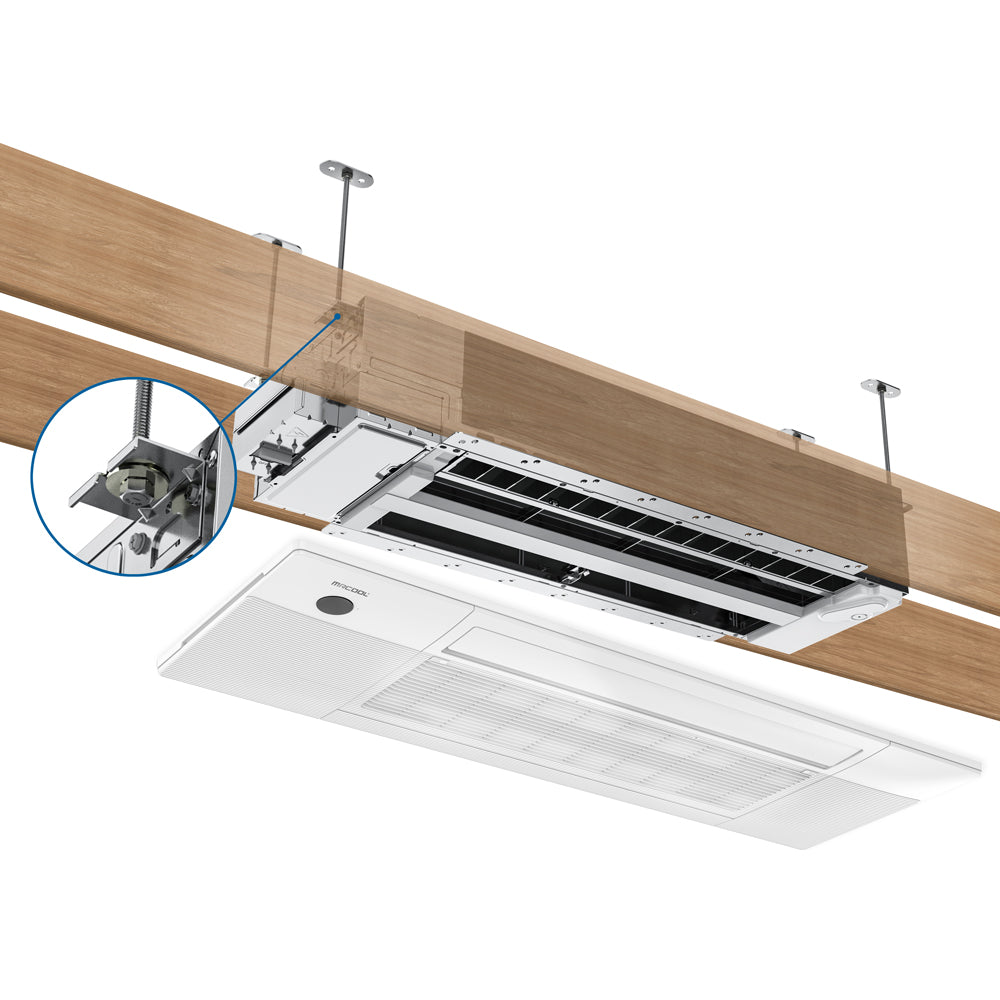

- Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

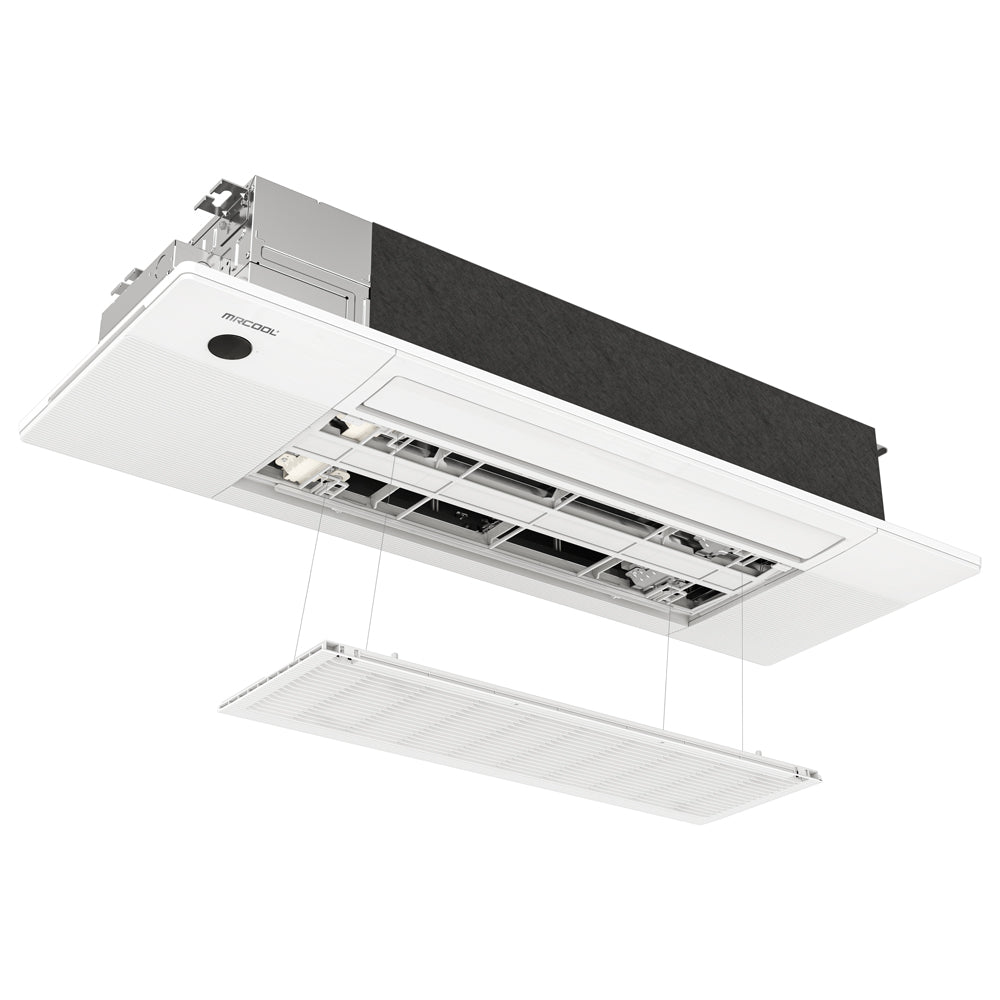

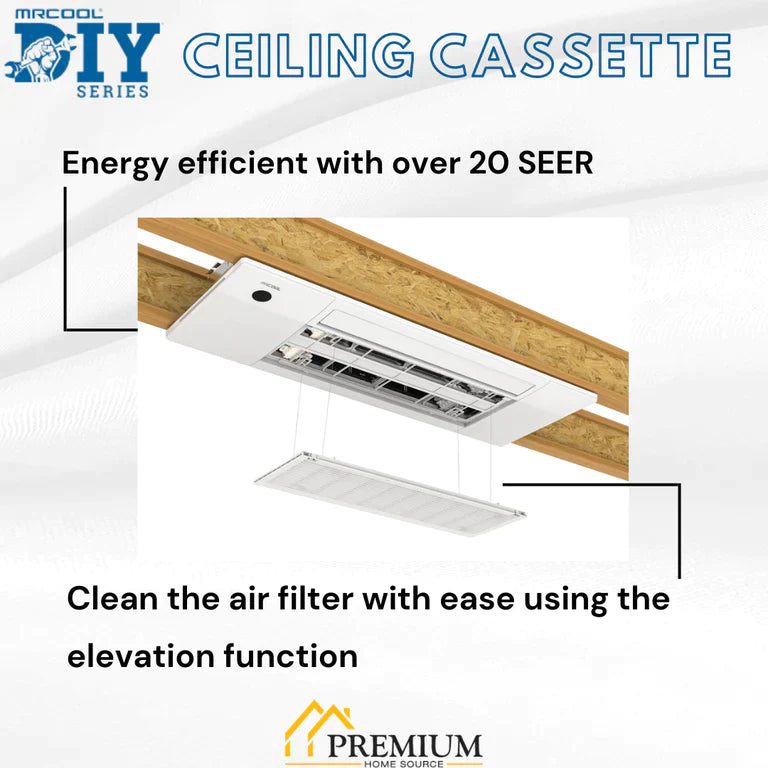

- Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.
Air Handler 18K BTU
- Vast Coverage Area. The cassette covers an area between 375 to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.
Line Set
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

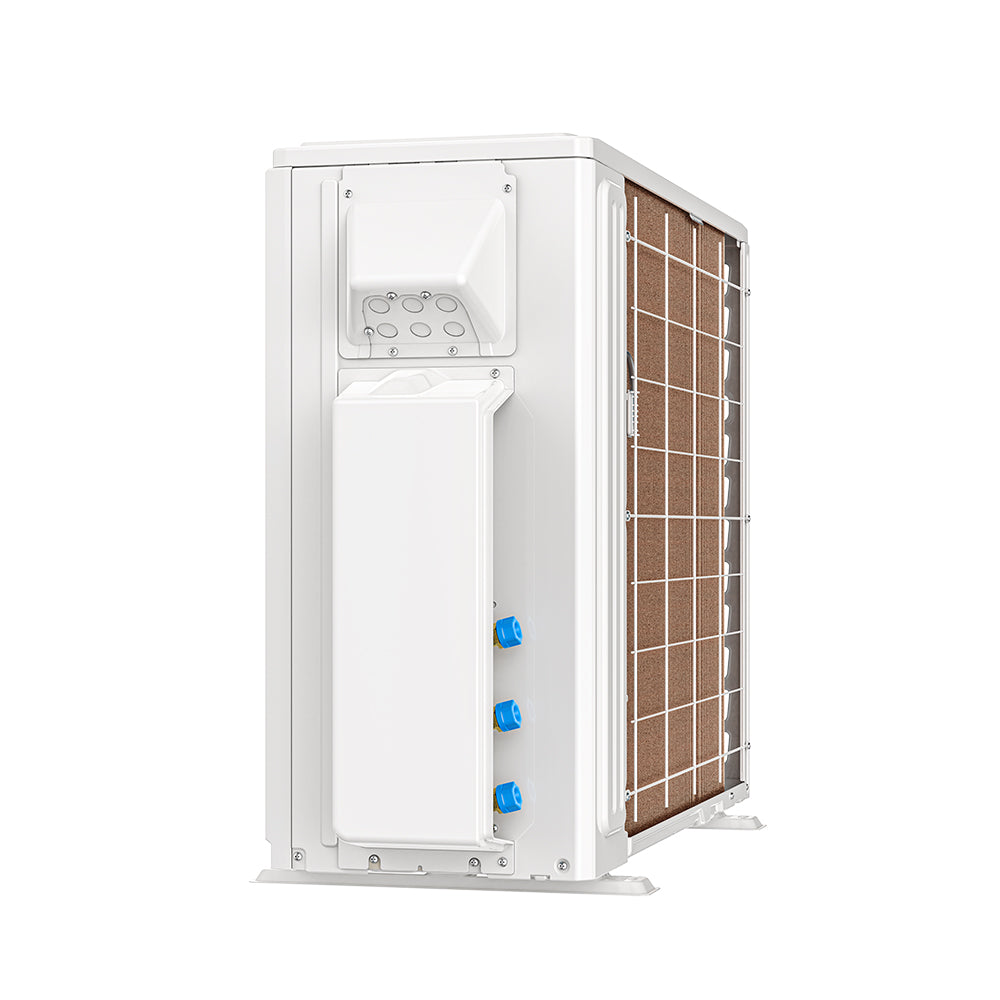

Condenser
| Product Dimensions |
37.24"W x 16.14"D x 31.89"H |
| Cooling Capacity | 27,000 BTU |
| Heating Capacity | 27,000 BTU |
| Zone Capacity | 3 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | -13°F ~ 75.2°F |
| SEER2 | 22 |
| EER2 | 12 |
| HSPF2 | 9.5 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |

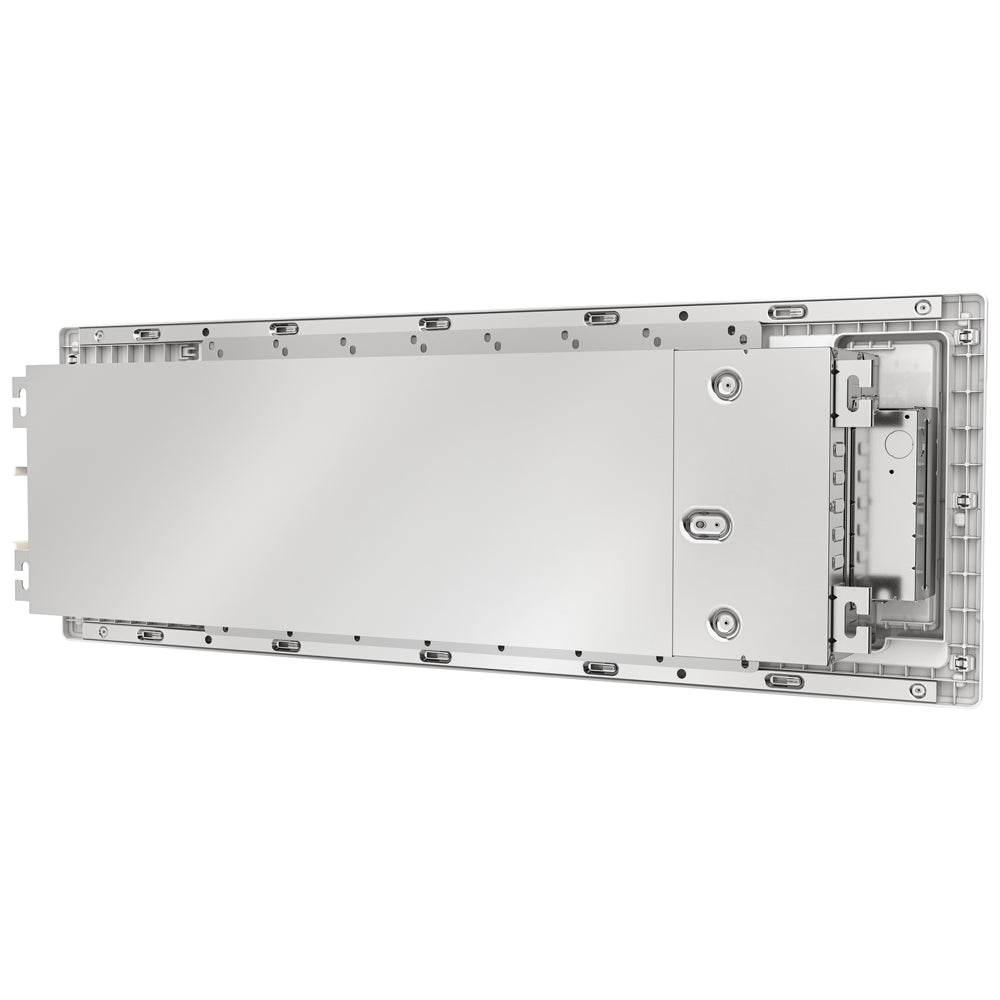

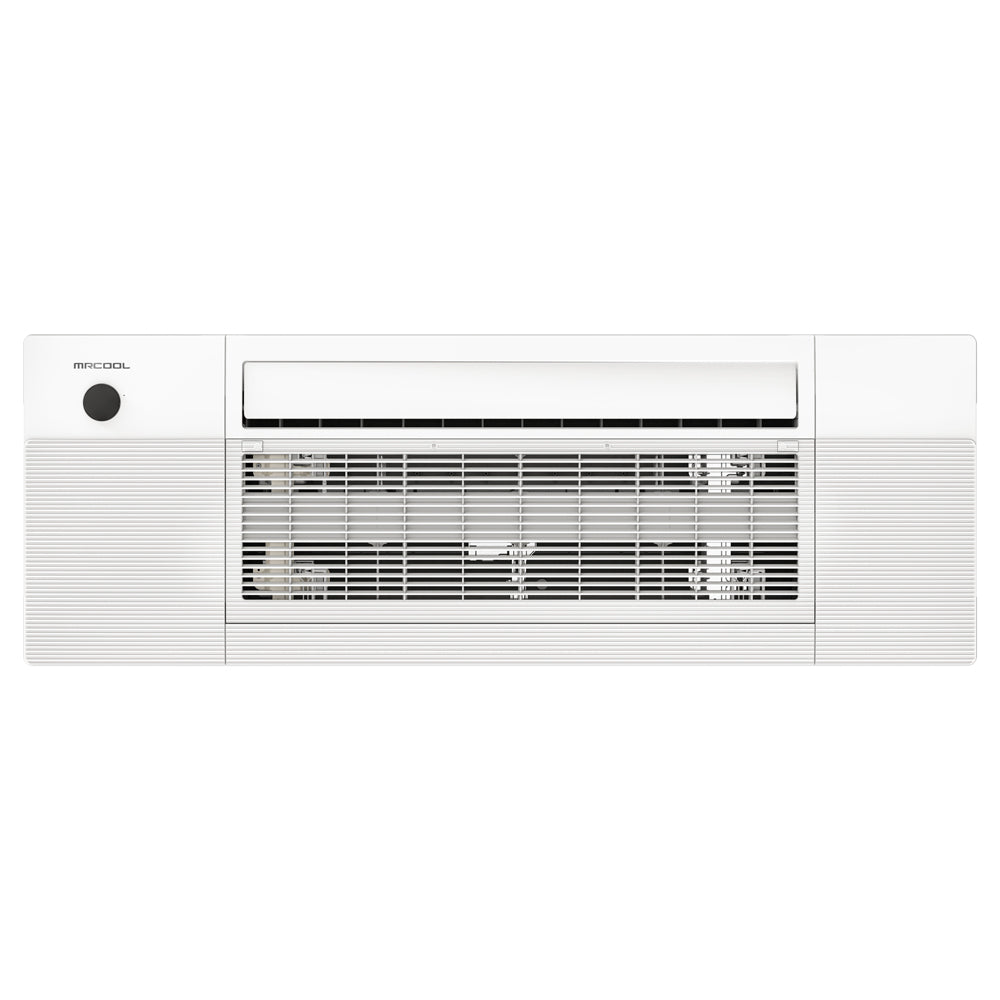

Air Handler 9K BTU
| Product Dimensions |
50.31"W x 13.19"D x 8.98"H |
| Mount Type | Ceiling Cassette |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions |
50.31"W x 13.19"D x 8.98"H |
| Mount Type | Ceiling Cassette |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Line Set
| Length | 35 Feet |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
Customer Reviews

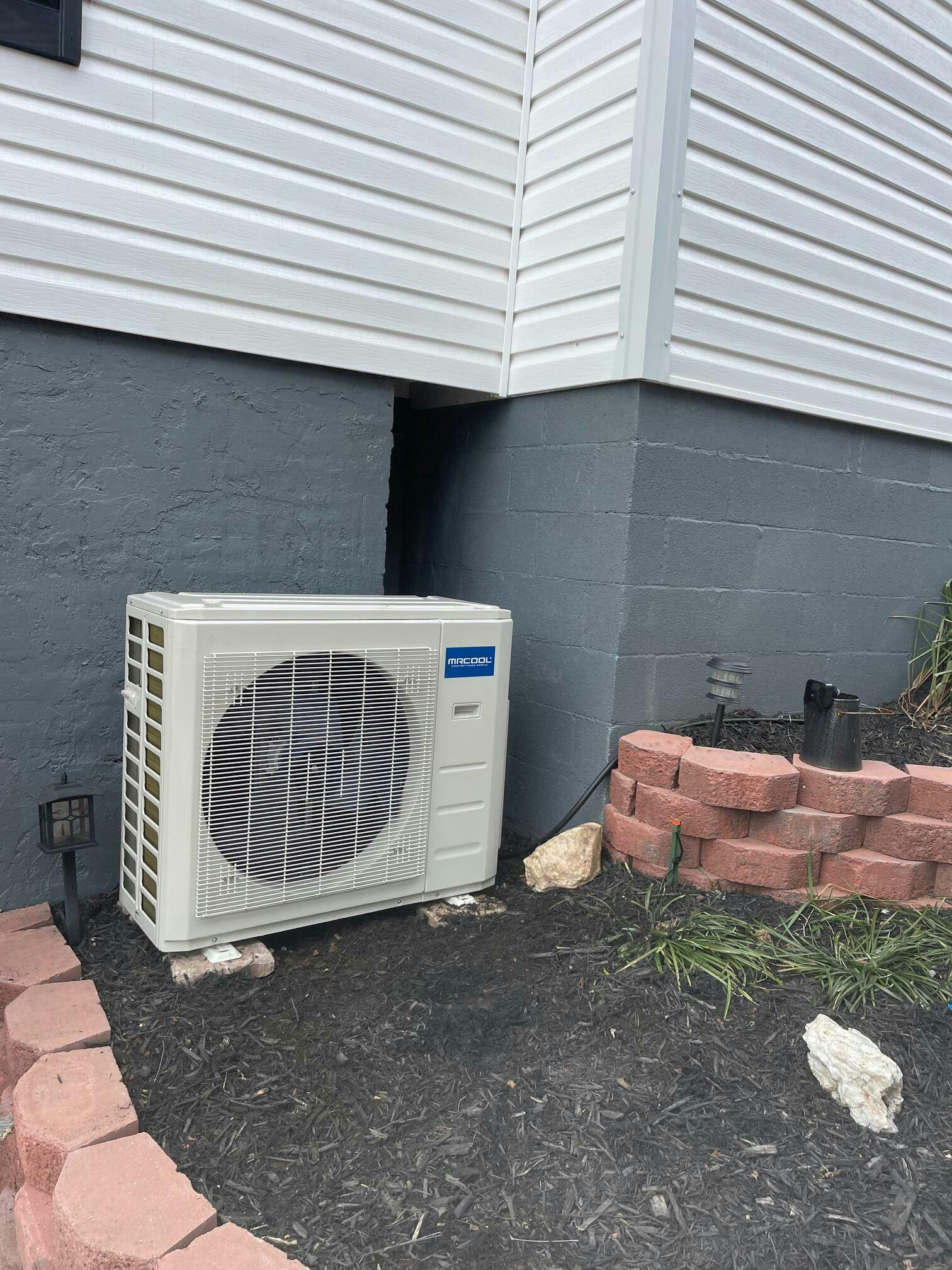

I recently purchased the Mr Cool Mini Split System, and I'm thrilled with its performance! Premium Home Source was excellent with communication and delivery. The installation was a breeze, and the system quickly transformed my space into a comfortable oasis. The sleek design and quiet operation exceeded my expectations. It's energy-efficient and provides precise temperature control. I highly recommend the Mr Cool Mini Split for anyone looking for a reliable and efficient heating/cooling solution.
