MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 ft. and 25 ft. Install Kit, DIYM227HPC01C01

5.0 6 reviews
Model: DIYM227HPC01C01
$6,319.60
$6,319.60 $7,021.78
-10%
Shipping calculated at checkout.

Buy Now, Pay Later

Need different line set lengths?
Configure your system here!

Currently Out of Stock - Contact us for an ETA. Pre-Order Today!

$6,319.60
$6,319.60 $7,021.78

Product Overview

  • Zones: 2

  • DIY Installation

  • Pre-Charged Line Sets

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

What's Included

  • MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C

    27K BTU Condenser

    Quantity: 1
    Model: DIY-MULTI3-27HP230C
  • MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25 MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25

    9K BTU Air Handler

    Quantity: 1
    Model: DIYCASSETTE09HP-230C25
  • MRCOOL DIY Series 18K BTU Ceiling Cassette, DIYCASSETTE18HP-230C25 MRCOOL DIY Series 18K BTU Ceiling Cassette, DIYCASSETTE18HP-230C25

    18K BTU Air Handler

    Quantity: 1
    Model: DIYCASSETTE18HP-230C25
  • MRCOOL 16ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412 MRCOOL 16ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412

    16 ft. 1/4 x 1/2 Line Set

    Quantity: 1
    Model: DIY16-1412
  • MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412

    25 ft. 1/4 x 1/2 Line Set

    Quantity: 1
    Model: DIY25-1412

System also includes Communication Wires, Drain Hose Pipes, Wall Sleeves, Remote Controls and Wifi Dongles.

Better Together

System Details

DESCRIPTION

Step into the future of comfort with MRCOOL’s innovative 4th Gen DIY Mini Split, trusted by thousands of satisfied customers! Experience unmatched climate control across your rooms, all with effortless convenience. Perfect for your home, garage, workshop, and beyond. The best part? You can handle the installation yourself!

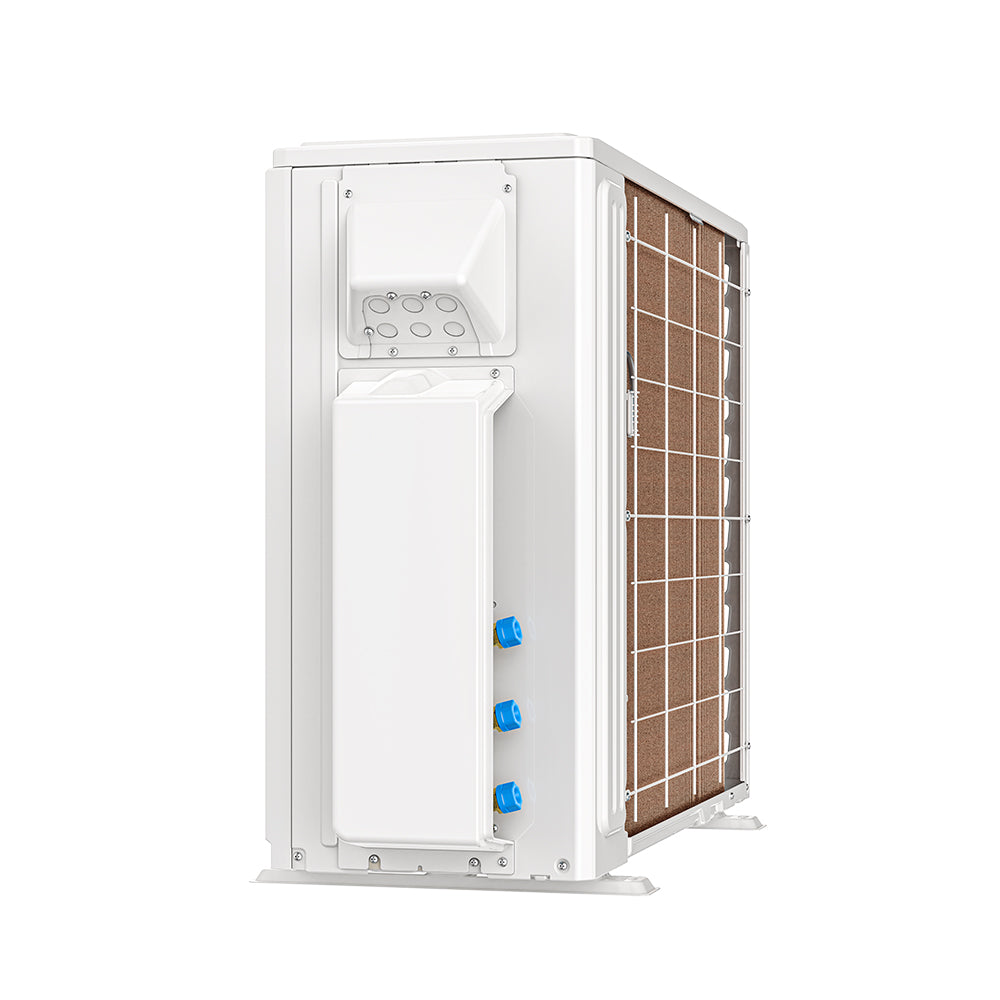

Condenser (27K BTU)

  • Innovative Installation: Get ready for an unparalleled installation experience with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, empowering you to install without needing a technician!
  • Durability Redefined: Protect against corrosion with the robust Gold Fin® condenser coating, specially designed for coastal areas.
  • Impressive Efficiency: Achieve incredible energy savings with a 22 SEER2 and 8.2 HSPF-5 rating.
  • Year-Round Performance: Enjoy reliable heating even in extreme cold, down to -13°F.
  • Peace of Mind: Benefit from a 7-year compressor warranty and a 5-year parts warranty.

Air Handler (9K BTU)

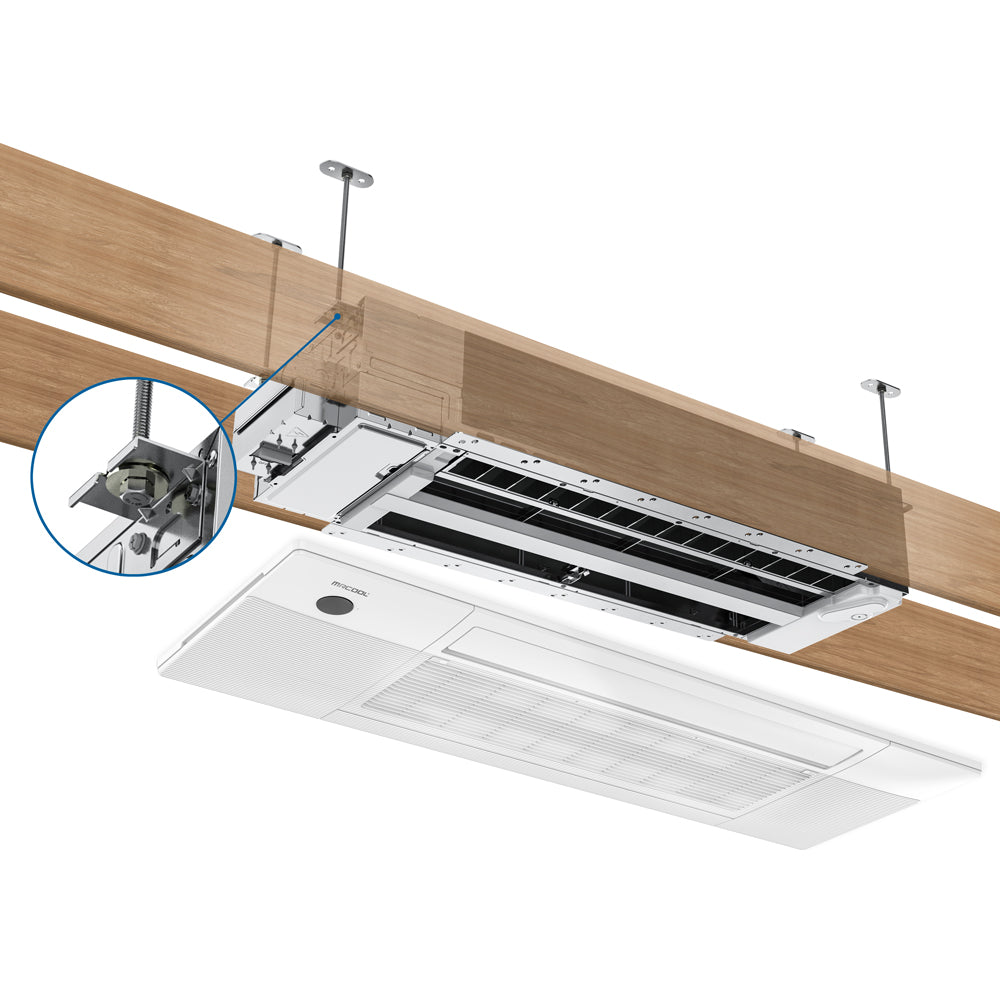

  • Compact Ceiling Installation: The MRCOOL DIY Series OuttaSight 9k BTU Ceiling Cassette fits seamlessly between 16” ceiling joists, delivering a sleek and space-saving installation.
  • Multi-Zone Compatibility: Designed to integrate with the DIY 4th gen MZ system, it enables multi-zone configurations and eliminates the need for ductwork.
  • Ideal Coverage Area: Perfect for spaces ranging from 180 to 375 square feet, making it suitable for both small and medium-sized rooms.
  • Remote Control Access: Enjoy effortless control with SmartHVAC app compatibility, enabling management from anywhere via a smartphone or tablet.
  • Effortless Installation: Simplify setup with MRCOOL’s Pre-Charged Quick Connect Line Set—no vacuuming or special tools needed.

Air Handler (18K BTU)

  • Compact Ceiling Installation: The MRCOOL DIY Series OuttaSight 18k BTU Ceiling Cassette fits neatly within 16” ceiling joists for a clean and unobtrusive appearance.
  • Multi-Zone Compatibility: Built to work with the DIY 4th gen MZ system for multi-zone functionality and ductless operation.
  • Ideal Coverage Area: Capable of managing heating and cooling needs in spaces of 501 to 750 square feet with ease.
  • Remote Control Access: Take full command using the SmartHVAC app, ensuring convenience whether at home or away.
  • Effortless Installation: With MRCOOL’s Pre-Charged Quick Connect Line Set, setting up the unit is fast and hassle-free—no professional tools required.

Line Set

  • Optimized System Performance: The advanced copper line set connects the MRCOOL Condenser to MRCOOL Air Handlers, enhancing performance for your Multi-Zone system. One line set per indoor unit ensures seamless operation.
  • Pre-Charged Convenience: Designed for simplicity, these line sets are pre-filled with R-410A refrigerant, making installation quick and hassle-free.
  • DIY and Cost Savings: Skip the expensive technician fees with our user-friendly design. Install confidently and save money without compromising quality.
  • Extended Flexibility: Need additional reach? Our coupler kit allows you to effortlessly connect two standard line sets, ensuring unlimited cooling and heating coverage.

ELECTRICAL REQUIREMENTS

  • Model: DIY-MULTI3-27HP230C DIY
  • Type: 27K BTU Condenser
  • BTU: 27,000 BTU
  • Power Supply: 208-230V/60 Hz/1ph
  • Minimum Circuit (Disconnect): 26.0 A
  • Maximum Fuse (Breaker): 40.0 A

SPECIFICATIONS & DIMENSIONS

  • Condenser
  • Product Dimensions: 37.24"W x 16.14"D x 31.89"H
  • Cooling Capacity: 27,000 BTU
  • Heating Capacity: 27,000 BTU
  • Zone Capacity: 3
  • Cool Mode - Outdoor Operating Temperature Range: 5F ~ 122F
  • Heat Mode - Outdoor Operating Temperature Range: -13F ~ 75.2F
  • SEER: 22
  • EER: 12
  • Voltage: Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
  • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
  • Air Handler 9K BTU
  • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
  • Mount Type: Ceiling Cassette
  • Cooling Capacity: 9,000 BTU
  • Heating Capacity: 9,000 BTU
  • Registered Warranty: 5 Years Parts
  • Modes: Auto - Auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
  • Air Handler 18K BTU
  • Product Dimensions: 50.31"W x 13.19"D x 8.98"H
  • Mount Type: Ceiling Cassette
  • Cooling Capacity: 17,000 BTU
  • Heating Capacity: 19,000 BTU
  • Registered Warranty: 5 Years Parts
  • Modes: Auto - Auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
  • Line Set
  • Length: 16 Feet
  • Liquid Line Size: 1/4"
  • Suction Line Size: 1/2"
  • Line Set
  • Length: 25 Feet
  • Liquid Line Size: 1/4"
  • Suction Line Size: 1/2"

WHAT'S INCLUDED

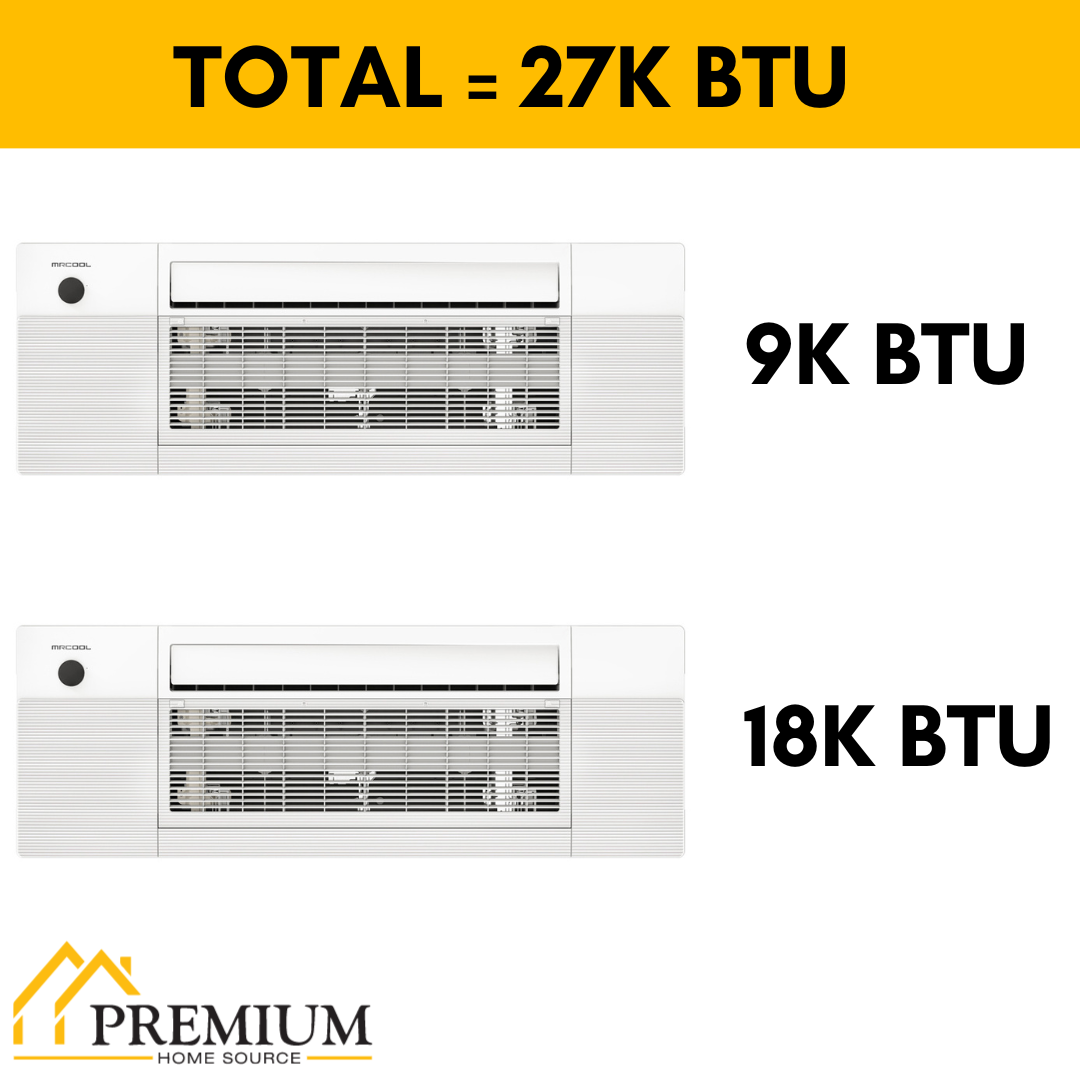

  • 1 x 27K BTU Condenser
  • 1 x 9K BTU Air Handler
  • 1 x 18K BTU Air Handler
  • 1 x 16 ft. 1/4 x 1/2 Line Set
  • 1 x 25 ft. 1/4 x 1/2 Line Set

INSTALLATION & GUIDES

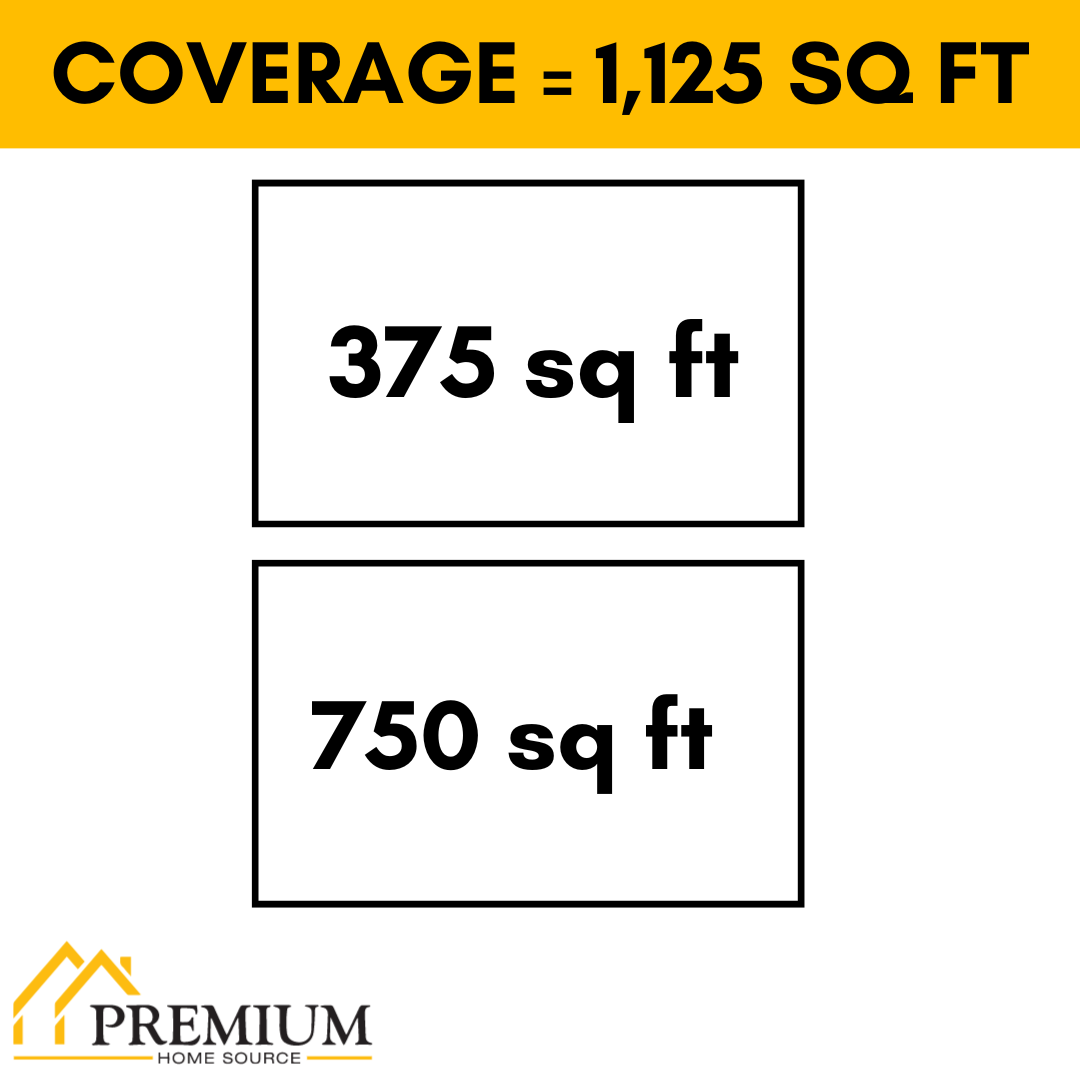

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
