MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPC00C13

Name: MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPC00C13
Brand: MRCOOL
SKU: DIYM227HPC00C13
Price: 4939.0 USD
Availability: InStock

5.0 6 reviews

Model: DIYM227HPC00C13

$4,939.00

$4,939.00 ~~$6,668.00~~

-26%

Shipping calculated at checkout.

Financing Options

Mount type: Ceiling

Wall
Ceiling

Line set length: 35 ft.

16 ft.
25 ft.
35 ft.
50 ft.

Product variants

Need different line set lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Jan 29 to Feb 04

$4,939.00

$4,939.00 ~~$6,668.00~~

Product Overview

Zones: 2
DIY Installation
Pre-Charged Line Sets
Voltage: 208-230V
Outdoor Operating Temp (Cool): 5°F to 122°F
Outdoor Operating Temp (Heat): -13°F to 75.2°F

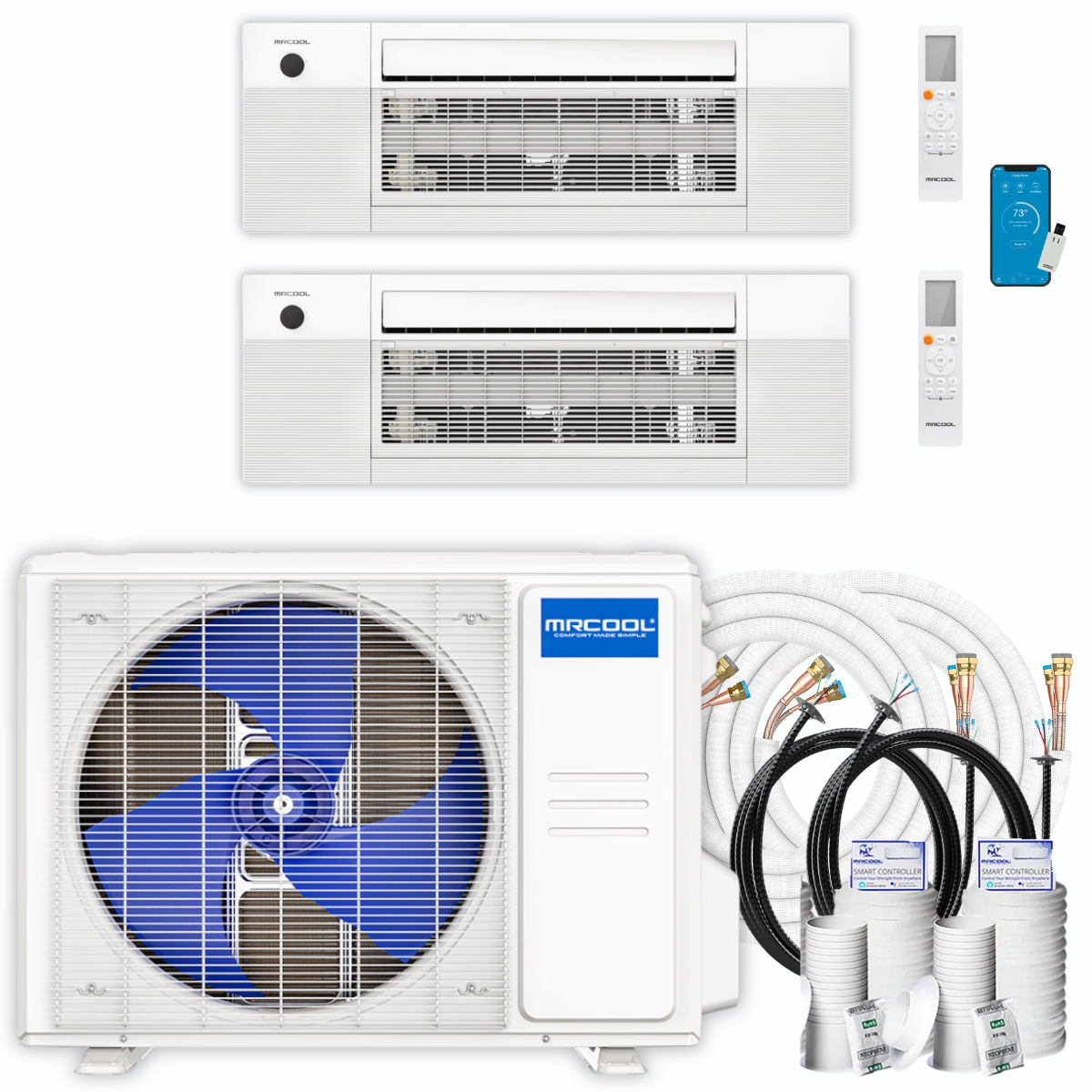

What's Included

1 x 27K BTU Condenser

Model: DIY-MULTI3-27HP230C
1 x 9K BTU Air Handler

Model: DIYCASSETTE09HP-230C25
1 x 12K BTU Air Handler

Model: DIYCASSETTE12HP-230C25
2 x 35 ft. 1/4 x 1/2 Line Sets

Model: DIY35-1412C

System also includes Communication Wires, Drain Hose Pipes, Wall Sleeves, Remote Controls and Wifi Dongles.

Better Together

System Details

DESCRIPTION

Step into the future of comfort with MRCOOL’s innovative 4th Gen DIY Mini Split, trusted by thousands of satisfied customers! Experience unmatched climate control across your rooms, all with effortless convenience. Perfect for your home, garage, workshop, and beyond. The best part? You can handle the installation yourself!

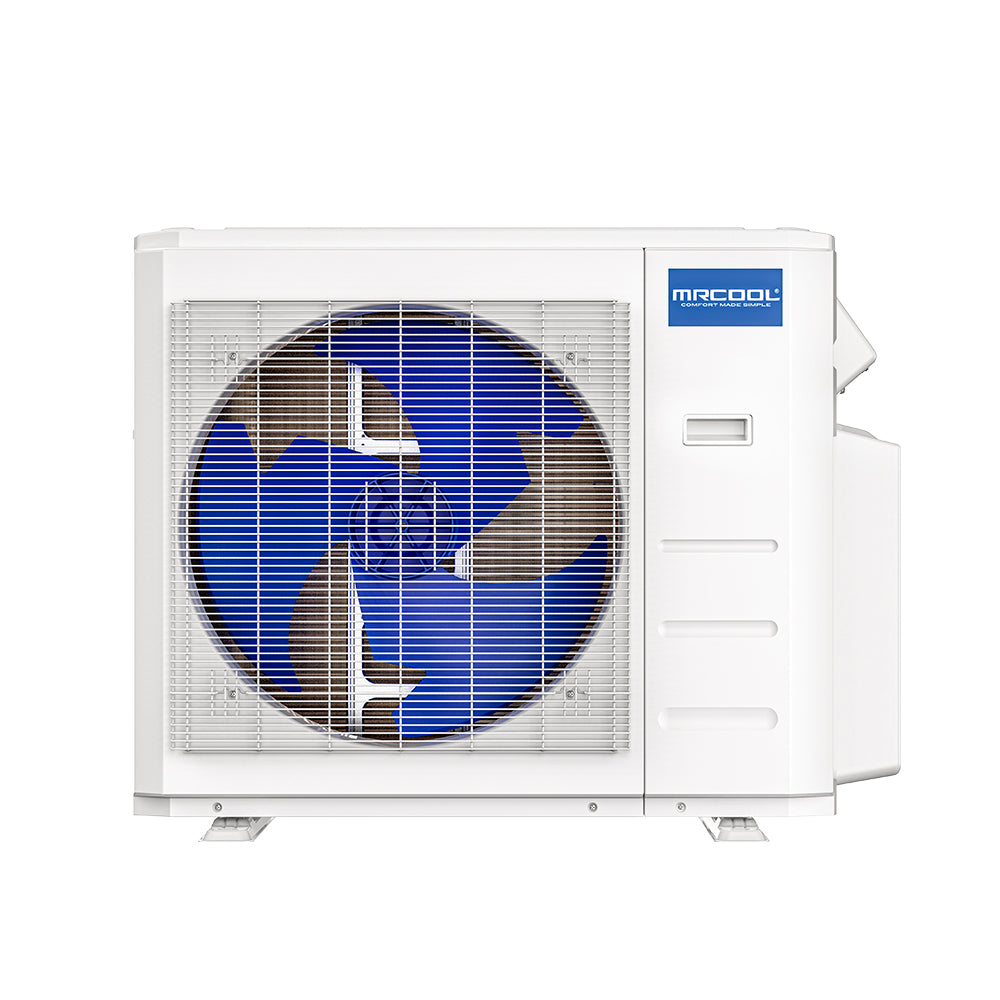

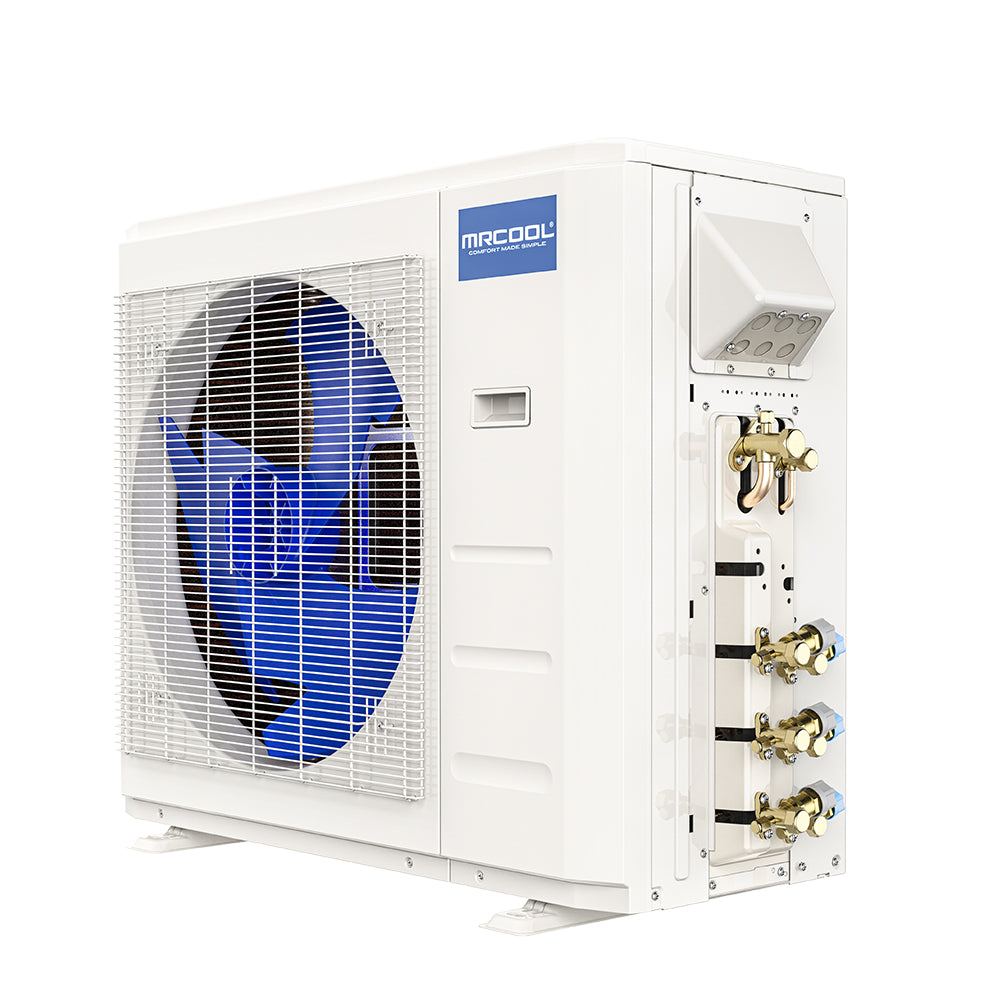

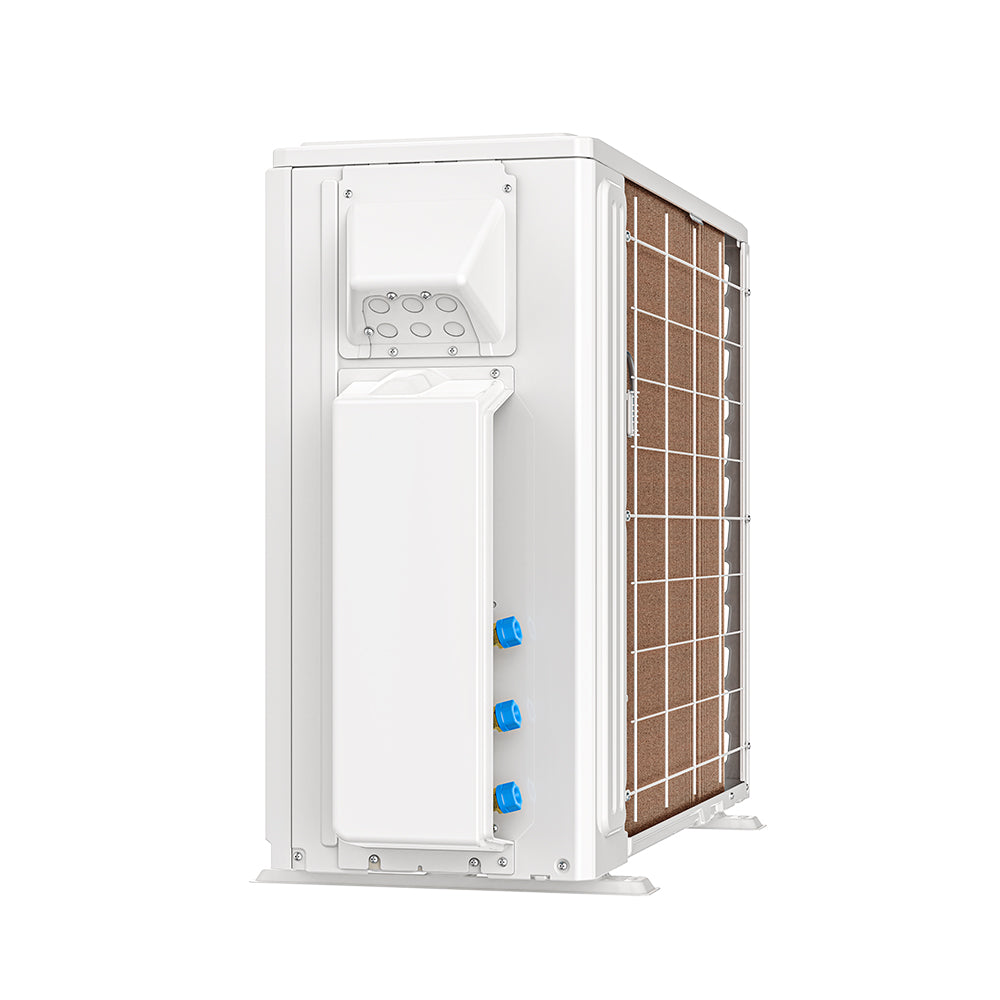

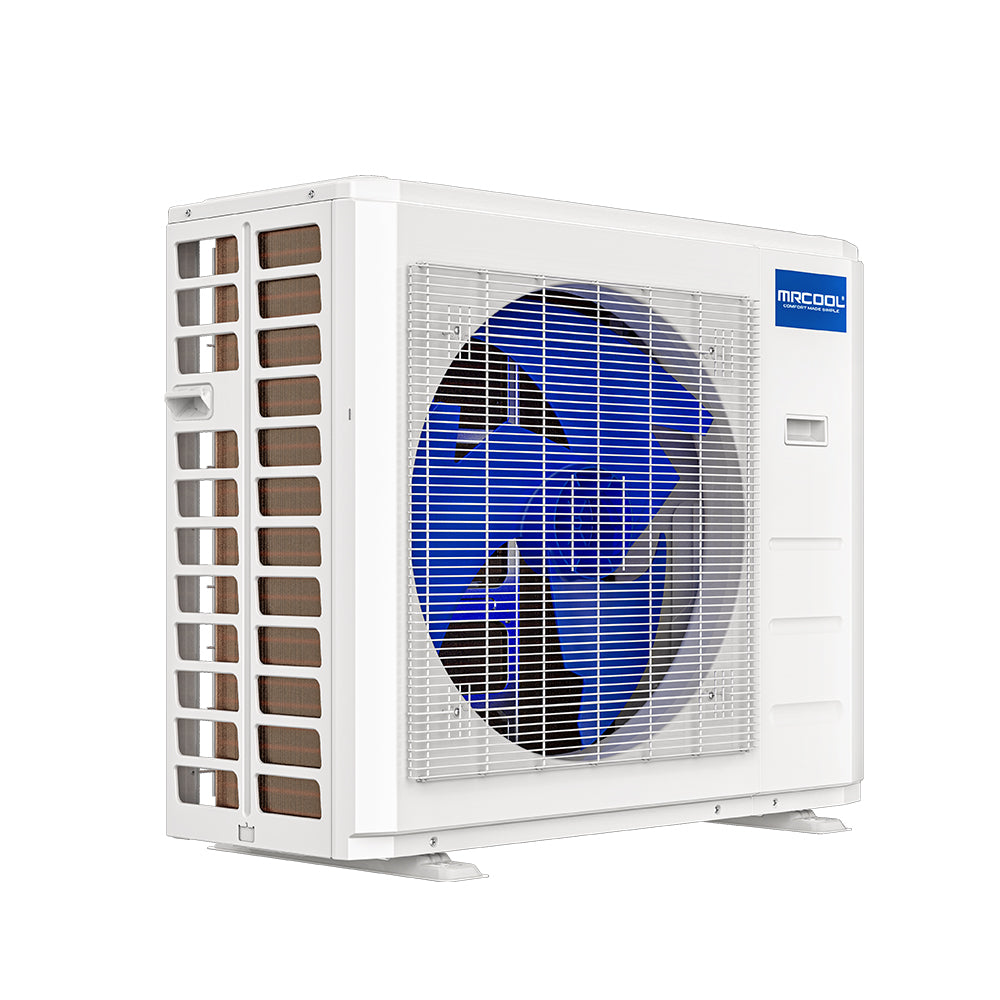

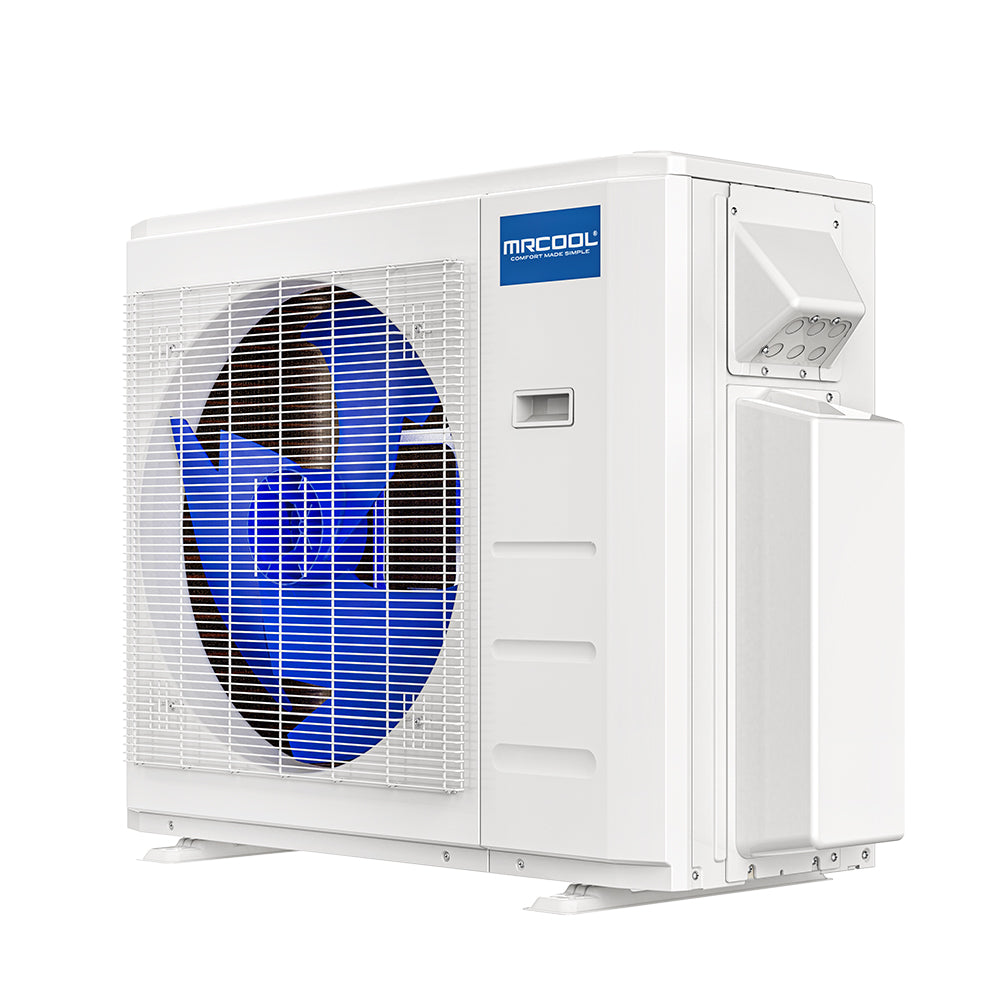

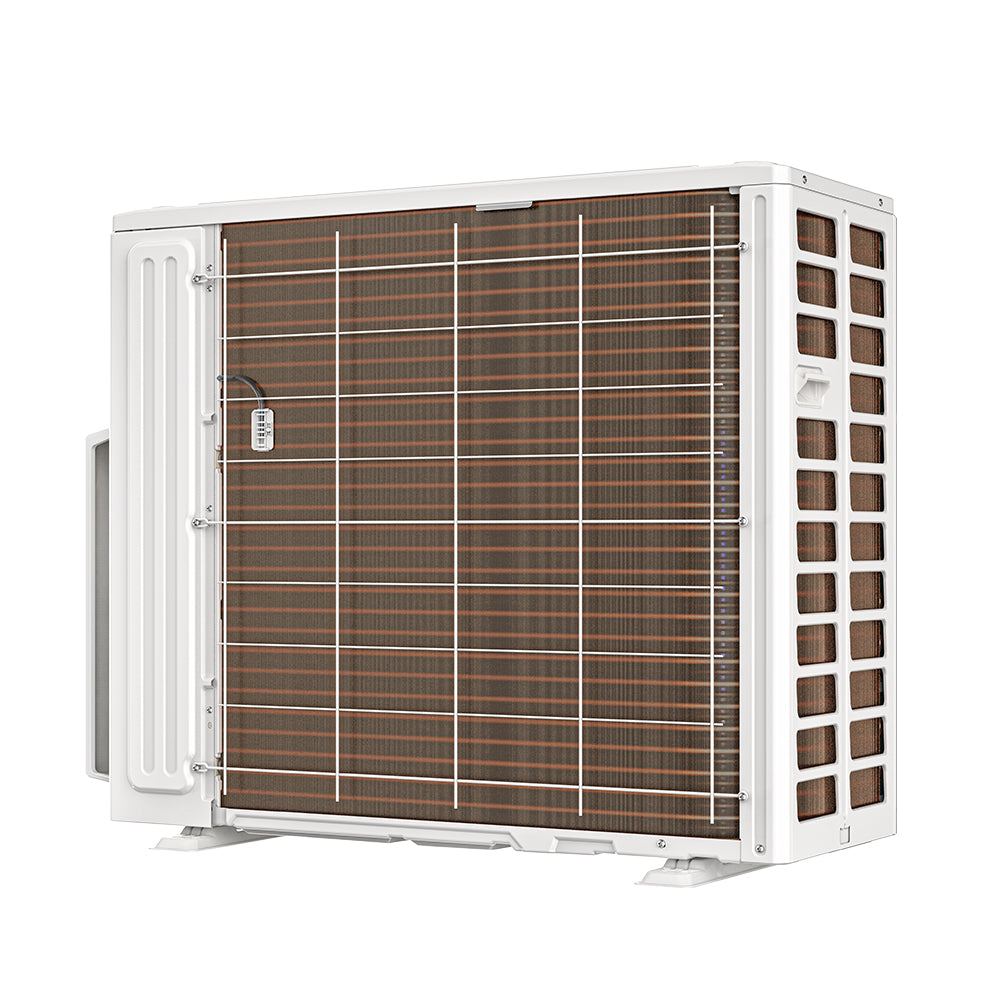

Condenser (27K BTU)

Innovative Installation: Get ready for an unparalleled installation experience with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, empowering you to install without needing a technician!
Durability Redefined: Protect against corrosion with the robust Gold Fin® condenser coating, specially designed for coastal areas.
Impressive Efficiency: Achieve incredible energy savings with a 22 SEER2 and 8.2 HSPF-5 rating.
Year-Round Performance: Enjoy reliable heating even in extreme cold, down to -13°F.
Peace of Mind: Benefit from a 7-year compressor warranty and a 5-year parts warranty.

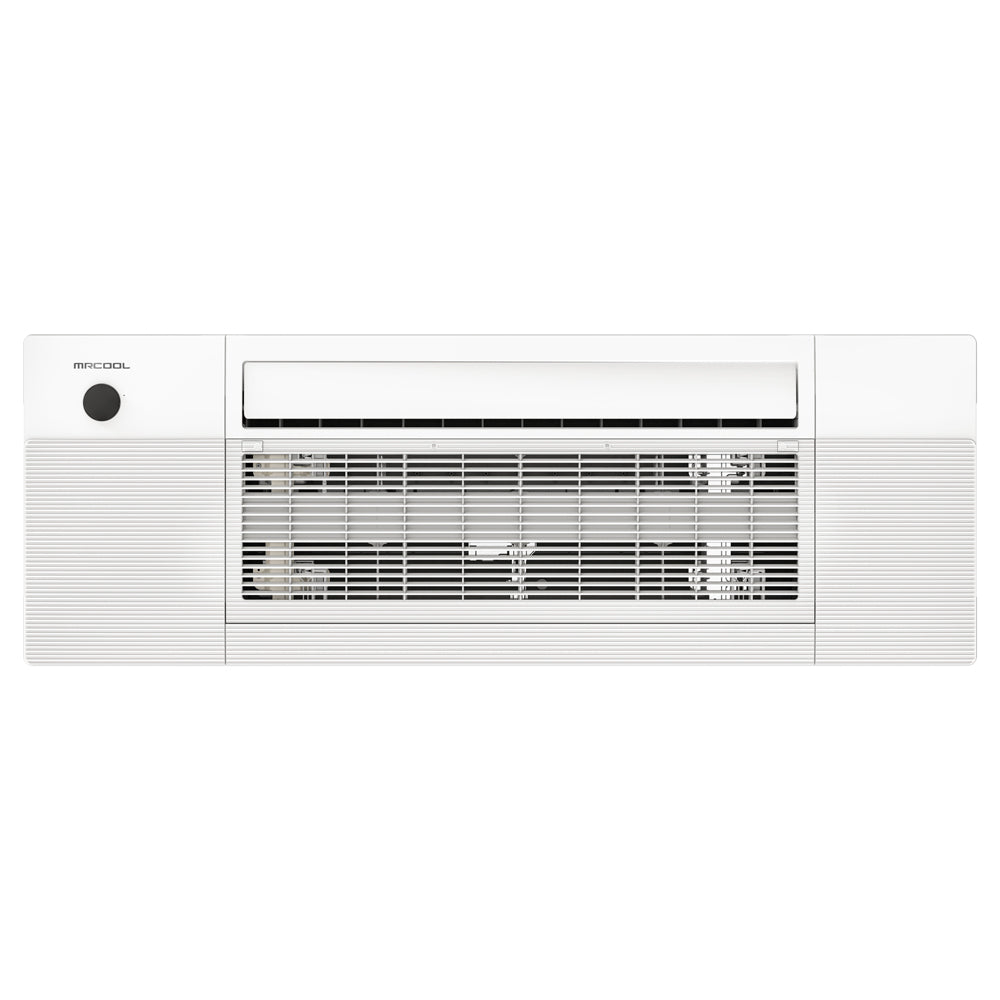

Air Handler (9K BTU)

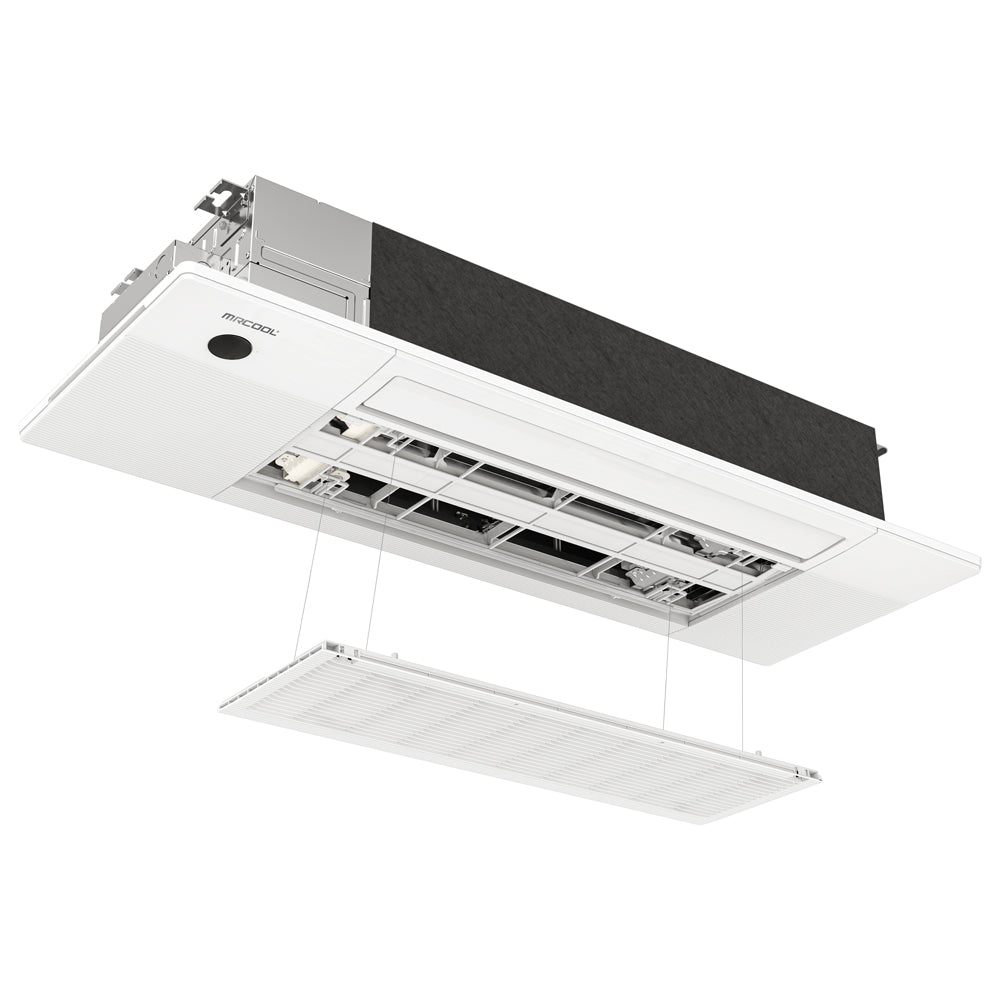

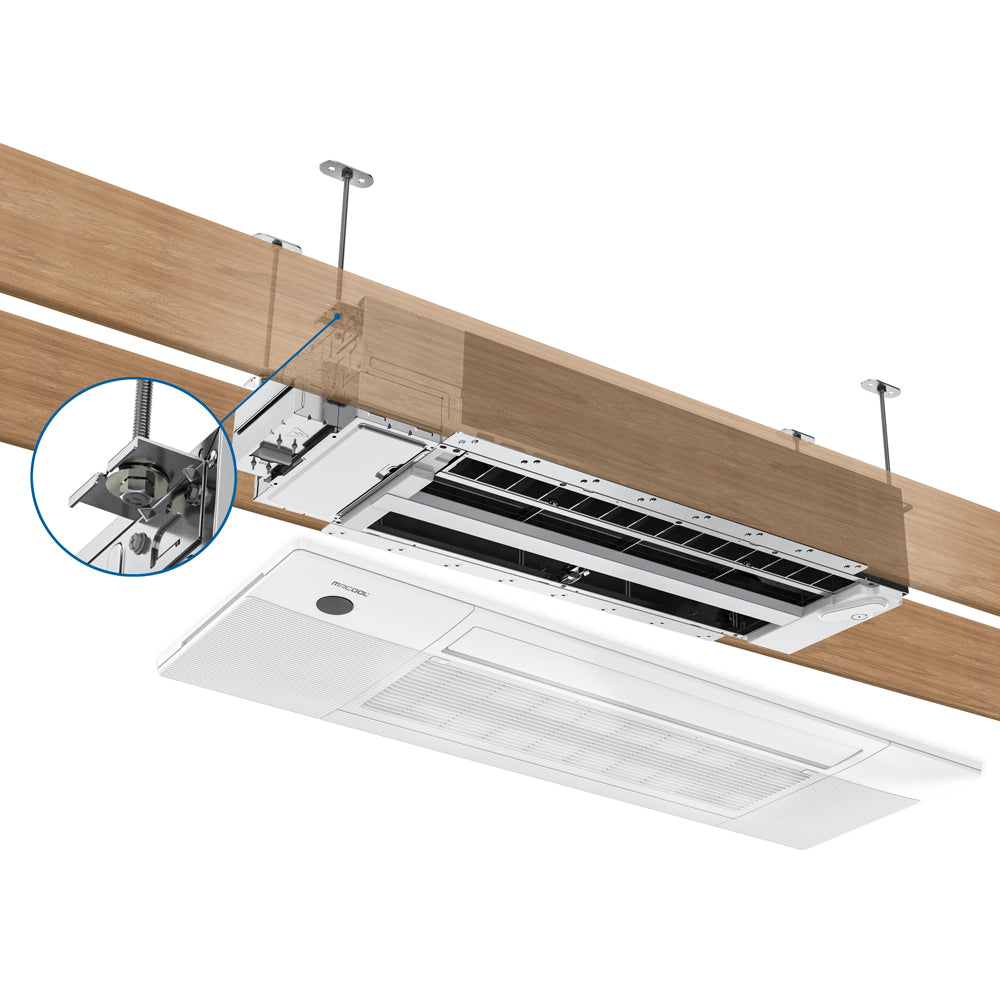

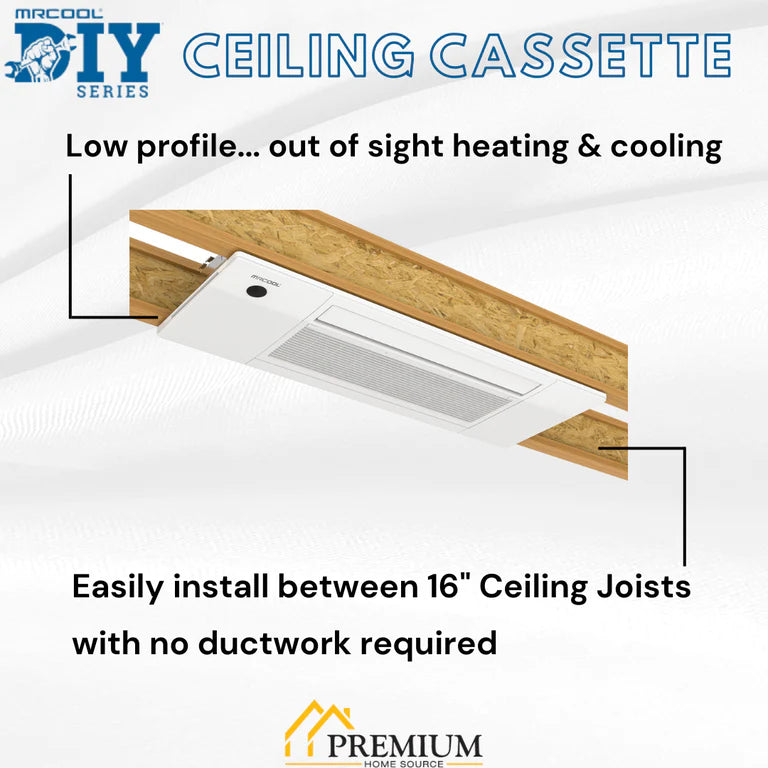

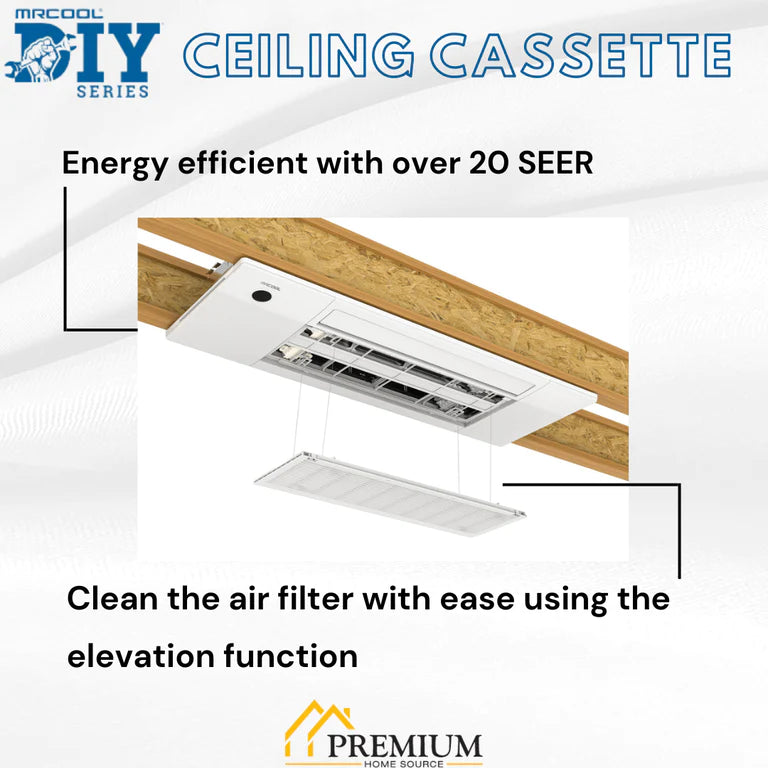

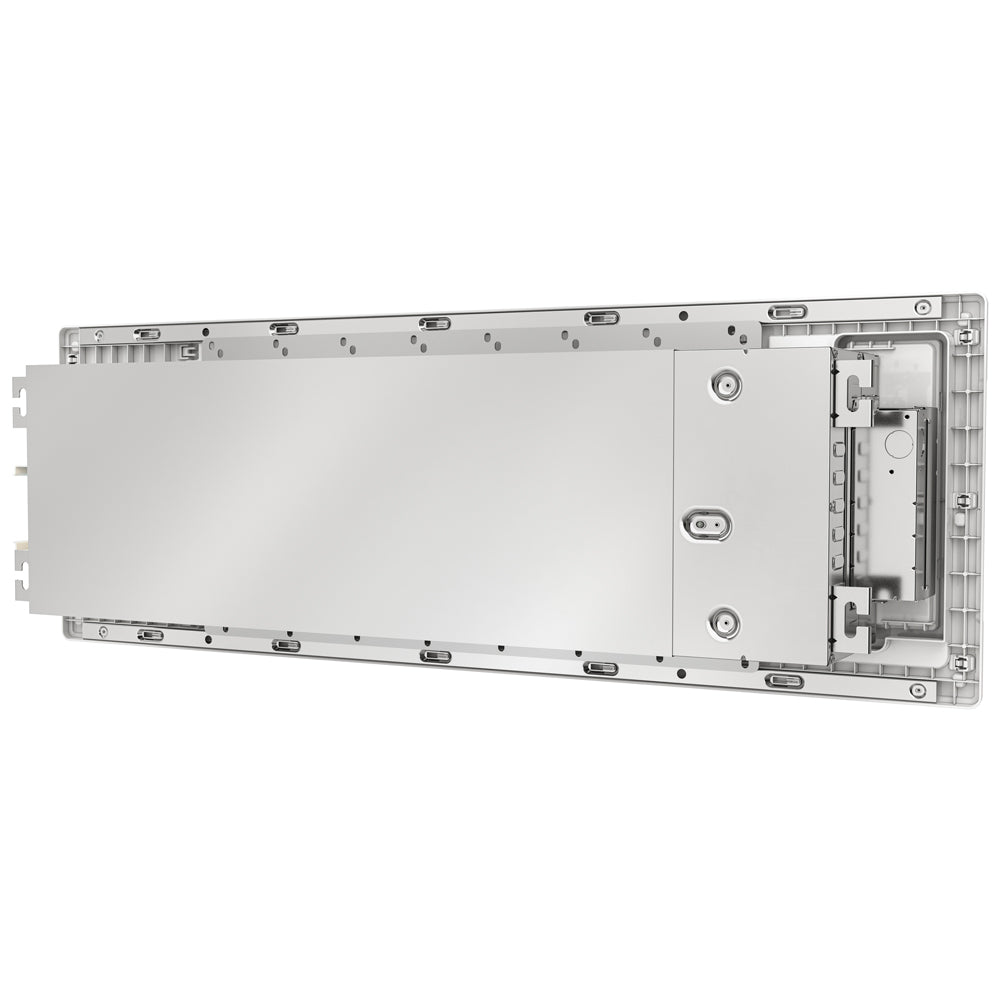

Compact Ceiling Installation: The MRCOOL DIY Series OuttaSight 9k BTU Ceiling Cassette fits seamlessly between 16” ceiling joists, delivering a sleek and space-saving installation.
Multi-Zone Compatibility: Designed to integrate with the DIY 4th gen MZ system, it enables multi-zone configurations and eliminates the need for ductwork.
Ideal Coverage Area: Perfect for spaces ranging from 180 to 375 square feet, making it suitable for both small and medium-sized rooms.
Remote Control Access: Enjoy effortless control with SmartHVAC app compatibility, enabling management from anywhere via a smartphone or tablet.
Effortless Installation: Simplify setup with MRCOOL’s Pre-Charged Quick Connect Line Set—no vacuuming or special tools needed.

Air Handler (12K BTU)

Compact Ceiling Installation: The MRCOOL DIY Series OuttaSight 12k BTU Ceiling Cassette fits easily between 16” ceiling joists for a modern, low-profile look.
Multi-Zone Compatibility: Operates smoothly with the DIY 4th gen MZ system to support multi-zone configurations and remove the need for ductwork.
Ideal Coverage Area: Designed to efficiently heat or cool spaces between 376 and 500 square feet.
Remote Control Access: Gain full control of your unit with the SmartHVAC app, providing convenience from virtually anywhere.
Effortless Installation: Installation is a breeze with MRCOOL’s Pre-Charged Quick Connect Line Set, allowing a fast and simple setup process.

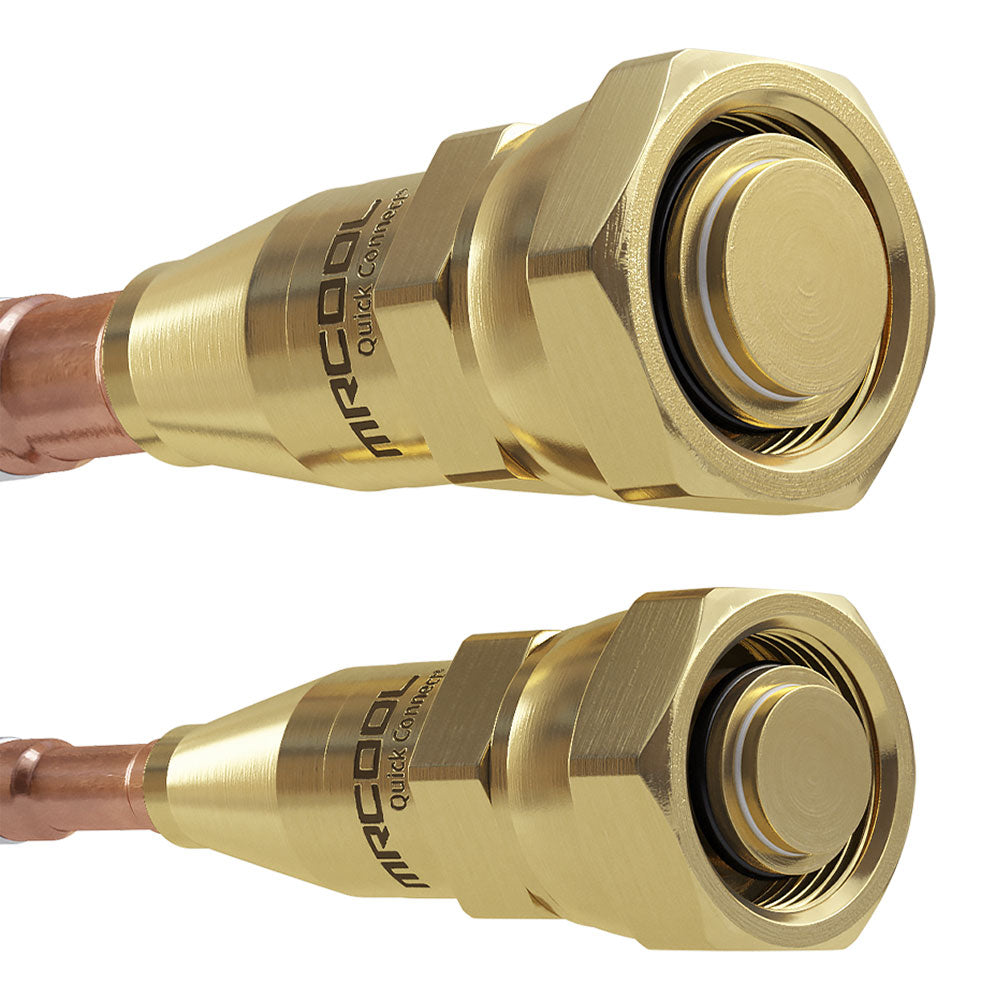

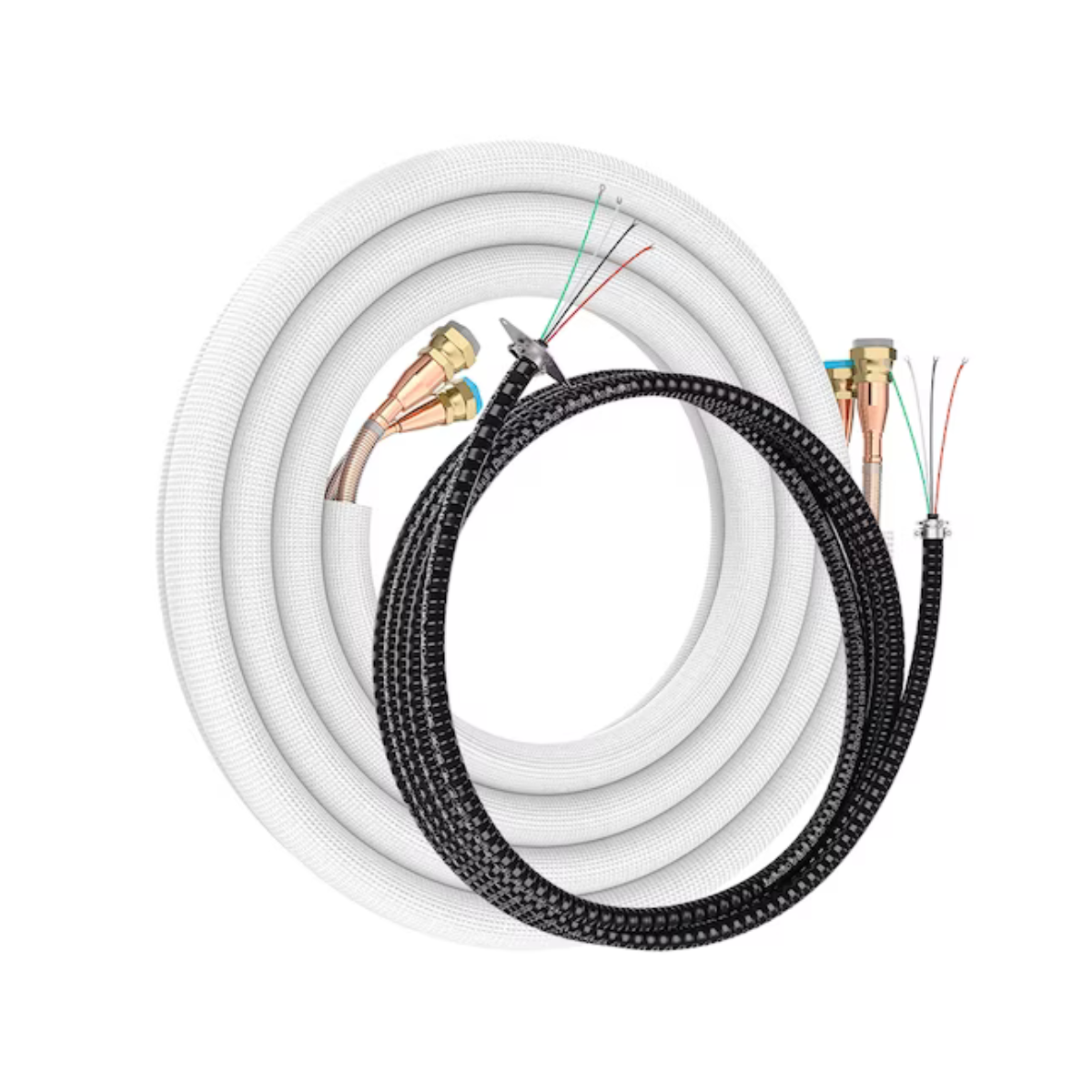

Line Set

Optimized System Performance: The advanced copper line set connects the MRCOOL Condenser to MRCOOL Air Handlers, enhancing performance for your Multi-Zone system. One line set per indoor unit ensures seamless operation.
Pre-Charged Convenience: Designed for simplicity, these line sets are pre-filled with R-410A refrigerant, making installation quick and hassle-free.
DIY and Cost Savings: Skip the expensive technician fees with our user-friendly design. Install confidently and save money without compromising quality.
Extended Flexibility: Need additional reach? Our coupler kit allows you to effortlessly connect two standard line sets, ensuring unlimited cooling and heating coverage.

ELECTRICAL REQUIREMENTS

Model: DIY-MULTI3-27HP230C DIY
Type: 27K BTU Condenser
BTU: 27,000 BTU
Power Supply: 208-230V/60 Hz/1ph
Minimum Circuit (Disconnect): 26.0 A
Maximum Fuse (Breaker): 40.0 A

SPECIFICATIONS & DIMENSIONS

Condenser
Product Dimensions: 37.24"W x 16.14"D x 31.89"H
Cooling Capacity: 27,000 BTU
Heating Capacity: 27,000 BTU
Zone Capacity: 3
Cool Mode - Outdoor Operating Temperature Range: 5°F ~ 122°F
Heat Mode - Outdoor Operating Temperature Range: -13°F ~ 75.2°F
SEER2: 22
EER2: 12
HSPF2: 9.5
Voltage: Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
Air Handler 9K BTU
Product Dimensions: 50.31"W x 13.19"D x 8.98"H
Mount Type: Ceiling Cassette
Cooling Capacity: 9,000 BTU
Heating Capacity: 9,000 BTU
Registered Warranty: 5 Years Parts
Modes: Auto (Auto selects Cool, Heat or Fan-Only) // Cool // Heat // Dry // Fan Only // Sleep
Air Handler 12K BTU
Product Dimensions: 50.31"W x 13.19"D x 8.98"H
Mount Type: Ceiling Cassette
Cooling Capacity: 12,000 BTU
Heating Capacity: 12,000 BTU
Registered Warranty: 5 Years Parts
Modes: Auto (Auto selects Cool, Heat or Fan-Only) // Cool // Heat // Dry // Fan Only // Sleep
Line Set
Length: 35 Feet
Liquid Line Size: 1/4"
Suction Line Size: 1/2"

WHAT'S INCLUDED

1 x 27K BTU Condenser
1 x 9K BTU Air Handler
1 x 12K BTU Air Handler
2 x 35 ft. 1/4 x 1/2 Line Set

INSTALLATION & GUIDES

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU	Square Feet
9,000 BTU	180 - 375 Sq Ft.
12,000 BTU	376 - 500 Sq Ft.
18,000 BTU	501 - 750 Sq Ft.
24,000 BTU	751 - 1,000 Sq Ft.
36,000 BTU	1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
