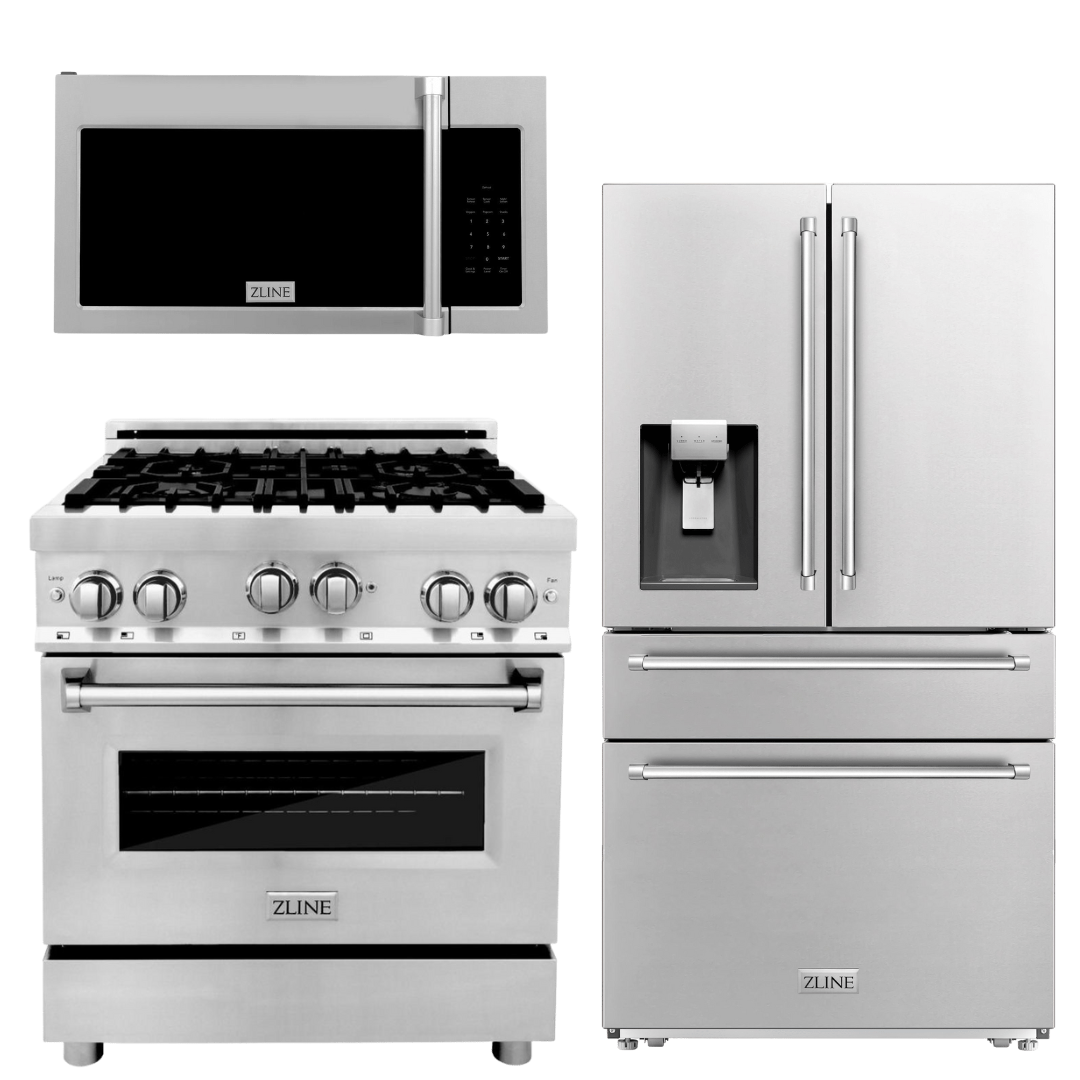

  3. ZLINE Appliance Package - 30 In. Dual Fuel Range, Refrigerator with Water and Ice Dispenser, Over the Range Microwave, 3KPRW-RAOTRH30

ZLINE Appliance Package - 30 In. Dual Fuel Range, Refrigerator with Water and Ice Dispenser, Over the Range Microwave, 3KPRW-RAOTRH30

5.0 1 reviews
Model: 3KPRW-RAOTRH30
$6,929.87
$6,929.87 $7,629.85
-9%
Shipping calculated at checkout.

Buy Now, Pay Later

Fuel type: Dual Fuel
Refrigerator type: External Water & Ice Dispenser
External Water & Ice Dispenser
Ice Maker
External Water & Ice Dispenser
Color: Stainless Steel

This item is in stock! Estimated Arrival: May 23 to May 30

$6,929.87
$6,929.87 $7,629.85

What's in the Package

Product Overview

  • Appliances: 3

  • Fuel Type: Dual Fuel

  • Gas Type: Natural Gas

  • LP Convertible

  • Ice Maker

  • Water Dispenser

Package Information

Range

ZLINE Kitchens's Premium 30" Range is complete with a 4 burner gas cooktop for energy-efficiency, temperature control, and easy even-cooking. The 4.0 cu.ft. of deep oven capacity provides a large cooking area that's perfect for multiple dishes at once and easily handles large baking sheets, like a 14" pizza.

THREE-LAYER GLASS OVEN

  • An oven with three layers of glass and dual lighting.
  • Professional aluminum mesh seal for optimum insulation.
  • Oven light controlled by a light switch located on the front control panel.
  • Crystal clear visibility to see inside your oven while cooking.

STAY-PUT HINGES

  • ZLINE Kitchens's proprietary stay-put hinges.
  • Designed to support the full weight of oven door and stop at any place.
  • Durable and effective, with a smooth action.

PORCELAIN COOKTOP

  • Heavy Duty Italian made porcelain one-piece cooktop.
  • 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
  • One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
  • No-scratch porcelain designed to handle every cooking environment.

CAST IRON GRILL

  • Solid-piece cast iron grill - heavy duty and built to last.
  • Extremely durable, with an exceptional strength-to-weight ratio.

ITALIAN BURNERS

  • Handcrafted, high-quality Italian burners imported directly from Italy.
  • Premium alloy to ensure efficient and clean-burning flames.
  • Durable and easy to clean. Italian burners easily detach for a simple clean.

STAINLESS STEEL KNOBS

  • Heavy duty stainless steel knob controls with smooth action turn.
  • 5 oven settings.

ADJUSTABLE LEGS

  • ZLINE ranges feature stainless steel, easy-to-install adjustable legs
  • Twist legs to adjust total range height anywhere from 36" to 38.5"

OVEN FUNCTIONS

  • High Bake
  • Low Bake
  • Broil
  • Convection Bake
  • Convection Broil

Convection Fan can be turned on or off by the oven knobs.

Note: ZLINE Range does not come with a wok ring (pictures to be updated).

Appliance Academy - Learn More:

  • Dimensions: 30" W x 27.38" (29" w/handle) D x 36"H
  • Oven Dimension: 26.5" W x 18.5" D x 14" H
  • Lighting: Dual Lighting, controlled by a light switch on the front control panel
  • Voltage: *Requires a minimum of 220V-240V/60HZ/20-50A (please check your kitchen meets this electrical requirement prior to purchase) // NEMA-14-50 4 wire plug system
  • Mount Type: Free Standing
  • Control Type: Durable Front Control
  • Material: - Stainless Steel frame with 1 Piece porcelain Top // - Italian made hinges and burners
  • Warranty: 1 Year Full Warranty
  • Certifications: ETL Certified
  • Product Weight: 230 lbs
  • Cooktop: - Cooktop: (4) Burners with porcelain Cook Top with electronic spark ignition for all burners // - Type: Gas or Propane // - This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included.
  • Oven: - Convection Electric // - 4.0 cu.ft. deep oven // - Triple Glass Window // - Dual Lighting // - Professional Aluminum mesh Seal
  • BTU Ratings: - Dual Burner - 18,000 BTU // - Rapid Burner - 13,000 BTU // - Semi-Rapid Burner - 8,500 BTU // - Auxiliary Burner - 4,200 BTU
  • Fuel Type: - Cooktop: Gas or Propane // - Oven: Convection Electric
  • UPC: 817299023470
INSTALLATION INSTRUCTIONS

Refrigerator

This ZLINE Professional 36" 21.6 cu. ft Freestanding French Door Refrigerator, crafted in Lake Tahoe, USA, combines top-tier performance with classic design. This refrigerator is packed with innovative features to enhance your kitchen experience, making it the perfect blend of style and functionality.

  • External Water Dispenser and Ice Maker: Delivers fresh, filtered water discreetly within the refrigerator and up to 4 lbs of ice per day with an automatic ice maker in the freezer
  • Spacious Interior: With a generous 21.6 cu. ft. capacity and two large freezer drawers, you’ll have plenty of space to keep your groceries organized and within reach.
  • Counter Depth Design: Achieve a sleek, modern kitchen look with a fridge that fits perfectly flush with your countertops.
  • Customizable Temperature Control: Adjust the refrigerator temperature between 34°F to 44°F and freezer settings from -7°F to 7°F, ensuring your food is stored in the ideal environment.
  • RapidChill Mode: Need to cool something quickly? Use the RapidChill mode to save time and keep your food fresh.
  • Digital ChillControl: Easily manage temperatures and switch between modes—vacation, sabbath, or eco—using the intuitive LED display.
  • CrispControl Drawer: Keep fruits and vegetables fresh longer with two adjustable temperature crisper drawers.
  • Dual Cooling System: Separate cooling systems for the refrigerator and freezer ensure optimal freshness and prevent odors from mixing.
  • Fingerprint-Resistant Finish: Keep your fridge looking spotless with our smudge-proof, fingerprint-resistant stainless steel finish.
  • Energy Efficient: ENERGY STAR rated for superior insulation and an energy-reducing cooling system, combining power with savings.

*Assembly Required: This refrigerator and its door handles will ship in multiple boxes and requires assembly upon installation.

  • Dimensions: 35.8" W x 29" D x 69.9" H
  • Depth With Door Open: 43.2"
  • Depth Type: Counter Depth
  • Door Style: French Door
  • Capacity: Total Capacity - 21.6 cu. ft. // Fridge Capacity - 15 cu. ft. // Freezer Capacity - 6.6 cu. ft.
  • Number of Fridge Shelves: 4
  • Electrical Requirements: 120V/60Hz/15A
  • Noise Level: 43 dBA
  • Ice Maker: Yes - External
  • Ice Maker Type: Dual Automatic
  • Ice Amount per Day (lbs.): 5 lbs
  • Ice Tray Storage: 4 lbs
  • Water Dispenser: Yes - External
  • Replacement Filter Model Number: RFM-W-FILTER
  • Certifications: UL Listed, ENERGY STAR Certified
  • Warranty: 1 year parts and service and 5 year parts on sealed system, including compressor, evaporator coil, condenser coil, filter drier

User Manual
Installation Manual

Microwave

The ZLINE Over the Range Convection Microwave Oven in Stainless Steel with Traditional Handle and Sensor Cooking provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

Features:
  • 2-Speed Powerful Ventilation - Enjoy up to a 300 CFM air flow that effectively removes unwanted smoke and grease from your kitchen - configurable for either recirculating or external ducting
  • Convection and Microwave Modes - Select from a variety of convection and microwave cooking settings to provide optimal dish results
  • One-Touch Cooking - Easy One-Touch controls allow you to quickly heat your favorite snacks and dishes
  • DiamondTech Interior - A unique stainless steel interior is engineered to scatter microwaves to ensure even cooking and prevent any cold spots
  • Cooktop Lighting - Easily illuminate your cooking space with 2 built-in lights
  • Glass Turntable - Durable glass turntable provides an even heat distribution with every use
  • Convection Rack - Achieve maximum convection performance with an included microwave rack designed to provide golden-brown results
  • Convertible Microwave - Convert to ductless or recirculating with charcoal filters (sold separately, model #MWO-CF) engineered to filter out harmful odors
  • Stainless Steel Finish - Brushed 430-grade stainless steel exterior provides an easy clean-up and a timeless look in your kitchen
  • Manufacturer Warranty: 2 year parts warranty
  • Electrical Requirement: 120-Volt/60 Hz
  • Brand: ZLINE Kitchen and Bath
  • Dimension: 30" W x 15" D x 16.4" H
  • Voltage: 120V/60HZ
  • Oven Capacity: 4.2 Cu. Ft.
  • Noise Level: 46 Db
  • Motor: 900W
  • Control Type: Touch Screen
  • Airflow: 2 Speed Fan Up to 300 CFM
  • Lights: 2 LED Lights (1.2W)
  • Warranty: 2 Year Parts Warranty
  • Fuel Type: Electric
  • Certifications: UL Listed and ETL Listed

Installation Instructions

ABOUT ZLINE: ZLINE has been in business for over a decade because of their great customers who have come to depend on what they provide best such as service, quality, and value. Attention to what customers want is a high priority and they make sure they achieve it. Unbeatable prices, solid top performance, and exceptional support. ZLINE has put a lot of thought into engineering and designing stylish, top-quality, solid products for all of your kitchen needs. Their products are rigorously tested and homeowner approved. They feature some of the most powerful Range Hoods and Ranges in the industry – designed for all types of household applications. ZLINE products have proven themselves over the test of time and they are one of the most reliable leaders in their field.
When you buy any of our ZLINE Kitchen products online from Premium Home Source, we make it as easy as possible for you to find out when your product will be delivered. Should you have any questions about your purchase or any other product we offer, our customer service representatives are available to help. Whether you just want to buy a ZLINE Gas Range, a Range Hood or any of our products, we are here to help.

Better Together

Accessories

Shipping & Returns

SHIPPING POLICY

Free Curbside Delivery
ZLINE orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

ZLINE returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a 15% restocking fee will be applied to all approved returns.

See our full Return Policy here.
