ZLINE 46 in. 700 CFM DuraMount™ Wall Mount Range Hood Insert in Stainless Steel, 683-46

Brand: ZLINE
Model: 683-46

NEW

$1,099.99
$1,099.99 $1,299.00
You save $199.01
Shipping calculated at checkout.

Payment Plans Available

Size: 46"
In Stock
Delivers Jul 15-22 (Est.)
Free Curbside Shipping
Curbside shipping means your order will be delivered to the curb or driveway outside your home. The driver will not bring it inside or set it up. Please arrange for help if needed!
$1,099.99
$1,099.99 $1,299.00
Ask about this product Get an answer with Appliance AI™
AI-generated from product data and store information. Responses may not always be accurate. For any clarifications, talk to our team.

Product Overview

  • Max CFM: 700

  • Ducted Range Hood

  • Voltage: 110V

What's Included

BETTER TOGETHER

DESCRIPTION

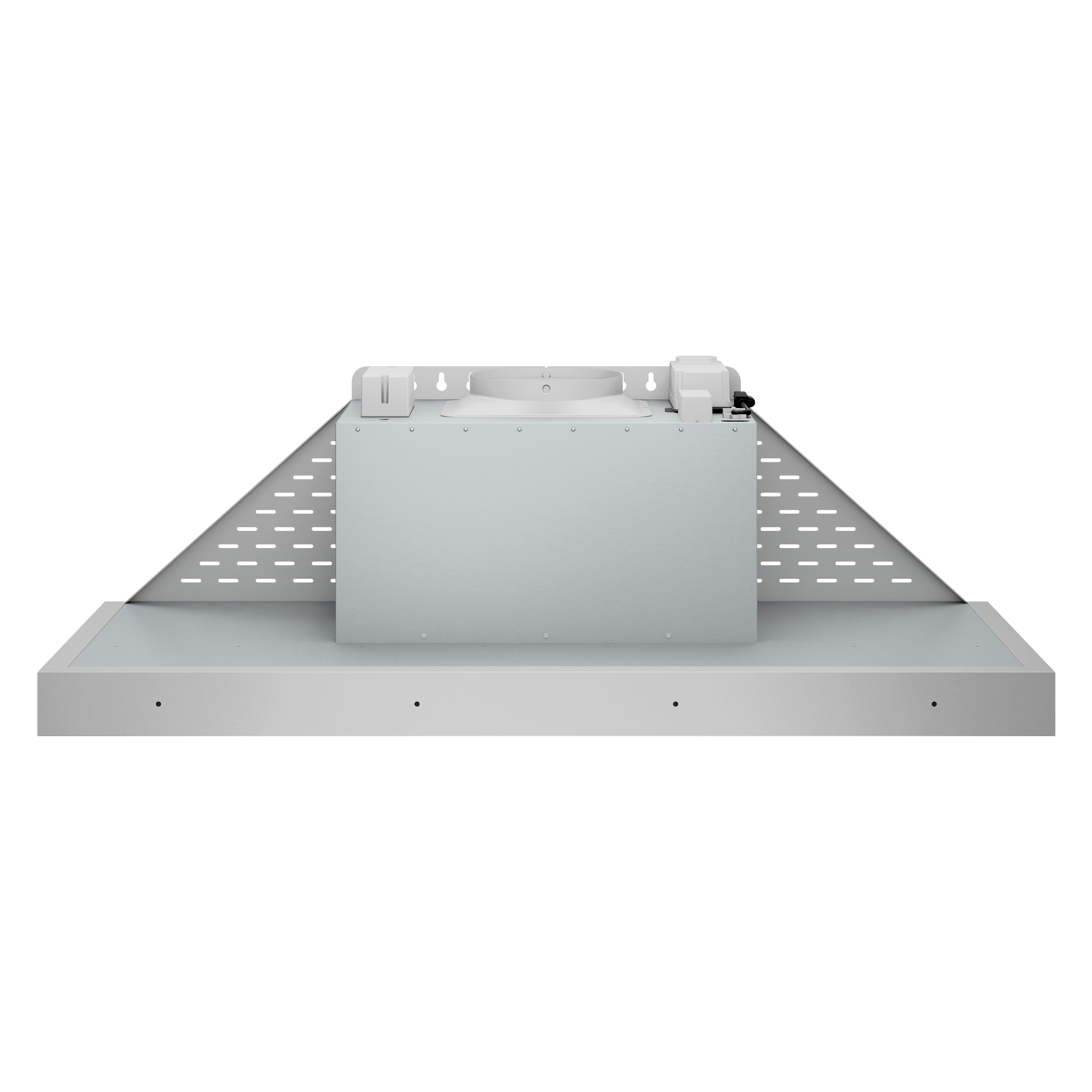

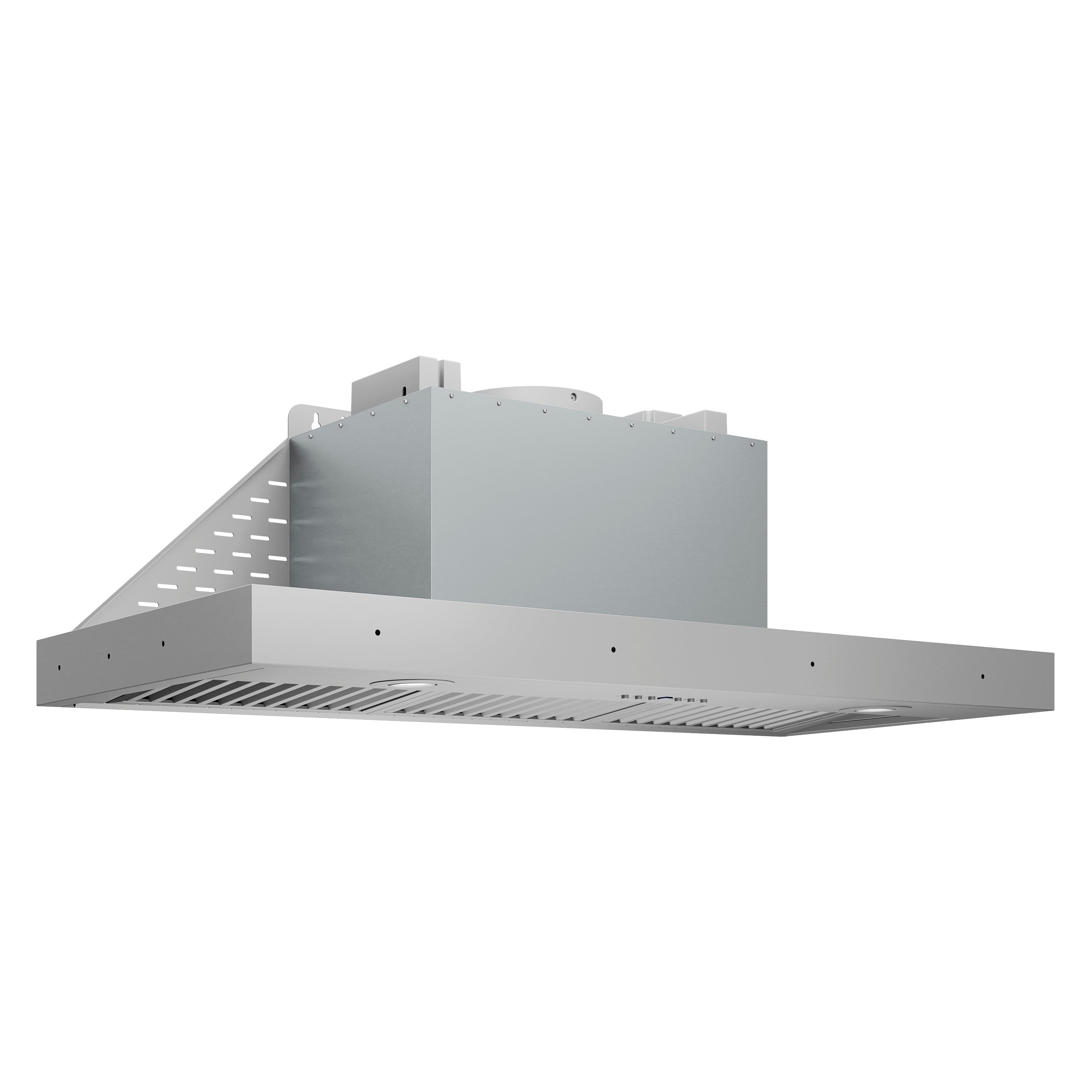

The ZLINE 46 in. DuraMount™ Wall Mount Range Hood Insert in Stainless Steel (683-46) combines powerful ventilation with a patented mounting design that brings attainable luxury to any custom kitchen layout. Featuring reinforced triangle supports with staggered, overlapping mounting points, DuraMount™ is purposefully designed to hit studs in standard 16-inch spacing, ensuring a stud-stabilized fit every time—without additional bracing—that delivers precision-engineered alignment and professional performance designed for real homes.

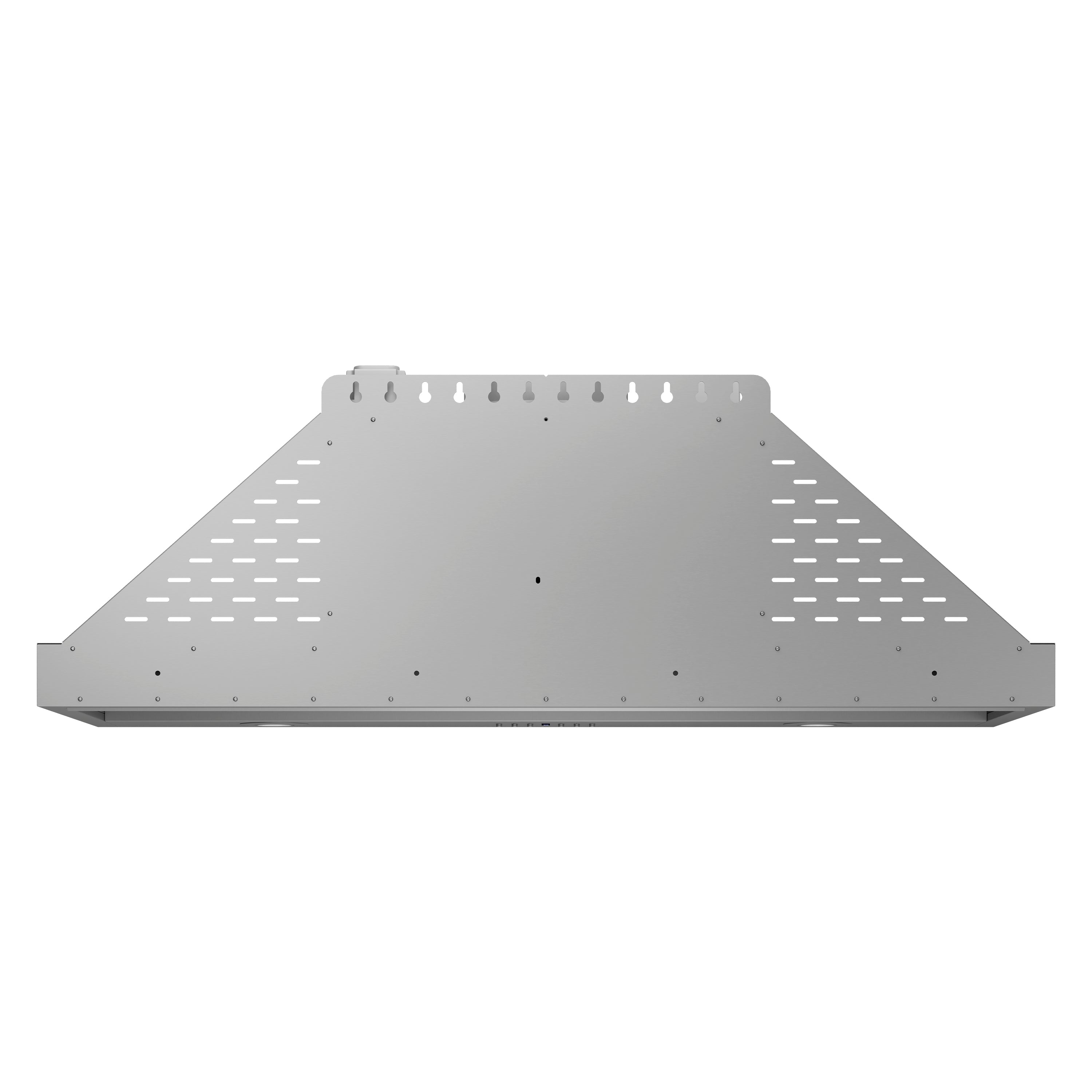

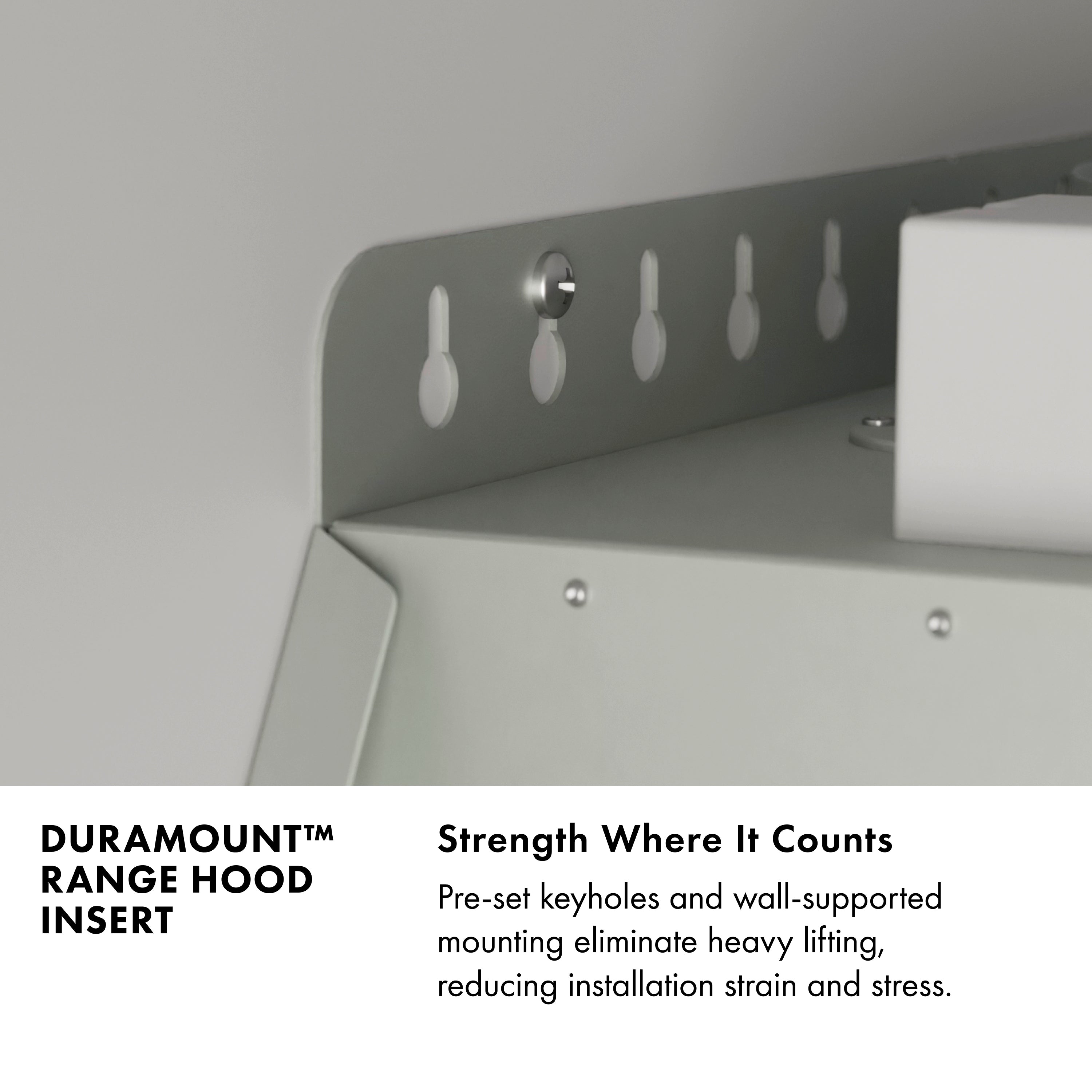

  • Patented Mounting Design: Mounting screws are leveled first, then the insert hangs directly onto pre-set keyholes, reducing the need for heavy lifting and enabling a straightforward installation process
  • Multi-Point Flexibility: Designed for a 48-inch custom hood, a multi-point perimeter keyhole pattern offers numerous options, making it easy to fasten to studs or anchors without complex modifications or additional bracing
  • Two Decades of Trusted Power: Built on 20 years of ZLINE engineering expertise, the 683-46 DuraMount™ insert features dual high-velocity motors backed by the industry’s first-ever lifetime motor warranty guarantee, bringing a new level of proven performance to custom kitchen ventilation

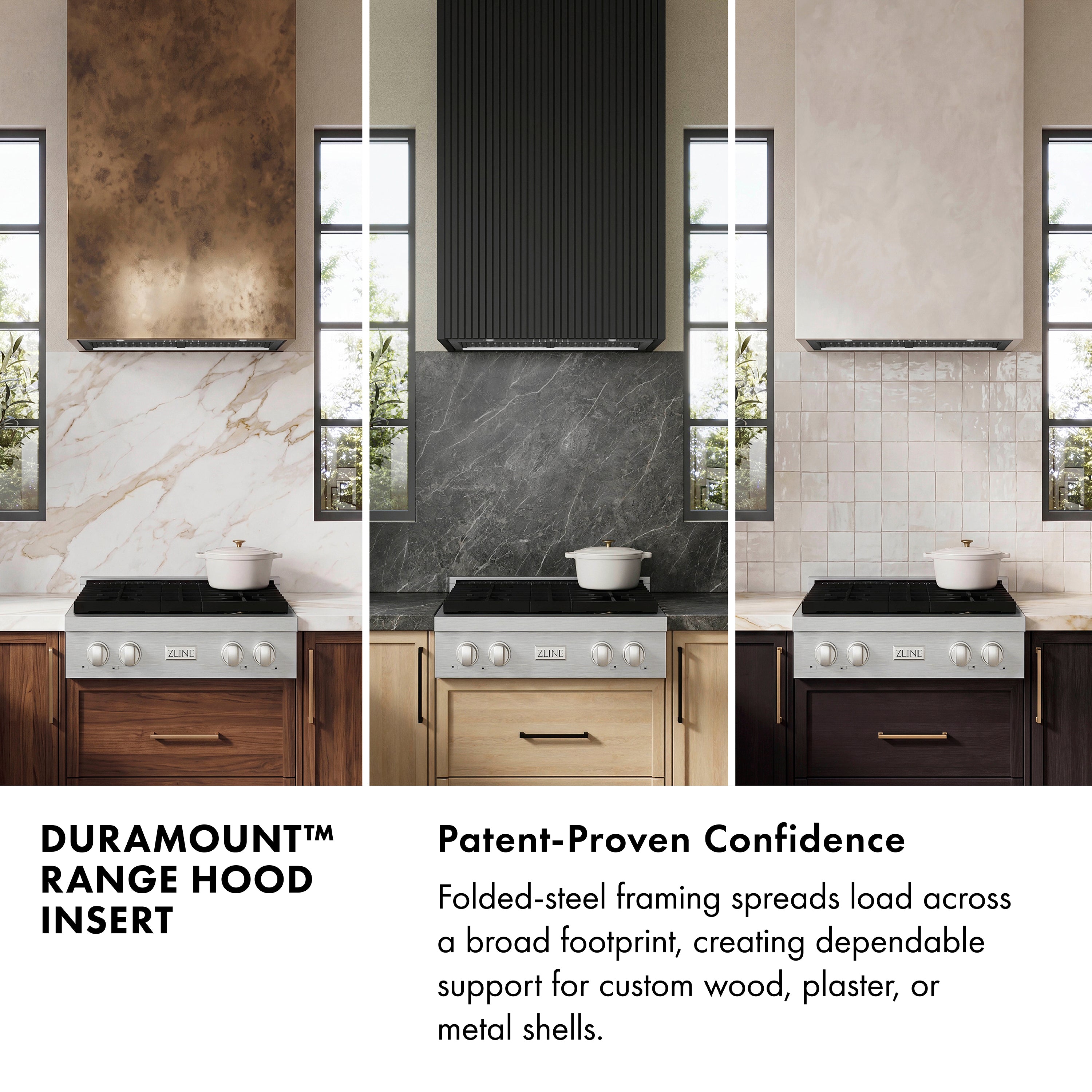

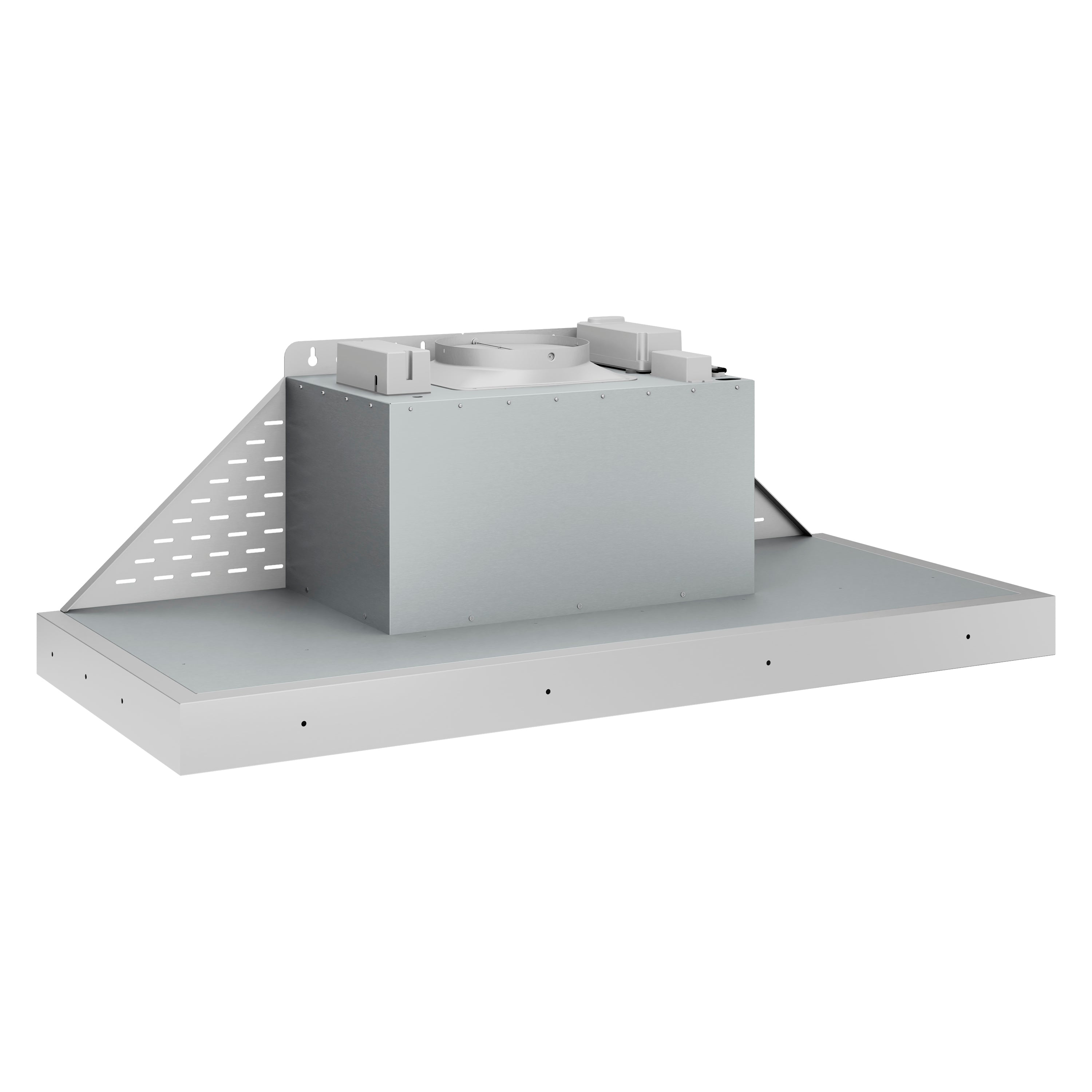

  • Full-Frame Support: A rigid, folded-steel DuraMount™ frame distributes weight across a broad footprint, creating a strong foundation for wood, plaster, or metal custom shells
  • Remodel-Ready Fit: Manufactured to align with standard 16 in. on-center framing and irregular wall structures, ensuring dependable installs even in remodels or tight retrofit conditions
  • Anchor-Friendly Installation: When studs aren’t available, the DuraMount™ system supports secure installation using included anchors or the multi-track side plate for confident off-center mounting
  • Corrosion-Resistant Stainless Steel: Manufactured with brushed 430-grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come

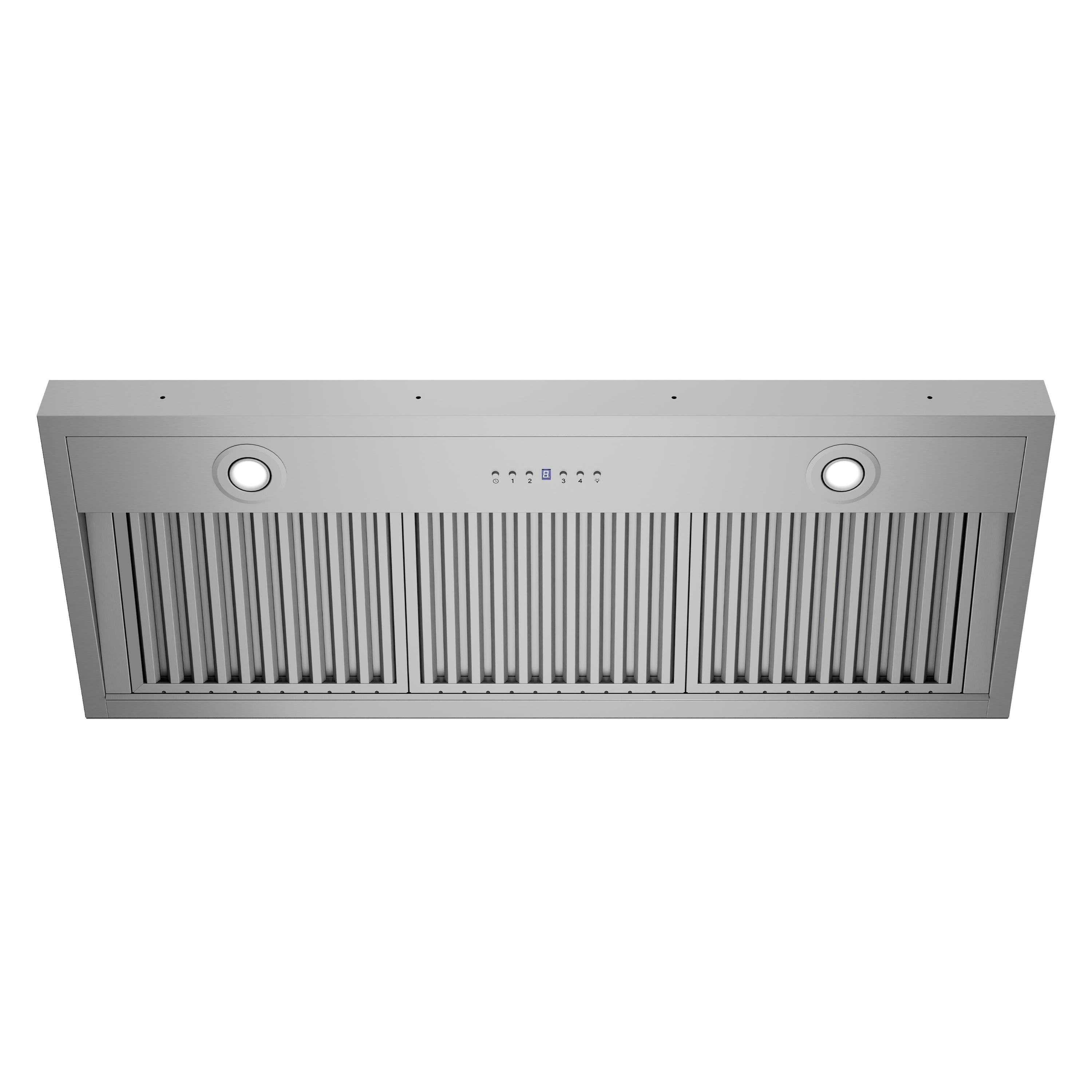

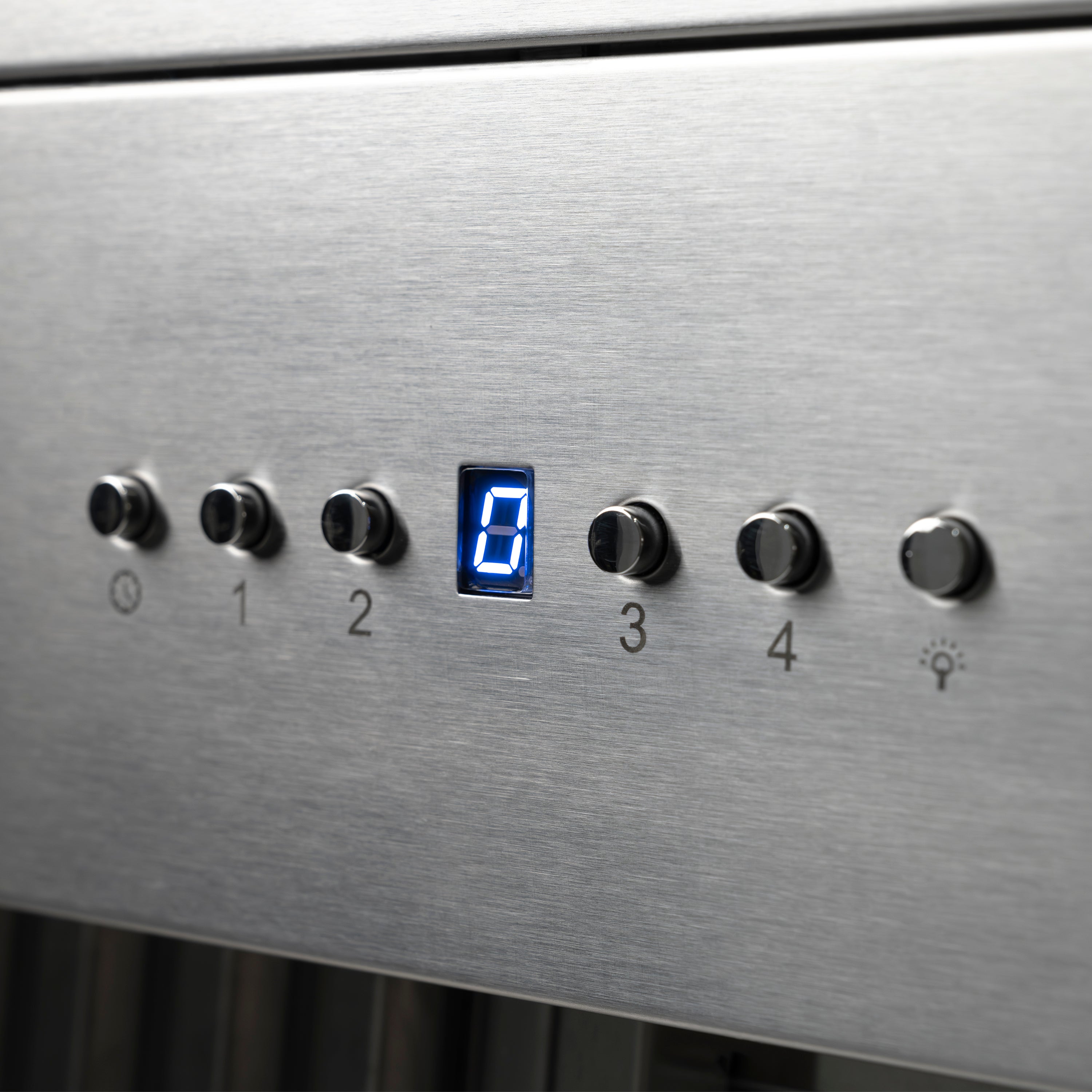

  • Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options

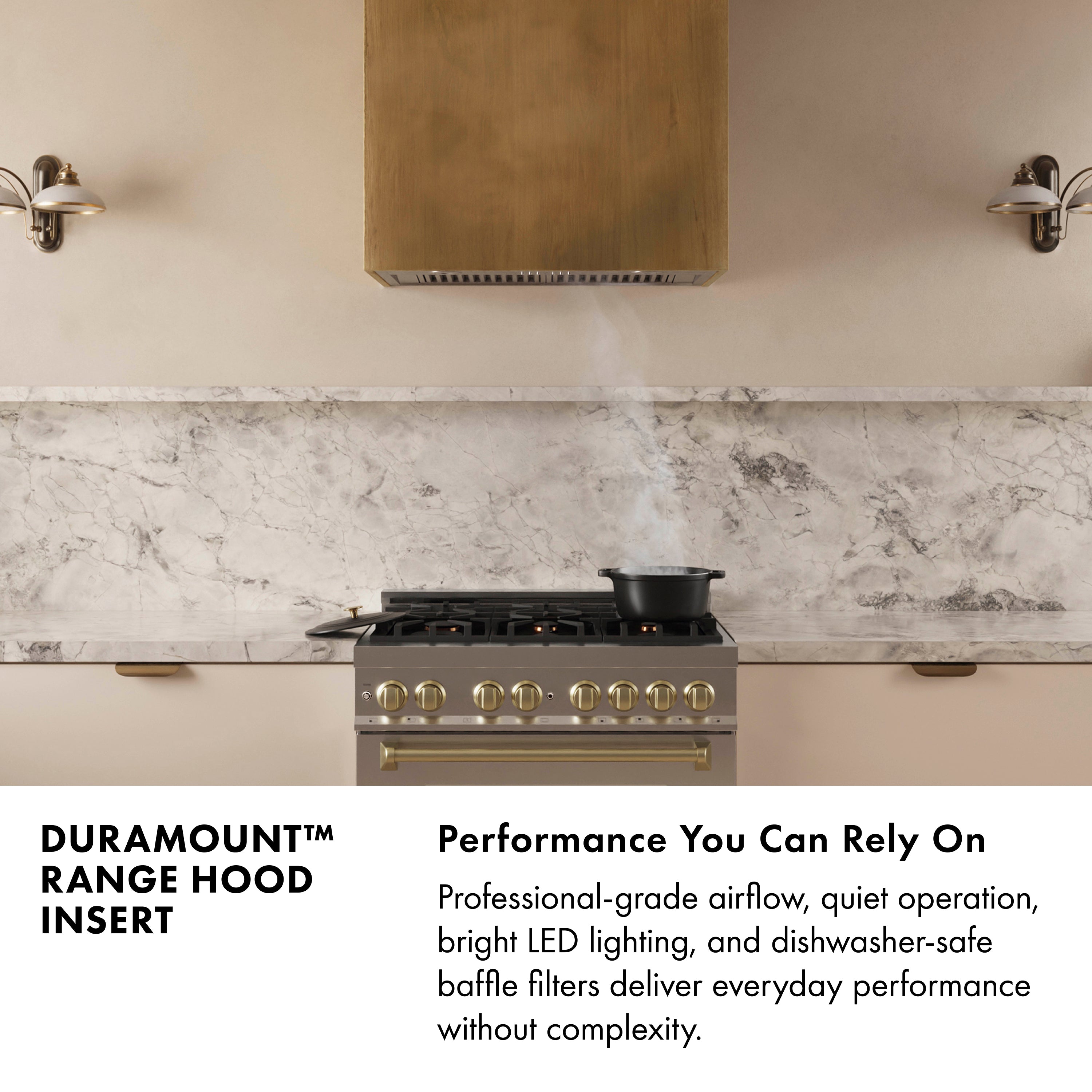

  • Powerful Ventilation: The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area

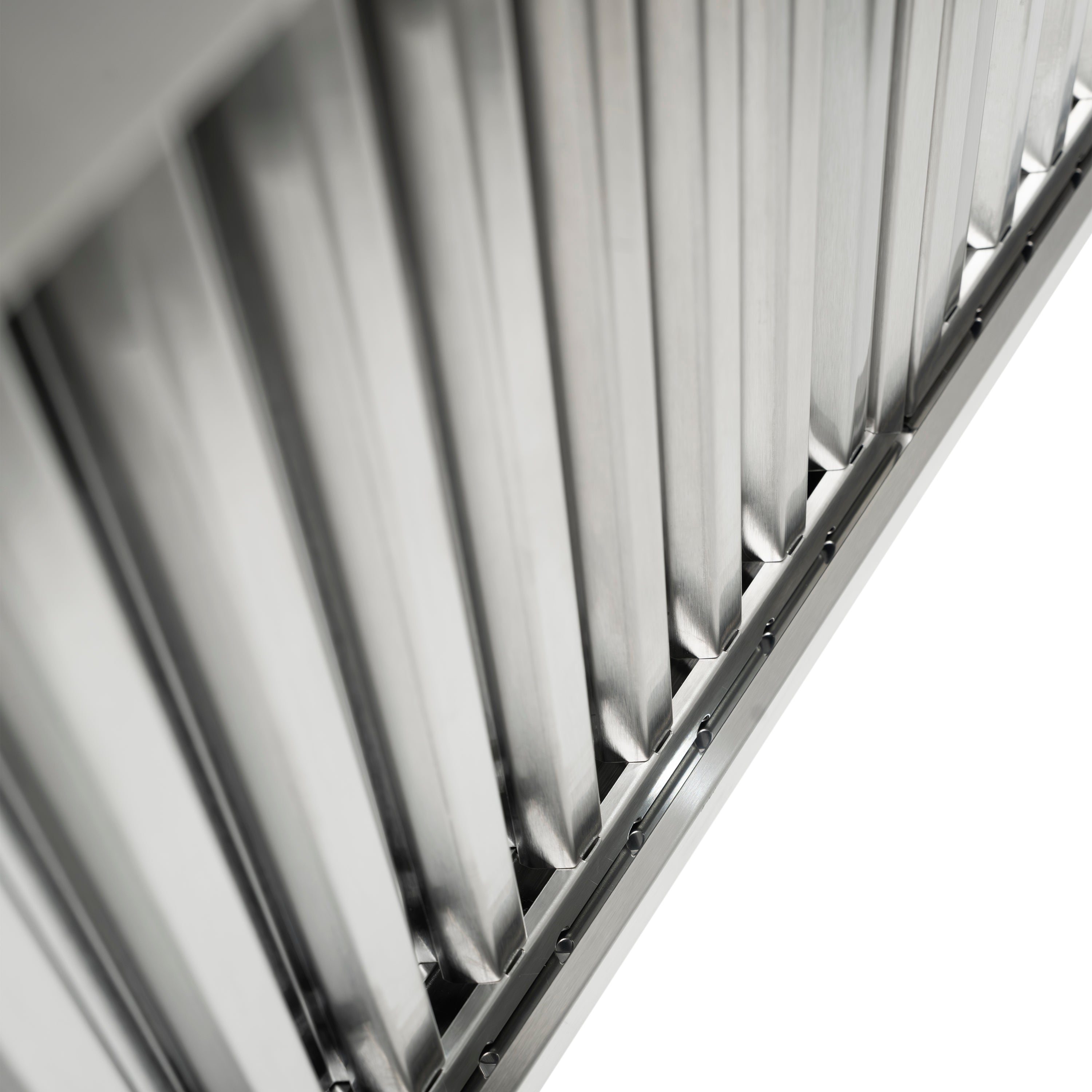

  • Minimal Cleaning: This range hood insert includes dishwasher-safe stainless steel baffle filters that are simple to clean

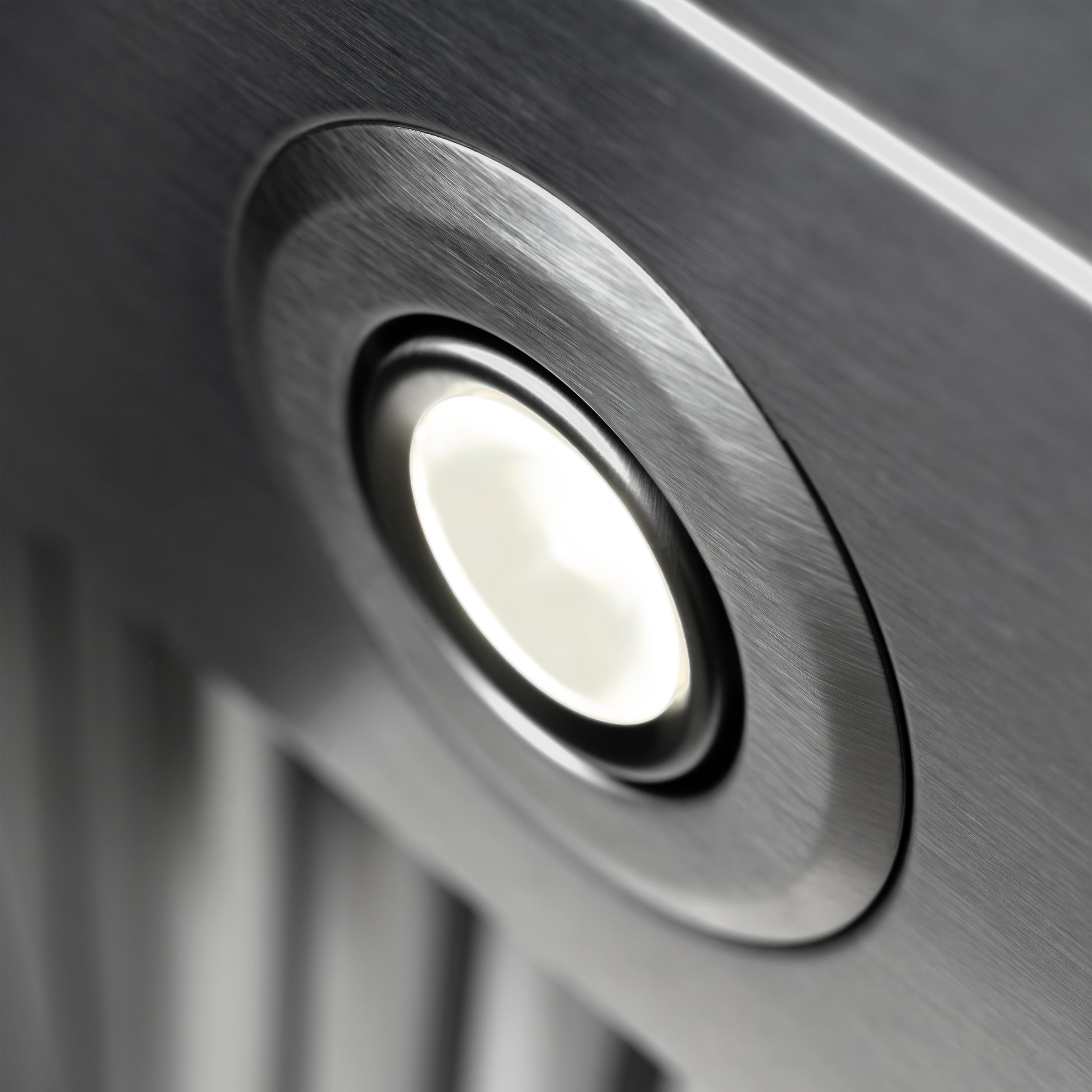

  • Adjustable LED Lighting: This range hood insert comes equipped with 2 energy-efficient adjustable LED lights to illuminate the cooking surface below
  • Standard Ducting: ZLINE hood inserts are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
  • External Damper Required: The included transition piece does not come with a damper; installers must ensure a proper external damper is installed at the exit point of ducting

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS

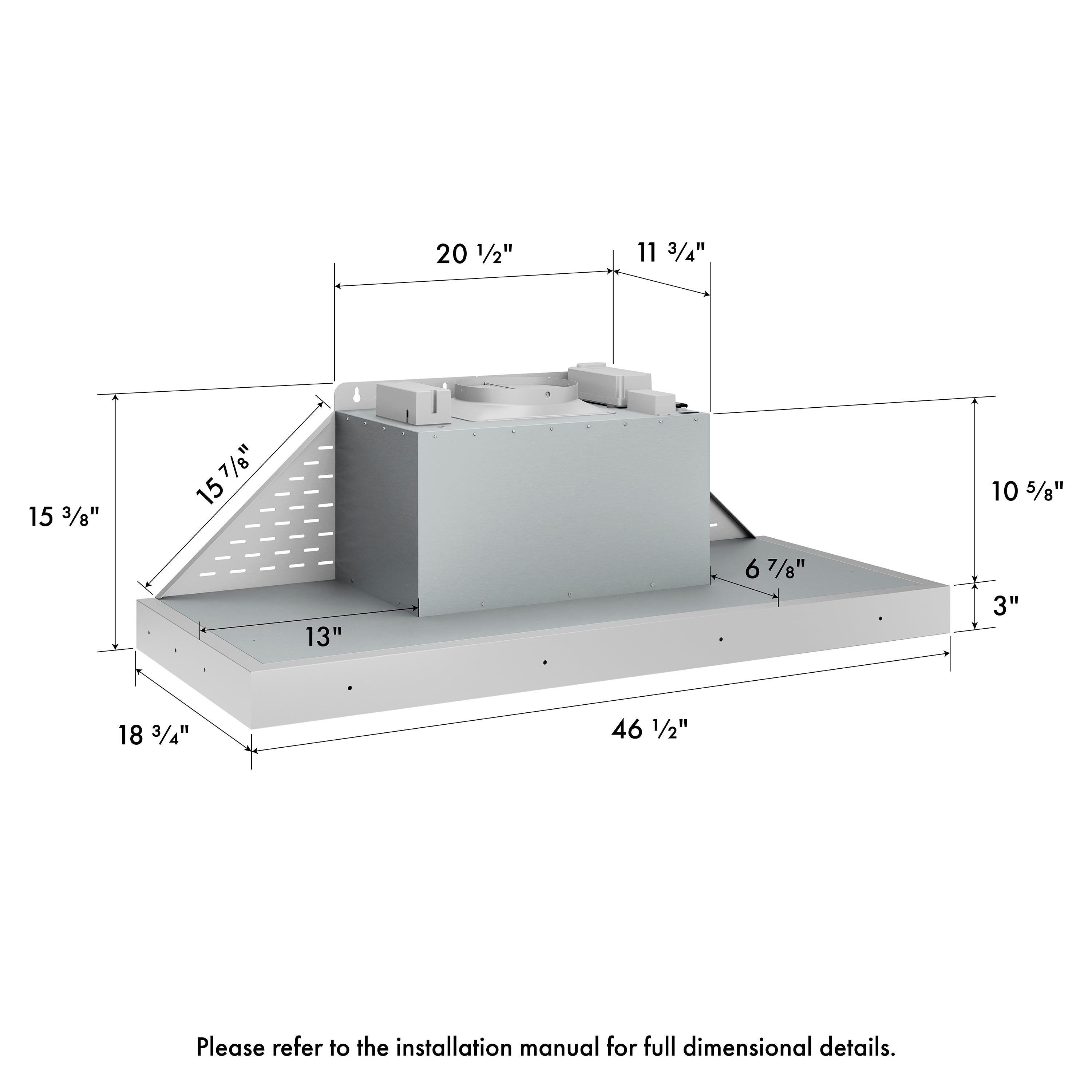

  • Product Dimensions: 46.50" W x 18.75" D x 15.375" H
  • Duct Size: 8"
  • Duct Shape: Round
  • Weight: 66.14 lbs
  • ELECTRICAL REQUIREMENTS
  • Voltage: 110 V
  • Amps: 3.2 A
  • FEATURES
  • Mount Type: Wall Mount Insert
  • Color: Stainless Steel
  • Material: Brushed 430 Stainless Steel
  • Extraction Type: Ducted
  • Ductless/Recirculating Option: No
  • Charcoal Filters: No
  • Filter Type: Stainless Steel Baffle
  • Dishwasher Safe Filters: Yes
  • Extension Kit: No
  • Short Kit: No
  • Crown Mouldings: No
  • Max CFM: 700 CFM
  • Number of Speeds: 4
  • Decibels: 55/58/62/65 dBA
  • Control Type: Push Button
  • Motor: High Performance 700 CFM/4-Speed Motor
  • WARRANTY & CERTIFICATIONS
  • Warranty: 3 Year Parts-Only; Limited Lifetime Motor Warranty
