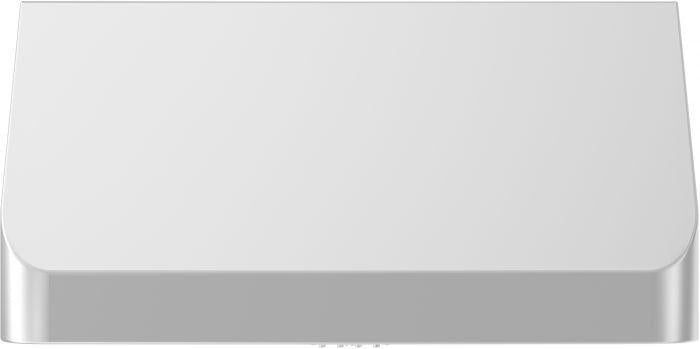

ZLINE 30 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel, 700 CFM, 520-30

4.6 Read 14 reviews
Brand: ZLINE
Model: 520-30

SALE

$1,034.99
$1,034.99 $1,149.99
You save $115.00
Shipping calculated at checkout.

Payment Plans Available

Size: 30"
In Stock
Delivers Nov 11-18 (Est.)
Free Curbside Shipping
Curbside shipping means your order will be delivered to the curb or driveway outside your home. The driver will not bring it inside or set it up. Please arrange for help if needed!

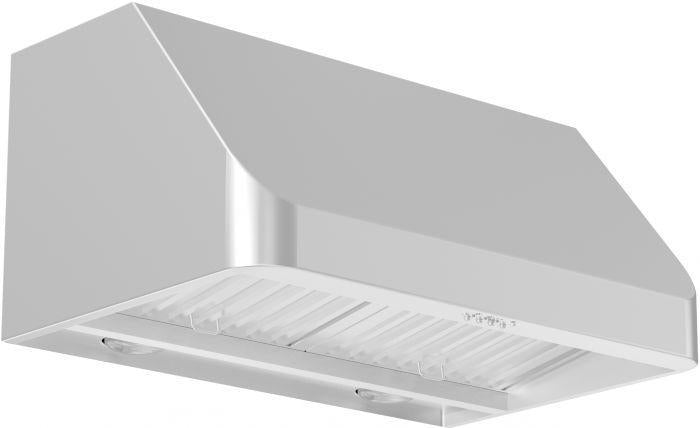

zline-stainless-steel-under-cabinet-range-hood-520-side-under_5_1
$1,034.99
$1,034.99 $1,149.99
Ask about this product Get an answer with Appliance AI™
AI-generated from product data and store information. Responses may not always be accurate. For any clarifications, talk to our team.

Product Overview

  • Max CFM: 700

  • 4-Speed Motor

  • Dishwasher-Safe Baffle Filters

  • Recirculating Option

  • Voltage: 110V

  • 3 Year Parts, Lifetime Motor Warranty

What's Included

BETTER TOGETHER

DESCRIPTION

The ZLINE 520-30 30-inch convertible under cabinet range hood in stainless steel delivers up to 700 CFM of airflow through a 4-speed motor. Dishwasher-safe baffle filters make it easy to live with, and every hood is backed by ZLINE’s 3-year parts, lifetime motor warranty.

  • Convertible Venting: Installs ducted through an 8" outlet or ductless (recirculating) with CF1 charcoal filters, sold separately and required for recirculating installations.
  • 4-Speed Motor: Choose 480, 560, 650 or 700 CFM, from gentle simmering to high-heat searing.
  • Push Button Controls: Adjust fan speed and lighting from the front panel, with a 3-minute auto timer and delayed shutoff.
  • Stainless Steel Construction: Durable stainless steel that resists heat and daily wear.
  • Dishwasher-Safe Baffle Filters: Stainless steel baffle filters capture grease and go straight into the dishwasher for cleaning.
  • Sound Levels: Runs at 48, 55, 63 and 65 dBA across the speed settings.
  • Compatible Accessories: Recirculating operation requires CF1 charcoal filters, sold separately.
  • Easy Installation: Designed for standard round ductwork with a 8" connection.

SPECIFICATIONS & DIMENSIONS

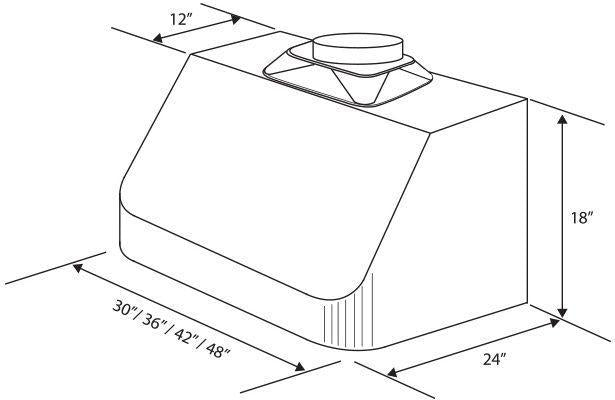

  • DIMENSIONS
  • Product Dimensions: 30" W x 24" D x 18" H
  • Duct Size: 8"
  • Duct Shape: Round
  • Weight: 75 lb.
  • ELECTRICAL REQUIREMENTS
  • Voltage: 110 V
  • Amps: 3.5 A
  • FEATURES
  • Mount Type: Under Cabinet
  • Color: Stainless Steel
  • Extraction Type: Convertible (ducted or recirculating)
  • Ductless/Recirculating Option: Yes
  • Compatible Charcoal Filters: CF1 (sold separately, required for recirculating)
  • Filter Type: Stainless Steel Baffle Filters
  • Dishwasher Safe Filters: Yes
  • Max CFM: 700
  • Number of Speeds: 4
  • CFM: 480 / 560 / 650 / 700 CFM
  • Decibels: 48 / 55 / 63 / 65 dBA
  • Control Type: Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
  • Motor: High Performance 700 CFM/4-Speed Motor
  • Model Number: 520-30
  • WARRANTY & CERTIFICATIONS
  • Certifications: ETL Listed, CEC Listed
  • Warranty: 3 Year Parts, Lifetime Motor Warranty
