Pioneer® Mini Split 27,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Kits, WYT030GLHI22M3-9W-9W-9W-16

Model: WYT030GLHI22M3-9W-9W-9W-16
Regular price $2,697.00
Sale price $2,697.00 Regular price $3,649.00
-26%
Shipping calculated at checkout.

Financing Options


Need different line set lengths?
Configure your system here!

This item is out of stock. Please contact us for an ETA.

Regular price $2,697.00
Sale price $2,697.00 Regular price $3,649.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

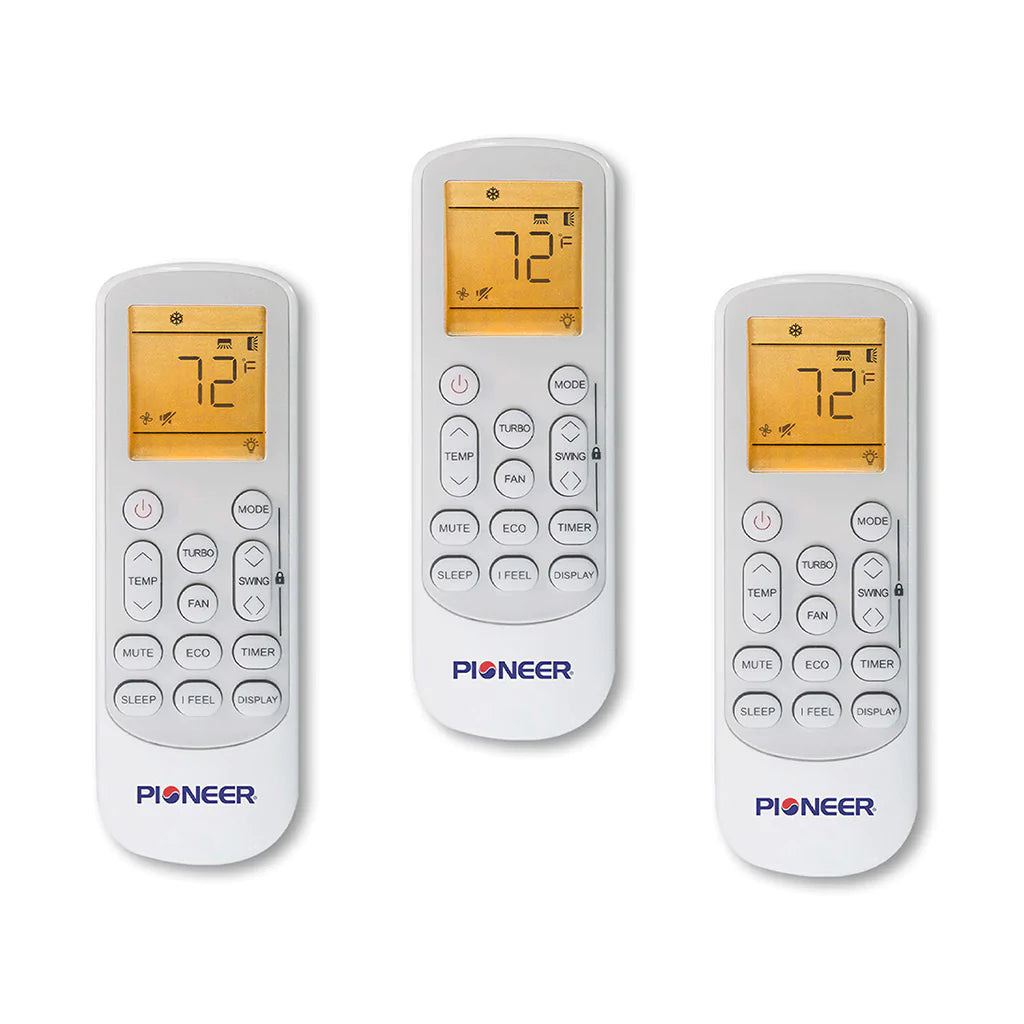

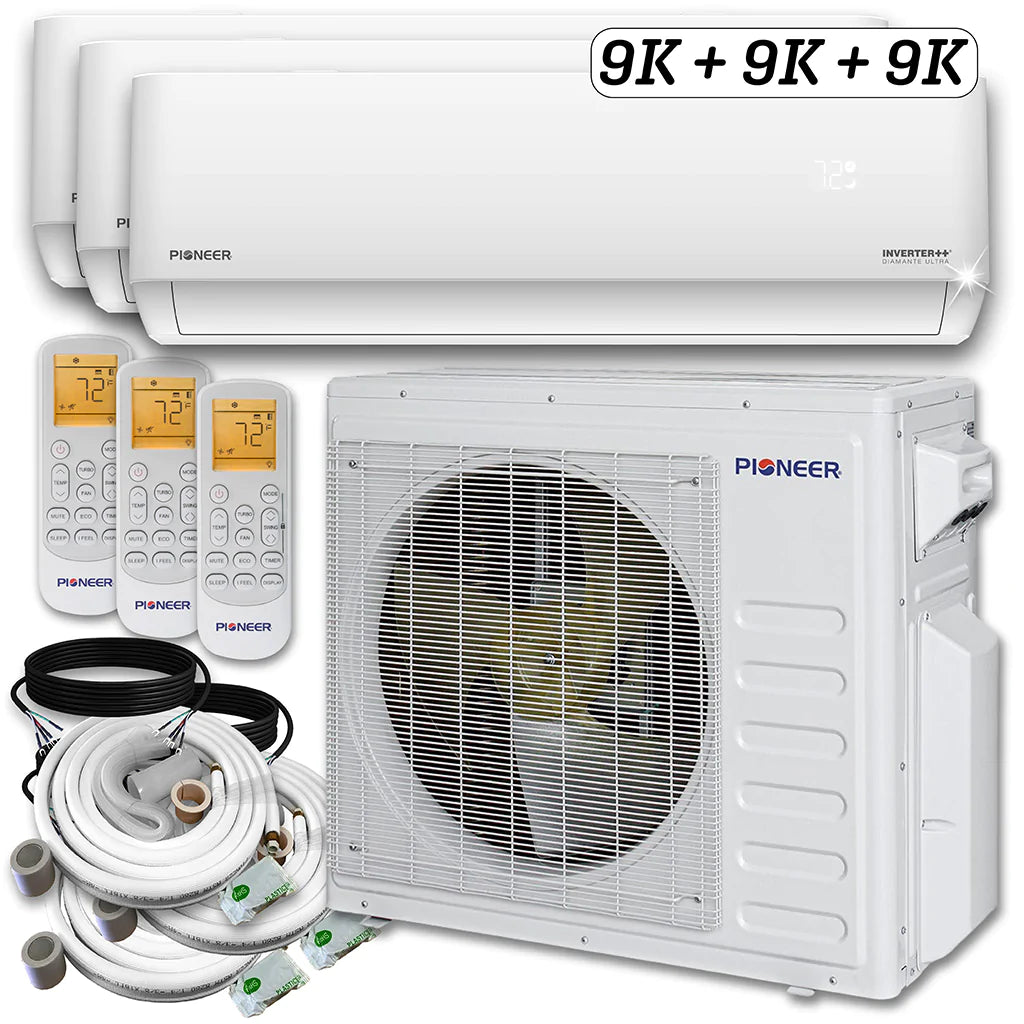

Meet the Pioneer Diamante Mini Split System to cool and heat three different rooms. You'll be sent: 24,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handlers, three Remotes, and three 16 ft. Installation Kits.

Features

  • Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system
  • (x3) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 24,000 BTU/H (Range: 7,200 minimum - 26,400 maximum) with 22 SEER/12.5 EER efficiency
  • Heating capacity: 26,000 BTU/H nominal (range 7,800 minimum - 28,600 maximum) with 10 HSPF/3.5 COP efficiency
  • Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
  • Energy-Star Certified and Wi-Fi Enabled
  • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
  • Low ambient system can heat down to -4°F ambient outdoor temperatures
  • Certified by: ETL, AHRI, DOE for safety, performance and efficiency
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

What's Not Included and Required for Installation

  • Electrical Requirements, such as Disconnect Box or Electrical Whip
  • Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

SPECIFICATIONS & DIMENSIONS

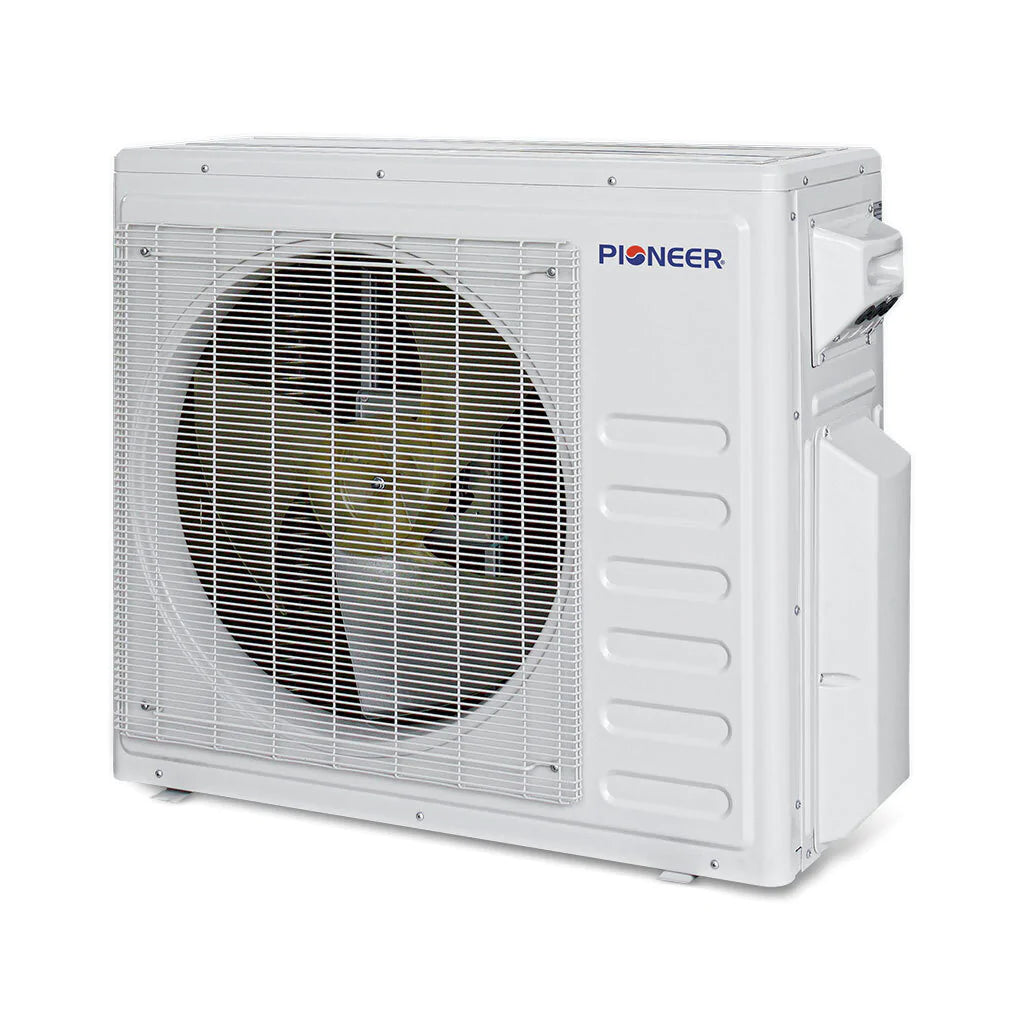

  • Condenser
  • Product Dimensions: 35 1/8"W x 14"D x 31 3/8"H
  • Cooling Capacity: 24,000 BTU
  • Heating Capacity: 26,000 BTU
  • Zone Capacity: 3
  • SEER: 22.0
  • Voltage: Requires a minimum of 208V-230V/60HZ/20A (please check your home meets this electrical requirement prior to purchase)

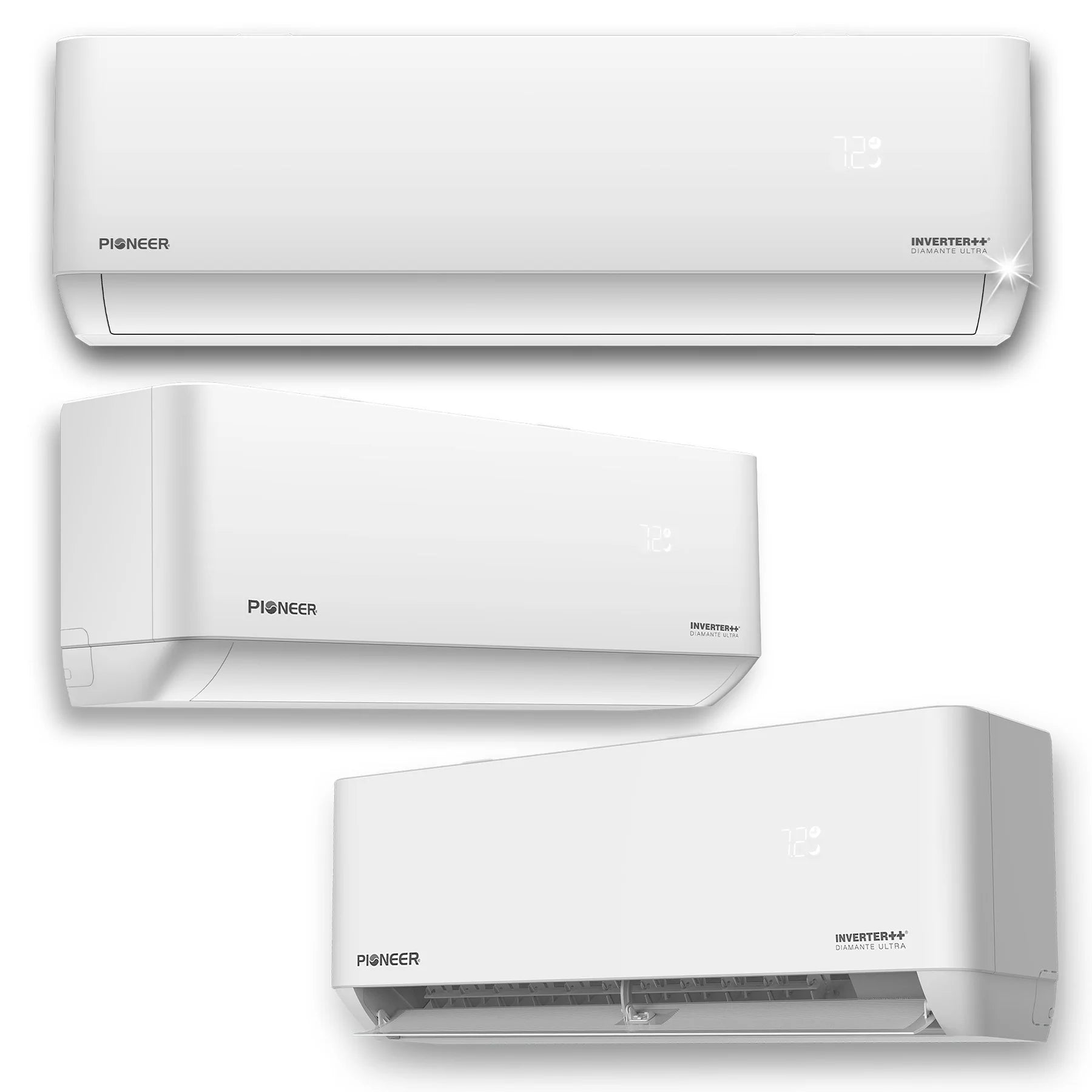

  • Air Handler
  • Product Dimensions: 32 1/4"W x 7 5/8"D x 12"H
  • Mount Type: Wall
  • Cooling Capacity: 9,000 BTU
  • Heating Capacity: 9,500 BTU
  • Square Footage Coverage: 350 Square Feet

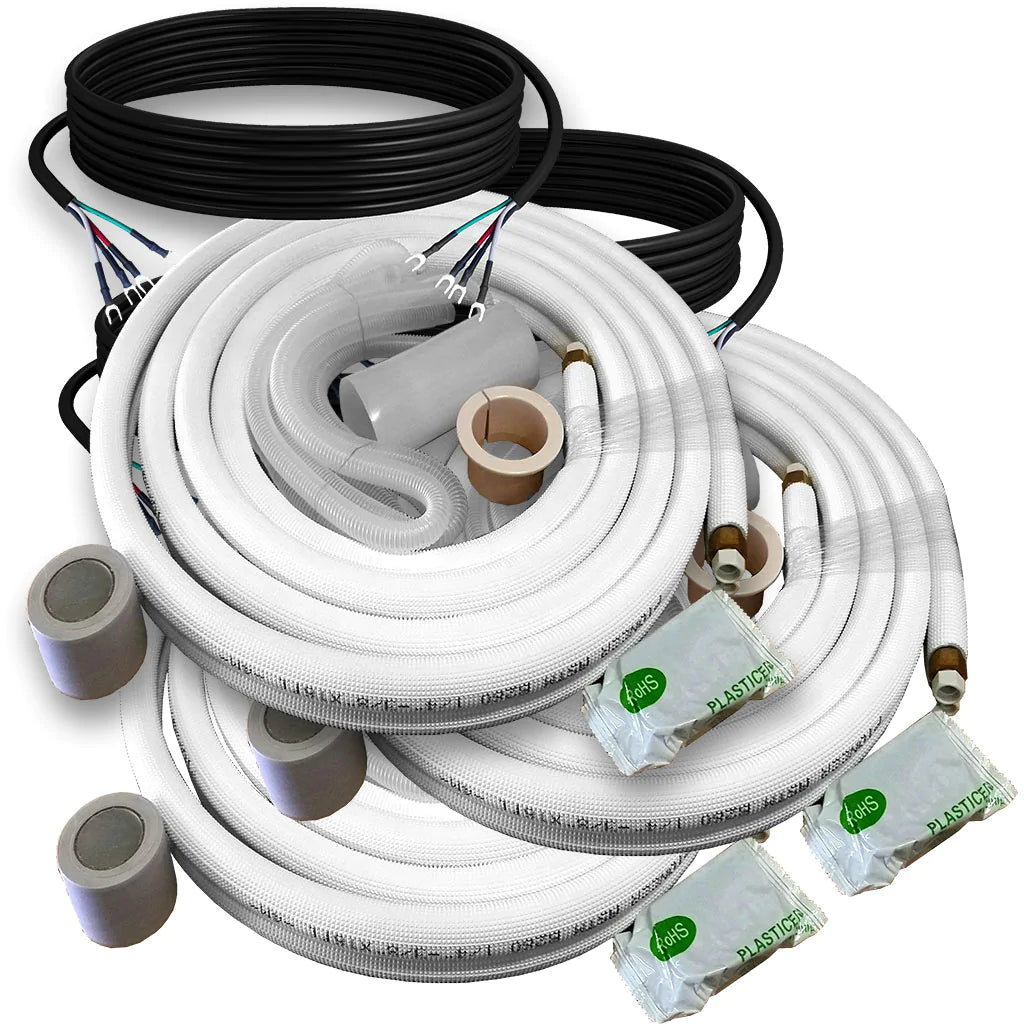

  • Line Set
  • Length: 16 Feet

INSTALLATION & GUIDES
