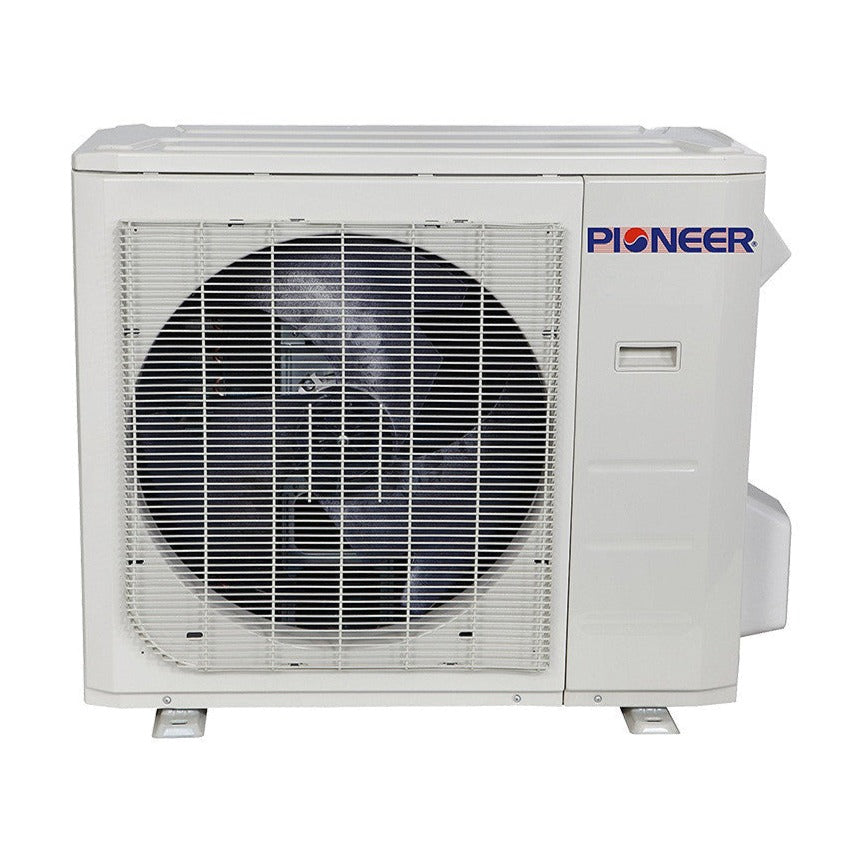

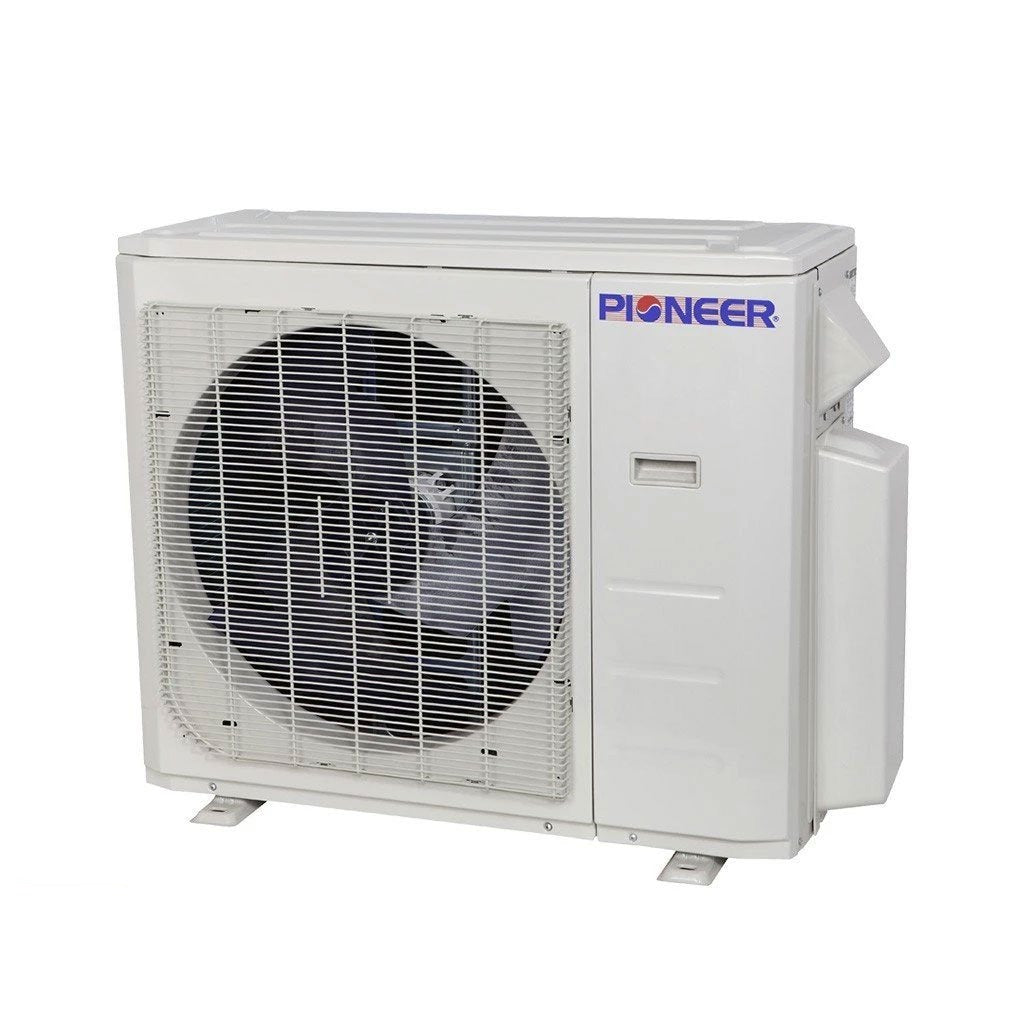

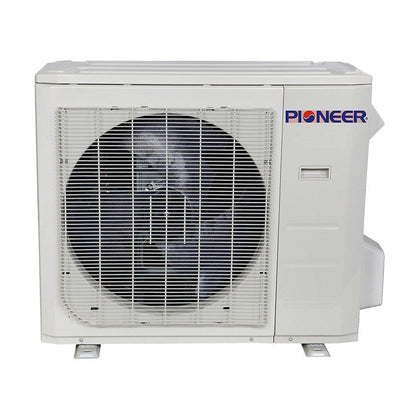

Pioneer® Quad Zone 21.8 SEER, 36K BTU Multi Split Air Conditioner and Heat Pump, YN040GMFI22M4E

Model: YN040GMFI22M4E
Regular price $2,568.00
Sale price $2,568.00 Regular price $3,180.00
-19%
Shipping calculated at checkout.

Financing Options


This item is out of stock. Please contact us for an ETA.

Regular price $2,568.00
Sale price $2,568.00 Regular price $3,180.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

Summary

  • OUTDOOR SECTION ONLY for Quad (4) Zone
  • Ultra High Efficiency DC Inverter++ version
  • Cooling capacity: 36,000 BTU/H Nominal (Range: 8,789 MIN ~ 40,288 MAX) with 21.8 SEER/10.5 EER efficiency
  • Heating capacity: 37,000 BTU/H Nominal (Range: 6,900 MIN ~ 46,624 MAX) with 11.5 HSPF efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Factory charged for up to 25’ line set per circuit
  • Whisper Quiet Operation
Refrigerant

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

SPECIFICATIONS & DIMENSIONS

  • Product Dimensions: 37.2"W x 16.2"D x 31.8"H
  • Power Supply: 208-230V, 60Hz, 1Ph
  • Communication Protocol: Current Loop
  • Min-Max Load Attached: 24,000-48,000 BTU/h
  • Cooling Rated Capacity: 36,000 BTU/h
  • Cooling Capacity Range: 8,789~40,288 BTU/h
  • Cooling SEER (Ductless): 21.8 BTU/w
  • Heating Rated Capacity: 37,000 BTU/h
  • Heating Capacity Range: 6,900-46,624 BTU/h
  • Heating HSPF (Ductless): 11.5 BTU/w
  • Refrigerant Type: R410a
  • Suitable Area: 1,200-1,600 Sq.F
  • Sound Level: 62.5 dB(A)
  • Weight: 169 lbs
  • Certificates: Energy-Star Certified
