Pioneer® Mini Split 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 10 ft. Kits, WYT040GLHI22M4-18W-18W-10

Model: WYT040GLHI22M4-18W-18W-10
Regular price $3,444.00
Sale price $3,444.00 Regular price $4,969.00
-31%
Shipping calculated at checkout.

Financing Options


Need different line set lengths?
Configure your system here!

This item is out of stock. Please contact us for an ETA.

Regular price $3,444.00
Sale price $3,444.00 Regular price $4,969.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

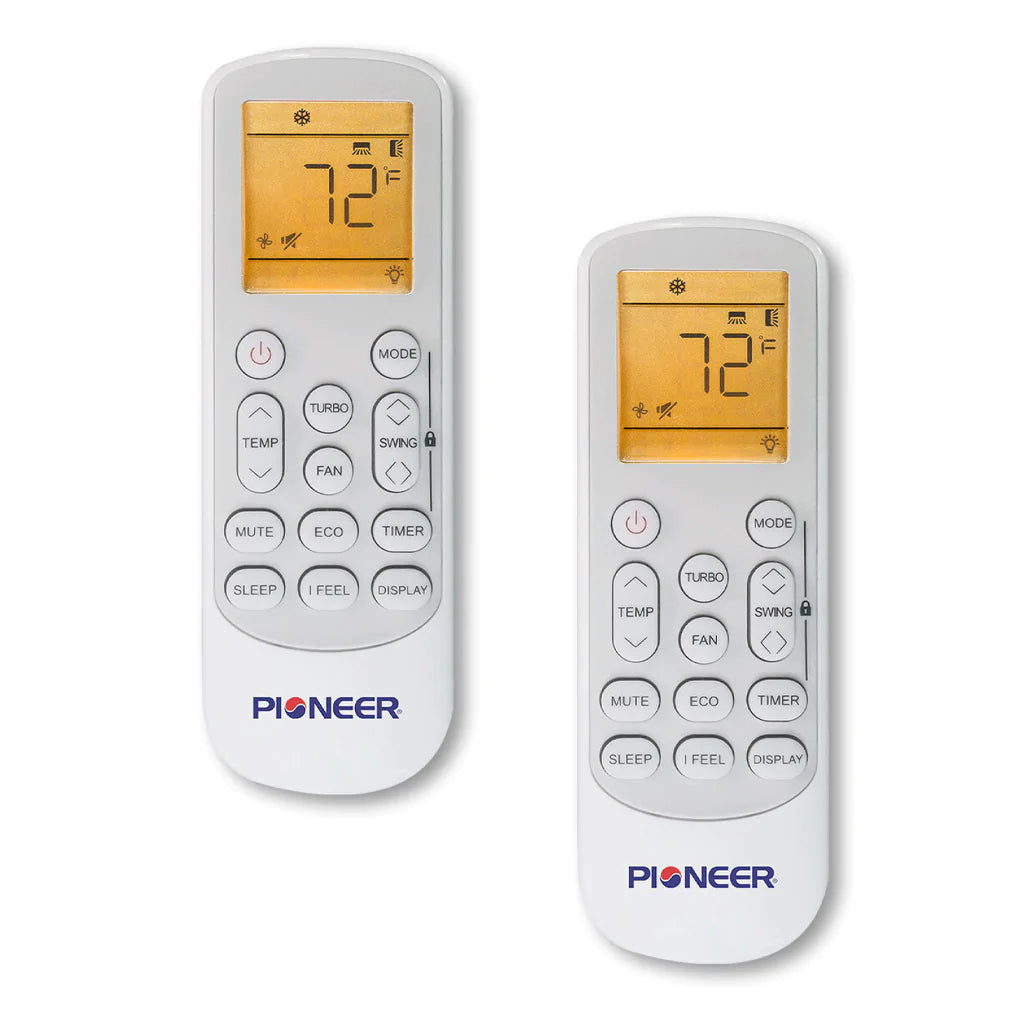

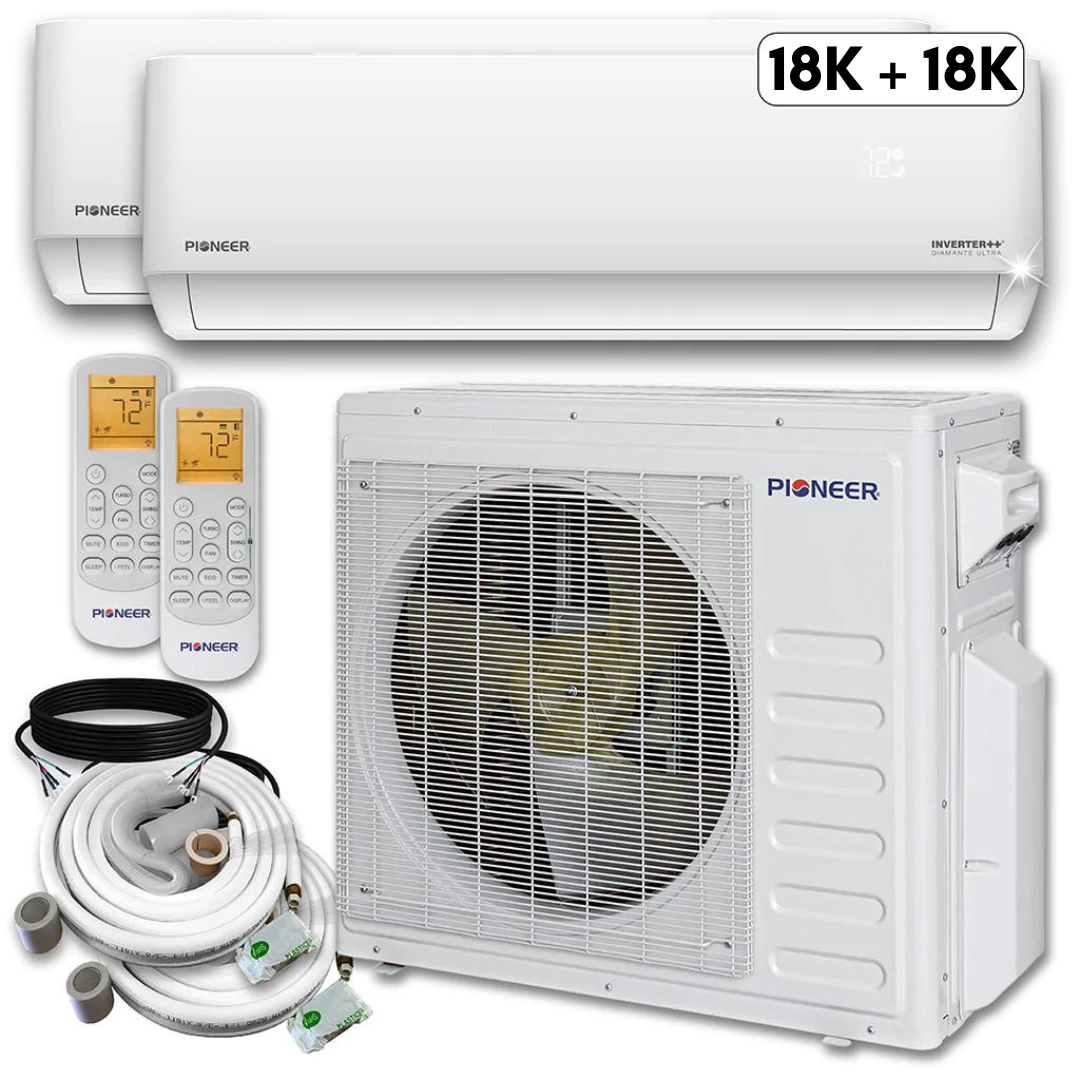

Meet the Pioneer Diamante Mini Split System to cool and heat two different rooms. You'll be sent:  36,000 BTU Multi-Zone Condenser, two 18,000 BTU Wall Mounted Air Handler, two Remotes, and two 10 ft. Installation Kits.

System Includes

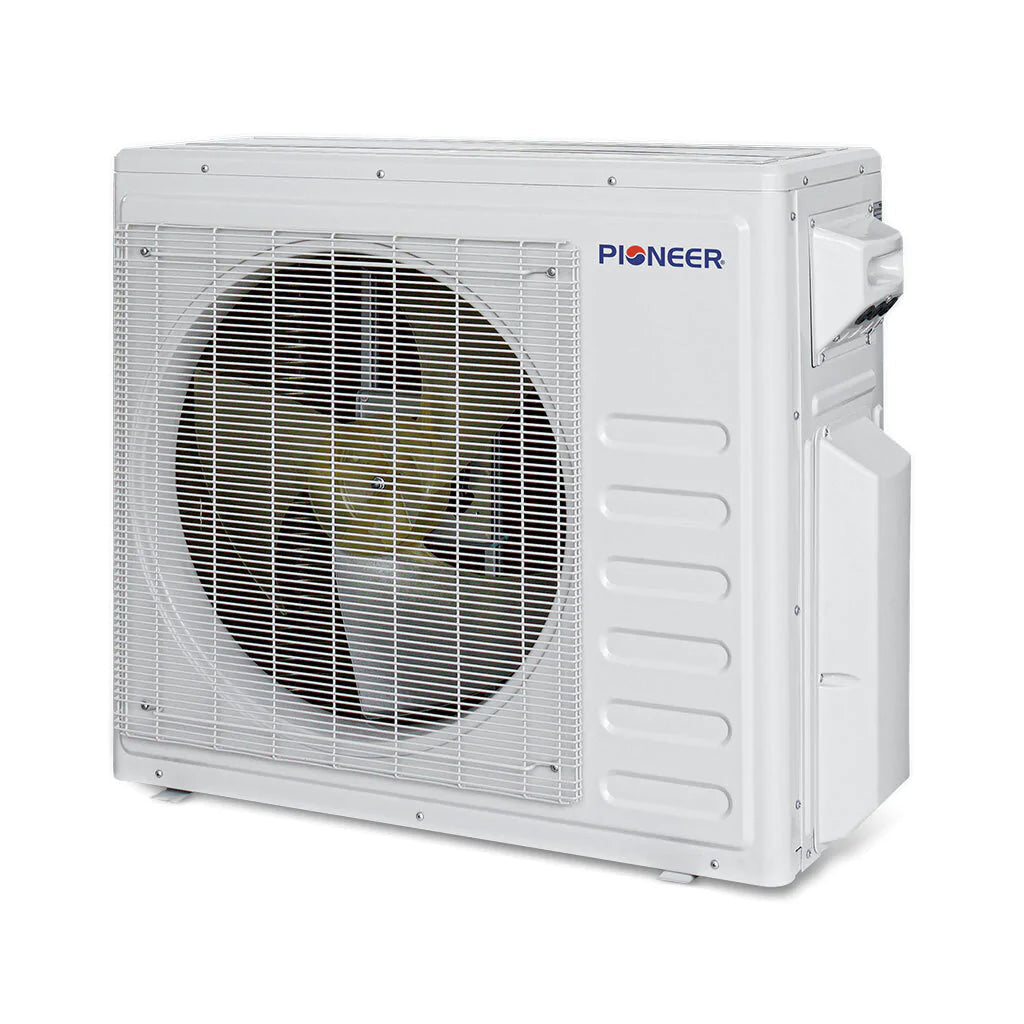

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select Pioneer air handlers, is capable of producing up to an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -4°F and cool up to 122°F
  • Iron-Clad Warranty. For added peace of mind, this condenser comes with a 5 Year Warranty. Simply register within 90 days and you'll be covered!

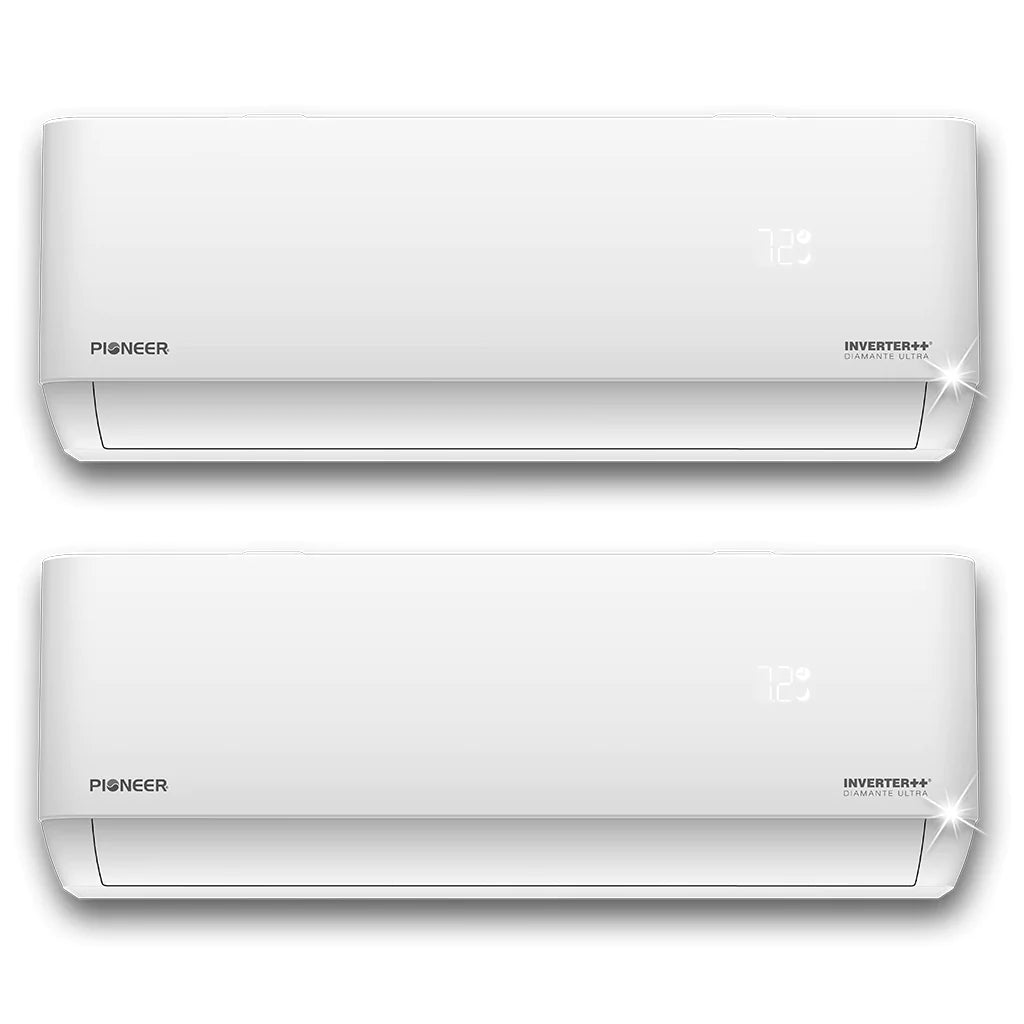

    Air Handler, 18K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area of up to 650 sq. ft
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, TURBO, ECO and SLEEP.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

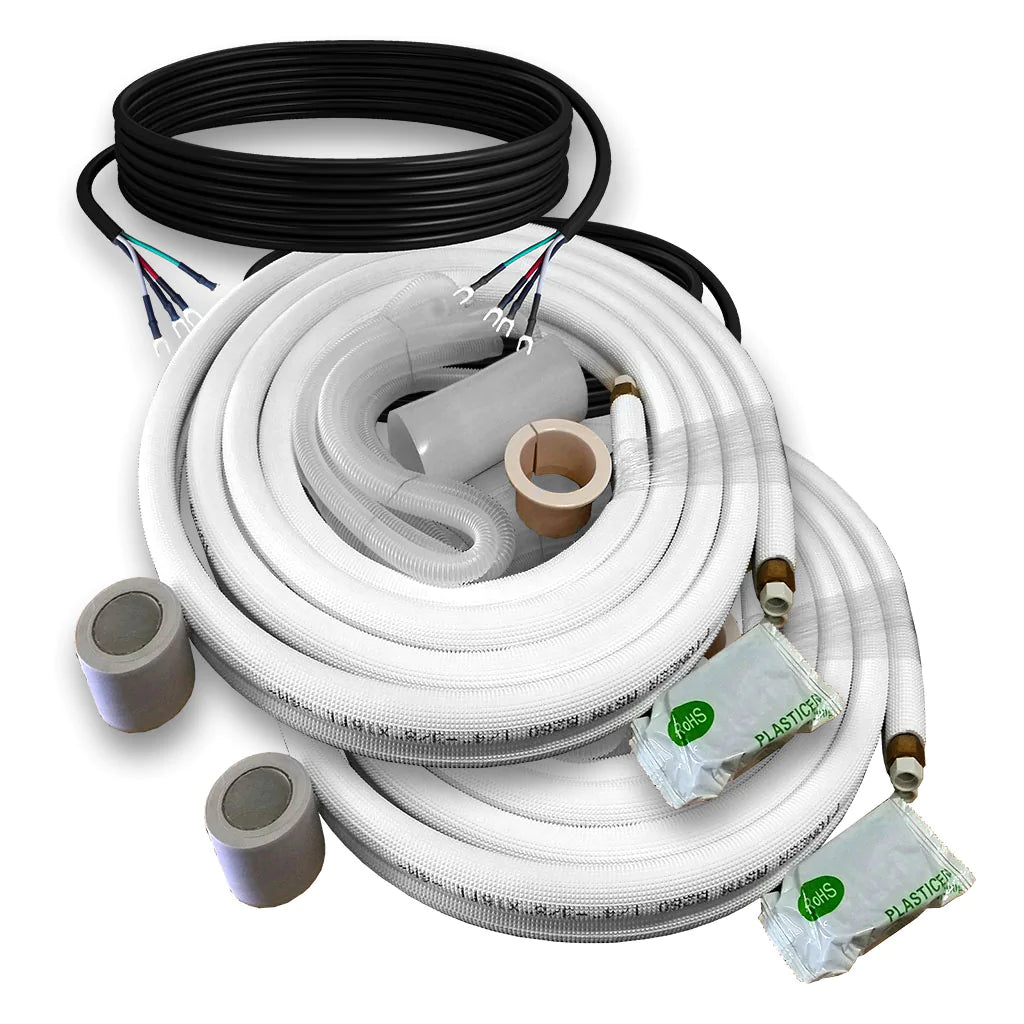

    Line Set 10 ft., Quantity 2

    • This 10 ft. copper line set connects the Pioneer Diamante Series Condenser to the 18K Air Handlers

      What's Not Included and Required for Installation

      • Electrical Requirements, such as Disconnect Box or Electrical Whip
      • Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

      SPECIFICATIONS & DIMENSIONS

      • Condenser
      • Product Dimensions: 39 1/4"W x 15 5/8"D x 35 1/2"H
      • Cooling Capacity: 32,000 BTU
      • Heating Capacity: 35,000 BTU
      • Zone Capacity: 4
      • SEER: 21.5
      • Outdoor Ambient Range (Cool): 5°F~122°F
      • Outdoor Ambient Range (Heat): -4°F~86F
      • Voltage: Requires a minimum of 208V-230V/60HZ/15A (double-pole) (please check your home meets this electrical requirement prior to purchase)
      • Air Handler 18K
      • Product Dimensions: 43 3/8"W x 8 3/4"D x 13 1/8"H
      • Mount Type: Wall
      • Cooling Capacity: 18,000 BTU
      • Heating Capacity: 18,000 BTU
      • Square Footage Coverage: 650 Square Feet
      • Line Set
      • Length: 10 Feet

      INSTALLATION & GUIDES
