Pioneer® Mini Split 27,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Kits, WYT030GLHI22M3-9W-9W-9W-25

Model: WYT030GLHI22M3-9W-9W-9W-25
Regular price $2,817.00
Sale price $2,817.00 Regular price $3,749.00
-25%
Shipping calculated at checkout.

Financing Options


Need different line set lengths?
Configure your system here!

This item is out of stock. Please contact us for an ETA.

Regular price $2,817.00
Sale price $2,817.00 Regular price $3,749.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

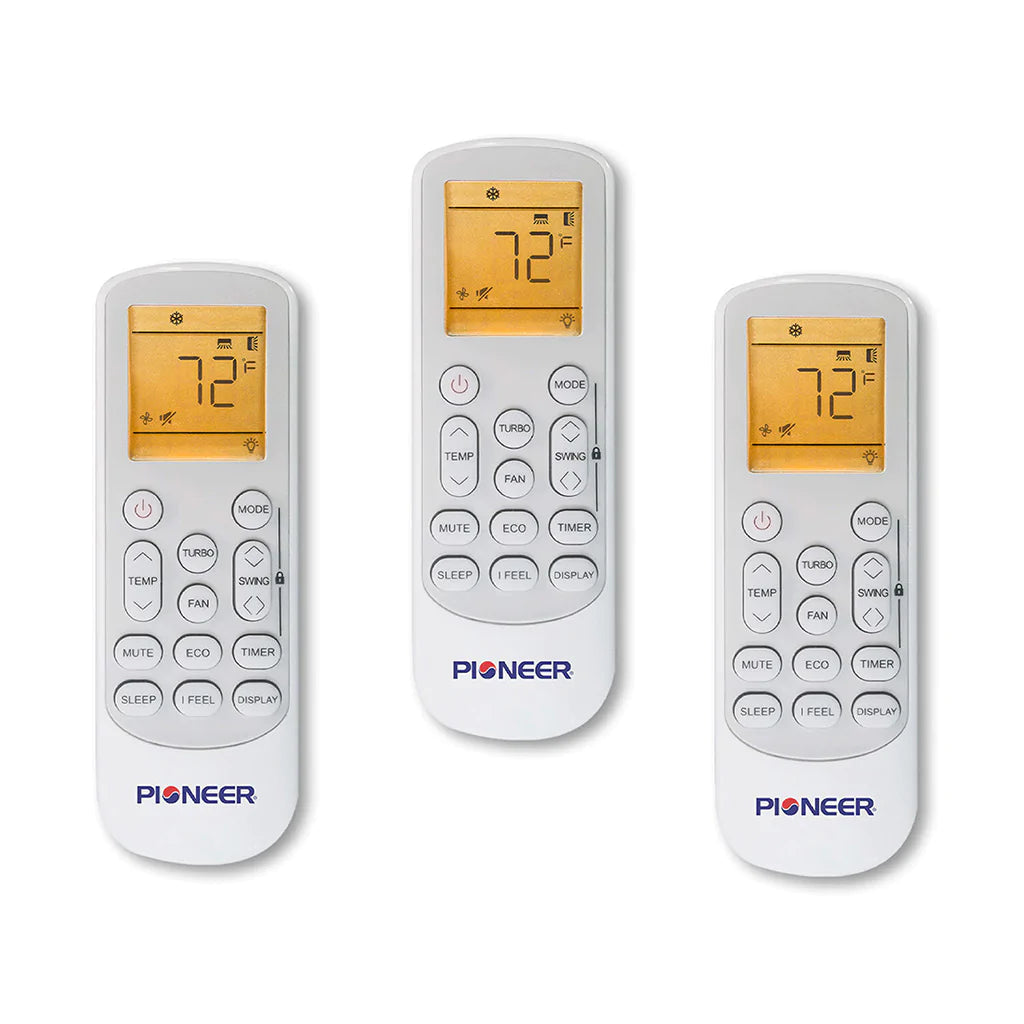

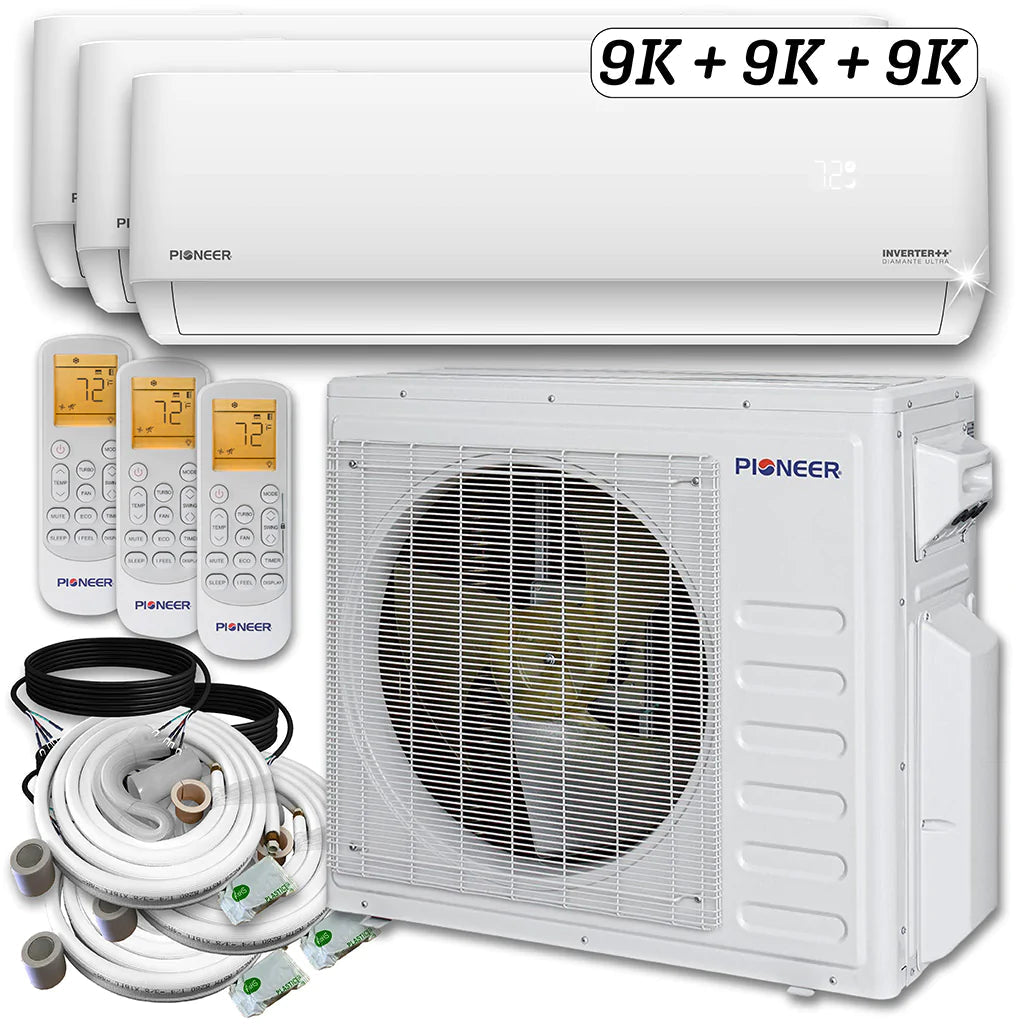

Meet the Pioneer Diamante Mini Split System to cool and heat three different rooms. You'll be sent:  27,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, three Remotes, and three 25 ft. Installation Kits.

System Includes

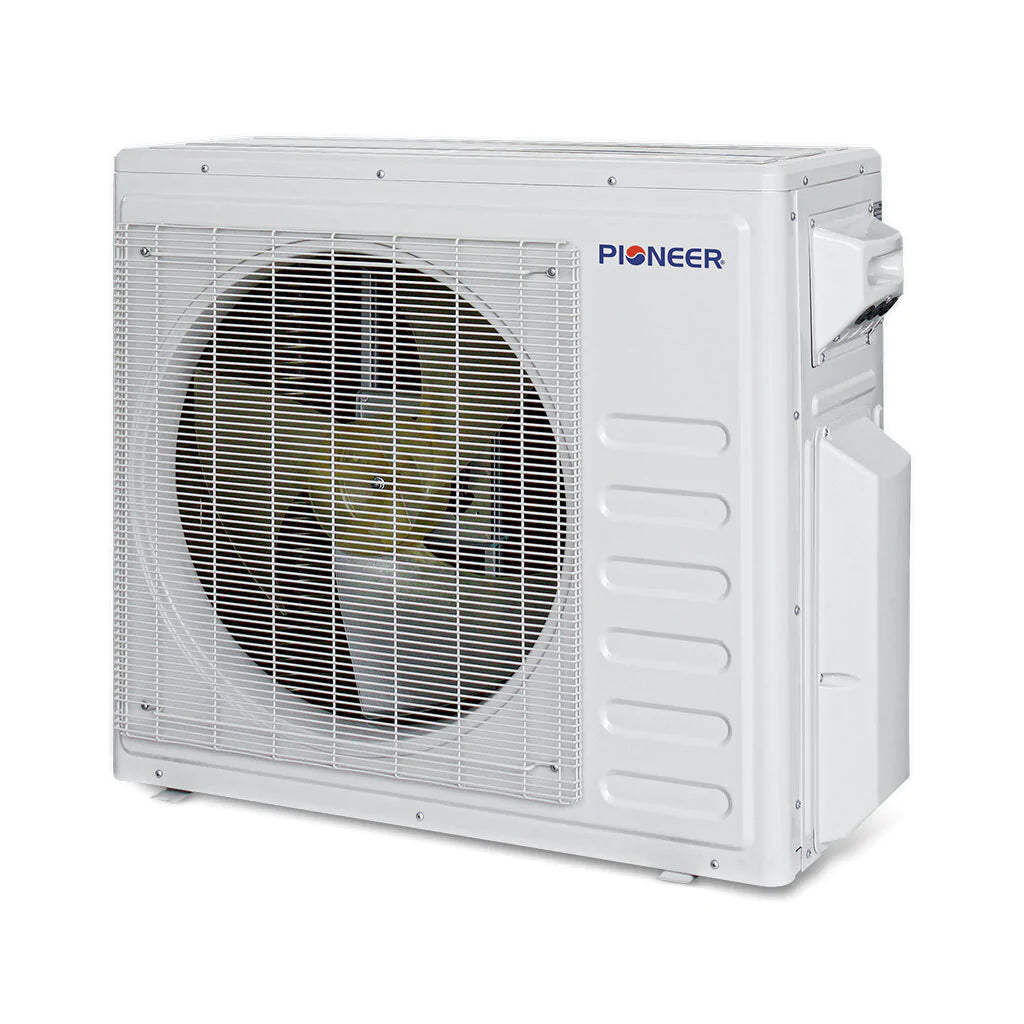

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select Pioneer air handlers, is capable of producing up to an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -4°F and cool up to 122°F
  • Iron-Clad Warranty. For added peace of mind, this condenser comes with a 5 Year Warranty. Simply register within 90 days and you'll be covered!

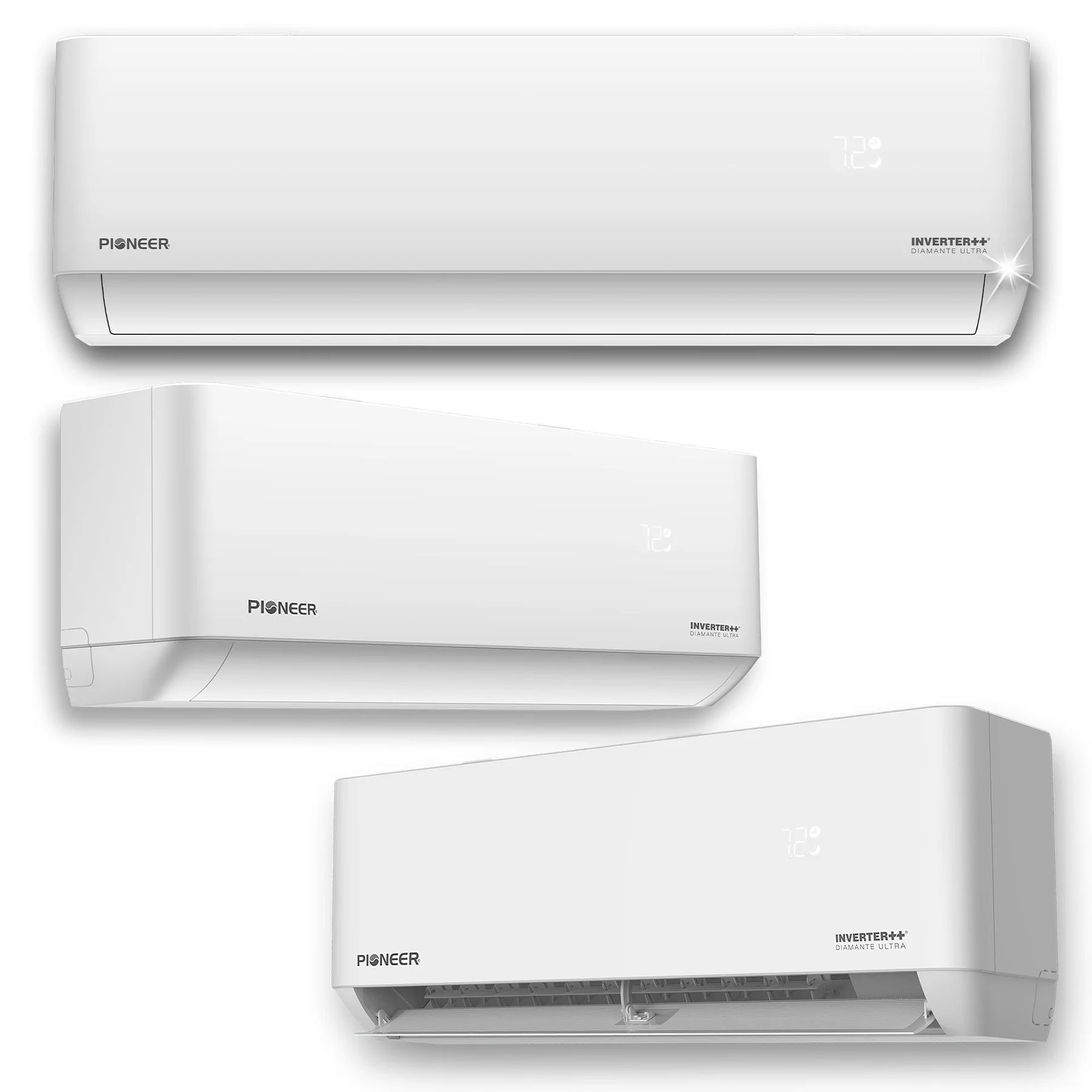

Air Handler, 9K BTU, Quantity 3

  • Large Coverage Area. Handler covers an area of up to 350 sq. ft
  • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, TURBO, ECO and SLEEP.
  • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

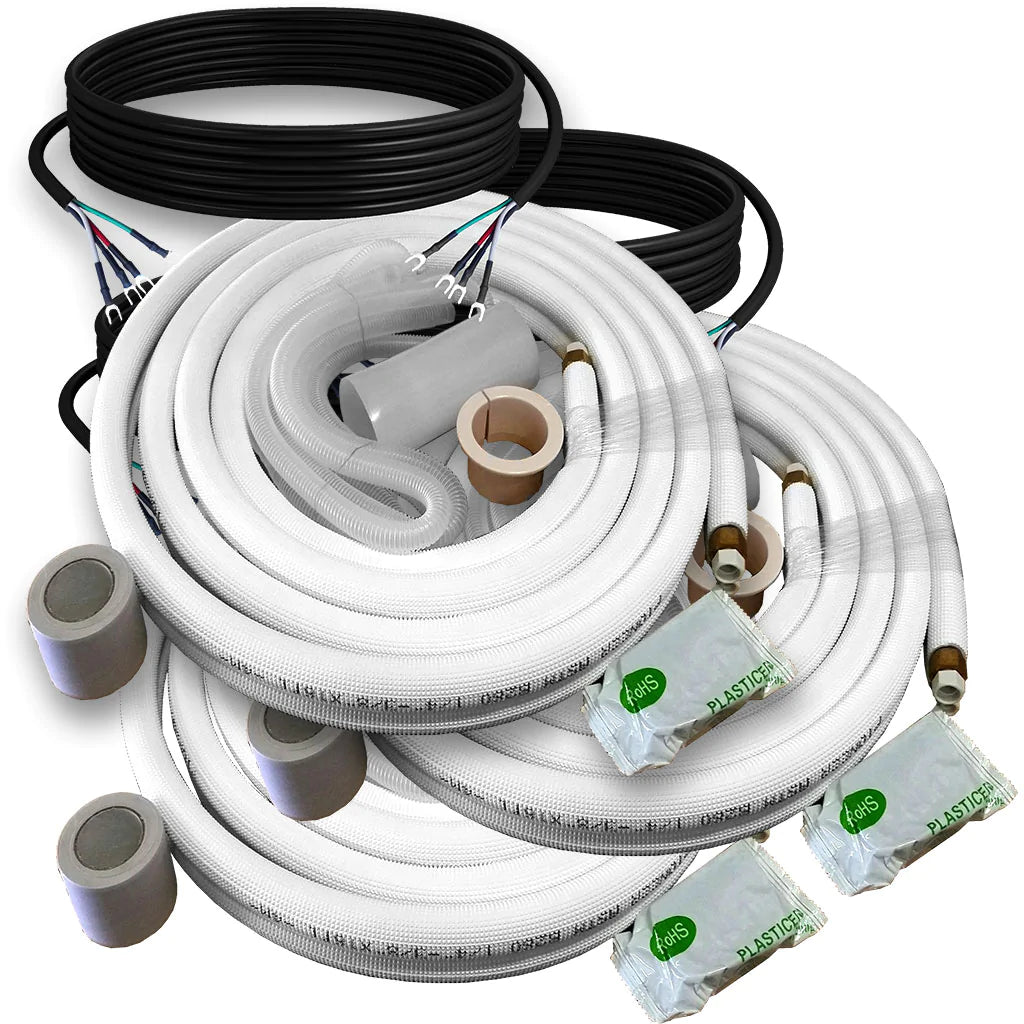

Line Set 25 ft., Quantity 3

  • This 25 ft. copper line set connects the Pioneer Diamante Series Condenser to the 9K and 12K Air Handlers.

What's Not Included and Required for Installation

  • Electrical Requirements, such as Disconnect Box or Electrical Whip
  • Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

SPECIFICATIONS & DIMENSIONS

  • Condenser
  • Product Dimensions: 35 1/8"W x 14"D x 31 3/8"H
  • Cooling Capacity: 24,000 BTU
  • Heating Capacity: 26,000 BTU
  • Zone Capacity: 3
  • SEER: 22.0
  • Outdoor Ambient Range (Cool): 5°F~122°F
  • Outdoor Ambient Range (Heat): -4°F~86°F
  • Voltage: Requires a minimum of 208V-230V/60HZ/15A (double-pole) (please check your home meets this electrical requirement prior to purchase)
  • Air Handler
  • Product Dimensions: 32 1/4"W x 7 5/8"D x 12"H
  • Mount Type: Wall
  • Cooling Capacity: 9,000 BTU
  • Heating Capacity: 9,500 BTU
  • Square Footage Coverage: 350 Square Feet
  • Line Set
  • Length: 25 Feet

INSTALLATION & GUIDES
