Pioneer® 36,000 BTU 20 SEER 8-Way Compact Cassette Ductless Mini Split with 25 ft. Linesets, CYB036GMFILCBD-25

Model: CYB036GMFILCBD-25
Regular price $3,698.00
Sale price $3,698.00 Regular price $4,230.00
-13%
Shipping calculated at checkout.

This item is out of stock. Please contact us for an alternative.

Regular price $3,698.00
Sale price $3,698.00 Regular price $4,230.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

Indoor units of this type of ceiling-mount ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Cassette systems also come with remote supply ducting and fresh air intake options. Our ceiling cassette mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mount ductless mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

Features

  • Cooling capacity: 36,000 BTU/H with 17.5 SEER efficiency
  • Heating capacity: 38,000 BTU/H with 10.5 HSPF efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Compact Cassette Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
  • Temperature Compensation. Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
  • Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
  • Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
  • Emergency start
  • Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
  • Follow Me (Remote Thermostat)Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
  • 46°F Heating. In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.

Optional

  • Ionizer. Release negative ions, eliminate odor, dust, smoke and pollen particles to give you fresh and healthy air.
  • Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
  • Remote in Engineer Mode
  • Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

    IMPORTANT

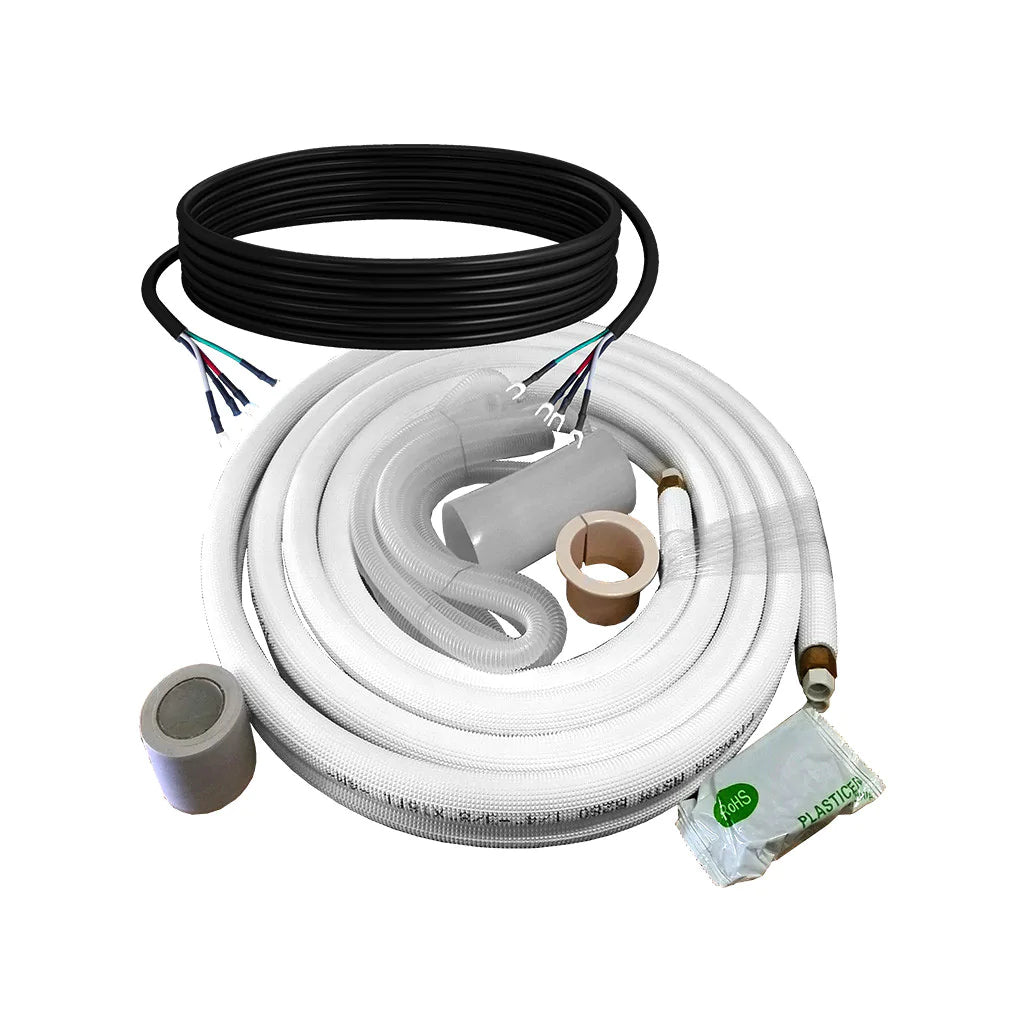

    The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

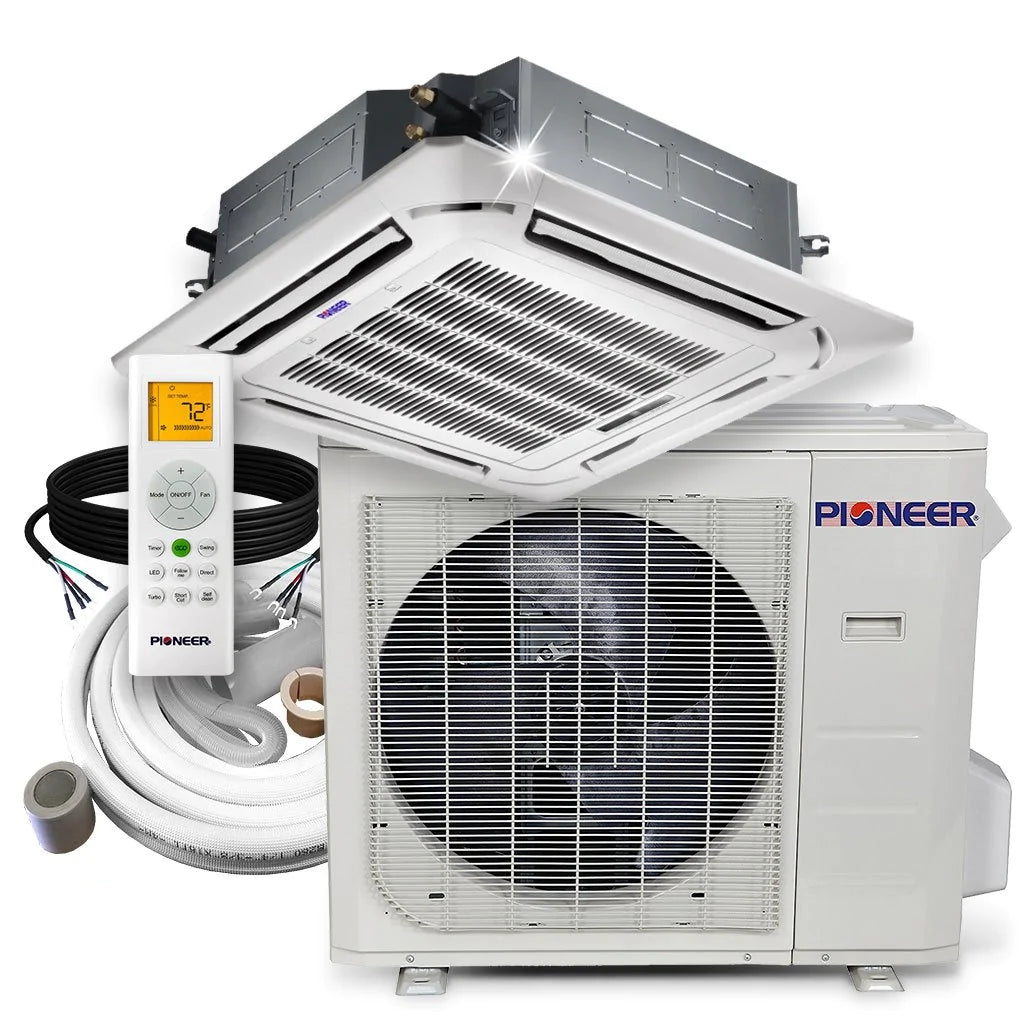

    What's Included

    • Indoor Unit
    • Outdoor Unit

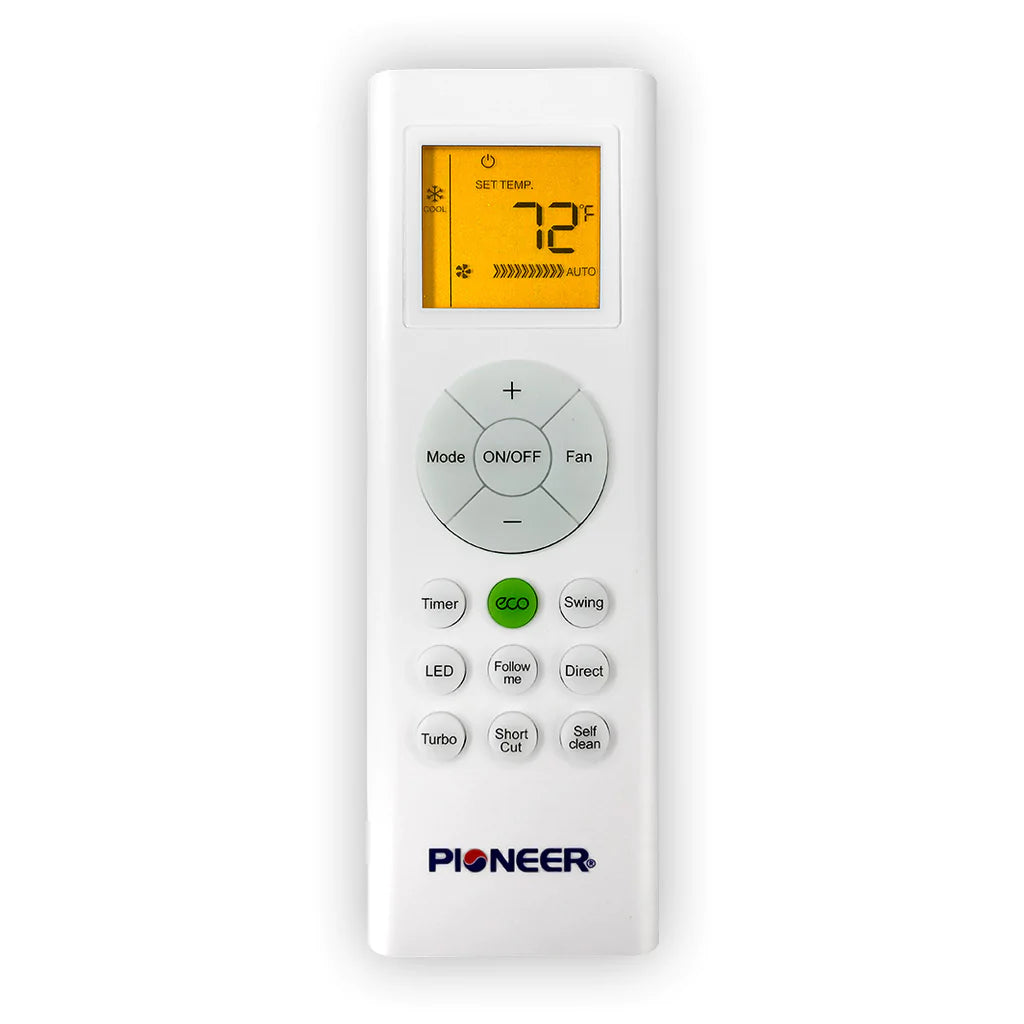

    • Wireless Remote Control
    • R410A Pre-Charged Outdoor Unit
    • Various Installation Kit Options Available
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty

    SPECIFICATIONS & DIMENSIONS

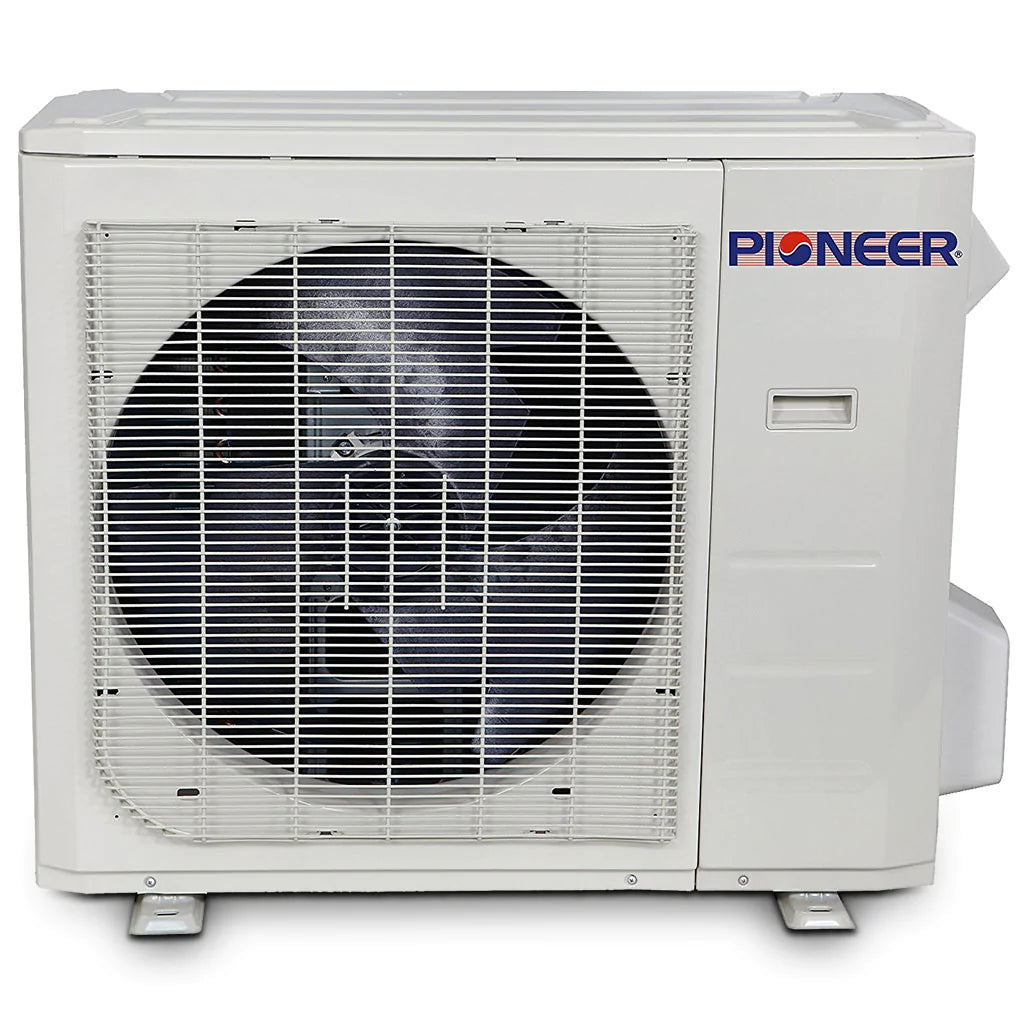

    • Condenser Specifications
    • Product Dimensions: 37.3"W x 16.2"D x 31.8"H
    • Cooling Capacity: 36,000 BTU
    • Heating Capacity: 36,000 BTU
    • Zone Capacity: 1
    • Low Ambient Unit: -15F
    • SEER: 17.5
    • Voltage: Requires a minimum of 208~230 V, 60 Hertz, 1 Ph (please check your home meets this electrical requirement prior to purchase)
    • Warranty: 5 Years for Compressor
    • Air Handler 36K BTU
    • Product Dimensions: 33.0"W x 33.0"D x 9.6"H
    • Mount Type: Wall
    • Cooling Capacity: 36,000 BTU
    • Heating Capacity: 36,000 BTU
    • Coverage Area: Up to 1,350 Square Feet
    • Warranty: 5 Years on Parts

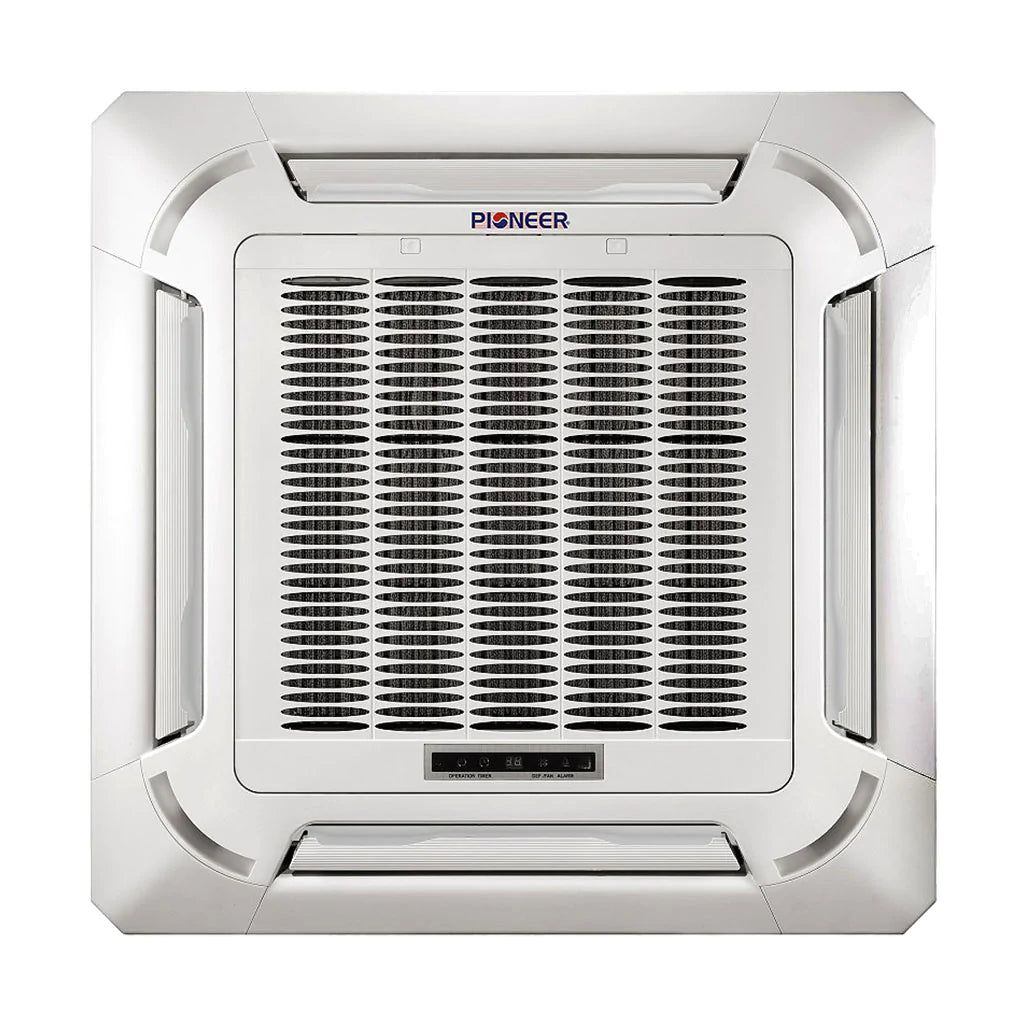

    • Panel Data
    • Product Dimensions: 37.7"W x 37.7"D x 2.0"H
    • Weight: 11 lbs
