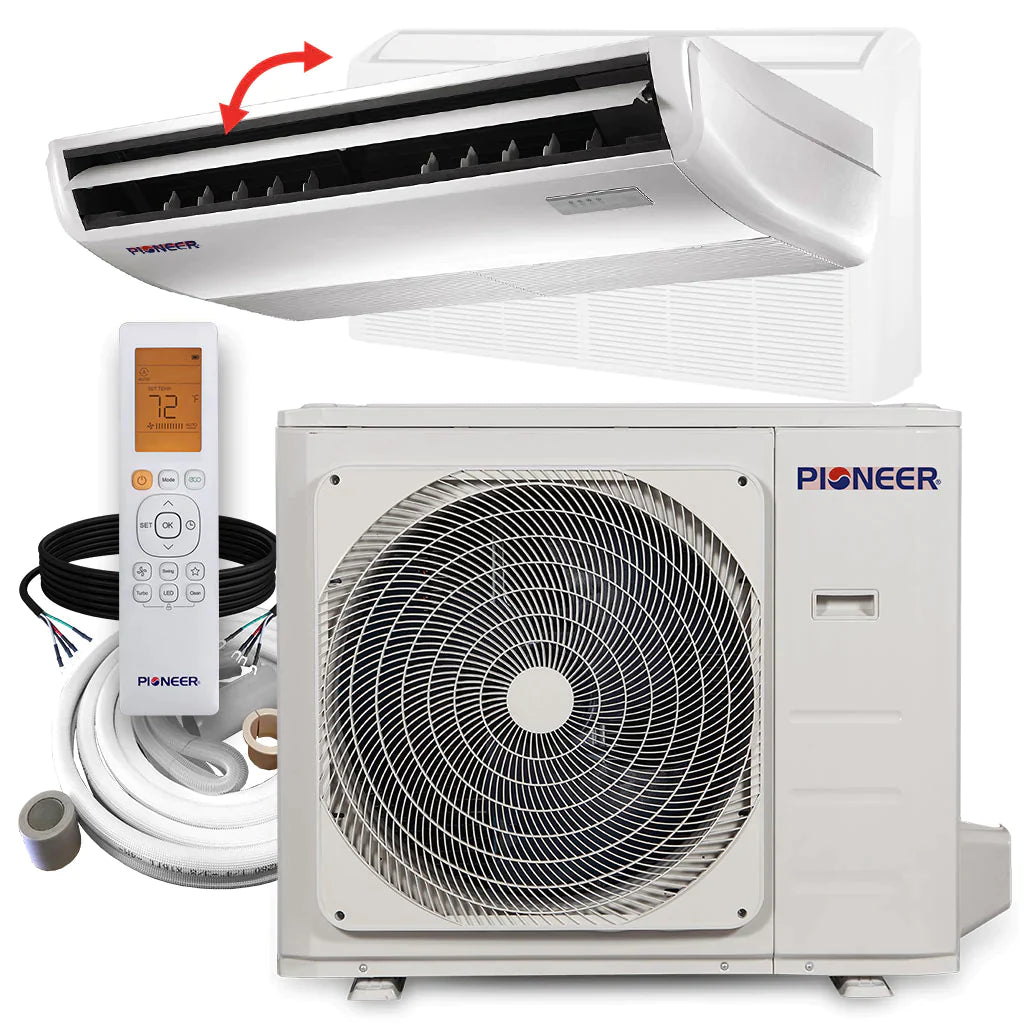

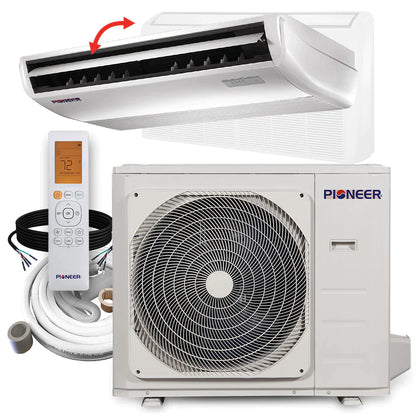

Pioneer® 36,000 BTU 17 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 16 ft. Line Sets, UYB036GMFILCBD-16

Model: UYB036GMFILCBD-16
Regular price $3,458.00
Sale price $3,458.00 Regular price $3,970.00
-13%
Shipping calculated at checkout.

This item is out of stock. Please contact us for alternative.

Regular price $3,458.00
Sale price $3,458.00 Regular price $3,970.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

Pioneer Mini Split offers a wide selection of flexible floor-ceiling mount ductless mini splits that are ideal for homes and commercial properties. These Flex Mount systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; you can mount these in ceiling-suspended positions as well. Our floor and ductless air conditioning ceiling mount mini split systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of floor-ceiling flex mount ductless mini splits!

Mini Split Includes

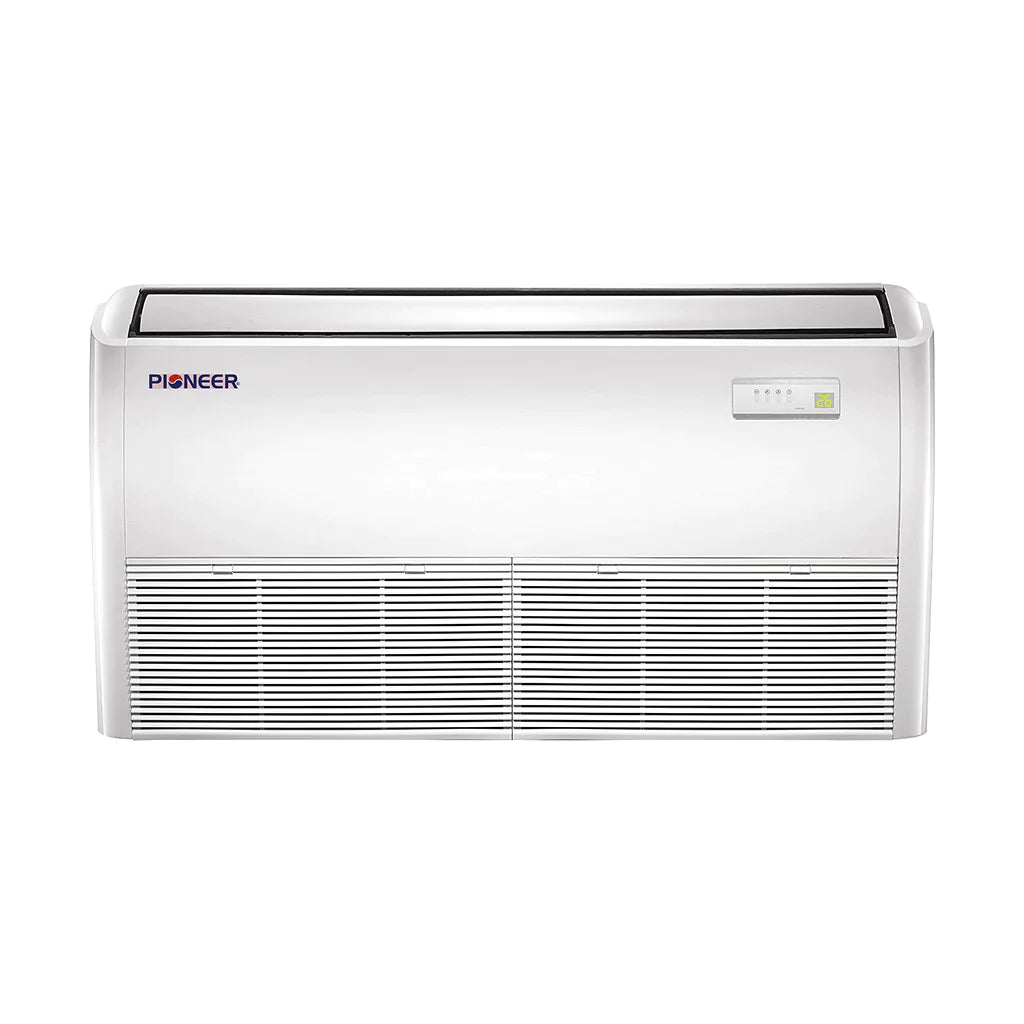

  • Indoor Unit

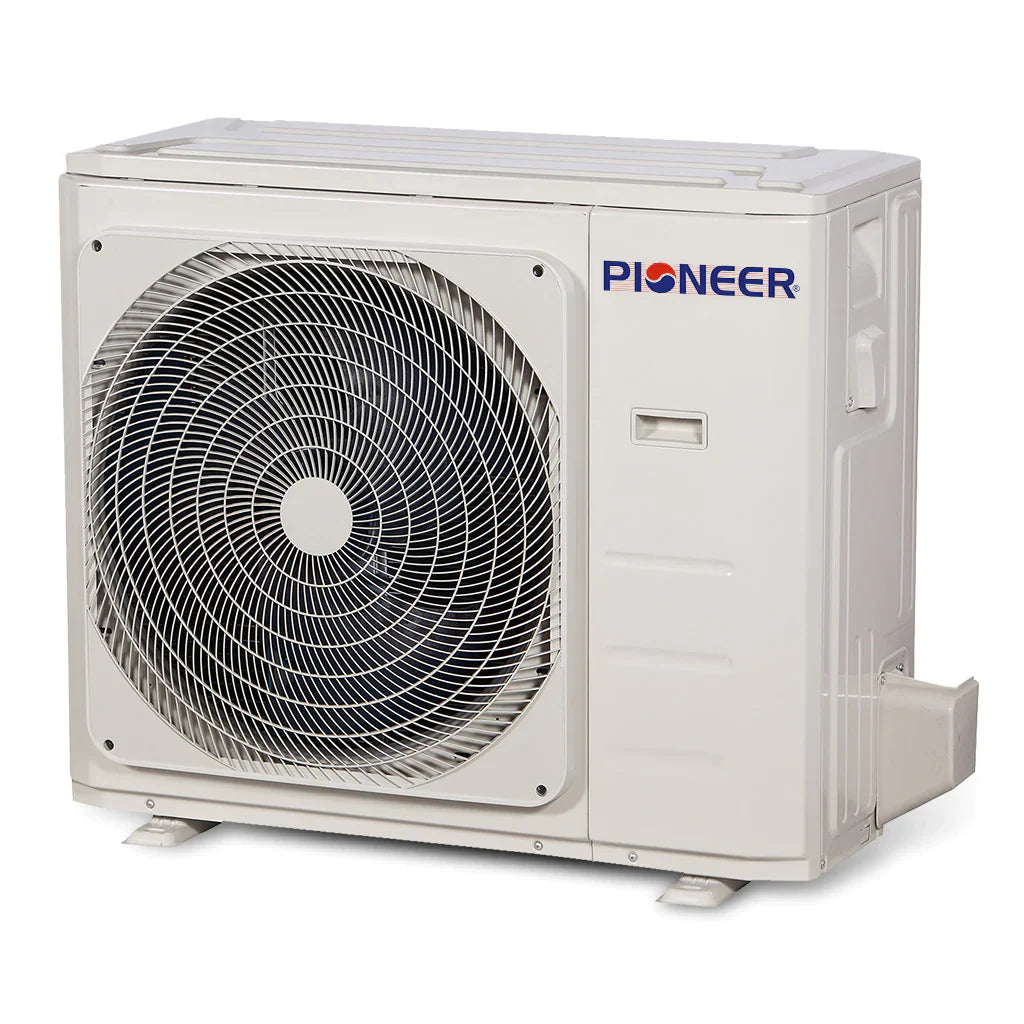

  • Outdoor Unit

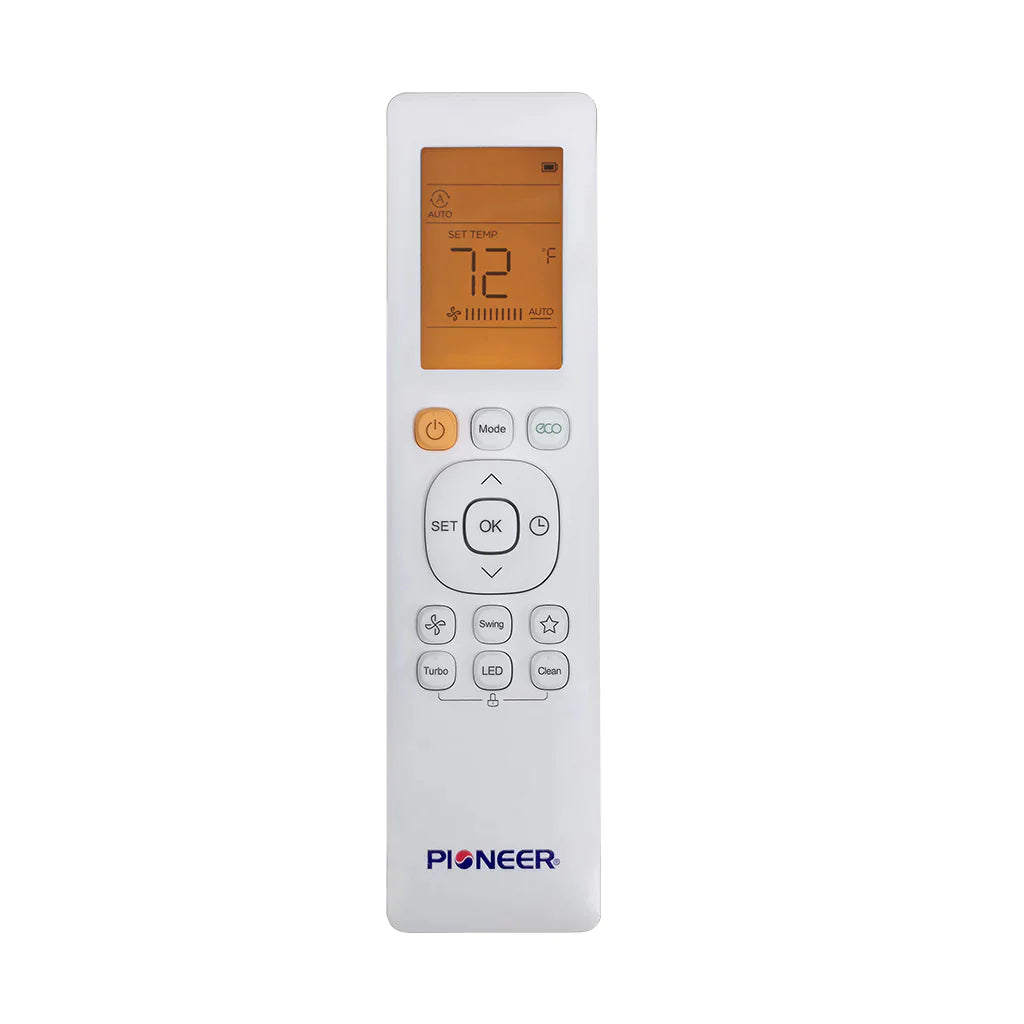

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Features

  • Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 36,000 BTU/H with 17.0 SEER/8.0 EER efficiency
  • Heating capacity: 38,000 BTU/H with 10.0 HSPF/2.8 C.O.P. efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $280.00
    • Heating: $803.00
  • Front Desk Control
    With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
  • 46° F Heating
  • Refrigerant Leakage Detect
    Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
  • Anti-cold Air Function
    Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
  • Emergency Using
  • Low Ambient Cooling
    With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F
  • Follow Me
    Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
Optional
  • Wired Controller
    Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
  • Remote in Engineer Mode

  • Central Control Management
    The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.
IMPORTANT

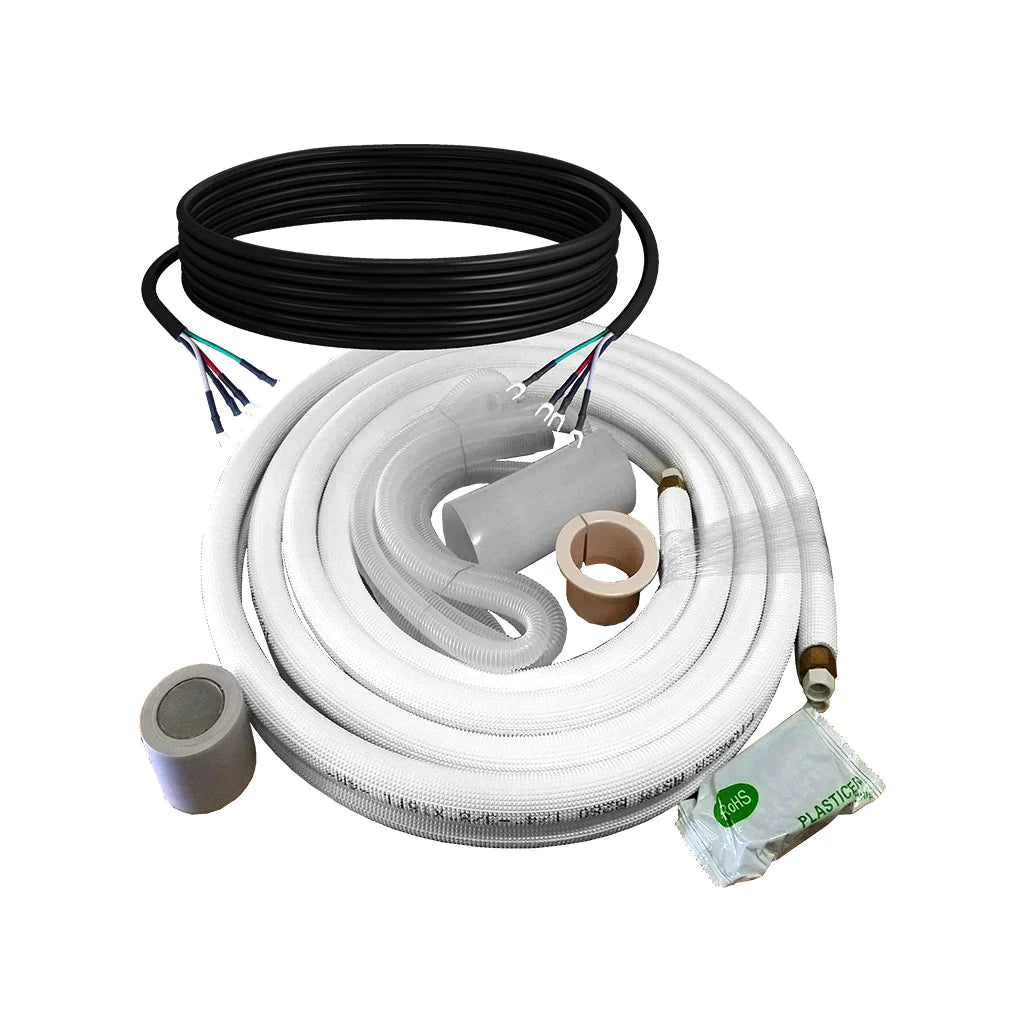

The installation kit is: 16 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

SPECIFICATIONS & DIMENSIONS

  • Performance Data
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 36,000 BTU/h
  • Cooling Capacity Range: 11,476~36,000 BTU/h
  • Cooling SEER: 17.0 BTU/w
  • Cooling EER: 8.0 BTU/w
  • SEER2: 19
  • Heating Rated Capacity: 38,000 BTU/h
  • Heating Capacity Range: 11,467~38,000 BTU/h
  • Heating HSPF4: 10.0 BTU/w
  • Heating C.O.P.: 2.8 W/W
  • Refrigerant Type: R410A
  • Suitable Area: 900~1,350 Sq.F
  • Condenser
  • Sound Level: 63.5 dB(A)
  • Breaker Needed: 40A (double-pole)
  • Net Dimensions (WDH): 37.3" W x 16.2" D x 31.8" H
  • Carton Dimensions (WDH): 42.8" W x 19.6" D x 34.0" H
  • Net / Gross Weight: 155.4 / 166.2 Lbs
  • Cool Mode - Outdoor Operating Temperature Range: 5° to 122°F
  • Heat Mode - Outdoor Operating Temperature Range: -13° to 75°F
  • Air Handler
  • Air Flow (Hi/Med/Lo): 1,036 / 917 / 638 CFM
  • Sound Level (Hi/Med/Lo): 51.5 / 48.0 / 40.5 dB(A)
  • Net Dimensions (WDH): 50.5" W x 26.5" D x 9.3" H
  • Carton Dimensions (WDH): 53.5 " W x 29.8" D x 12.4" H
  • Net / Gross Weight: 69 / 82 Lbs
