Pioneer® 24,000 BTU 18 SEER 230V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System without installation kit, WYS024GMFI20RL-00

Model: WYS024GMFI20RL-00
Regular price $1,378.00
Sale price $1,378.00 Regular price $1,529.00
-10%
Shipping calculated at checkout.

Financing Options


This item is in stock! Estimated Arrival: Dec 19 to Dec 22

Regular price $1,378.00
Sale price $1,378.00 Regular price $1,529.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!

Features

  • Ultra High Efficiency Inverter+ ductless mini split heat pump system
  • Cooling capacity: 24,000 BTU/H with 18 SEER/9 EER efficiency
  • Heating capacity: 24,000 BTU/H with 9.8 HSPF/3.03 COP efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $176.00
    • Heating: $518.00
  • Front Desk Control
    With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
  • 46° F Heating
  • Refrigerant Leakage Detect
    Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
  • Anti-cold Air Function
    Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
  • Emergency Using
  • Low Ambient Cooling
    With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run heating operation even when the outdoor ambient temperature is down to -13°F.
  • Follow Me
    Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

  • Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
  • Remote in Engineer Mode
  • Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

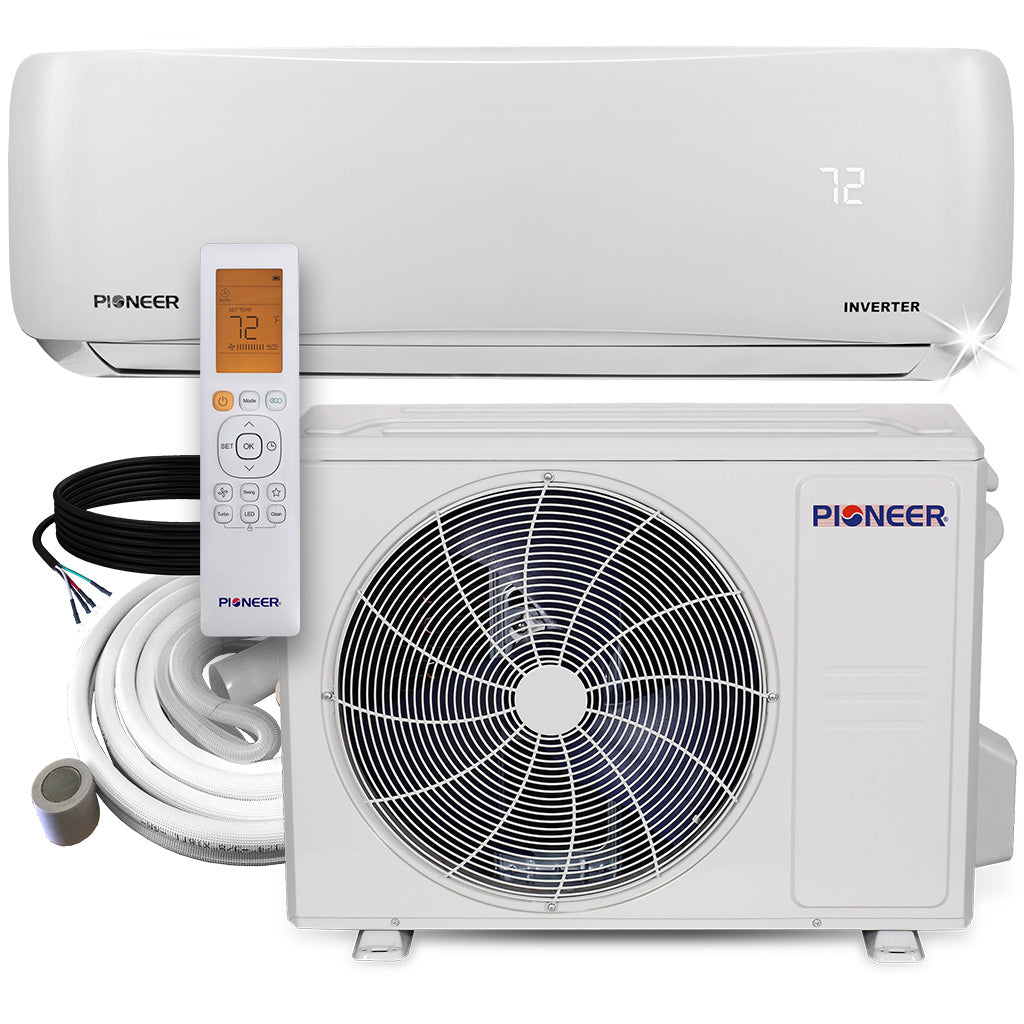

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

SPECIFICATIONS & DIMENSIONS

  • Performance Data
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 6,704~25,300 BTU/h
  • Cooling SEER: 18.0 BTU/w
  • Cooling EER: 9.0 BTU/w
  • SEER2: 18
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 6,900~28,100 BTU/h
  • Heating HSPF4/HSPF5: 9.8 / 8.0 BTU/w
  • Refrigerant Type: R410A/63
  • Suitable Area: 650~900 Sq.F
  • Warranty: 5 years parts and compressor warranty
  • Condenser
  • Sound Level: 60.0 dB(A)
  • Breaker Needed: 20A (double-pole)
  • Net Dimensions (WDH): 35"W x 13 1/2" D x 26 1/2" H
  • Carton Dimensions (WDH): 39 1/8" W x 15 5/8" D x 29 1/8" H
  • Net / Gross Weight: 97.9 / 104.60 lbs
  • Cool Mode - Outdoor Operating Temperature Range: 5° to 122°F
  • Heat Mode - Outdoor Operating Temperature Range: -13° to 75°F
  • Air Handler
  • Air Flow (Hi/Med/Lo): 588 / 450 / 353 CFM
  • Sound Level (Hi/Med/Lo): 45.5 / 39.5 / 35.0 dB(A)
  • Net Dimensions (WDH): 42 1/2" W x 8 7/8" D x 13 1/8" H
  • Carton Dimensions (WDH): 45 1/2" W x 16 3/8" D x 12 5/8" H
  • Net / Gross Weight: 30 / 38.6 lbs

INSTALLATION & GUIDES
