Pioneer® 12,000 BTU 21.5 SEER Ceiling Concealed Ducted Mini-Split, RYB012GMFILDAD-25

Model: RYB012GMFILDAD-25
Regular price $1,605.00
Sale price $1,605.00 Regular price $1,730.00
-7%
Shipping calculated at checkout.

Financing Options


This item is out of stock. Please contact us for an ETA.

Regular price $1,605.00
Sale price $1,605.00 Regular price $1,730.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

The Pioneer® Ducted Concealed 12,000 BTU mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings.

Features

  • Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
  • Heating capacity: 12,000 BTU/H with 11.5 HSPF efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Variable Speed DC Inverter Operation Mode
  • Energy-Star Certified
  • Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
  • Wired Control. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
  • Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
  • Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
  • Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°F.
  • Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

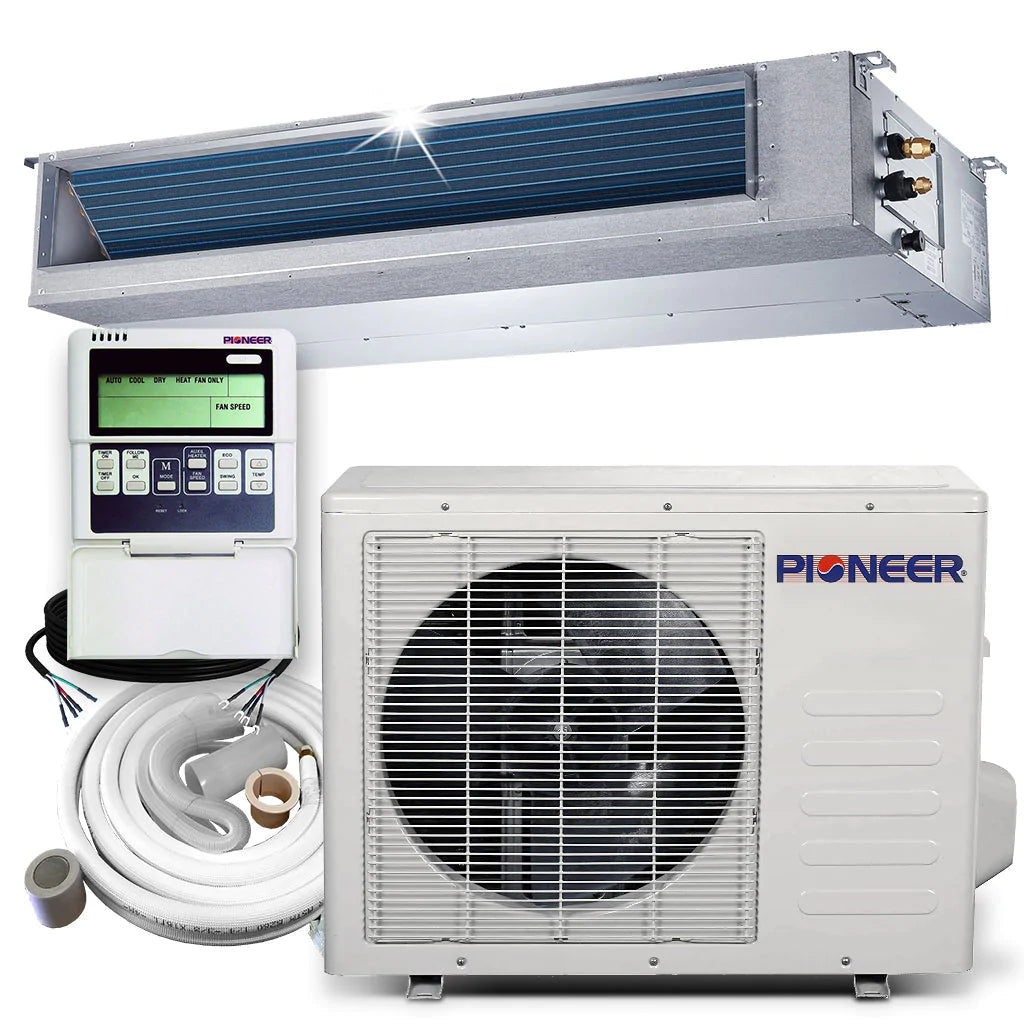

What's Included
  • Indoor Unit
  • Outdoor Unit

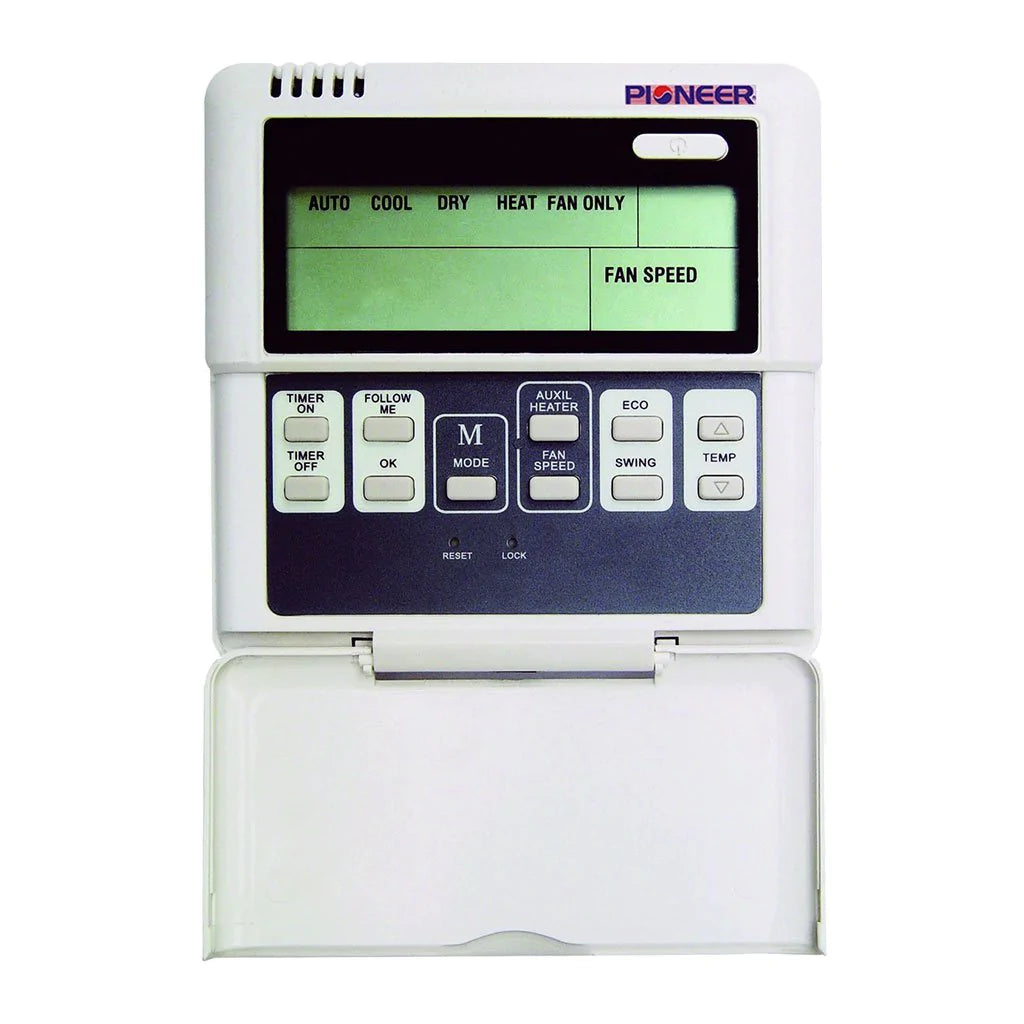

  • Wire Remote Control
  • R410A Pre-Charged Outdoor Unit

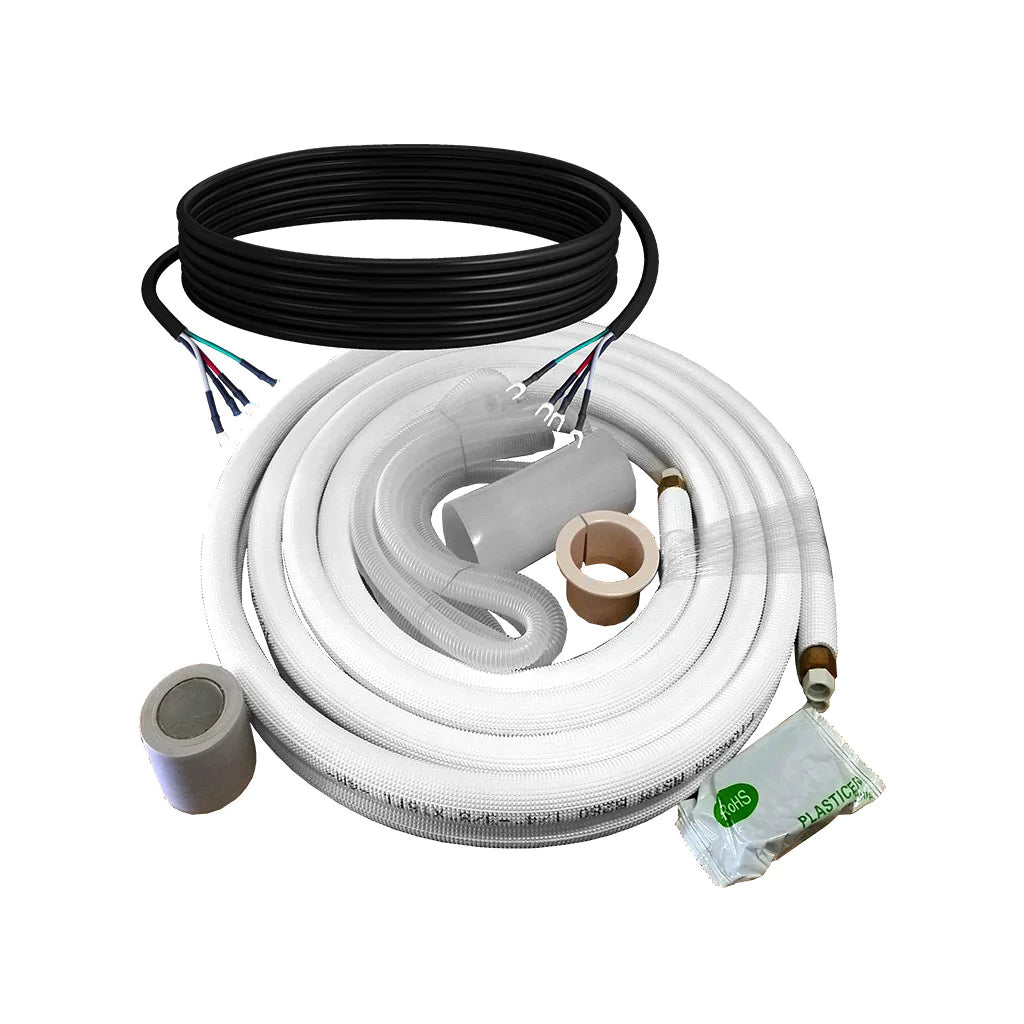

  • 25 Ft. Installation Kit - 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
  • Flare Connection Leak Guard Sealer
  • Manufacturer Warranty

What's Not Included and Required for Installation

  • Electrical Requirements, such as Disconnect Box or Electrical Whip
  • Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

SPECIFICATIONS & DIMENSIONS

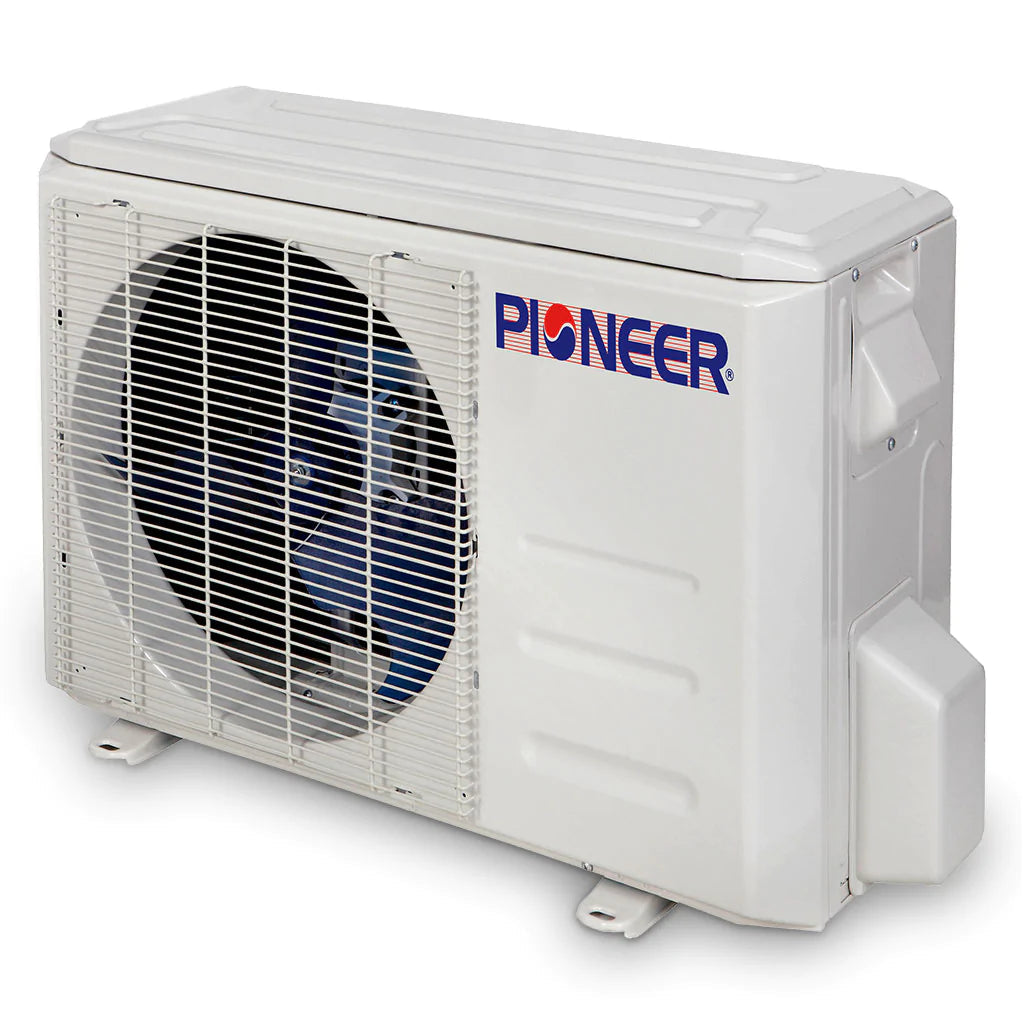

  • Condenser
  • Product Dimensions: 31 1/2"W x 13 1/8"D x 21 3/4"H
  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 12,000 BTU
  • Zone Capacity: 1
  • Low Ambient Unit: -15F
  • SEER: 21.5
  • Voltage: Requires a minimum of 208~230 V, 60 Hertz, 1 Ph (please check your home meets this electrical requirement prior to purchase)
  • Warranty: 5 Years Parts

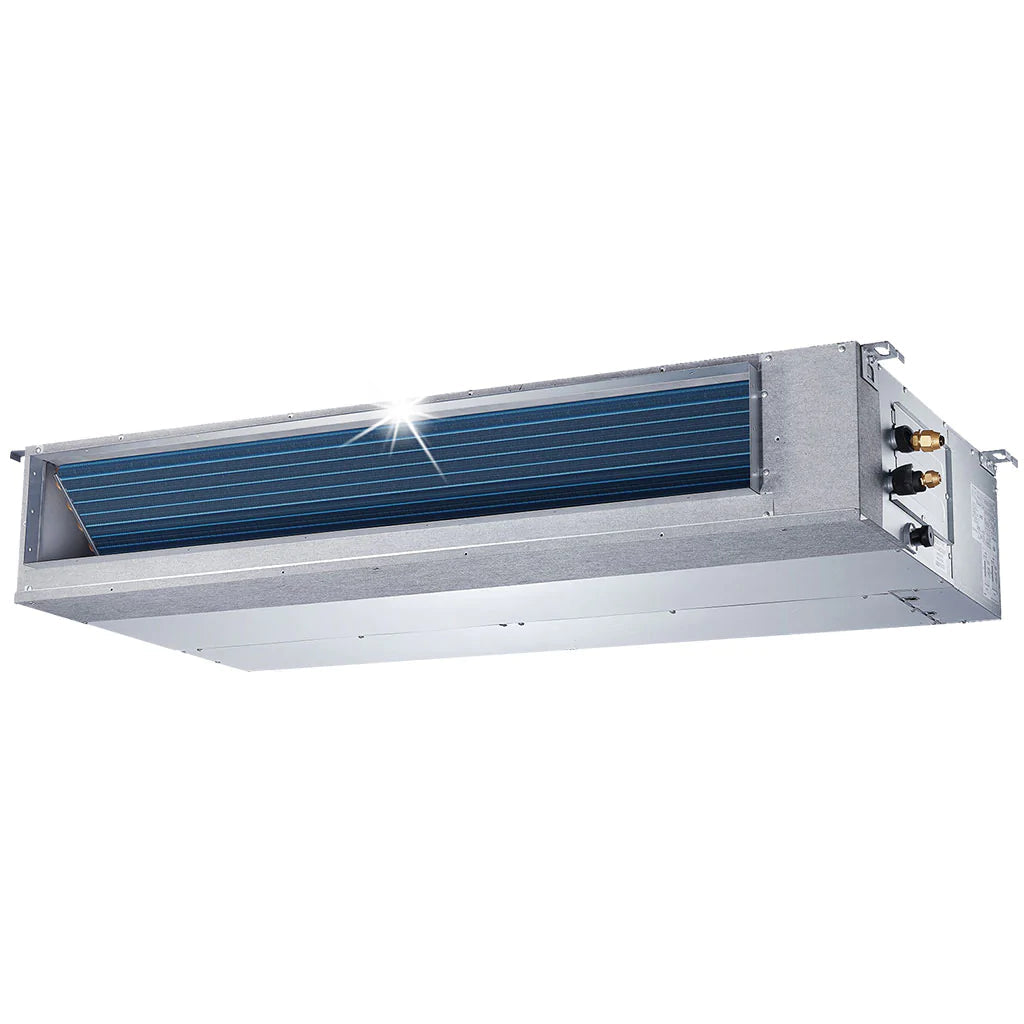

  • Air Handler
  • Product Dimensions: 27 1/2"W x 17 3/4"D x 7 7/8"H
  • Mount Type: Wall
  • Cooling Capacity: 12,000 BTU
  • Heating Capacity: 12,000 BTU
  • Coverage Area: Up to 450 Square Feet
  • Warranty: 5 Years on Parts

INSTALLATION & GUIDES
