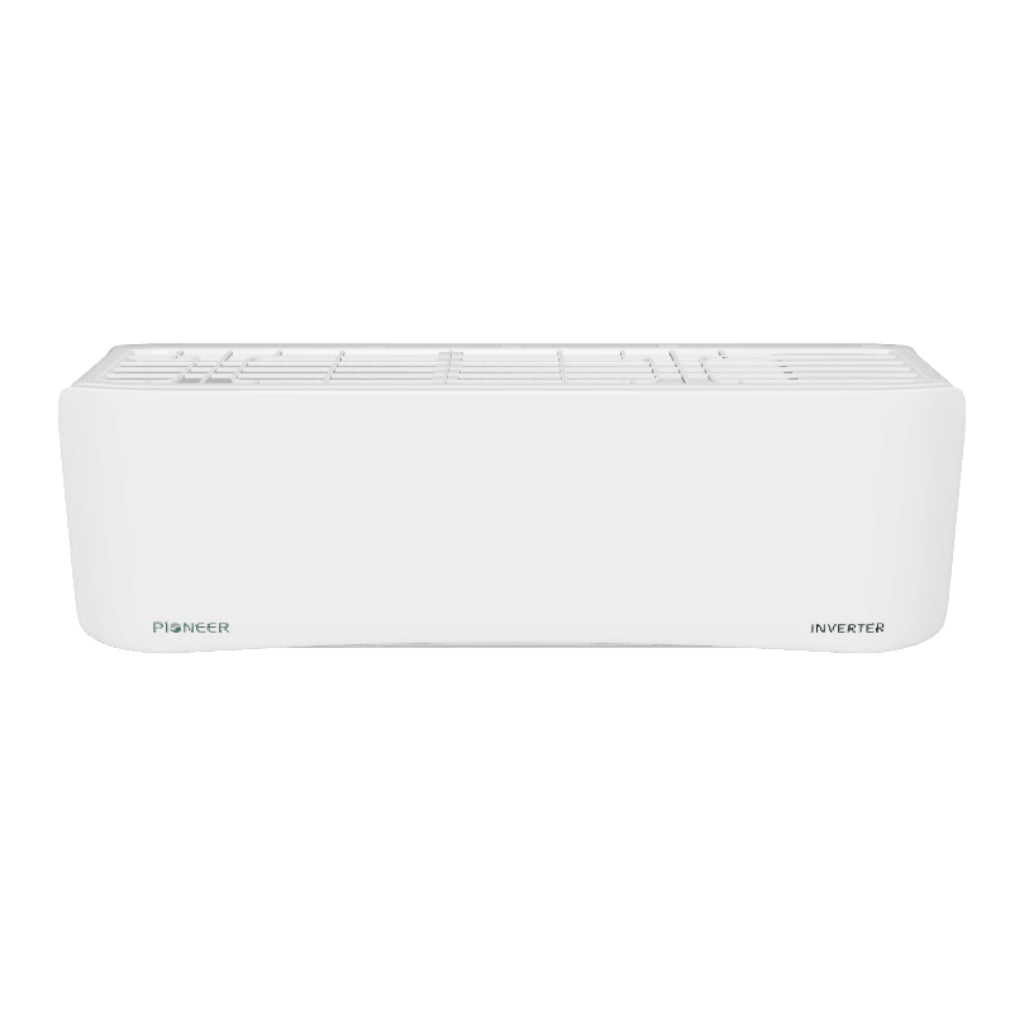

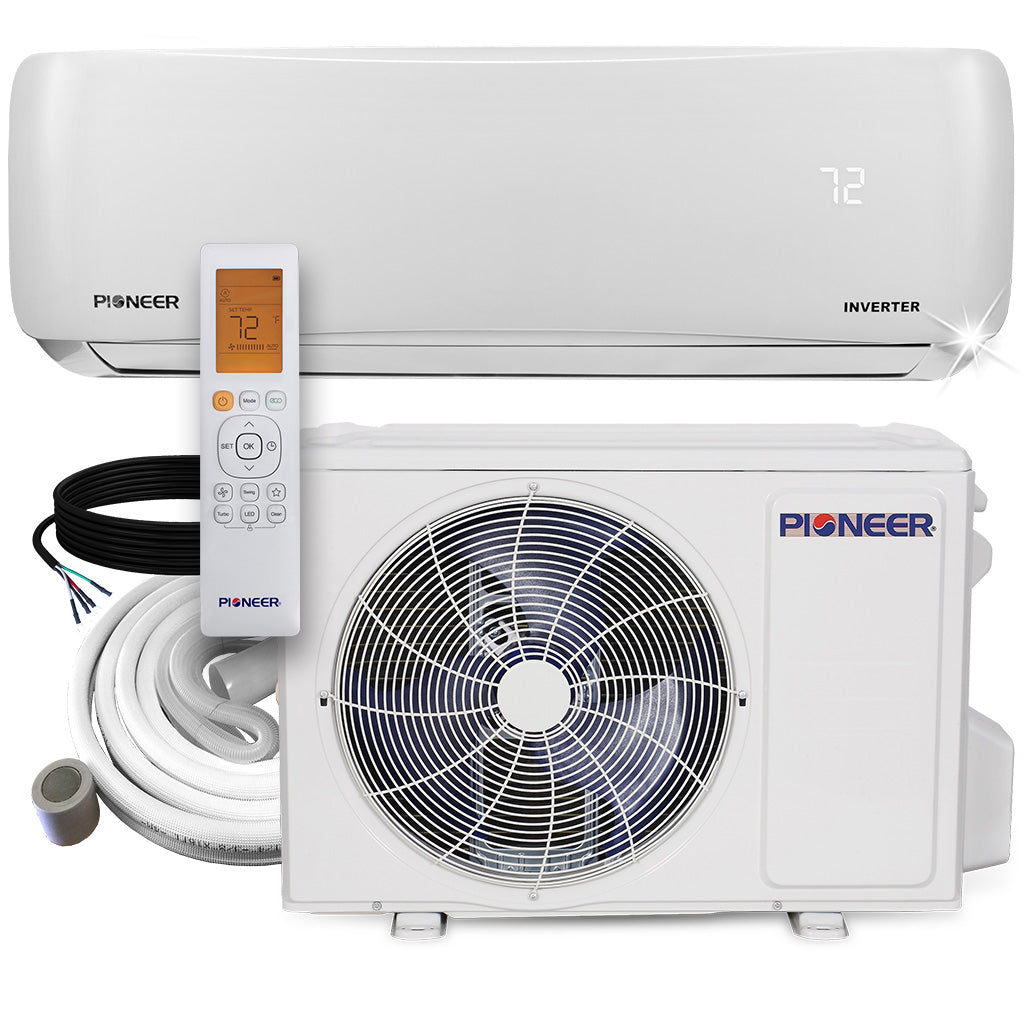

Pioneer® 12,000 BTU 21.5 SEER 115V Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System without installation kit, WYS012AMFI22RL-00

Model: WYS012AMFI22RL-00
Regular price $1,028.00
Sale price $1,028.00 Regular price $1,189.00
-14%
Shipping calculated at checkout.

Financing Options


This item is in stock! Estimated Arrival: Nov 17 to Nov 20

Regular price $1,028.00
Sale price $1,028.00 Regular price $1,189.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!

Features

  • Ultra High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 12,000 BTU/H with 21.5 SEER/12.5 EER efficiency
  • Heating capacity: 12,000 BTU/H with 11.5 HSPF/3.38 COP efficiency
  • Voltage: 110~120 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $74.00
    • Heating: $221.00
  • Sleep Mode
    The function enables the air conditioner to automatically increase cooling or decrease heating 1°C per hour for the first two hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy savings and comfort at night.
  • Temperature Compensation
    Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
  • Refrigerant Leakage Detect
    Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
  • Anti-cold Air Function
    Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
  • Emergency start
  • Low Ambient Cooling
    With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run heating operation even when the outdoor ambient temperature is down to -13°F.
  • 1W Standby
    Intelligent on-off technology enables Pioneer products automatically  enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving.
  • 2-way Draining
    Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation.
  • Follow Me (Remote Thermostat)
    Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
  • 46°F Heating
    In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.
  • Chassis Heating Belt
    Heating belt is fitted on the base plate of the outdoor unit to prevent defrosting water accumulation, which improves heat transfer efficiency.
Optional
  • High Density Filter. Compared with ordinary dust filter, the anti-dust effect of this high density filter can increase more than 50%, it can clean dust, pollen up to 80%.
  • Wireless Control. With the Wireless control, you can easily turn off each indoor unit that it is paired, outside your home via your smart phone. Furthermore, you can turn it on before you come back.
  • Remote in Engineer Mode
What's Included

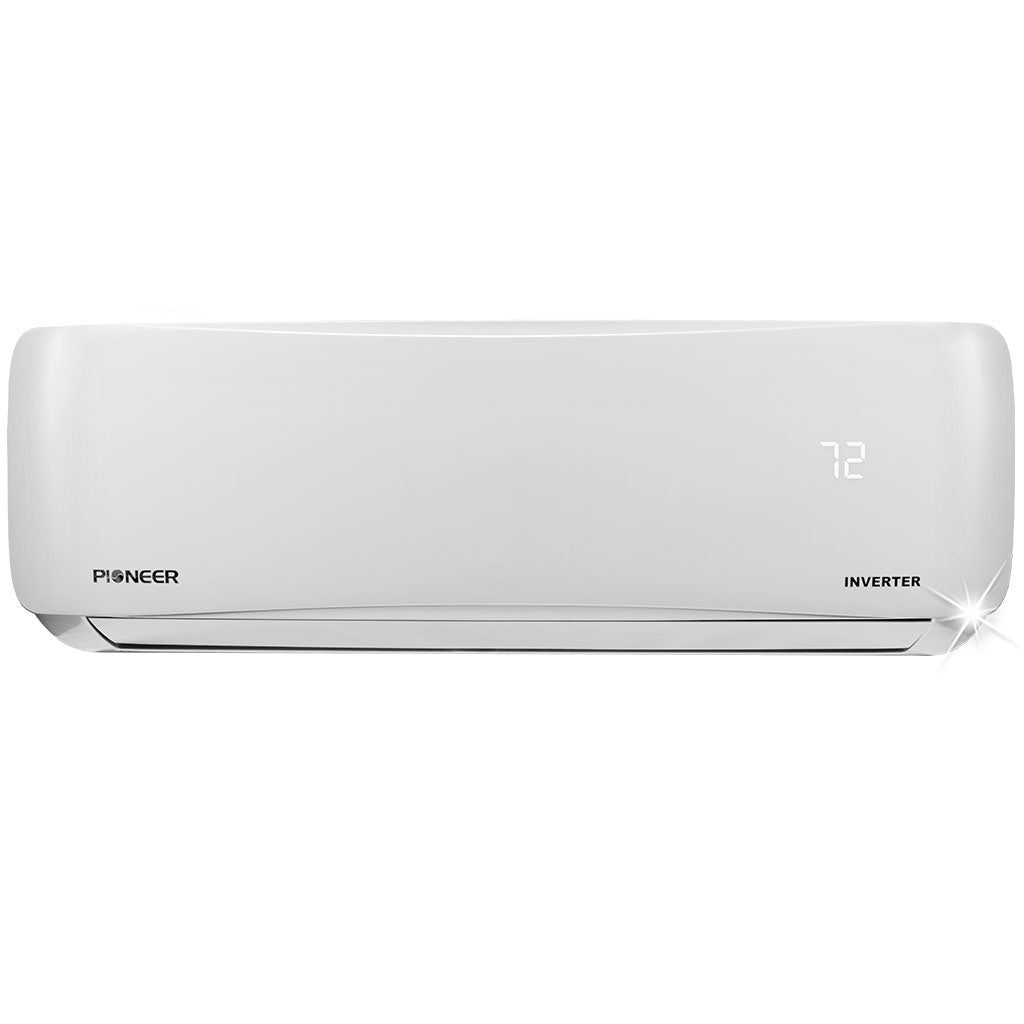

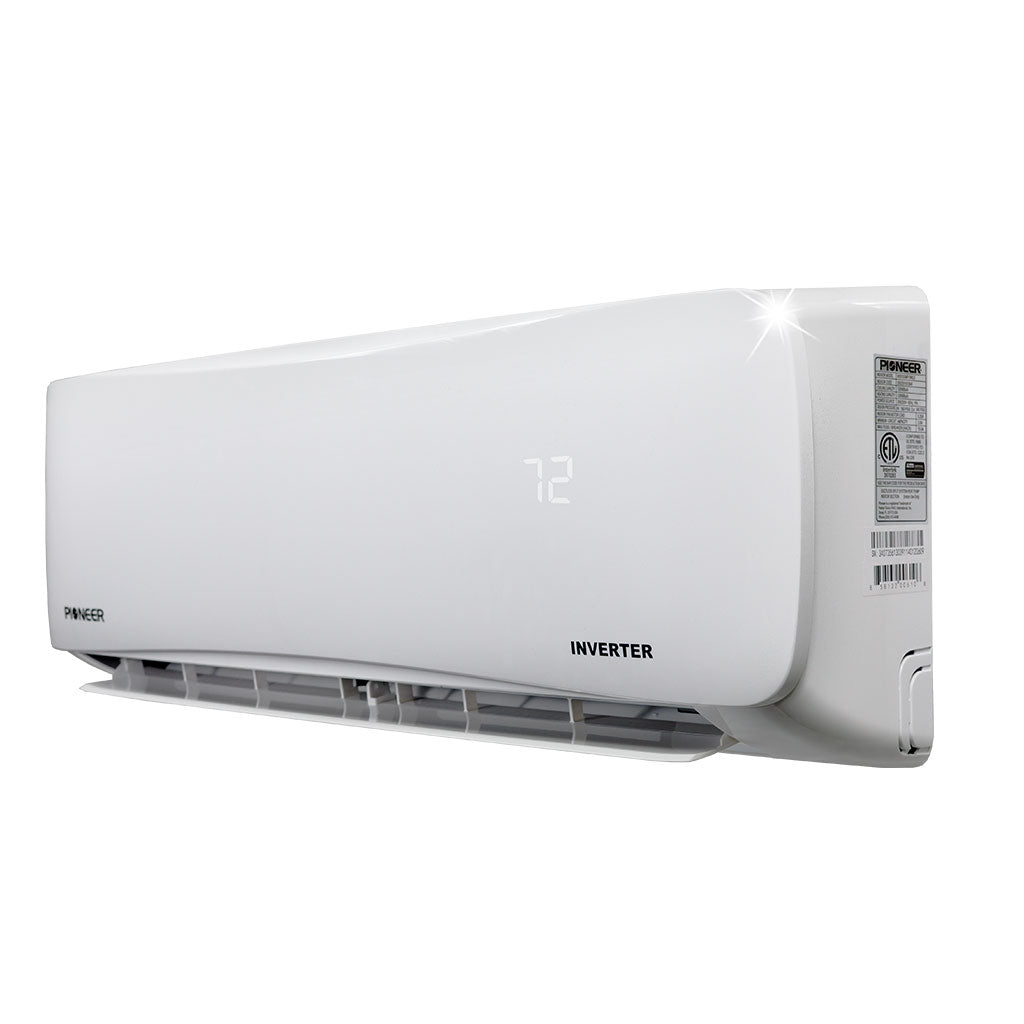

  • Indoor Unit

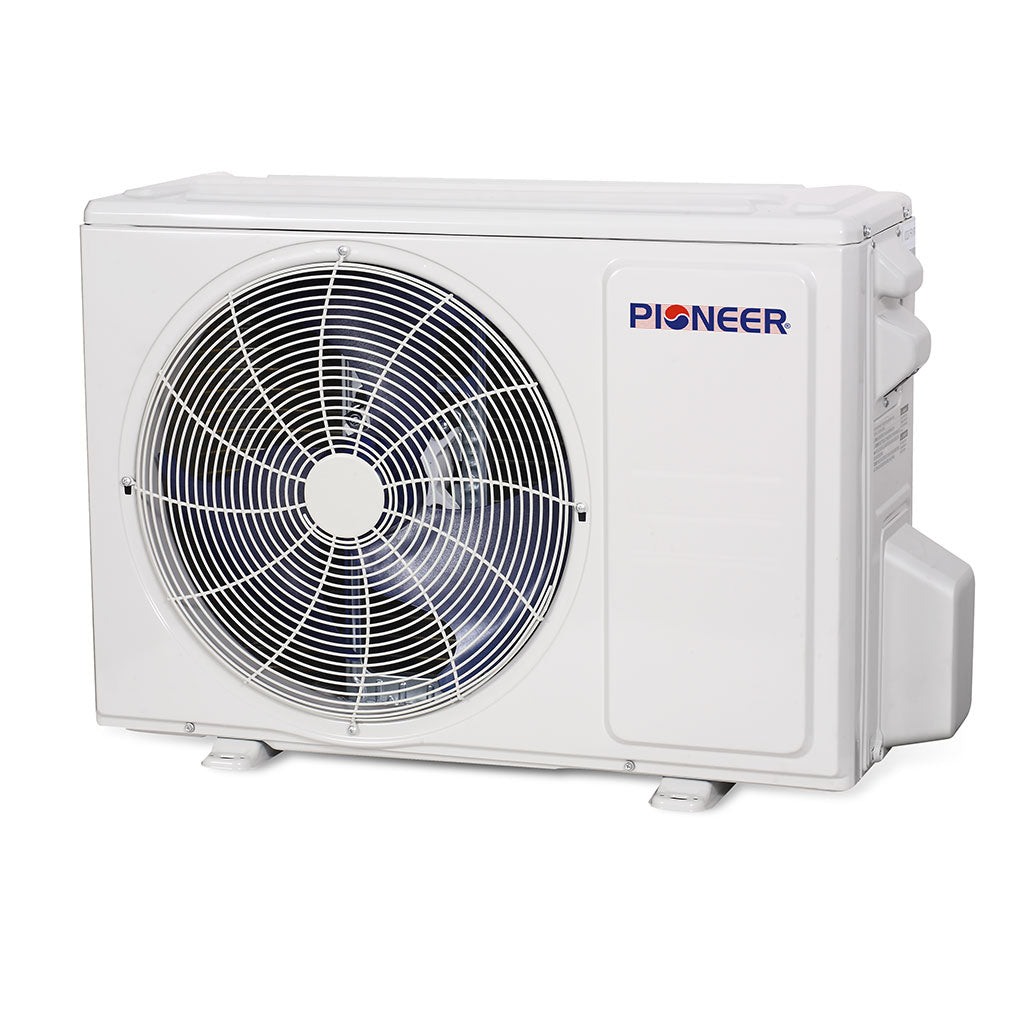

  • Outdoor Unit
  • Wireless Remote Control

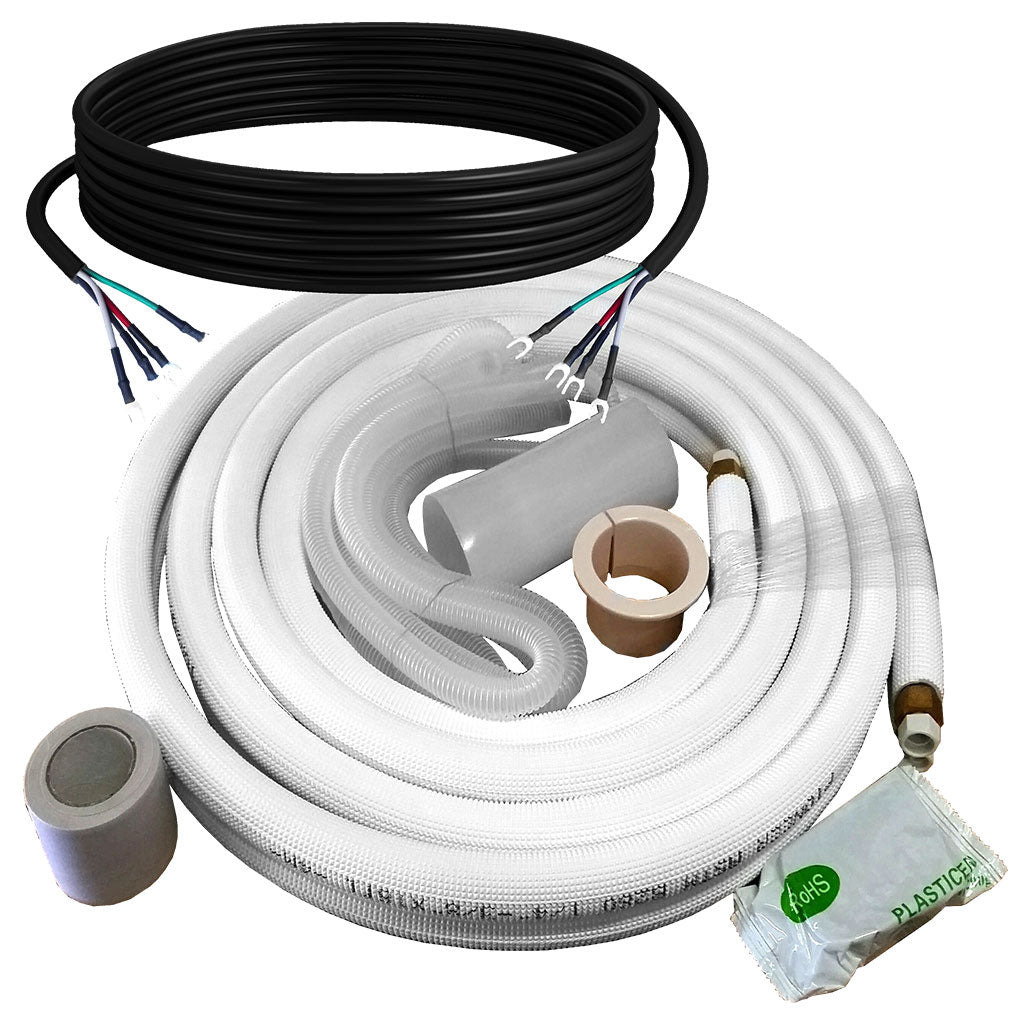

  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

SPECIFICATIONS & DIMENSIONS

  • Performance Data
  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,500~12,150 BTU/h
  • Cooling SEER: 21.5 BTU/w
  • Cooling EER : 12.5 BTU/w
  • SEER2: 22.7
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 4,600~12,904 BTU/h
  • Heating HSPF: 11.5 BTU/w
  • Refrigerant Type: R410a
  • Suitable Area: 300~450 Sq.F
  • Warranty: 5 years parts and compressor warranty
  • Condenser
  • Sound Level: 52.5 dB(A)
  • Breaker Needed: 20A (single-pole)
  • Net Dimensions (WDH): 30.2"W x 11.8" D x 21.7" H
  • Carton Dimensions (WDH): 34.8" W x 13.25" D x 24" H
  • Net / Gross Weight: 66.8 / 72.3 Lbs
  • Cool Mode - Outdoor Operating Temperature Range: 5° to 122°F
  • Heat Mode - Outdoor Operating Temperature Range: -13° to 75°F
  • Air Handler
  • Air Flow (Hi/Med/Lo): 306 / 212 / 147 CFM
  • Sound Level (Hi/Lo): 36.0 / 23.0 dB(A)
  • Net Dimensions (WDH): 31.5" W x 7.3" D x 11.6" H
  • Carton Dimensions (WDH): 34.5" W x 11.25" D x 15" H
  • Net / Gross Weight: 24 / 34.2 Lbs

INSTALLATION & GUIDES
