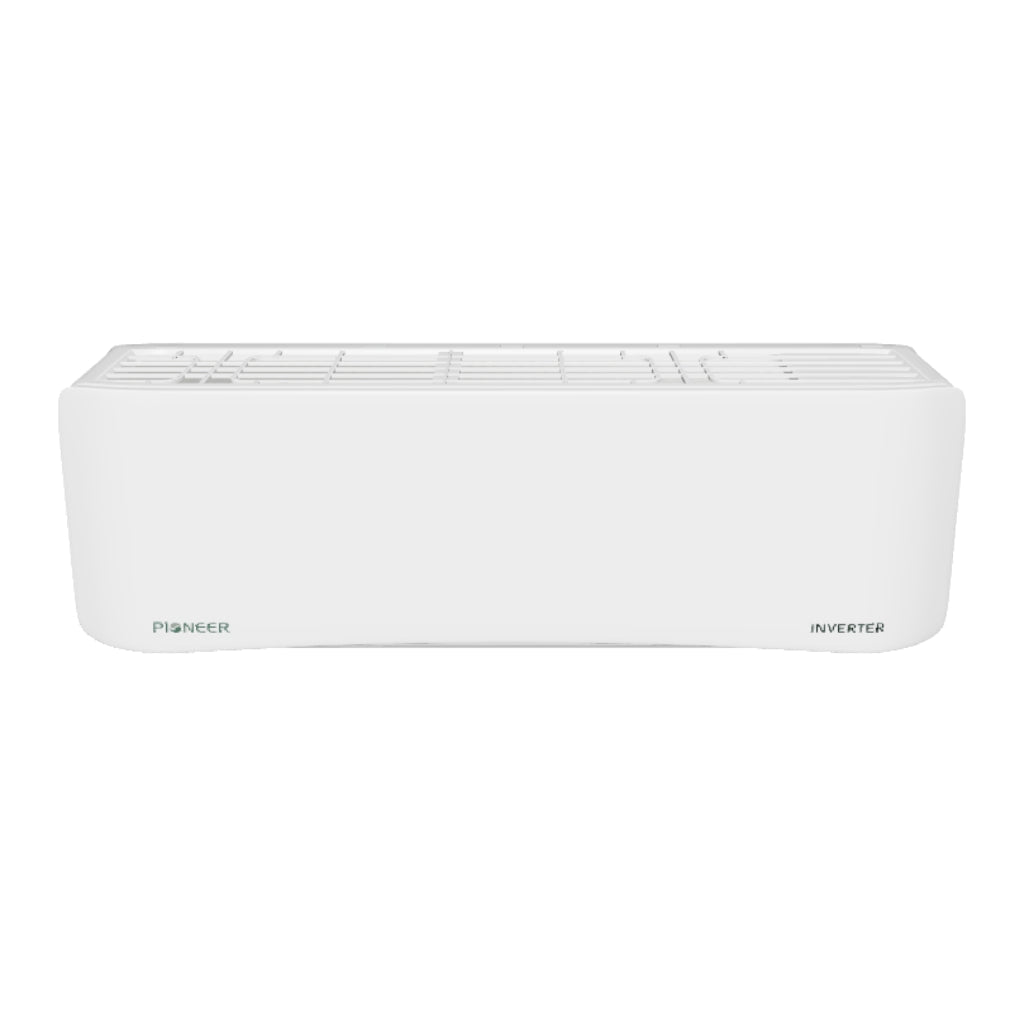

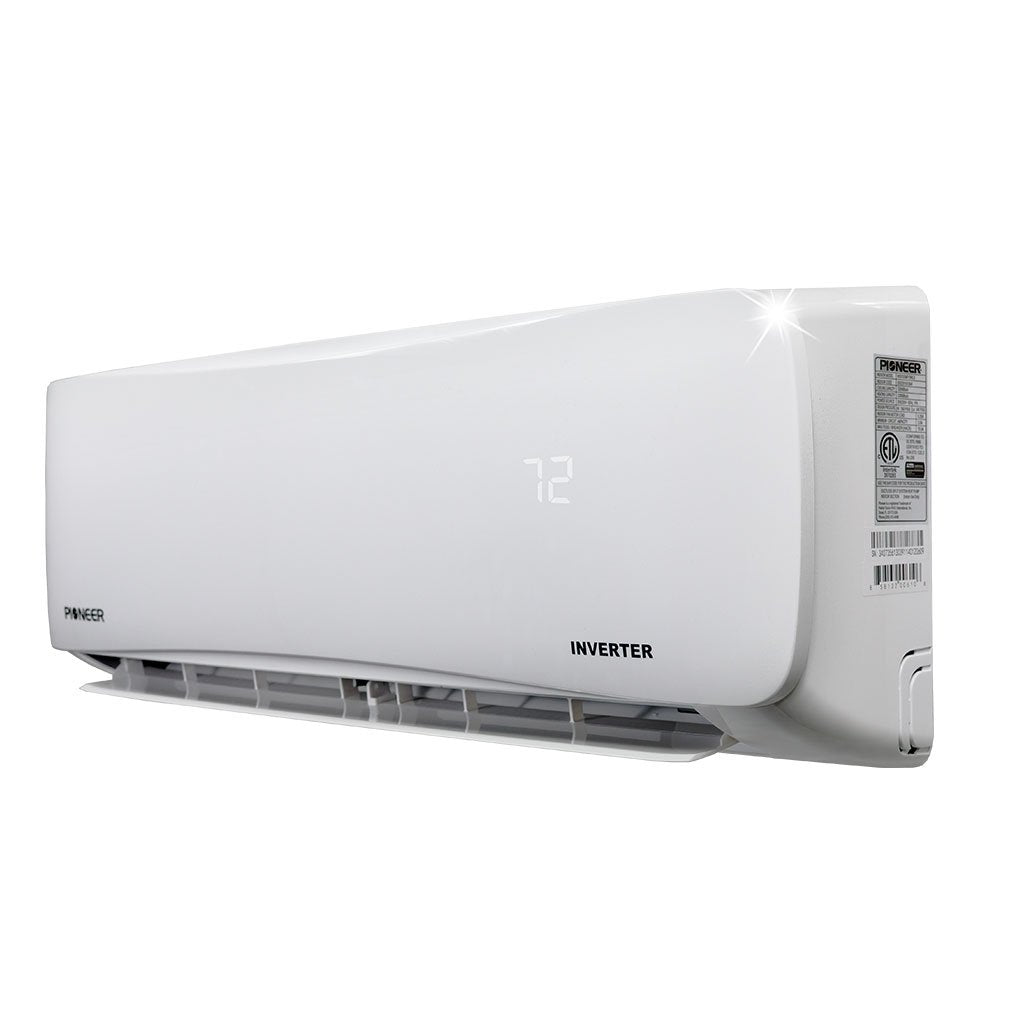

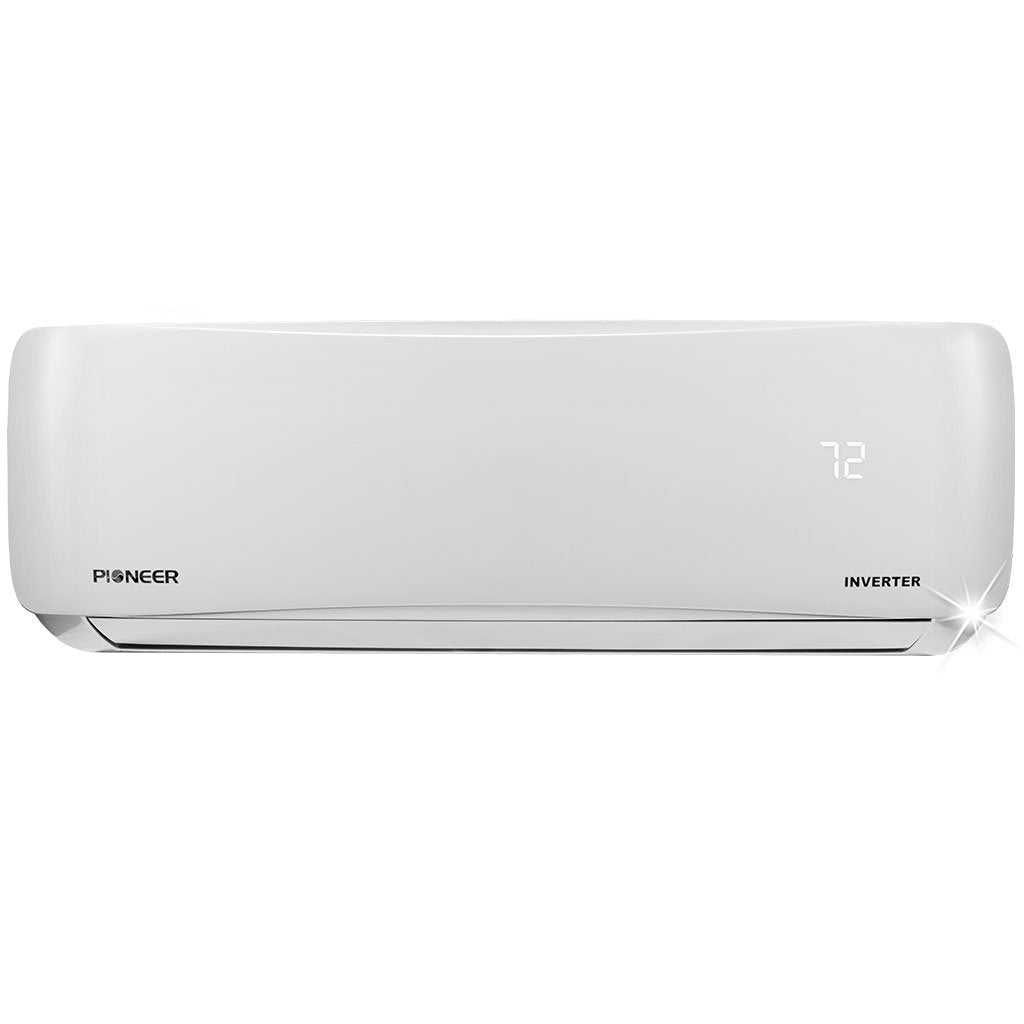

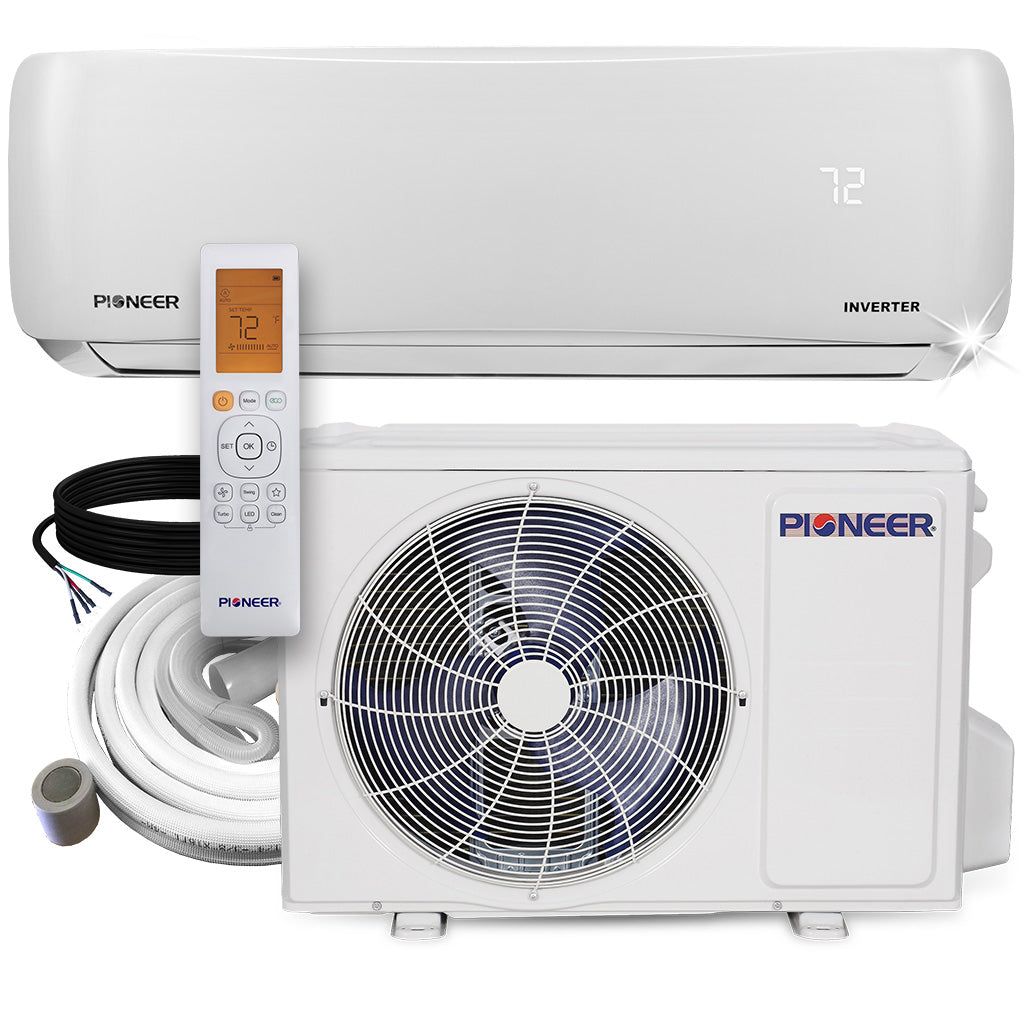

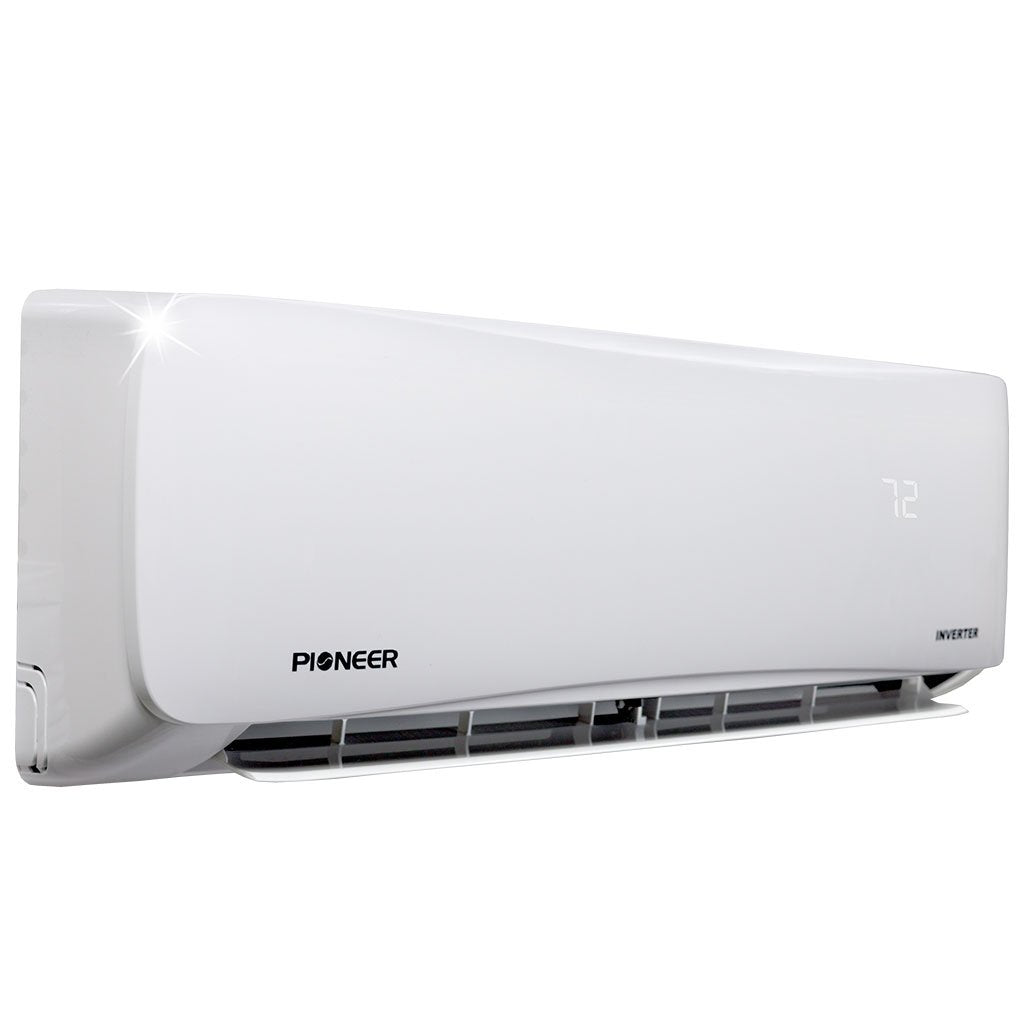

Pioneer® 12,000 BTU 20.5 SEER 230V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System with 25 ft. Line Sets, WYS012GMFI20RL-25
$963.00
$1,109.00
13% Off
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
ServicesExclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Pioneer® 12,000 BTU 20.5 SEER 230V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System with 25 ft. Line Sets, WYS012GMFI20RL-25
This item is in stock! Estimated Arrival: Oct 11 to Oct 14
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
ServicesExclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Need help with choosing a Mini Split system or have other questions?
Talk with one of our trusted HVAC professionals today!
Product Overview
- Covers 450 sq. ft.
- HVAC Technician Required
- Wall Mounted
- Number of Zones: 1
Features
- Ultra High Efficiency Inverter+ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 20.5 SEER/10.5 EER efficiency
- Heating capacity: 12,000 BTU/H with 10 HSPF efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $77.00
- Heating: $254.00
- Low Ambient Heating With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run heating operation even when the outdoor ambient temperature is down to -13°F.
Important Note

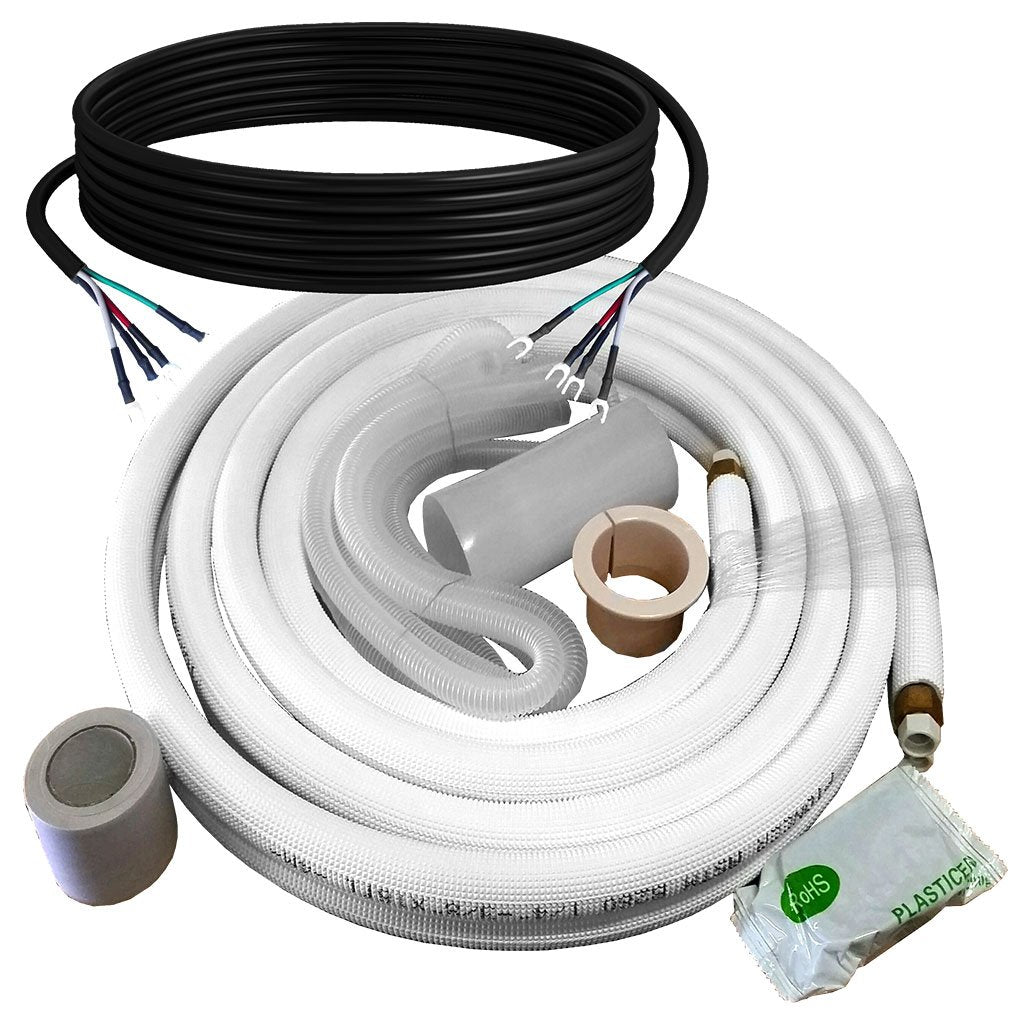

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- R410A Pre-Charged Outdoor Unit
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Performance Data
Power Supply: |
208~230V, 60Hz, 1Ph |
Cooling Rated Capacity: | 12,000 BTU/h |
Cooling Capacity Range: | 3,800~12,850 BTU/h |
Cooling SEER: |
20.50 BTU/w |
SEER2 | 21.4 |
Heating Rated Capacity: | 12,000 BTU/h |
Heating Capacity Range: | 2,730~12,500 BTU/h |
Heating HSPF4/HSPF5: | 10 / 8.0 BTU/w |
Refrigerant Type: | R410A/28.6 oz. |
Suitable Area: | 250~450 Sq.F |
Condenser
Sound Level: |
55.5 dB(A) |
Breaker Needed: | 15A (double-pole) |
Net Dimensions (WDH): | 30 1/8"W x 11 7/8" D x 21 7/8" H |
Carton Dimensions (WDH): | 34 7/8" W x 13 1/4" D x 24" H |
Net / Gross Weight: | 59.3 / 64.8 lbs |
Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |
Air Handler
Air Flow (Hi/Med/Lo): | 317 / 207 / 144 CFM |
Sound Level (Hi/Med/Lo): | 37 / 30 / 22.5 dB(A) |
Net Dimensions (WDH): | 31 1/2" W x 7 3/8" D x 11 5/8" H |
Carton Dimensions (WDH): | 34 1/2" W x 11 1/4" D x 15" H |
Net / Gross Weight: | 19.8 / 25 Lbs |
