MRCOOL VersaPro® 2nd Gen 48K BTU 4 Ton 16 SEER2 Central Ducted Heat Pump Split System, MVP-48-HP-230A00-O

Name: MRCOOL VersaPro® 2nd Gen 48K BTU 4 Ton 16 SEER2 Central Ducted Heat Pump Split System, MVP-48-HP-230A00-O
Brand: MRCOOL
SKU: MVP-48-HP-230A00-O
Price: 3679.0 USD
Availability: InStock

Model: MVP-48-HP-230A00-O

$3,679.00

$3,679.00 ~~$4,598.75~~

-20%

Shipping calculated at checkout.

BTU: 48,000

48,000

18,000

24,000

30,000

36,000

48,000

60,000

Product variants

This item is in stock! Estimated Arrival: Mar 26 to Apr 01

Buy Now, Pay Later

$3,679.00

$3,679.00 ~~$4,598.75~~

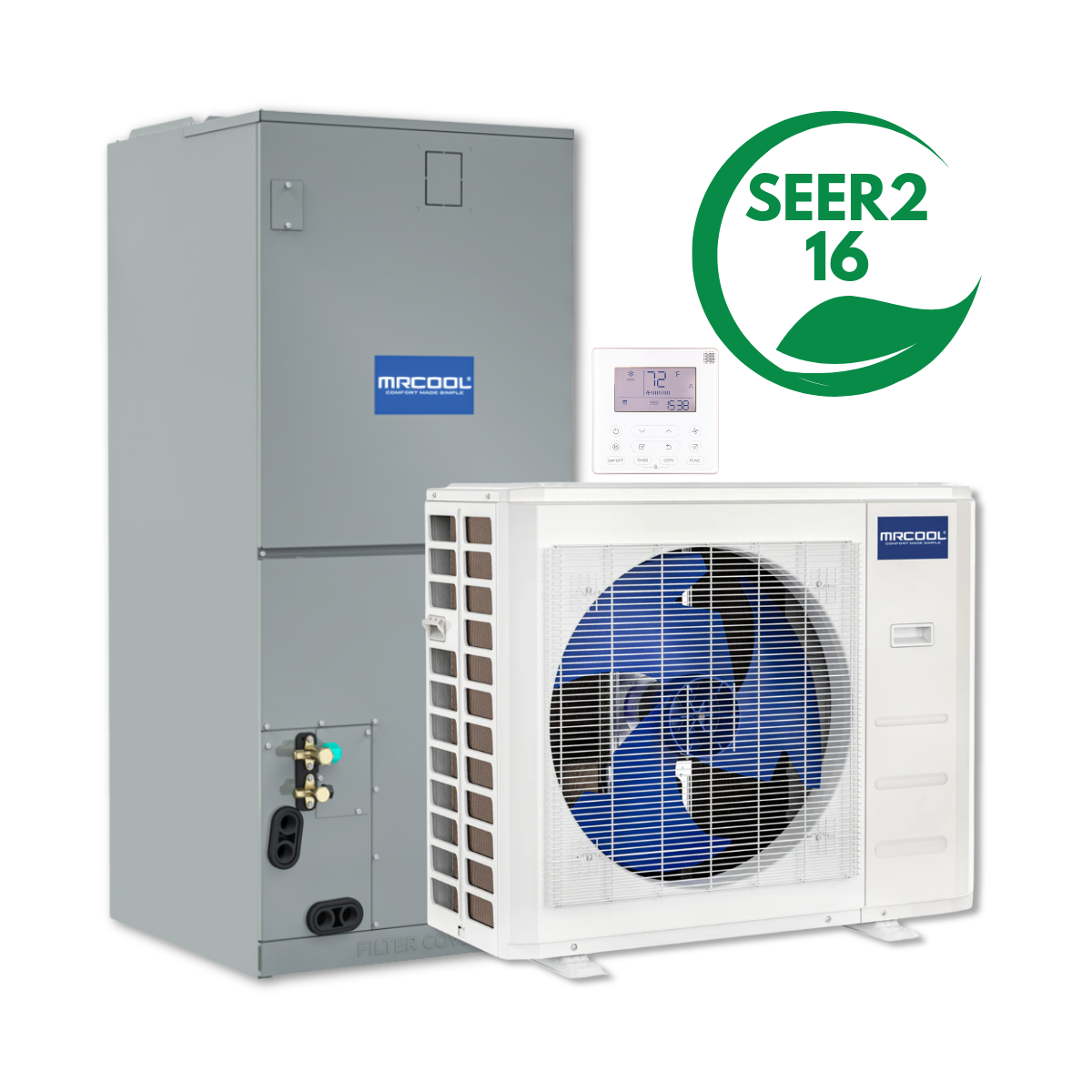

What's Included

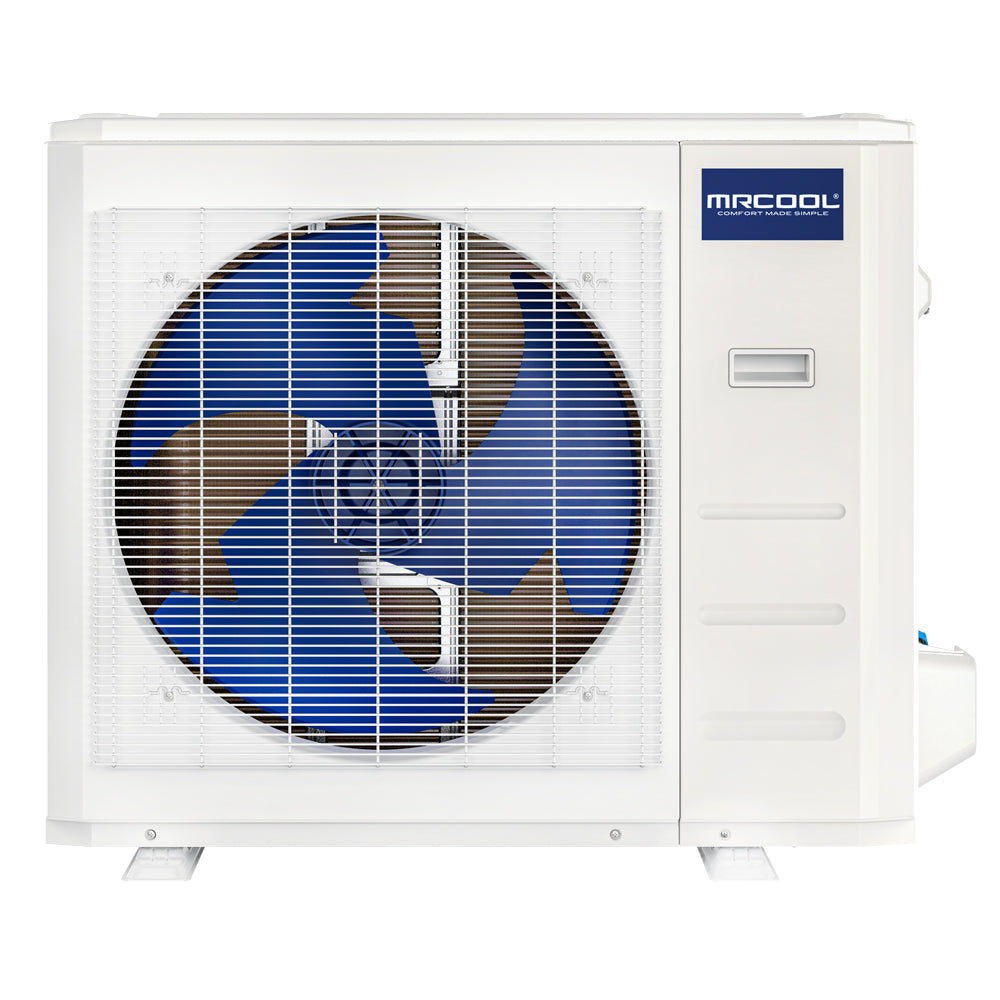

48K BTU Condenser

Quantity: 1
48K BTU Air Handler

Quantity: 1
Smart Thermostat

Quantity: 1

Product Overview

Covers 2,000 sq ft.
HVAC Technician Required
Voltage: 208-230V
10 Years Parts Warranty
10 Years Compressor Warranty

DESCRIPTION

Upgrade your home’s heating and cooling with the MRCOOL VersaPro® 2nd Gen—a high-efficiency, all-in-one HVAC solution designed for year-round comfort. With advanced inverter technology, ultra-quiet performance, and energy-saving operation, this system delivers powerful climate control while keeping energy costs low.

Coverage Area: Delivers heating and cooling for spaces from 1,501 to 2,000 sq. ft.
Energy-Saving Performance: Boasts an 16 SEER2 and 8.5 HSPF4 rating for optimal efficiency and lower utility bills.
Flexible Installation: Supports upflow, downflow, and horizontal left/right configurations to fit various home layouts.
Quiet & Smart Operation: Features DC inverter technology for whisper-quiet performance and includes the MRCOOL® Smart Thermostat for easy control.
Eco-Friendly Refrigerant: Uses R-454B, which has a lower environmental impact than traditional refrigerants.
Durable & Space-Saving Design: Built with painted galvanized steel for longevity and a compact, side-discharge design for versatile installation.
Smart Features & Easy Maintenance: Equipped with a self-diagnostics panel for quick issue identification and SmartHVAC app compatibility for remote adjustments.
Optional Heating Boost: Compatible with an optional heat kit for extra warmth in colder months.
Warranty Protection: Backed by a 10-year parts and compressor warranty for long-term peace of mind.
Hassle-Free Installation: Compatible with No Vac® Quick Connect® Line Sets (sold separately) for a smoother and faster setup.

Note: Line sets are not included and must be purchased separately to fit your installation needs.

SPECIFICATIONS & DIMENSIONS

Dimensions & Weight
Condenser Dimensions: 38.58" W x 16.34" D x 38.39" H
Air Handler Dimensions: 21.02" W x 24.49" D x 51.99" H
Condenser Weight: 192.90 lbs
Air Handler Weight: 162.99 lbs
Capacity & Performance
Tonnage: 4
Cooling Capacity: 48,000 BTU
Operating Temperature (Cooling): -22°F to 122°F
SEER2: 16
EER2: 10.0
Heating Capacity: 48,000 BTU
Operating Temperature (Heating): -22°F to 75°F
HSPF2-4: 8.5
HSPF2-5: 7.2
Coverage Area: 1,501-2,000 square feet
Outdoor Noise Level: 65 dB(A)
Indoor Noise Level (Hi/Mi/Lo): 53 / 50 / 44 dB(A)
Electrical Requirements
Condenser: Voltage: 208-230V // Phase: 1 // Cycle: 60 Hz // Max Fuse Breaker: 40A // Min Circuit Ampacity: 36A
Air Handler: Voltage: 115/208/230V // Phase: 1 // Cycle: 60 Hz // Max Fuse Breaker: 15A // Min Circuit Ampacity: 14.5/11A
Refrigerant & Piping
Refrigerant Type: R454B
Refrigerant Volume: 134.04 oz
Liquid Line Size: 3/8"
Suction Line Size: 3/4"
Max Line Set Length: 246 ft
Features
Compatible Heat Kits: 8kW, 10kW, 15kW, 20kW
Filter Type: Replaceable
Filter Size: 23" x 20" x 1"
Adjustable Thermostat: Yes
Wifi Compatibility: Yes
App Compatibility: Yes
Remote Control Included: No
Certifications & Warranty
Certifications: ETL Certified, AHRI Certified
Warranty: 10 Years Compressor, 10 Years Parts

INSTALLATION & GUIDES

The Comfort You Crave

COMPACT UNIT
Highly efficient and incredibly quiet, side discharge HVAC systems offer comfort, convenience, and savings like no other.
Galvanized Steel
The galvanized steel case shields the system from damage, while the internal thermal insulator minimizes heat loss and prevents condensation.
Modular Design
The design of this system makes it extremely easy to perform maintenance on, which keeps it running efficiently year after year.
Easy Access
The unit's removeable filter allows you to peform easy access filter replacements.
OPTIONAL HEAT KIT
For extreme winter conditions, an optional heat kit can help.
CORROSION RESISTANT
Live on the coast? Don't worry, our condenser is built to resist long term corrosion.
LINE SETS
All VersaPro® condensers support No Vac® Quick Connect® Line Sets and coupler kits for easy installation.
THERMOSTAT INCLUDED
The wired thermostat offers various settings for optimal home temperature, and the VersaPro® supports third-party 24V thermostats like Nest.

MRCOOL VersaPro vs Hyper Heat

BTU Options: 18K, 24K, 30K, 36K, 48K, 60K
Coverage Area: 500 to 2,000 sq. ft.
Best For: Moderate Climates
Price Range: $2,479.00 - $3,979.00
Best Value: Yes
More Energy Efficient: No
Warranty: 10 Years Parts & Compressor
Certifications: ETL Certified, AHRI Certified
Shop Now
BTU Options: 24K, 30K, 36K, 48K, 60K
Coverage Area: 750 to 2,000 sq. ft.
Best For: Extreme Climates
Price Range: $3,291.18 - $4,540.98
Best Value: No
More Energy Efficient: Yes
Warranty: 10 Years Parts, Compressor, & Labor
Certifications: ETL Certified, AHRI Certified
Shop Now

Frequently Asked Questions

What are the electrical requirements?

The electrical requirements vary depending on the specific model and capacity of the VersaPro system. See requirements below:

18K BTU: 208-230V/60Hz/16-20A
24K BTU: 208-230V/60Hz/19-20A
30K BTU: 208-230V/60Hz/22.5-25A
36K BTU: 208-230V/60Hz/24-30A
48K BTU: 208-230V/60Hz/36-40A
60K BTU: 208-230V/60Hz/39-40A

It's essential to consult the official MRCOOL installation manual or contact a licensed electrician to ensure compliance with local electrical codes and proper installation.

What is the warranty coverage?

MRCOOL offers a standard 10-year parts warranty and a 10-year compressor warranty for the VersaPro series. To ensure warranty validity, it's crucial to register your product after installation and adhere to the recommended maintenance procedures outlined in the user manual.

Can I install myself, or do I need a professional installer?

While MRCOOL's DIY series is designed for homeowner installation, the VersaPro system is more complex and requires professional installation. Proper installation ensures optimal performance, safety, and adherence to local building codes. It's recommended to hire a certified HVAC technician for the installation process.

What's the difference between MRCOOL VersaPro and Hyper Heat 2nd Gen?

MRCOOL VersaPro 2nd Gen is perfect for moderate climates, offering a great balance of affordability, energy efficiency, and year-round comfort. It's also the best value option, making it a popular choice for homeowners seeking reliable performance without breaking the bank.

MRCOOL Hyper Heat 2nd Gen is ideal for homeowners living in extreme climates. With its superior energy efficiency and performance in low temperatures, it ensures consistent heating even when the mercury drops as low as -22°F. It also benefits from premium warranty which covers 10 years parts, compressor and labor.
