  3. MRCOOL DIY® 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set, EZPRO-12-HP-C-11516D-O

DIY® 5th Gen EasyPro

MRCOOL DIY® 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set, EZPRO-12-HP-C-11516D-O

$1,088.00
$1,088.00 $1,400.00
-22%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 12,000
12,000
9,000
12,000
18,000
24,000

This item is in stock! Estimated Arrival: May 13 to May 19

Brand: MRCOOL
Model: EZPRO-12-HP-C-11516D-O
$1,088.00
$1,088.00 $1,400.00

Product Overview

  • Zones: 1

  • DIY Installation

  • Voltage: 115V

What's Included

DESCRIPTION

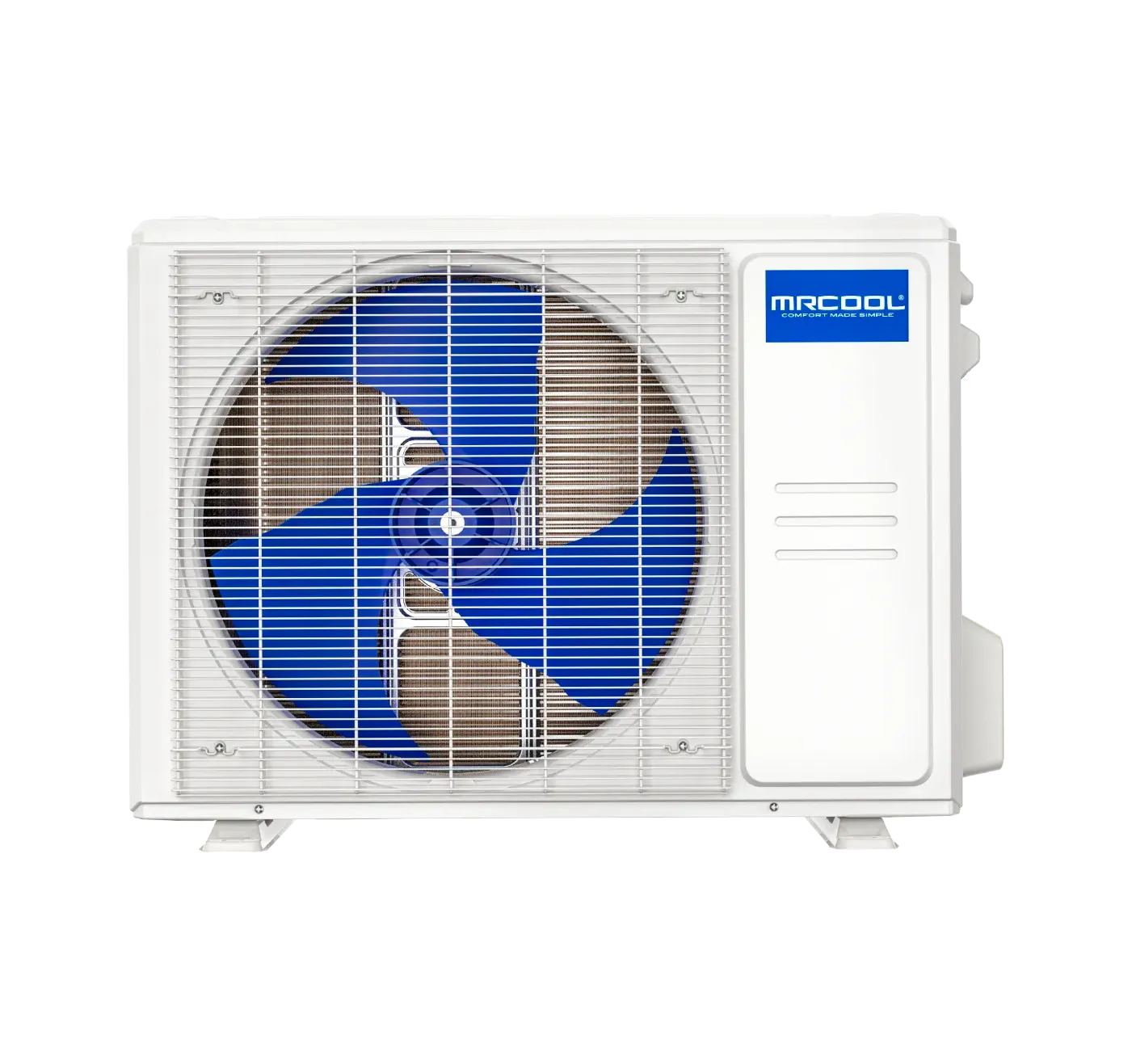

The MRCOOL® Easy Pro™ Condenser is the perfect blend of efficiency, convenience, and affordability. Designed to heat and cool spaces up to 550 sq. ft., this 12k BTU unit features a SEER2 rating of 19.5 and an HSPF2-4 of 9.3 for reliable year-round performance. With the pre-charged 16' Fast Connection® line set, homeowners can install it themselves—no professional help needed. Quiet, smart, and built to last, this condenser makes comfort easy to achieve, control, and enjoy.

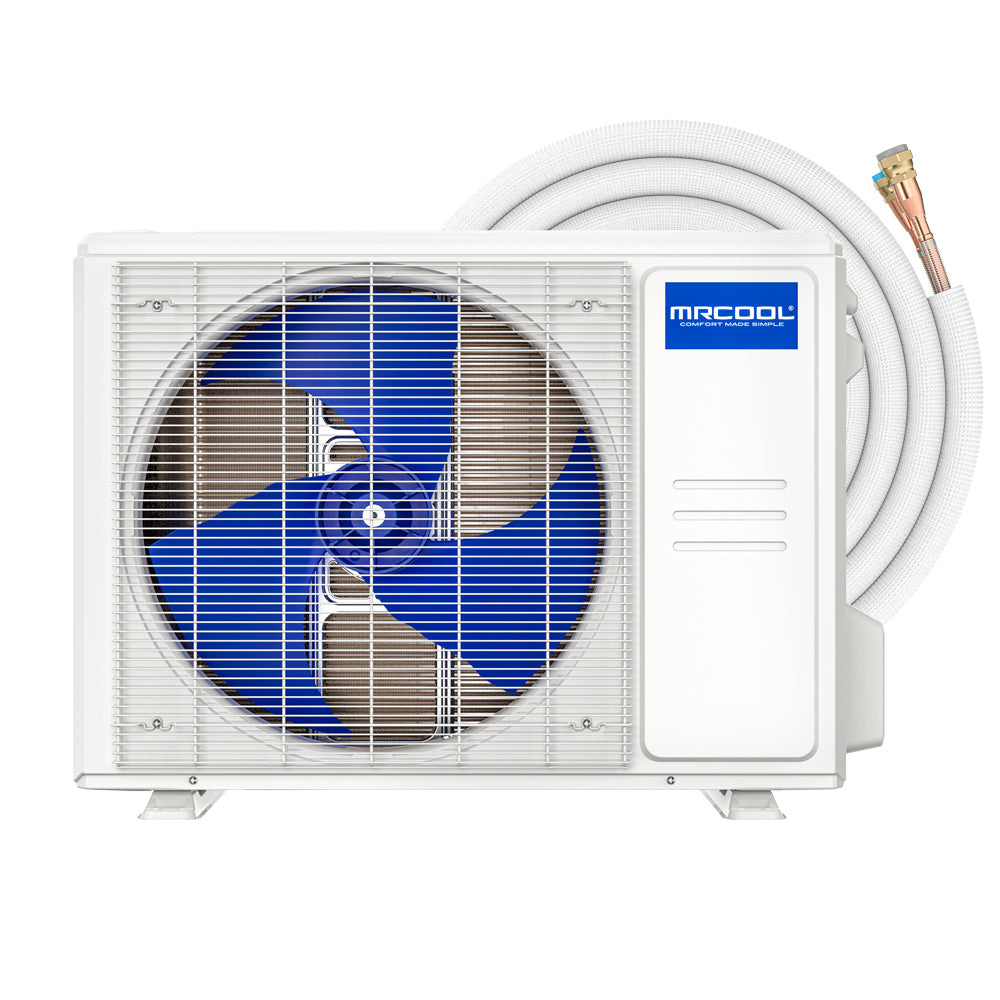

  • DIY Friendly: Installs easily with a 16' pre-charged Fast Connection® line set—no HVAC tech required.
  • Smart Connectivity: Built-in WiFi control via the MRCOOL® Smart HVAC Controller® App, with full support for Google Assistant and Amazon Alexa.
  • Reliable Performance: Auto Restart restores settings after outages; Low Ambient Cooling works down to 5°F—ideal for greenhouses or server rooms.
  • Quiet Comfort: Operates at just 54 dB(A), keeping your space peaceful and disruption-free.
  • Durable Design: Gold Fin® coating resists corrosion—even in coastal environments—for long-lasting performance.
  • Certified & Covered: Uses eco-friendly R-454B refrigerant, AHRI certified, NEEP ccASHP listed, and includes a 2-year parts / 1-year compressor warranty upon registration.

SPECIFICATIONS & DIMENSIONS

  • Dimensions & Weight
  • Dimensions: 28.35 W" x 10.63 D" x 19.49 H"
  • Weight: 54.89 lbs
  • Capacity & Performance
  • Zone Capacity: 1
  • Cooling Capacity: 12,000 BTU
  • EER2: 9
  • SEER2: 19.5
  • Heating Capacity: 12,000 BTU
  • HSPF2-4: 9.3
  • HSPF2-5: 7
  • Coverage Area: 550 sq ft.
  • Outdoor Noise Level: 54 dB(A)
  • Electrical Requirements
  • Voltage: 115V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 20A
  • Min Circuit Ampacity: 19.5A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 21.52 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 3/8"
  • Max Line Set Length: 82 ft.
  • Features
  • Inverter: DC
  • Compressor Type: Rotary
  • Works with IOS: Yes
  • Works with Android: Yes
  • Certifications & Warranty
  • Certifications: UL Listed, CSA Listed, ETL Listed, AHRI Certified
  • Warranty: 2 Year Parts / 1 Year Compressor

INSTALLATION & GUIDES

Product Brochure
Installation Manual
Product Specifications
Remote Control Manual
Warranty Document
Energy Guide
AHRI Certificate
