4th Gen New Release!

MRCOOL DIY Mini Split - 27,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM327HPW00C00

$3,641.00

$5,133.81

Save 29%

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More

4th Gen New Release!

MRCOOL DIY Mini Split - 27,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM327HPW00C00

See more from MRCOOL Model: DIYM327HPW00C00

Model: DIYM327HPW00C00

$3,641.00

$5,133.81

Save 29%

Financing:

Need different lineset lengths?
Configure your system here!

This item is in stock! Estimated Arrival: Apr 08 to Apr 12

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More
Contact Us

Need help with choosing a Mini Split system or have other questions?

Talk with one of our trusted HVAC professionals today!

Product Overview

  • DIY Installation

  • Qualifies for Rebates

  • Wall Mounted

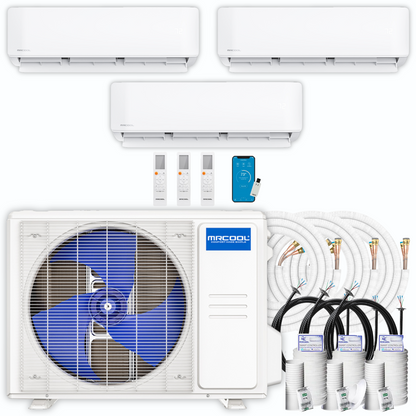

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, three Remotes, and three 16 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.


Package Includes

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

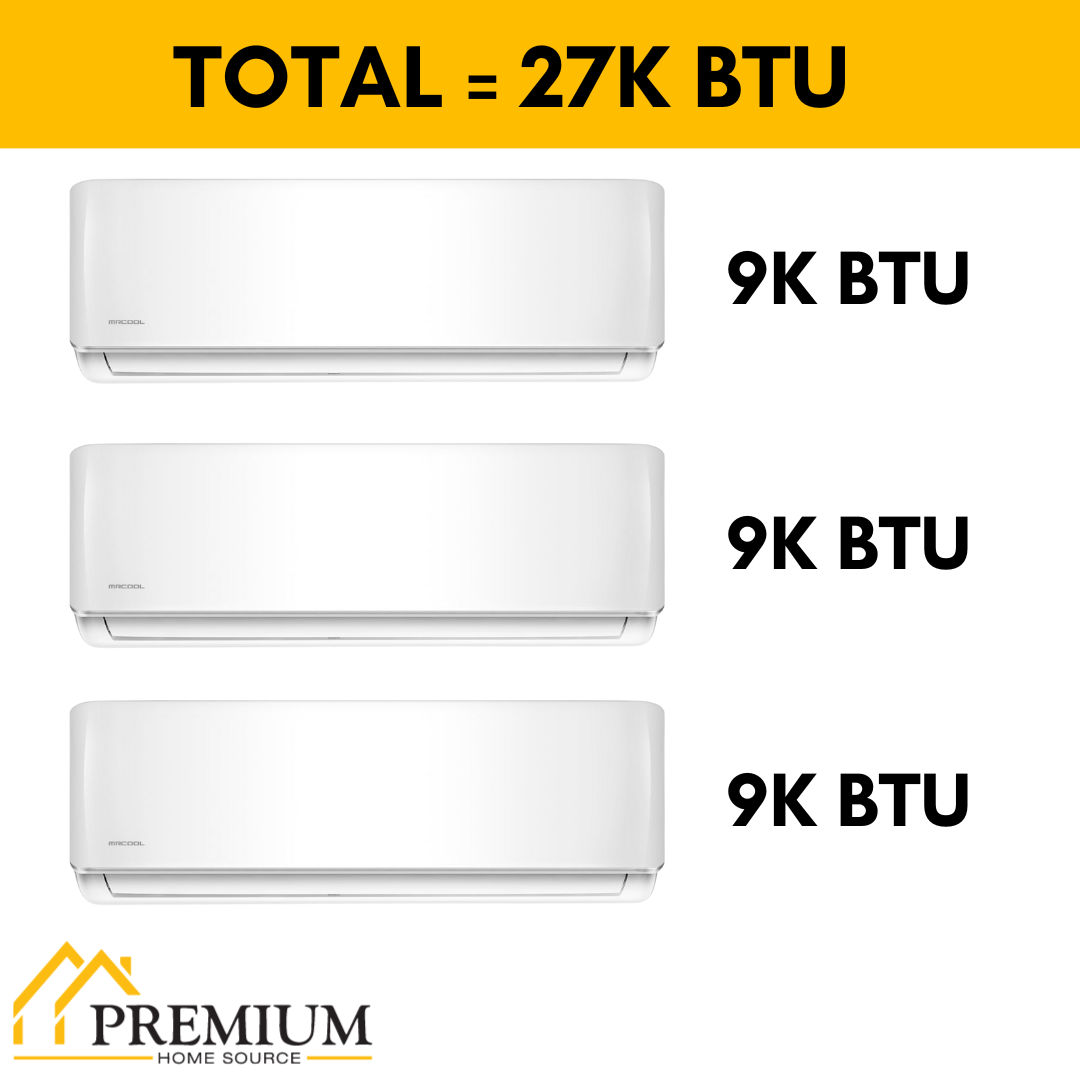

    Air Handler, 9K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Line Set 16 ft., Quantity 3

      • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      Additional Line Sets & Coupler

      If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

      What does this package include?

      This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.


          Condenser Specifications

          Product Dimensions 37.24"W x 16.14"D x 31.89"H
          Cooling Capacity 27,000 BTU
          Heating Capacity 27,000 BTU
          Zone Capacity 3
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat -13F ~ 75.2F
          SEER 22
          EER 12
          Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Line Set

          Length 16 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"

          Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

          Square Feet: 180-375 | BTU = 9K
          Square Feet: 376-500 | BTU = 12K
          Square Feet: 501-750 | BTU = 18K
          Square Feet: 751-1,000 | BTU = 24K
          Square Feet: 1,001-1,500 | BTU = 36K

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.

          Customer Reviews

          Based on 22 reviews
          82%
          (18)
          14%
          (3)
          0%
          (0)
          5%
          (1)
          0%
          (0)
          J
          James Reyes
          Mrcool 3 purchases

          This the 3rd time I purchased a Mrcool system from Premium Home Source for my wood shop, my daughter's house and my house. No problems with the purchase as well as the DIY installation.

          G
          Guy Patton
          Just installed this morning!

          The unit was turned on for the 1st time and boy it was so quiet I literally had to make sure the fan was spinning outside. the unit and air handlers cool very quickly. I also tested the heating it worked superb. I wont be using this until summer time gets here honestly. that's my main purpose for purchasing it. Living in the deep south requires good A/C. Premium Home Source customer service is also top notch. I would recommend anyone to give them a try. THEY ROCK!

          E
          Emma Brewer
          Best $ spent in a long time

          Best $ spent in a long time. Super easy install even for this 62 y.o. female. Had to have grandsons lift the units up in place but if you can read you can install this yourself. If I could change anything I would make a simpler remote with an on/off, temp up / down button and mode. I won't be using the sleep or other features the unit offers and those buttons are just cluttering up the remote. The overall system works fantastic though - couldn't be happier with the cooling - and the system is very VERY quiet

          J
          Jack Wade
          You guys are great

          Thank you so much for the help Premium Home Source and standing behind your product I will be definitely recommending your company to anyone looking to buy your type of products!

          B
          Bryant Carpenter
          One of the best purchases I've ever made

          I'm renovating an older house built in 1966. The house had central air but the duct work was disgusting. Moldy and filled with dog hair. I removed all the ducting and the air handler. I got some bibs on replacing the central air and was blown away by how much it would cost. We had been using portable ac units but my wife and I could not stand the noise and the vent going out the window. Being a DIY kind of guy, I decided to try mini split units but was not sure if they would do the job. I bought this unit and I couldn't believe how easy it was to install. I worried that it would still be noisy. Boy! was I wrong! We pleasantly surprised to see how quiet it was. It cooled the room quickly and easily. We liked it so much that we bought another unit for the garage. I highly recommend These units and intend to buy several more for other rooms.

          • I have never heard of Premium Home Source, tell me about your company.
            • Premium Home Source is a family-owned company that is solely focused to serve our customers in the most honest and transparent manner. We first understood the importance of high quality appliances when we bought and built our first home in 2017. When we found it almost impossible to source high quality and affordable home goods and appliances, we knew we weren't the only ones. Understanding the pain points of sourcing quality home goods first hand, we sought out to make this process transparent, price efficient and seamless for every homeowner, contractor, landlord and property manager.
          • Can't find the package you want? Do you want to create a custom package?
            • Every kitchen is unique, let us help you create your own personalized package to fit your kitchen! To create a custom package, call our Sales Expert at (800) 805-7102 Extension #1
          • Are these items refurbished? Used?
            • All items we sell are Brand New - we will never ship you a refurbished or used item.
          • How does shipping work?
            • The shipping carrier will deliver your order curbside. The carrier cannot deliver into your home, garage, kitchen or elsewhere. For orders with large appliances (ex: range or refrigerator), the freight company will call you ahead of time to arrange a date and time to deliver the items.
