MRCOOL 4th Gen Advantage 36K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V (HVAC Technician Required), A-36-HP-230C

Model: A-36-HP-230C
$2,302.00
$2,302.00 $2,877.50
-20%
Shipping calculated at checkout.
Condenser BTU: 36,000
Voltage: 230V

This item is in stock! Estimated Arrival: Mar 26 to Apr 01

Buy Now, Pay Later

$2,302.00
$2,302.00 $2,877.50

Product Overview

  • Zones: 1

  • HVAC Technician Required

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): 5°F to 86°F

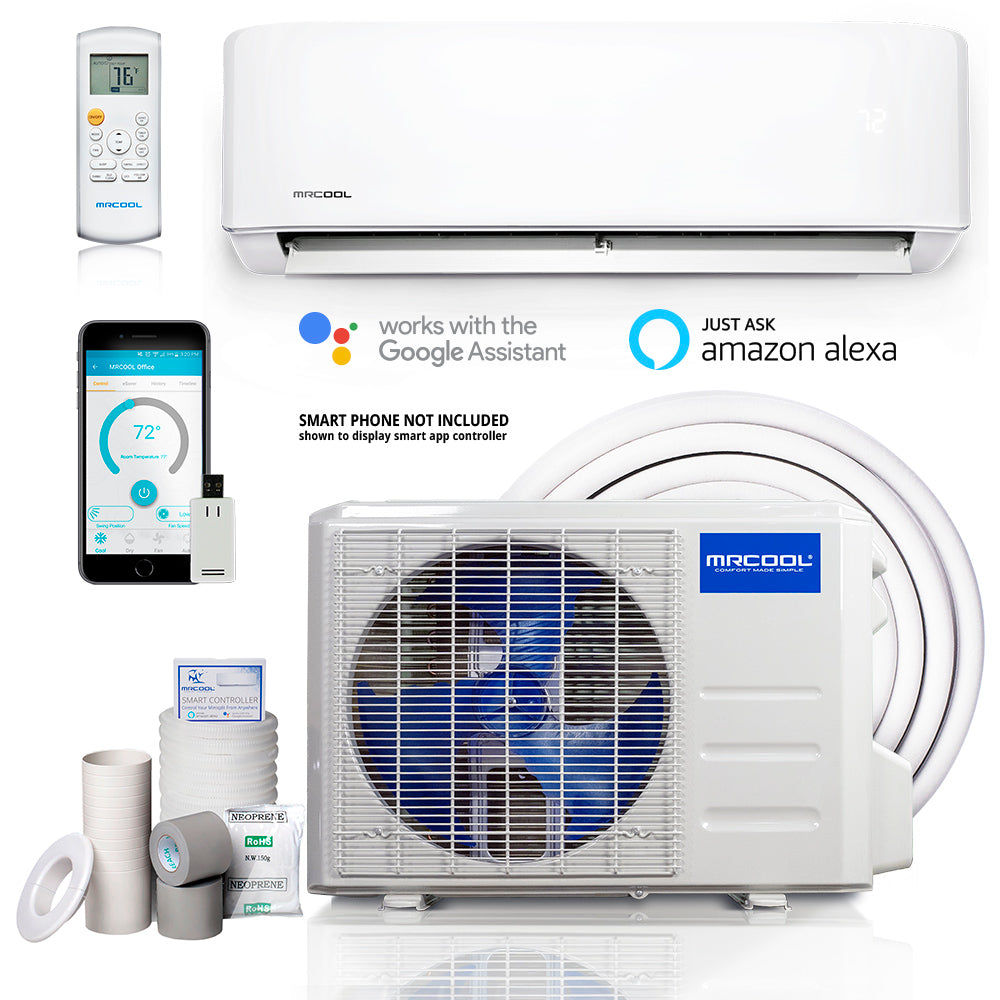

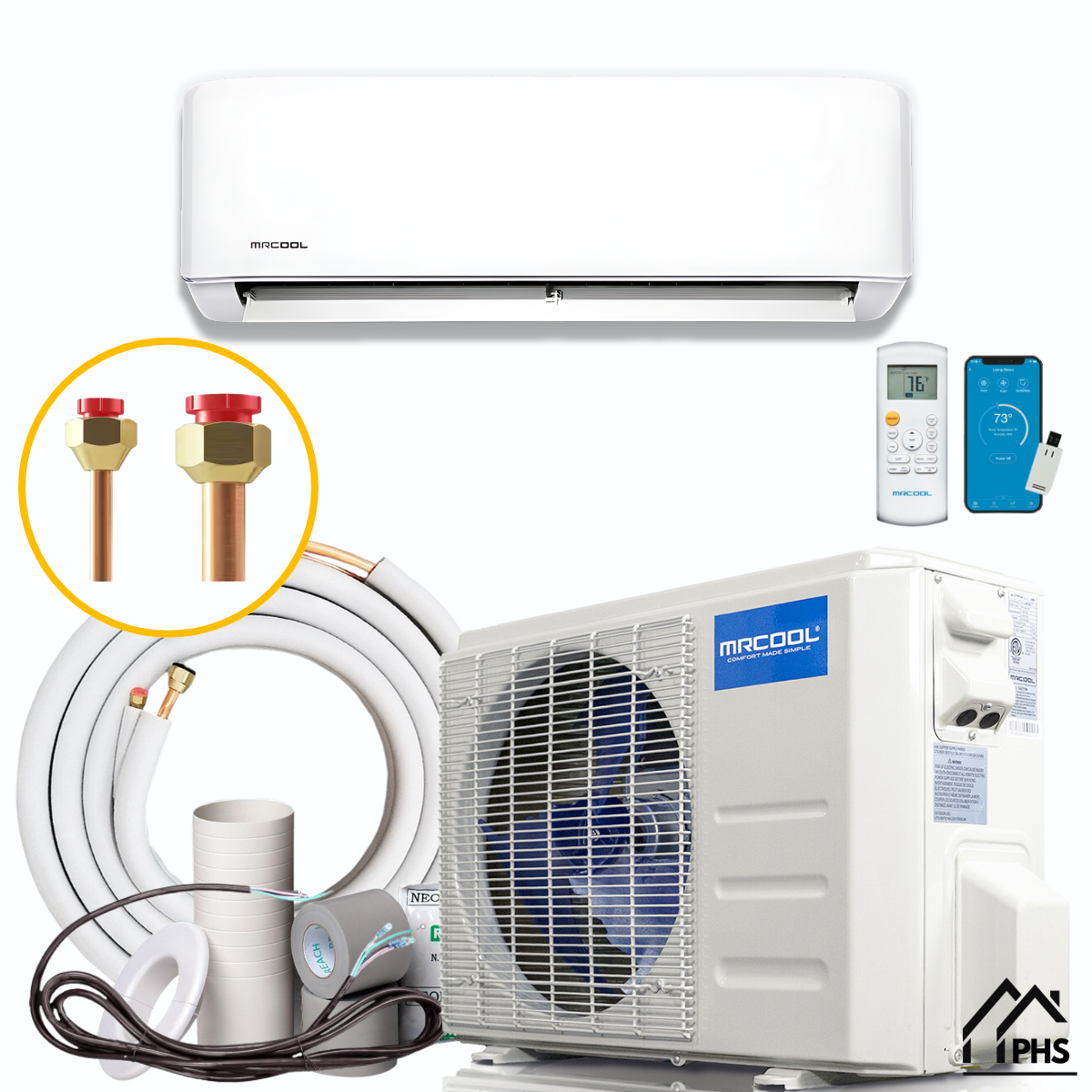

What's Included

BETTER TOGETHER

DESCRIPTION

Introducing the 4th generation MRCOOL Advantage Series, a high-efficiency air handler with a 17.5 SEER2 rating, designed for professional HVAC technician installation. This unit perfectly combines quality, efficiency, quiet operation, and affordability. With the added convenience of a WiFi control module, you can easily manage your system through the SmartHVAC app, Amazon Alexa, or Google Assistant.

  • 16 ft Installation Kit Included- Everything you need for setup is provided
  • Gold Fin® Condenser - Built to resist long-term corrosion, ideal for coastal environments
  • SmartHVAC WiFi Control Module - Improved setup and enhanced functionality for Apple and Android devices. Compatible with Amazon Alexa and Google Assistant.
  • Environmentally Friendly - Uses R-410A refrigerant
  • Advanced Functions - Includes sleep mode, louver position memory, and auto-restart features
  • Convenient Design - Compact outdoor unit design for easy installation and maintenance. The condenser fan motor is totally enclosed and permanently lubricated for durability
  • Professional Installation Required - Ensure optimal performance with installation by a licensed professional.
  • Warranty - 1-Year Compressor, 2-Year Parts, and 1-Year Remote Warranty when registered and installed by a licensed professional

*HVAC Technician Required for Installation

SPECIFICATIONS & DIMENSIONS

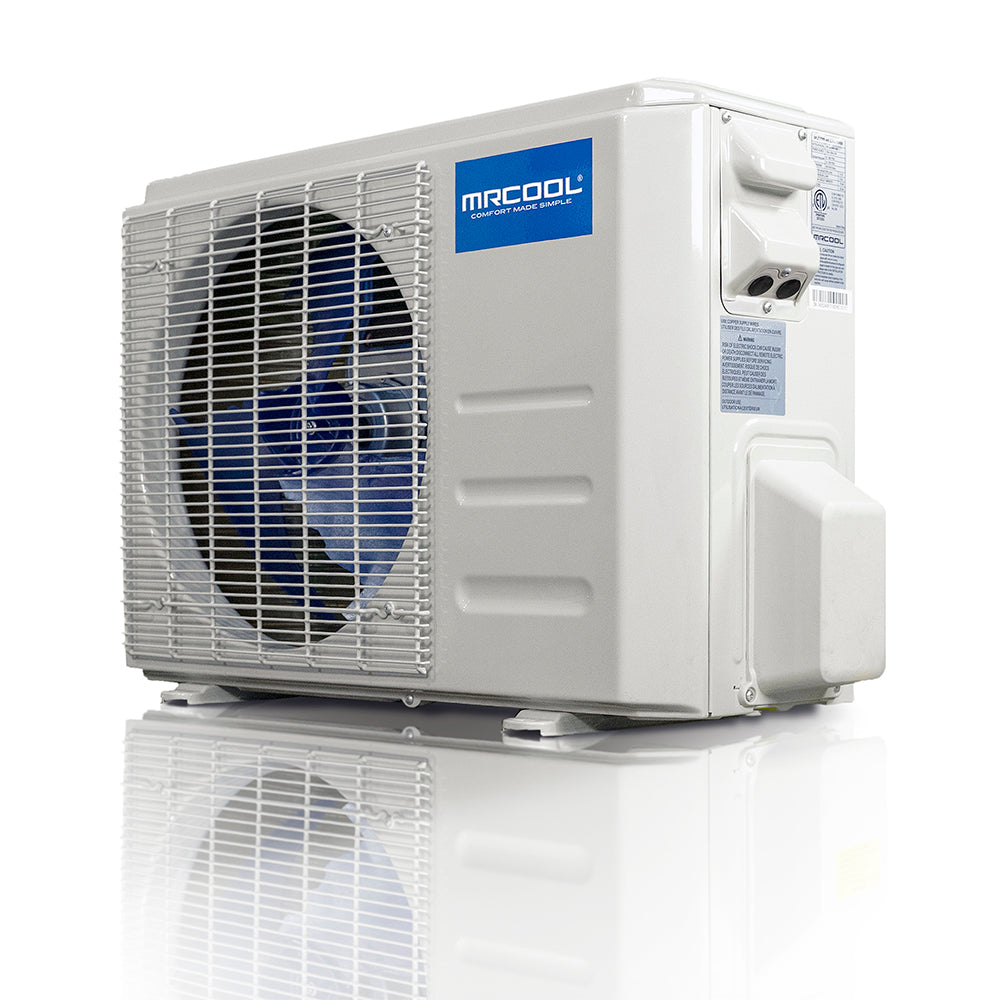

  • Condenser 36K BTU
  • Product Dimensions: 37.24"W x 16.14"D x 31.89"H
  • Electrical Requirements: Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
  • Cooling Capacity: 36,000 BTU
  • Heating Capacity: 36,000 BTU
  • Zone Capacity: 1
  • Cool Mode - Outdoor Operating Temperature Range: 5°F - 122°F
  • Heat Mode - Outdoor Operating Temperature Range: 5°F - 86°F
  • SEER2: 17.5
  • EER2: 8.5
  • Registered Warranty: 1-Year Compressor and 2-Year Parts Warranty when registered and when installed by a licensed professional

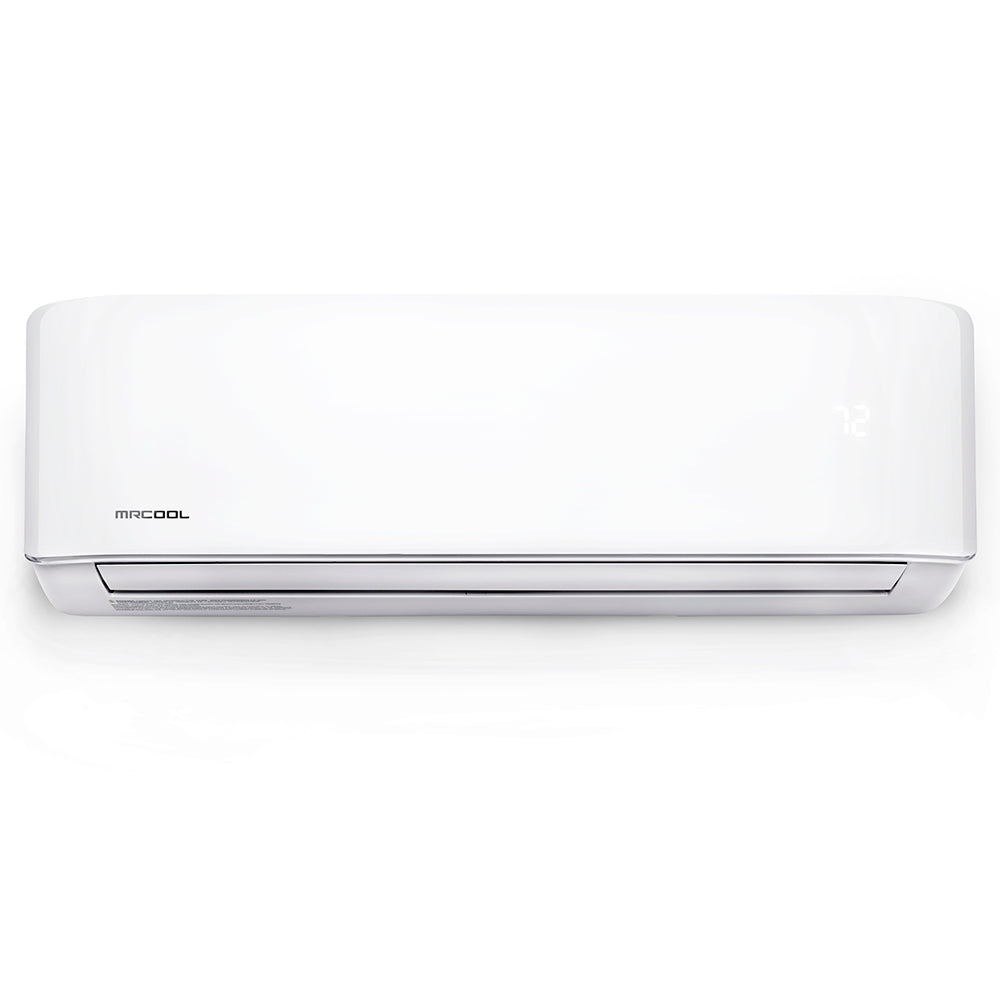

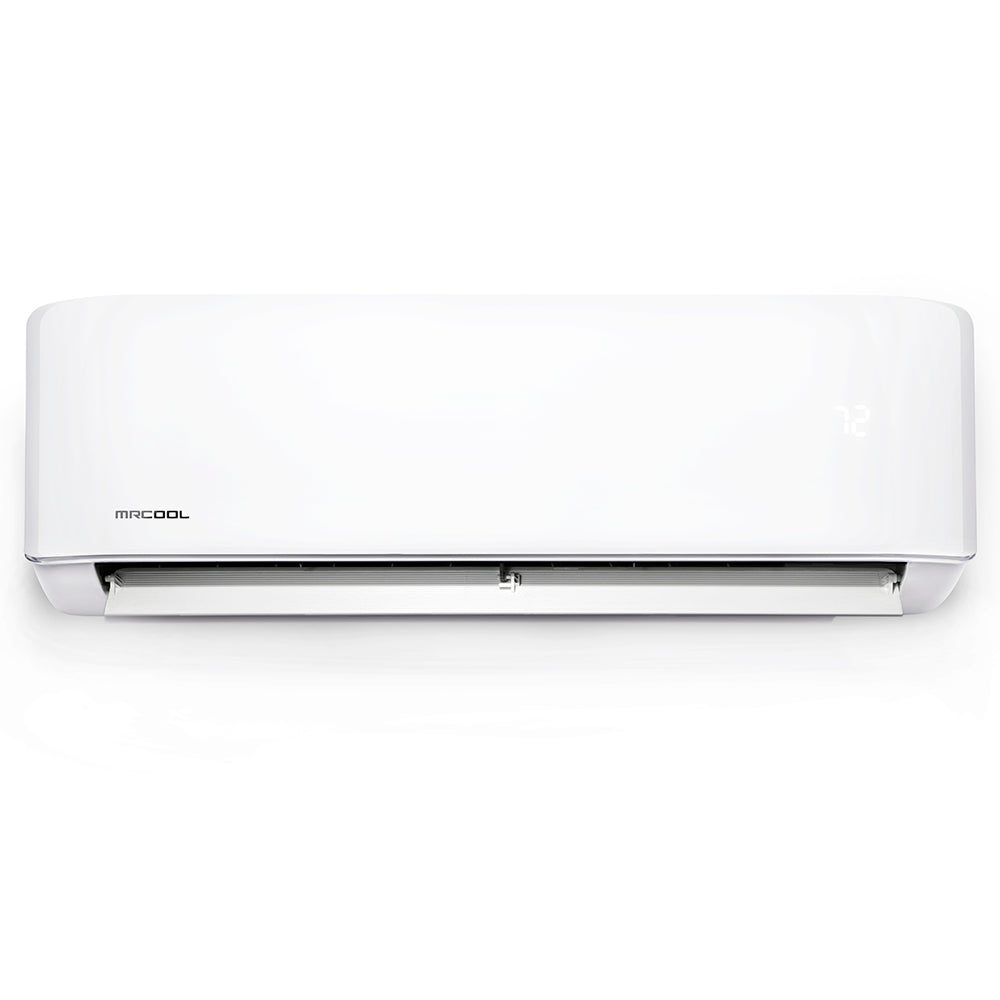

  • Air Handler 36K BTU
  • Product Dimensions: 49.57"W x 11.10"D x 14.25"H
  • Electrical Requirements: Requires a minimum of 115V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
  • Mount Type: Wall
  • Cooling Capacity: 36,000 BTU
  • Heating Capacity: 36,000 BTU
  • Coverage Area: 1,001 - 1,500 sq ft
  • Modes: Auto Heat // Quiet Mode // Fan Only
  • Registered Warranty: 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • Line Set
  • Length: 16 Feet
  • Liquid Line Size: 3/8"
  • Suction Line Size: 5/8"

INSTALLATION & GUIDES

Installation Manual
Product Brochure
Service Manual
Warranty
Energy Guide
AHRI Certificate
