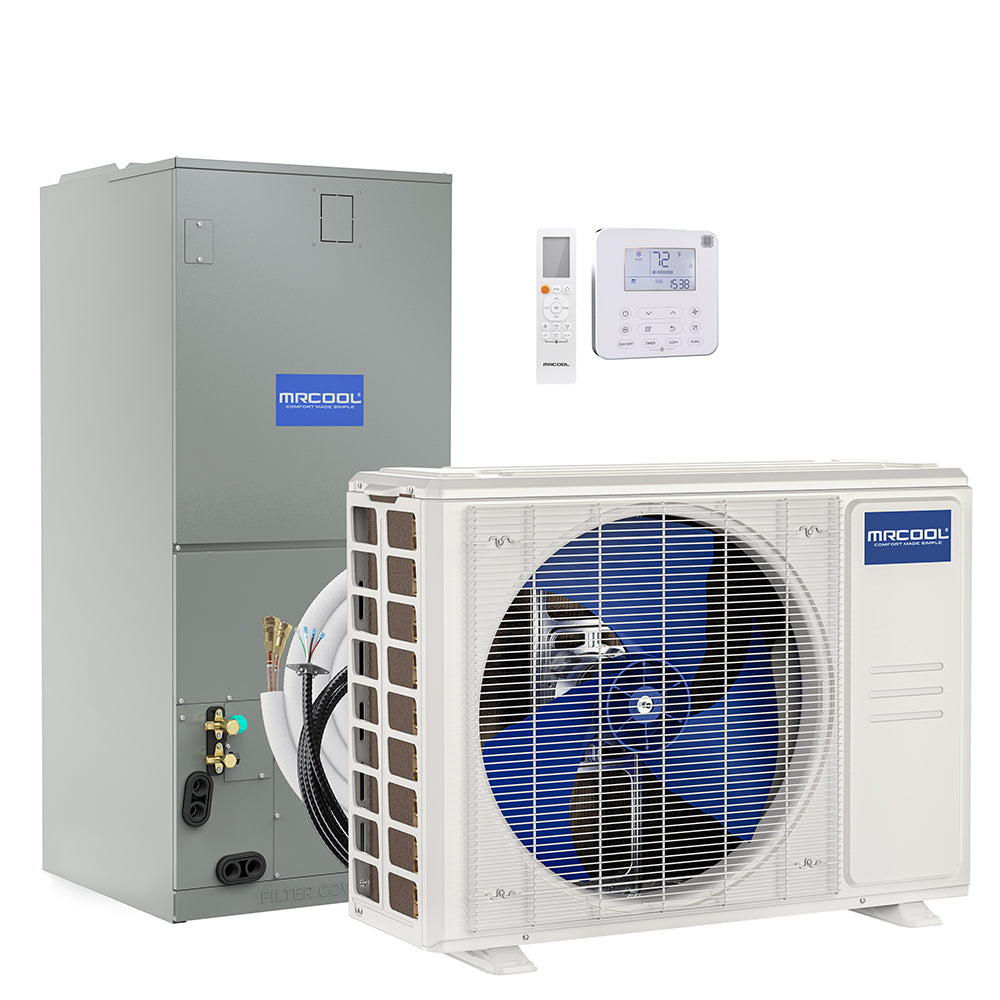

MRCOOL 30K BTU 18.5 SEER Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set, CENTRAL-30-HP-230-25

Model: CENTRAL-30-HP-230-25
$3,585.40
$3,585.40 $4,195.00
-15%
Shipping calculated at checkout.

This item is out of stock. Please contact us for an alternative.

$3,585.40
$3,585.40 $4,195.00

What's Included

BETTER TOGETHER

DESCRIPTION

If you’ve been having to choose between comfort and savings because of an old HVAC system, why not enjoy both with the MRCOOL 30k BTU up to 18.5 SEER Central Ducted DC Inverter Heat Pump System? You’ll be able to enjoy the temperatures you want throughout 1,250 square feet. This efficient and affordable comfort solution could save money and time, because it comes with a 25 foot MRCOOL pre-charged line set, which can be easily plugged into the fittings of the air handler and the condenser. This system can be installed virtually anywhere. This multi-position air handler is able to be installed in an upflow, downflow, horizontal left or horizontal right airflow configuration.

Enjoy your comfort completely guilt-free, because the variable speed condenser can help you save money as it runs. Identify error codes on the handler’s panel or on the thermostat to maintain your system. The use of filters also ensures clean, crisp air throughout your home. Enjoy total peace of mind thanks to a 10 year parts warranty, as well as a 10 year service warranty, so you don’t have to shell out lots of money in a panic in the unlikely event that something goes wrong. Choose comfort by choosing the MRCOOL 30k BTU 18.5 SEER Central Ducted DC Inverter Heat Pump System.

Key Features

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
  • Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.
  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
  • Optional heating kit available
  • R-410A environmentally friendly refrigerant

    SPECIFICATIONS & DIMENSIONS

    • Condenser Dimensions: 37.24"W x 16.14"D x 31.89"H
    • Condenser Weight: 146.39 lbs
    • Air Handler Dimensions: 21.02"W x 21.02"D x 49.02"H
    • Air Handler Weight: 128.53 lbs
    • SEER: 18.5
    • EER: 10.3
    • HSPF: hspf4/hspf5: 9.5/8
    • CFM: 894.12/805.88/711.76
    • Cooling Capacity: 30,000 BTU
    • Heating Capacity: 30,000 BTU
    • Voltage: Requires a minimum of 208-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase)
    • Phase: 1
    • Cycle: 60 Hz
    • Max Fuse Breaker: 40
    • Min Circuit Ampacity: 25
    • Color: Gray
    • Rate Load: 0.65
    • Zone Capacity: 1
    • Coverage Area: 1,250 square feet
    • Refrigerant Type: R410A
    • Refrigerant Volume: 111.11 oz
    • Decibel Rating: 46.5/43/39.5
    • Decibel Rating Low: 39.5
    • Decibel Rating High: 46.5
    • Air Flow Direction: Multi-position
    • Min Ambient Cool: 5~122F
    • Min Ambient Heat: 5~75.2F
    • Lineset Included: Yes
    • Lineset Length: 25ft
    • Liquid Line Size: 3/8 in
    • Suction Line Size: 5/8in
    • Compressor Motor Type: Rotary
    • Condenser Fan Motor RPM: 1150/1050/900/850
    • Filter Type: Replaceable
    • Auxiliary Heater Included: No
    • Auxiliary Heater Available: Yes
    • Auxiliary Heater Sizes: 5kw, 8kw,10kw, 15kw
    • Adjustable Thermostat: Yes
    • Modes: Fan // Sleep // Auto Cool
    • Includes: Remote // Battery
    • App Compatibility: No
    • Certificates: AHRI
    • Warranty: 10 years parts and labor
