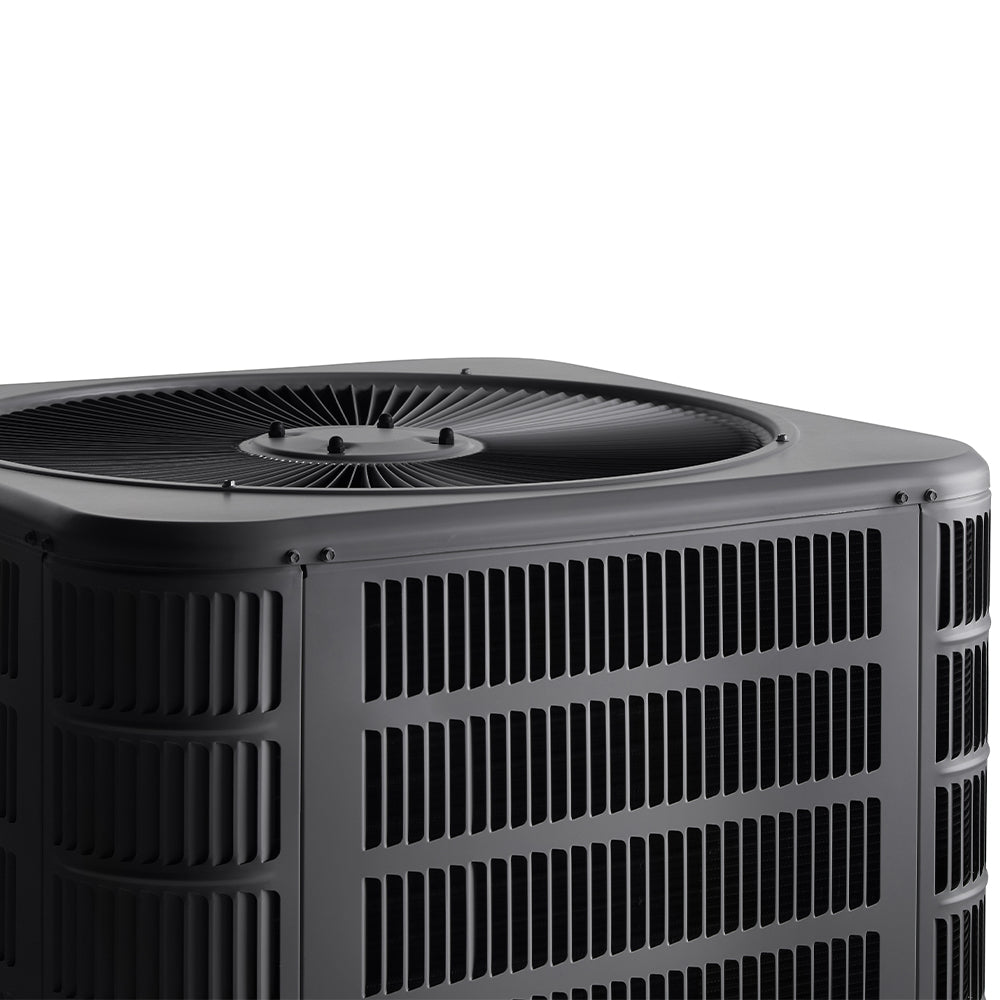

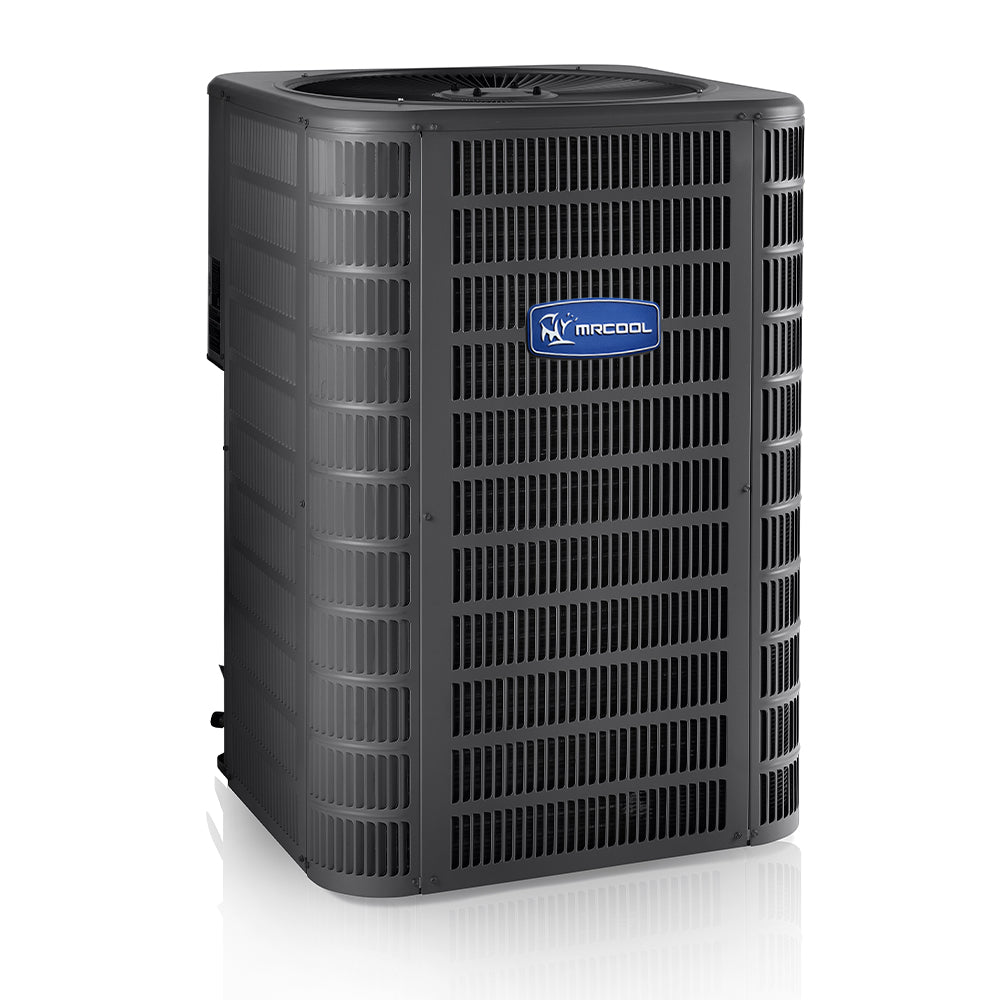

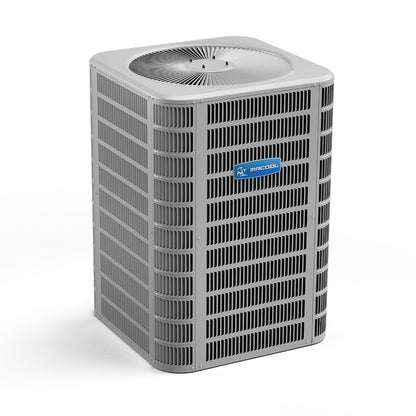

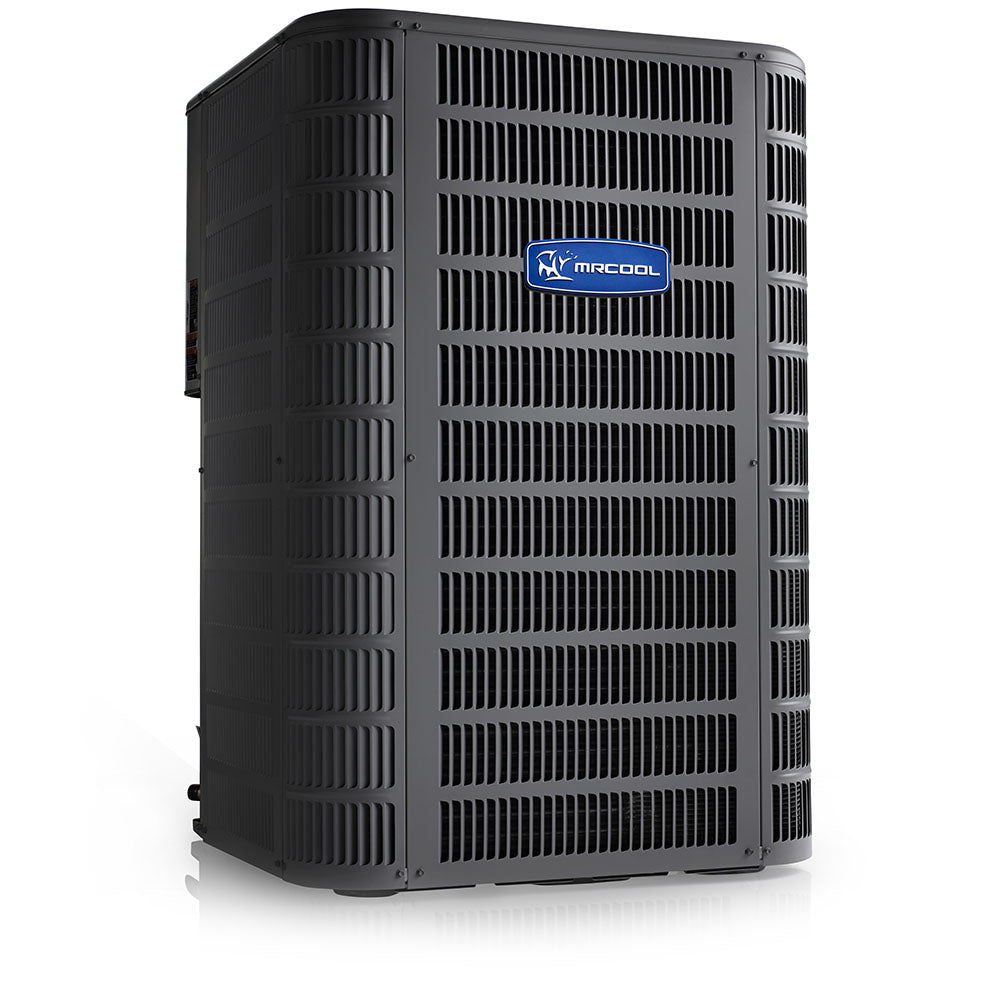

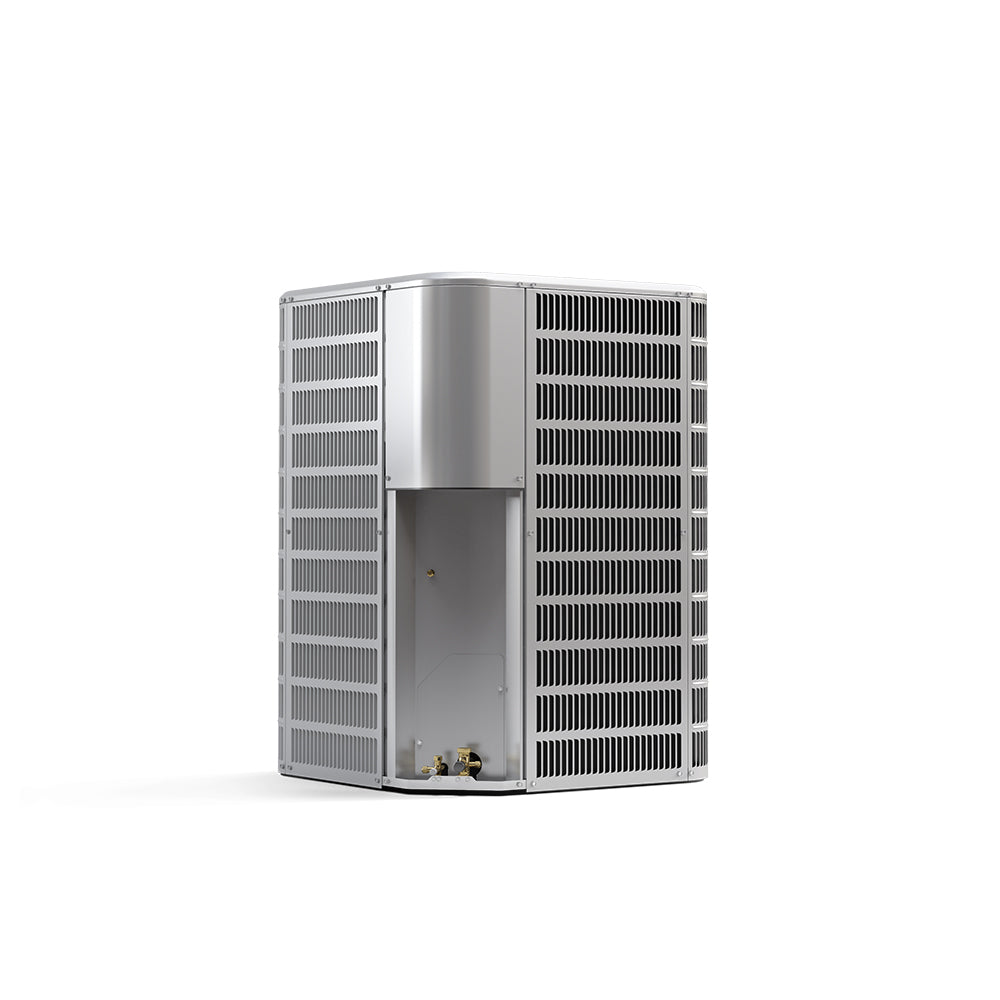

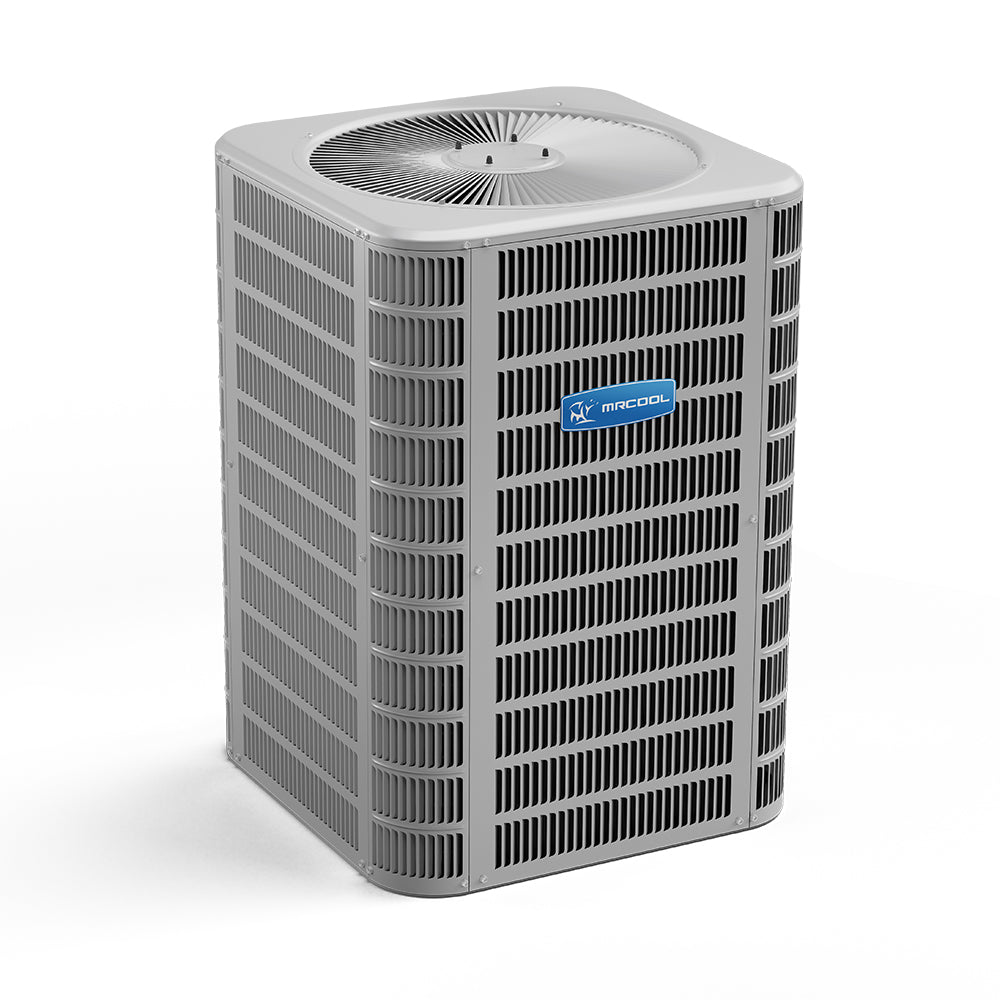

MRCOOL 2 Ton 16 SEER Split System Air Conditioner Condenser, MAC16024A

$1,436.00

$1,717.20

Save 16%

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More

MRCOOL 2 Ton 16 SEER Split System Air Conditioner Condenser, MAC16024A

See more from MRCOOL Model: MAC16024A

Model: MAC16024A

$1,436.00

$1,717.20

Save 16%

Financing:

This item is out of stock. Please contact us for an ETA.

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More
Contact Us

Have a question or want to build your own package?

Talk with one of our trusted appliance experts today!

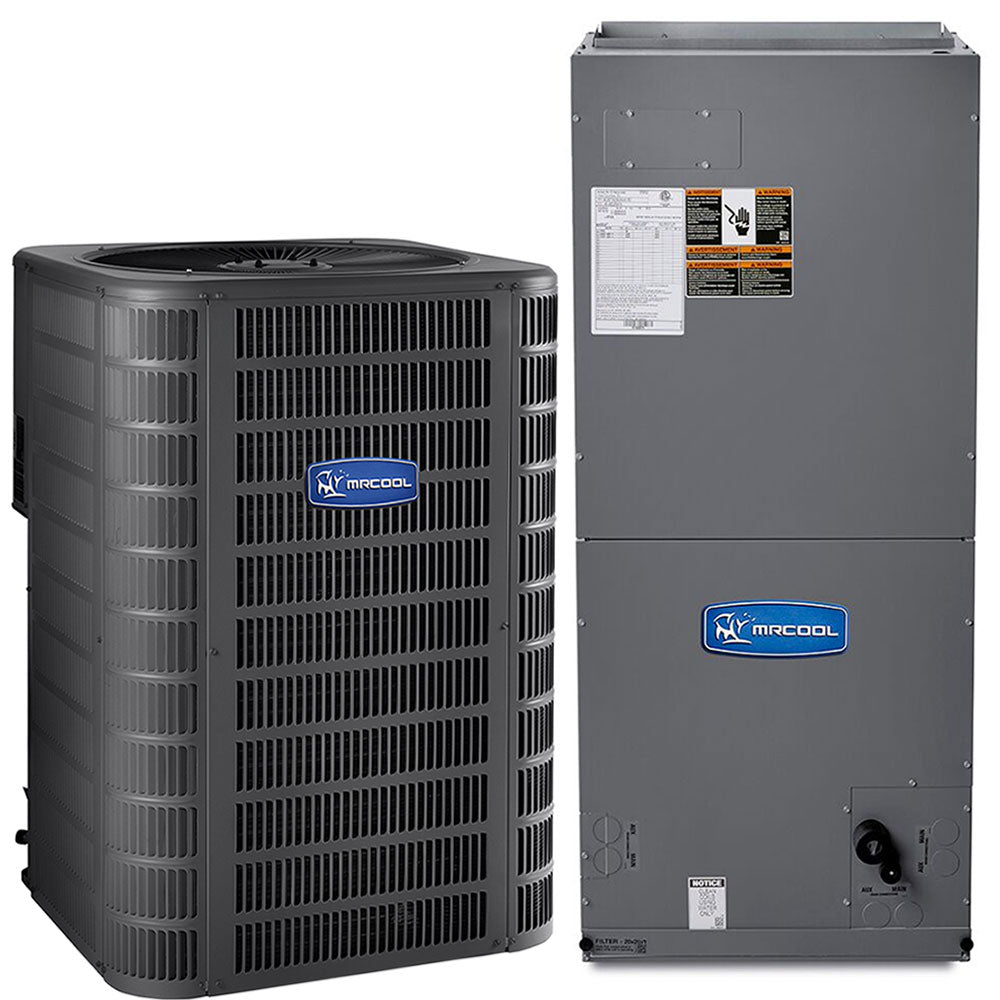

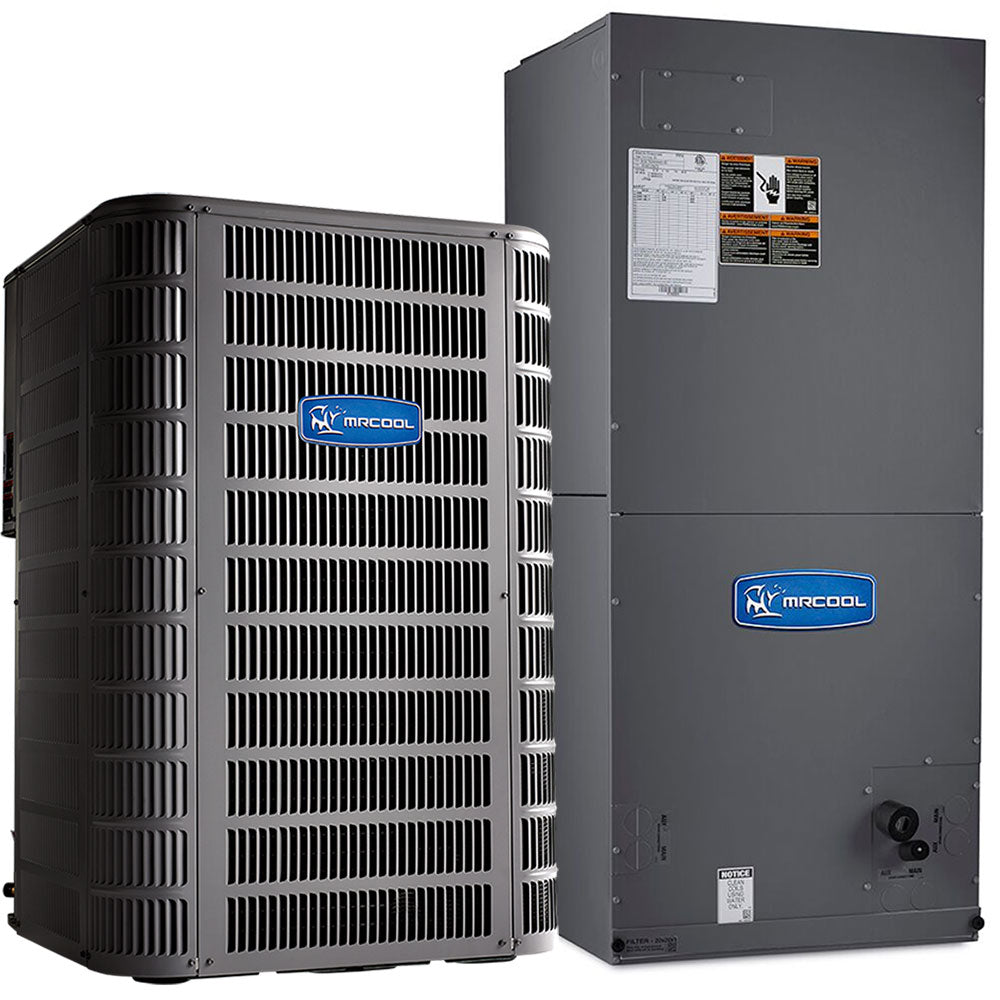

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 2 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).

Key Features

  • CoolGuard total corrosion protection technology designed coil
  • Corner-mounted controls for easy service
  • Full metal louvered construction to protect the coil/ hail protection
  • Factory installed high pressure switch
  • Thread-on pressure switches for simple, quick replacement
  • 10 year limited warranty on compressor
  • Charged for 15 feet of line set

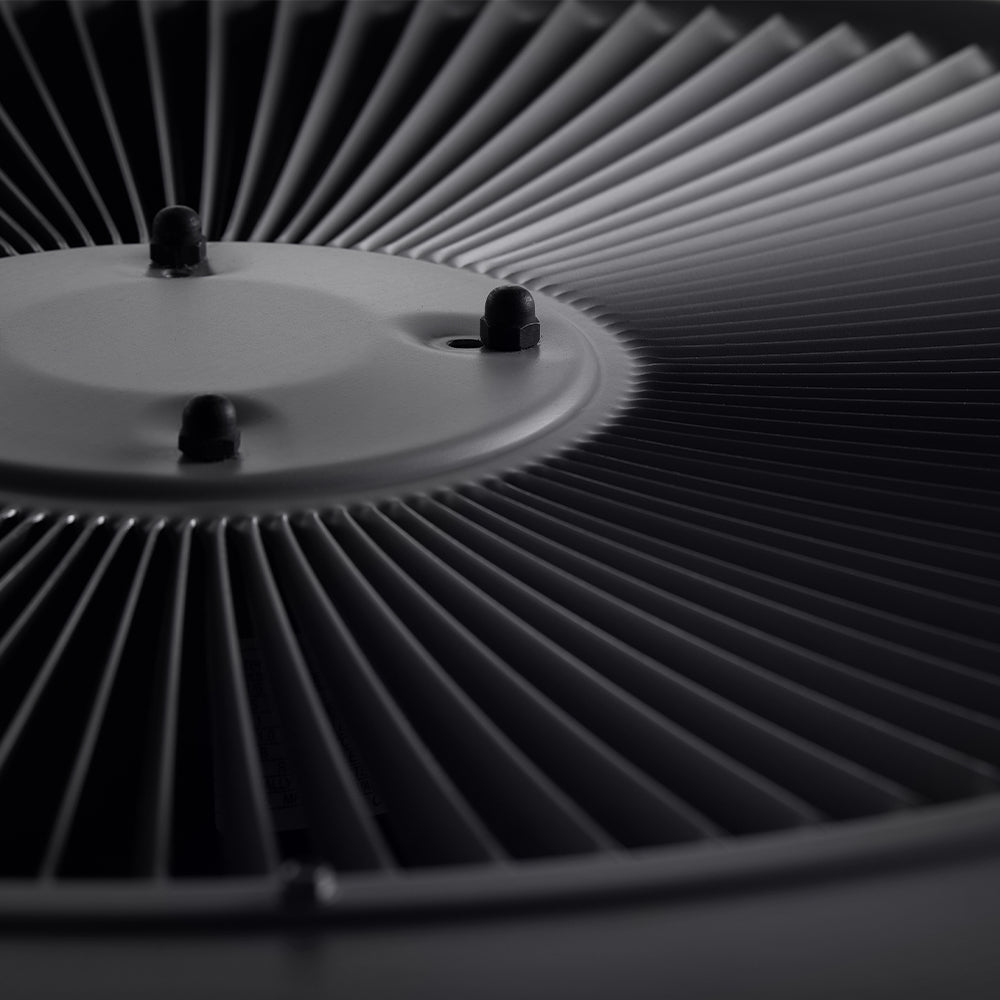

  • Fan orifice for smoother airflow and sound level reduction
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leak proof construction
  • All units ETL and ETLC approved and AHRI Certified
  • Internally protected against high temperature motor overload conditions

Product Dimensions 28.25"W x 37"D x 28.25"H
Product Weight 152 lbs
Unit Type Split System AC Condensers
SEER up to 16
Max SEER 16
EER 12.2
CFM 730-850
Tonnage 2
Cooling Capacity 23000-24000
Voltage Requires a minimum of 208V-230V/60HZ/ 25A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60
Stage Single
Max Fuse Breaker 25 A
Min Circuit Ampacity 14.6
Color Gray
Rated Load 10.9
Max Coverage Area 1000
Refrigerant Type R-410A
Refrigerant Volume 73
Decibel Rating 76
Min Ambient Cool (-20F)
Line Set Length 15ft, 25ft, 35ft, 50ft
Max Line Set Length 50ft
Line Set Fitting Type Sweat
Liquid Line Size 3/8 in
Suction Line Size 3/4
Compressor Motor Type Scroll
Condenser Fan Motor Type Direct Drive
Condenser Fan Motor HP 1/6
Condenser Fan Motor RPM 825
Metering Device TXV
Auxiliary Heater Yes
Auxiliary Heater Sizes 7.5kw, 10kw
Certifications ETL
AHRI
Warranty 10 year registered parts warranty
