FORNO Custodia 46.8" 20.6 cu. ft. Side-by-Side Refrigerator with Bottom Freezer and Ice Maker in Stainless Steel, FFFFD1766-48S

Model: FFFFD1766-48SMore from FORNO
$2,699.00
$2,699.00 $3,399.00
Save $700
Shipping calculated at checkout.
Color: Stainless Steel
Backorder · Restock: Late November (Est.)
Free In-Home Shipping

FORNO Custodia 46.8" 20.6 cu. ft. Side-by-Side Refrigerator with Bottom Freezer and Ice Maker in Stainless Steel, FFFFD1766-48S

$2,699.00
$2,699.00 $3,399.00

Free shipping
Ask about this product Get an answer with Appliance AI™
AI-generated from product data and store information. Responses may not always be accurate. For any clarifications, talk to our team.

Product Overview

  • Capacity: 20.6 cu. ft.

  • 2 Separate Units

  • Ice Maker

  • Freestanding

  • Counter Depth

  • ENERGY STAR Certified

  • Voltage: 115V

  • Fast Cool & Fast Freeze

What's Included
Package builder

Buying more than one appliance?Build your own package

Get a quote in about 2 minutes Save 5% on 4 appliances, 7% on 5+
Start your quote →

DESCRIPTION

The FORNO Custodia 46.8-inch Bottom Freezer Refrigerator in stainless steel delivers 20.6 cu. ft. of counter-depth freestanding storage with an ice maker, an inverter compressor, and ENERGY STAR certification. Fresh food and freezer space are split into 14.6 and 6 cu. ft. sections for easy everyday organization.

  • 20.6 Cu. Ft. Capacity: 14.6 cu. ft. of fresh food space and 6 cu. ft. of freezer space.

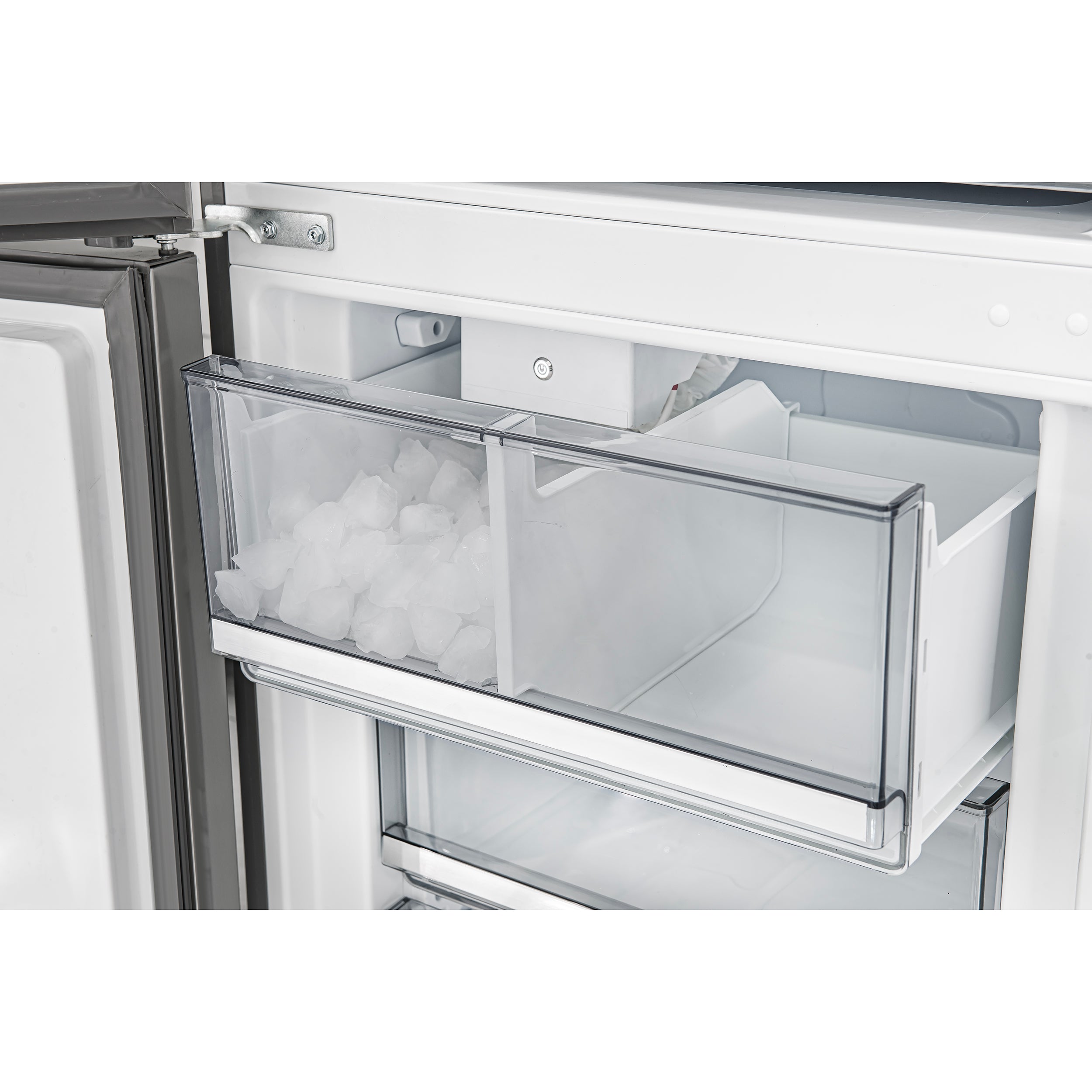

  • Built-In Ice Maker: Produces up to 1.76 lbs of cube ice per day. A water pipe is included for the connection.
  • Reliable Cooling: Features inverter compressor with total no frost cooling for consistent temperatures and efficient operation.
  • Flexible Fresh Food Storage: 8 glass shelves (6 adjustable) and 1 crisper drawer keep groceries organized and easy to reach.
  • Freezer Drawers: 6 pull-out freezer drawers keep frozen food sorted.
  • Electronic Controls: Electronic controls for precise temperature adjustment with a door-ajar alarm.
  • Fast Cool and Fast Freeze: Super Cool and Super Freeze modes quickly bring fresh and frozen food to temperature after loading groceries.
  • Efficient and Quiet: ENERGY STAR certified efficiency, LED interior lighting and quiet operation at about 44 dBA.

⚠ Installation Disclaimer

This side-by-side refrigerator is made up of two separate 24-inch units placed next to each other:

  • FFFFD1766-24LS – Left Swing, with ice maker
  • FFFFD1766-24RS – Right Swing

They are independent units with no connecting components between them.

  • Power: each unit has its own power cord, so two separate power outlets are required (one per unit), each on its own 15-amp circuit (2 x 15A total).

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Product Dimensions (W x D x H): 23.43 x 22.81 x 73.25" (each unit)
  • Depth Without Handles: 22.80"
  • Depth With Handles: 25.25"
  • Cabinet Depth (Excluding Door): 20.4"
  • Cutout Dimensions (W x D x H): 27.4 x 22.46 x 77.1" (each unit)
  • Depth with Door Open 90°: 45"
  • Depth with Door Fully Open: 42.5"
  • Width with Door(s) Fully Open: 77.40"
  • Minimum Top Clearance: 4.00"
  • Minimum Back Clearance: 2.00"
  • Side Clearance (each side): 2.00"
  • Total Capacity: 20.6 cu. ft.
  • Fresh Food Capacity: 14.6 cu. ft.
  • Freezer Capacity: 6 cu. ft.
  • ELECTRICAL REQUIREMENTS
  • Volts: 115V
  • Frequency: 60Hz
  • Running Amperage: 1.6A (each unit)
  • Circuit Breaker Amperage: 15A (each unit)
  • Plug Type: NEMA 5-15P
  • Power Cord Included: Yes
  • Number of Power Cords: 2
  • Power Cord Length: 7.50 ft.
  • Power Cord Location: Lower Back
  • Estimated Annual Energy Use: 852 kWh/yr
  • FEATURES
  • Installation Type: Freestanding
  • Counter Depth: Yes
  • Color/Finish: Stainless Steel
  • Handle Finish: Stainless Steel
  • Door Style: French Door

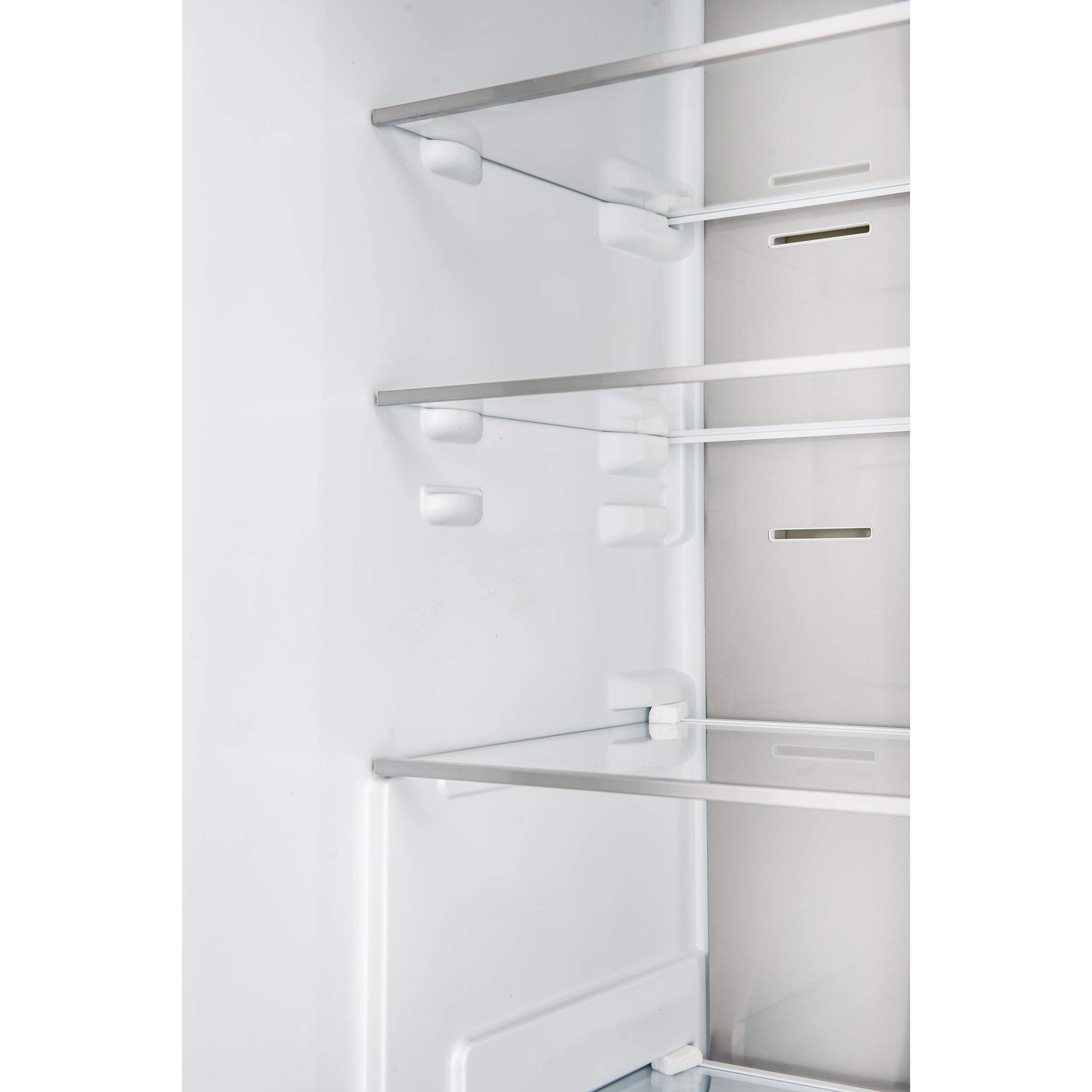

  • Fresh Food Shelves: 8 (6 adjustable)
  • Shelf Material: Glass With Silver Trim

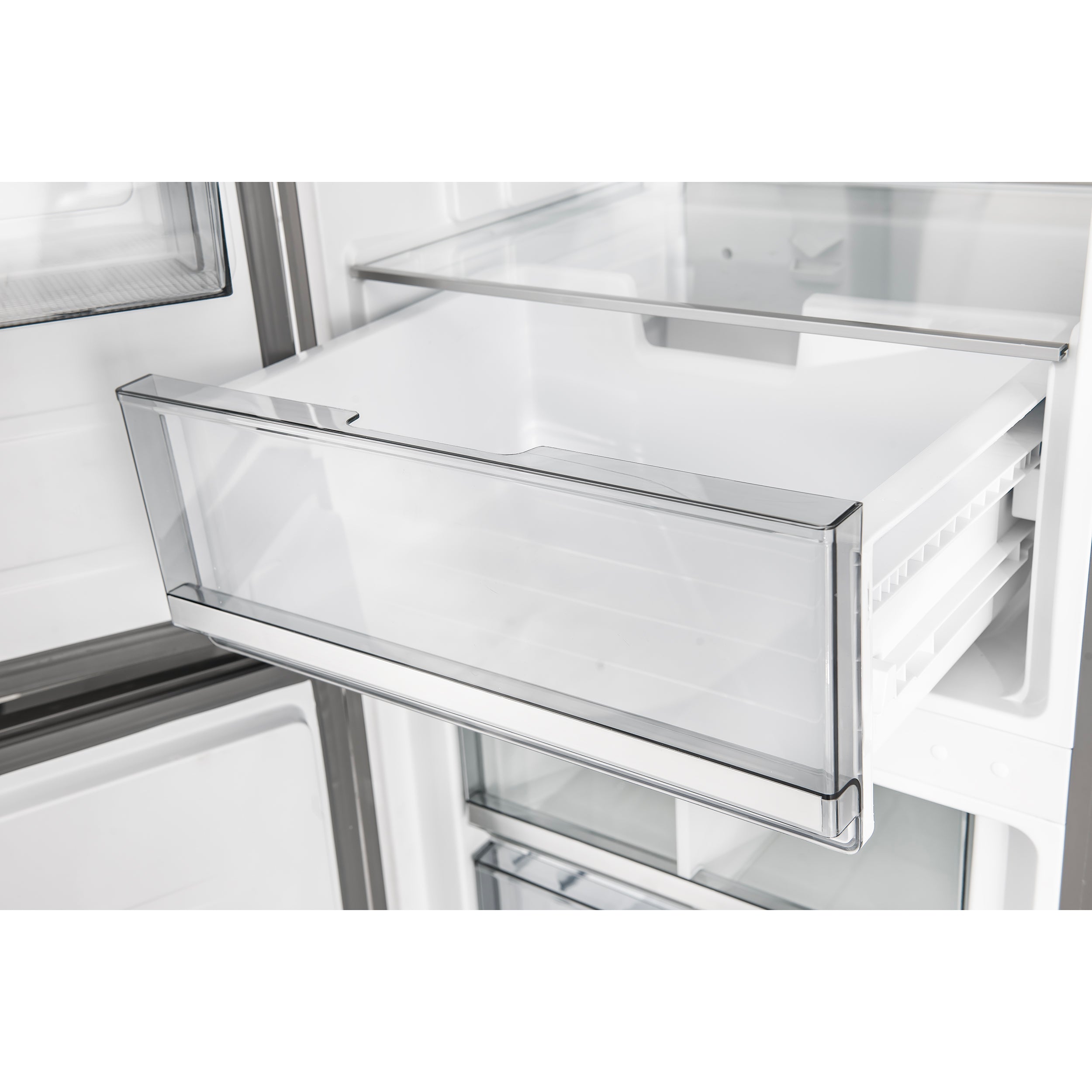

  • Fresh Food Drawers: 1

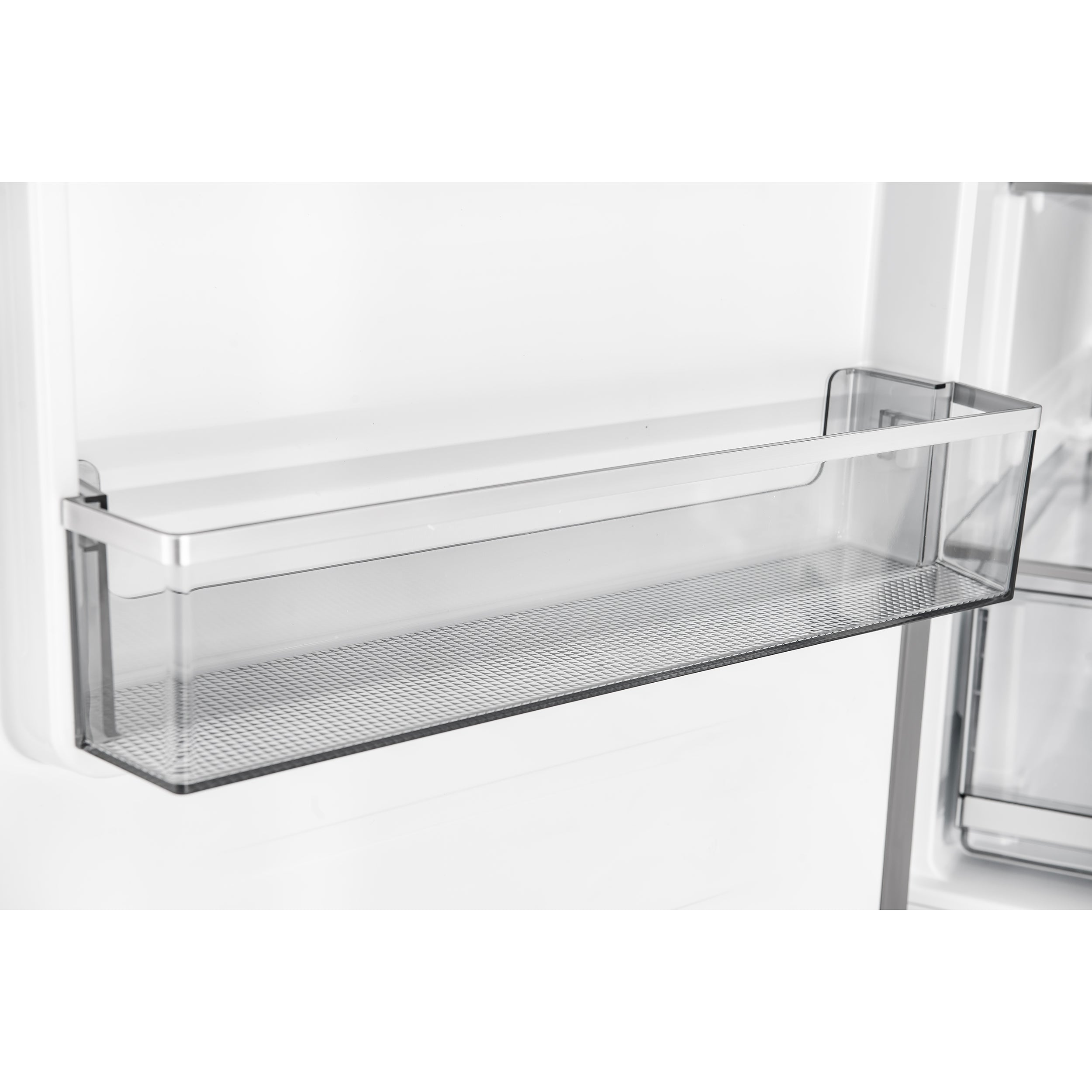

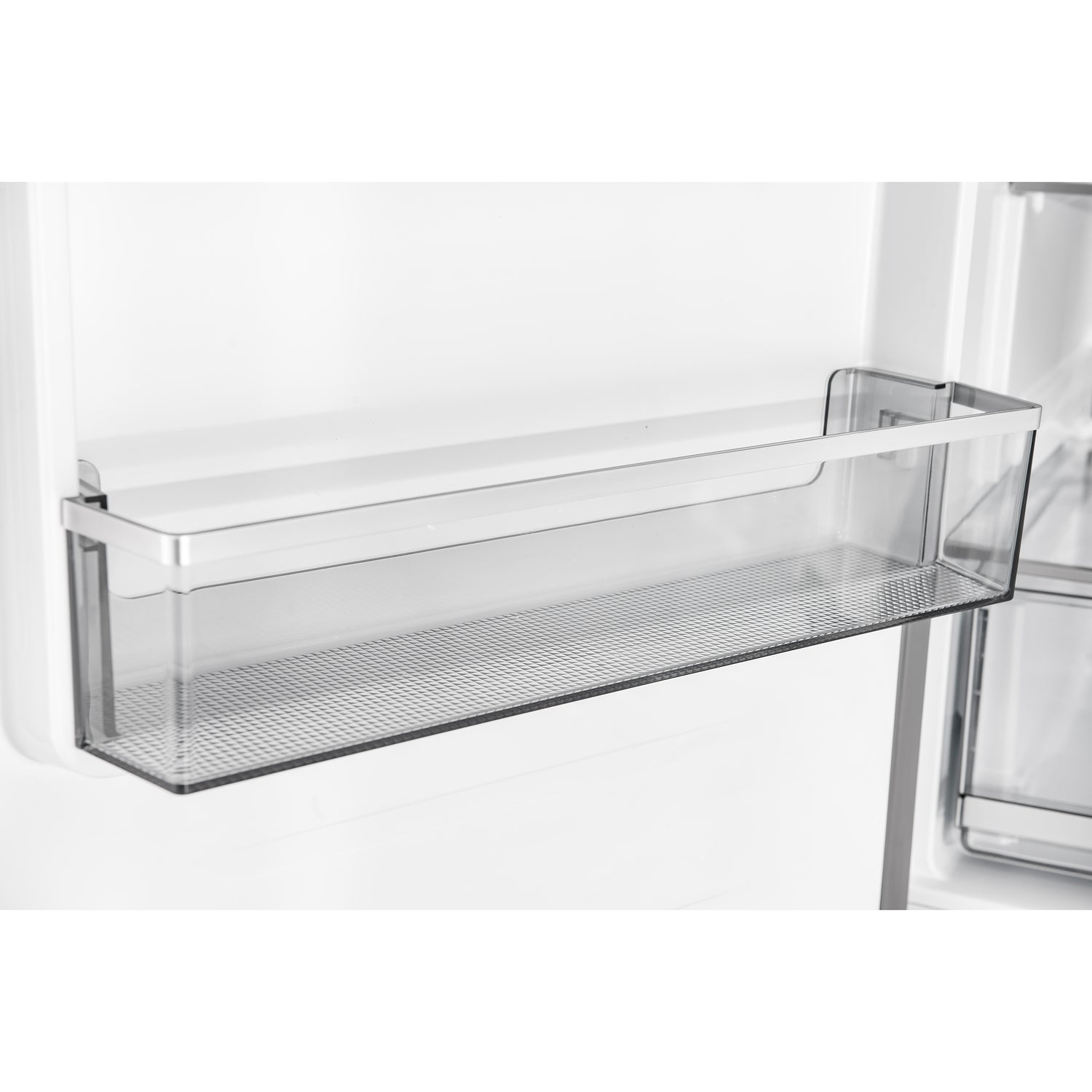

  • Door Bins: 6
  • Freezer Drawers: 6
  • Temperature Range Refrigerator (°F): 34°F to 43°F
  • Temperature Range Freezer (°F): -9°F to 5°F
  • Control Type: Electronic
  • Control Location: Interior Top
  • Defrost Type: Automatic/Frost free
  • Cooling System: Total No Frost
  • Compressor Type: Inverter Compressor
  • Fast Cool / Fast Freeze: Yes
  • Ice Maker: Yes
  • Daily Ice Production: 1.76 lbs
  • Ice Type: Cube Ice
  • Water Pipe Included: Yes
  • Water Dispenser: No
  • Door Alarm: Yes
  • Sabbath Mode: Yes
  • Sound Rating: 44 dBA
  • WARRANTY & CERTIFICATIONS
  • Certifications: cETLus, ENERGY STAR Certified
  • Warranty: 2 Years Parts & Labor

INSTALLATION & GUIDES

File icon
Spec Sheet PDF
File icon
Installation Manual PDF

SHIPPING POLICY

In-Home Delivery (Included with All FORNO Appliances)

FORNO will bring your appliances inside your home and check for any visible damage.
Please note: Installation, unpacking, and removal of old appliances are not included.

Damaged Appliances

If your appliance arrives damaged, you must refuse delivery.
Signing the delivery waiver confirms that you have inspected the appliance and found no damage.
FORNO cannot provide a replacement if the waiver has been signed and the damage is reported afterward.

Delivery Details

FORNO will deliver your appliance to the room of your choice, including up to 7 steps within a single flight of stairs.
For apartment buildings, delivery will be made to the lobby.

Important: If your delivery involves more than 7 steps, please notify us before shipping. Additional fees may apply, and advance notice helps prevent delays.

Shipping Coverage

Delivery is not available to all ZIP codes. Please contact our Sales Team to confirm availability in your area.

Tracking & Delivery Scheduling

Most customers receive tracking information 3–5 business days after placing an order.
Once you receive your tracking number, please allow 1–2 business days for tracking details to populate.

See our full Shipping Policy here.

RETURN POLICY

FORNO returns must be requested within 30 days of your delivery date. We can’t process returns submitted after this period. Products must be unused, uninstalled and in their original packaging, including the box and pallet.

Restocking Fee: A 30% restocking fee applies to all approved returns.

Non-Returnable Items: Accessories are not eligible for return, including but not limited to chimneys, extensions, crown moldings, trim kits, brass burners, griddles and similar items.

Damaged in Delivery? If you sign a waiver confirming your order arrived undamaged, no damage claims can be submitted afterwards. For all other orders, any damage must be reported within 24 hours of delivery. Claims submitted after the 24-hour window may not be accepted.

See our full Return Policy here.

Accessories

You May Also Like

About FORNO

FORNO Builds Affordable Luxury Appliances

When the FORNO line was created, it had a clear mission: to offer cutting-edge kitchen appliances at a fraction of the typical retail price. FORNO is proud to usher in a new era of innovation, delivering high-performance appliances that will transform your kitchen.

See more about FORNO
N
Nitin

Does this fridge comes with the trim kit or is there a trim kit available to purchase?

Premium Home Source

Hi, thank you for getting in touch. The FORNO Custodia FFFFD1766-48S does not come with a trim kit, and a compatible trim kit is not available for purchase. If you need more assistance, please contact our product experts at (800) 805-7102 or [email protected].

w
what are detail measurements………show details in a picture diagram

need to make sure fit in my kitchen

Premium Home Source

Hi, thank you for getting in touch. The overall dimensions are 46.8” W x 22.81” D x 73.25” H. This refrigerator consists of two separate units, each measuring 23.43” W x 22.81” D x 73.25” H.

You can view the detailed measurement diagram here:

https://www.premiumhomesource.com/cdn/shop/files/Refrigerator_FFFFD1766-48S_Specs-En_2026-02-12.pdf?v=6105962528855377968

Please also note that each unit requires its own 15-amp electrical circuit.

If you need more assistance, please contact our product experts at (800) 805-7102 or [email protected].
