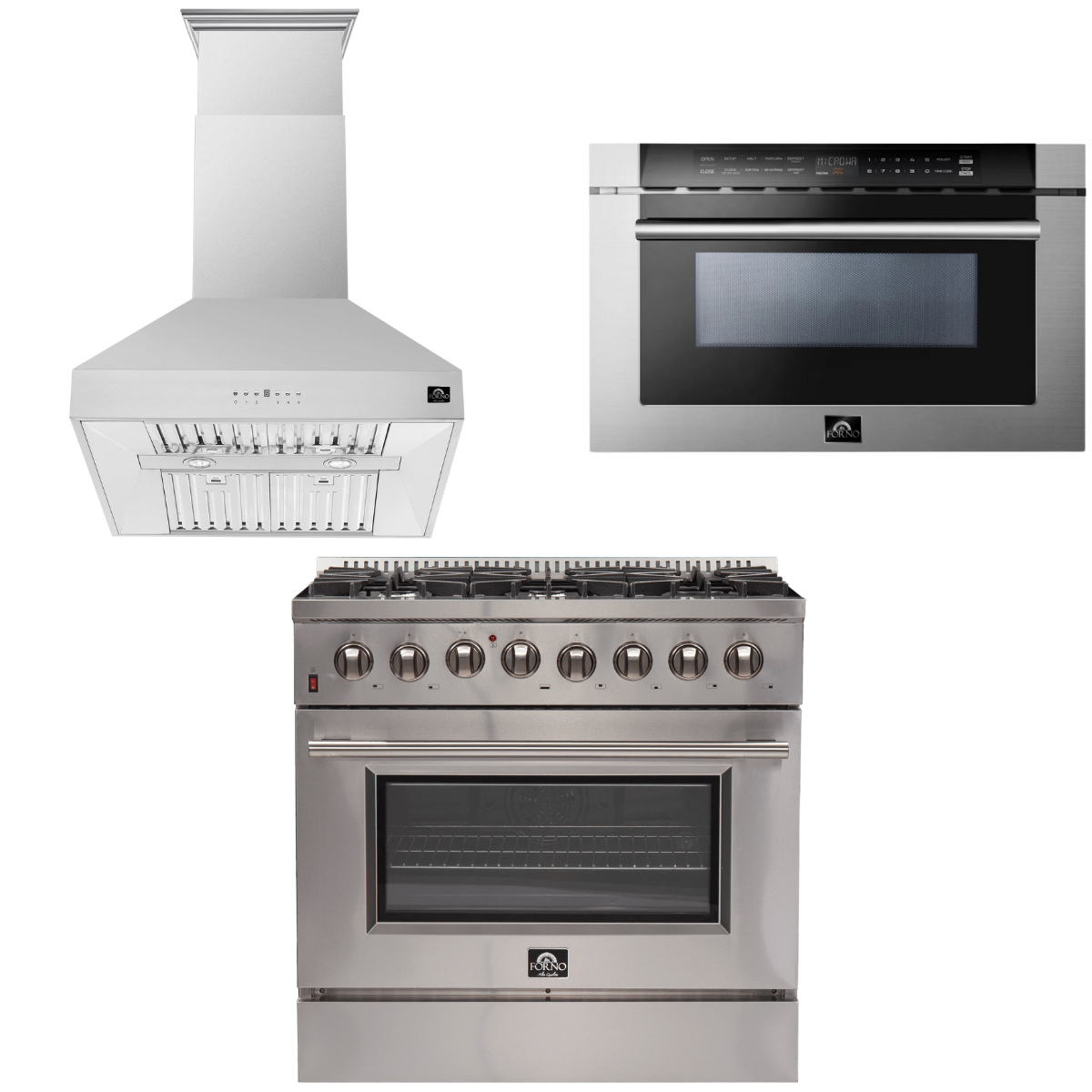

FORNO Appliance Package - 36 Inch Dual Fuel Range, Wall Mount Range Hood, Microwave Drawer, AP-FFSGS6156-36-W-3

Forno FFSGS615636 Overview

This 36" Dual Fuel Range by Forno offers a 6 Defendi Italian Burner cooktop and a 5.36 cu. ft. oven. The range also features cast iron grates, convection fan and halogen lights.

Features:

Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.

Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.

Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.

cETLus: A cETLus certification which complies with the safety standards for the United States and Canada.

Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.

Additional Features:

• Stainless Steel 304
• Cavity Top Plate
• Stainless Steel 430
• Control Panel
• Oven Door
• Bottom Front Panel
• Back Splash
• Side Panel
• Cast Iron Grates with MidGrill
• Black Enameled Cooktop
• Knobs with Ring
• Pro Style Handle
• Oven Door Glass 3 Layers
• Black Enameled Oven Interior
• 2 Halogen Oven Lights
• 2 Electroplate Racks (4mm &7.5mm)
• Thermostat, Regulator and Safety Valves
• Adjustable Stainless Steel Legs ( from 38” to39”)
• LP Kit Included
• Fuel Type: Natural Gas /PL
• Automatic Ignition

Cooktop Features:

• 6 Italian Defendi Burner
• Front Right Sealed Dual Burner BTU: 20,000/Sim 1,000 BTU
• Front Mid Sealed Single Burner BTU:15,000
• Front Left Sealed Single Burner BTU:15,000
• Rear Left Sealed Single Burner BTU:9,000
• Rear Mid Sealed Single Burner BTU:9,000
• Rear Right Sealed Single Burner BTU:15,000

Oven Features:

• Oven 36” Capacity: 5.36 cu. ft
• Power: Broil Inside 1000 W
• Outside 1800W Bake 2000 W
• True Convection Fan 1500 W
• 240 Volt 60Hz
• Circuit Breaker 30 Amps

2 Year Warranty

The Orvieto 36" STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 1200 CFM motor and four-speed touch control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.

• Powerful and Efficient Ventilation. Equipped with a powerful and energy-efficient 1200 CFM motor designed to capture smoke, gases, steam, and grease, ensuring a clean and odor-free cooking area. Washable Stainless-Steel filters with a baffle design effectively capture grease, smoke, and odors from the air
• Convenient Control and Illumination. 4-speed touch control provides easy operation, allowing you to adjust the fan speed settings for optimal air flow and ventilation levels according to your needs. Two surface lights offer bright illumination for the cooktop surface, enhancing visibility during cooking
• Elegant and Modern Design. The chimney includes a stainless steel decorative molding trim, adding an elegant and modern feel to your kitchen while providing a beautiful finishing touch
• Quiet and Effective Operation. Maximum power ventilation operates at a low noise level of 65dB, allowing you to enjoy an effective ventilation system without disruptive noise. The low setting delivers a sound level of only 25dB, providing an exceptionally quiet experience while maintaining efficient ventilation

Product Specs

Luxury is made attainable with the Forno Professional Stainless Steel Microwave Drawer. Seamlessly integrate this cooking essential to perfectly fit into your kitchen design with installation flexibility. Make every meal a masterpiece with superb professional cooking with power levels, multiple defrost settings, and 1,000 watt cooking power.

• Touch Button Drawer Opening. Easily open the microwave drawer with a simple touch of a button. Convenient open and close buttons for added ease of use
• Seamless Space-Saving Design. Designed to be installed as a space-saving built-in microwave under a counter or in a wall. Offers a seamless and integrated look in your kitchen
• 11 Power Levels. Choose from 11 power levels to find the perfect option for your cooking needs. Provides versatile cooking settings for different dishes
• 1,000 Watts Cooking Power. Boasts 1,000 watts of cooking power for fast and efficient cooking. Quickly heats up your food for time-saving convenience
• Rapid Water Boiling. Utilize standard microwave settings to boil water as quickly as 1 minute and 50 seconds. Perfect for getting things done in a hurry
• User-Friendly Glass Touch Controls. Equipped with easy-to-use glass touch controls. Features a clear LED display for effortless operation
• Pre-programmed Settings for Easy Tasks. Enjoy pre-programmed settings for melting or softening butter, chocolate, ice cream, cheese, and marshmallows. Simplifies certain cooking tasks
• Multiple Microwave Modes. Explore various microwave modes, including defrost, popcorn, and beverage heating. Accommodates different food and beverage requirements
• Spacious Interior. Boasts a generous 1.2 cu ft capacity. Accommodates coffee mugs up to 7 inches tall and dishes up to 16 x 16 inches in size

Installation Instructions
Cutout Dimensions
