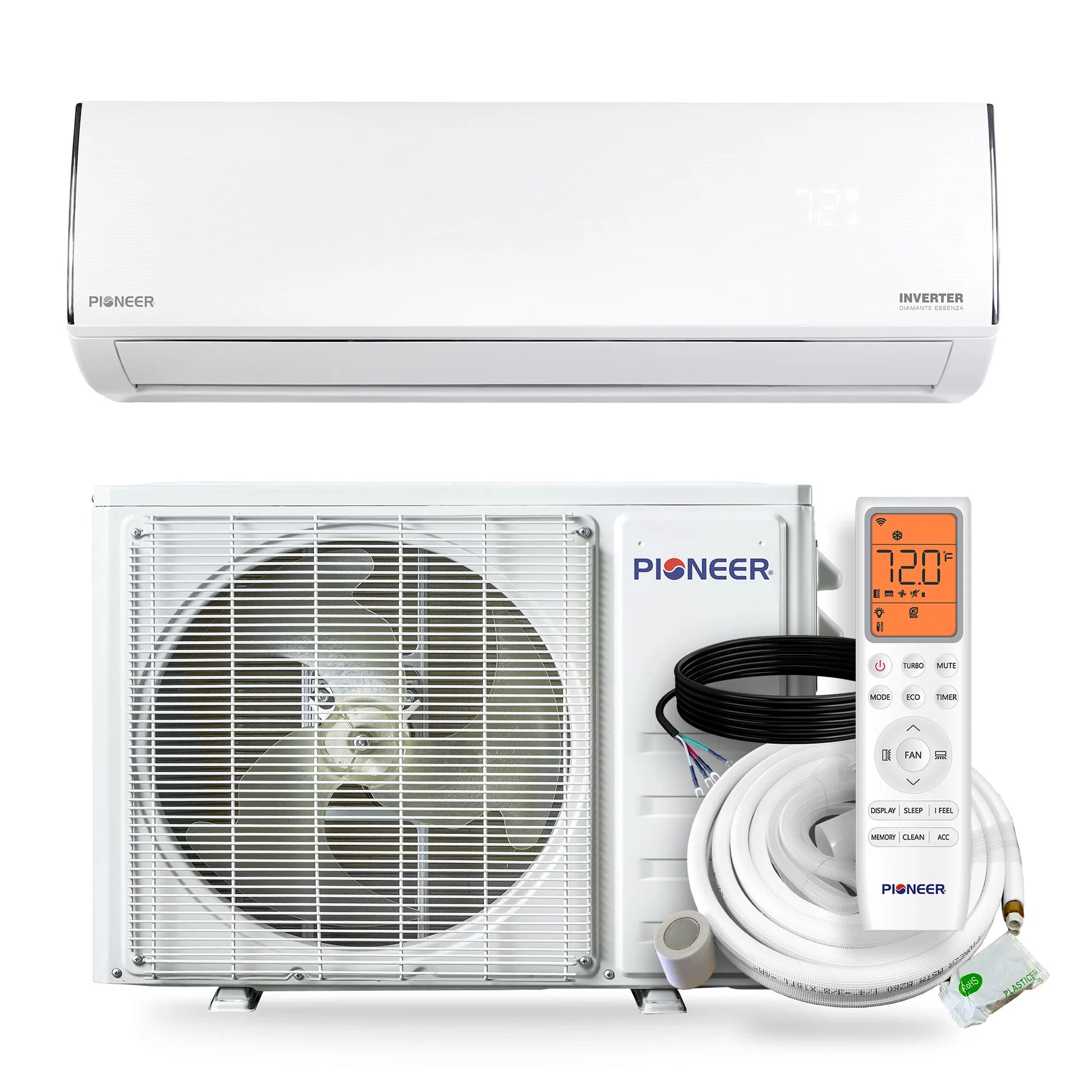

Pioneer® Diamante Essenza™ 23,000 BTU 230V High-Wall Mini Split System with 16 Ft. Kit

The premium version Diamante Essenza™ High-Wall Series Standard Efficiency Ductless Mini Split Heat Pump System delivers powerful, large-capacity comfort with a refined, modern presence. Built to handle demanding spaces, this 23,000 BTU cooling and 22,400 BTU heating system combines strong 17 SEER2 efficiency with advanced DC inverter technology for intelligent, responsive climate control. Engineered for dependable year-round performance, it operates in extreme temperatures, utilizes environmentally friendly R-32 refrigerant, and provides precision airflow management for a smooth, high-impact comfort experience.

• Diamante Essenza™ Indoor Unit: High wall-mounted air handler delivering 23,000 BTU cooling and 22,400 BTU heating capacity, featuring dual-axis motorized louvers, washable reusable filters, dual drainage ports, and Cooling, Heating, Dry, and Ventilation modes.

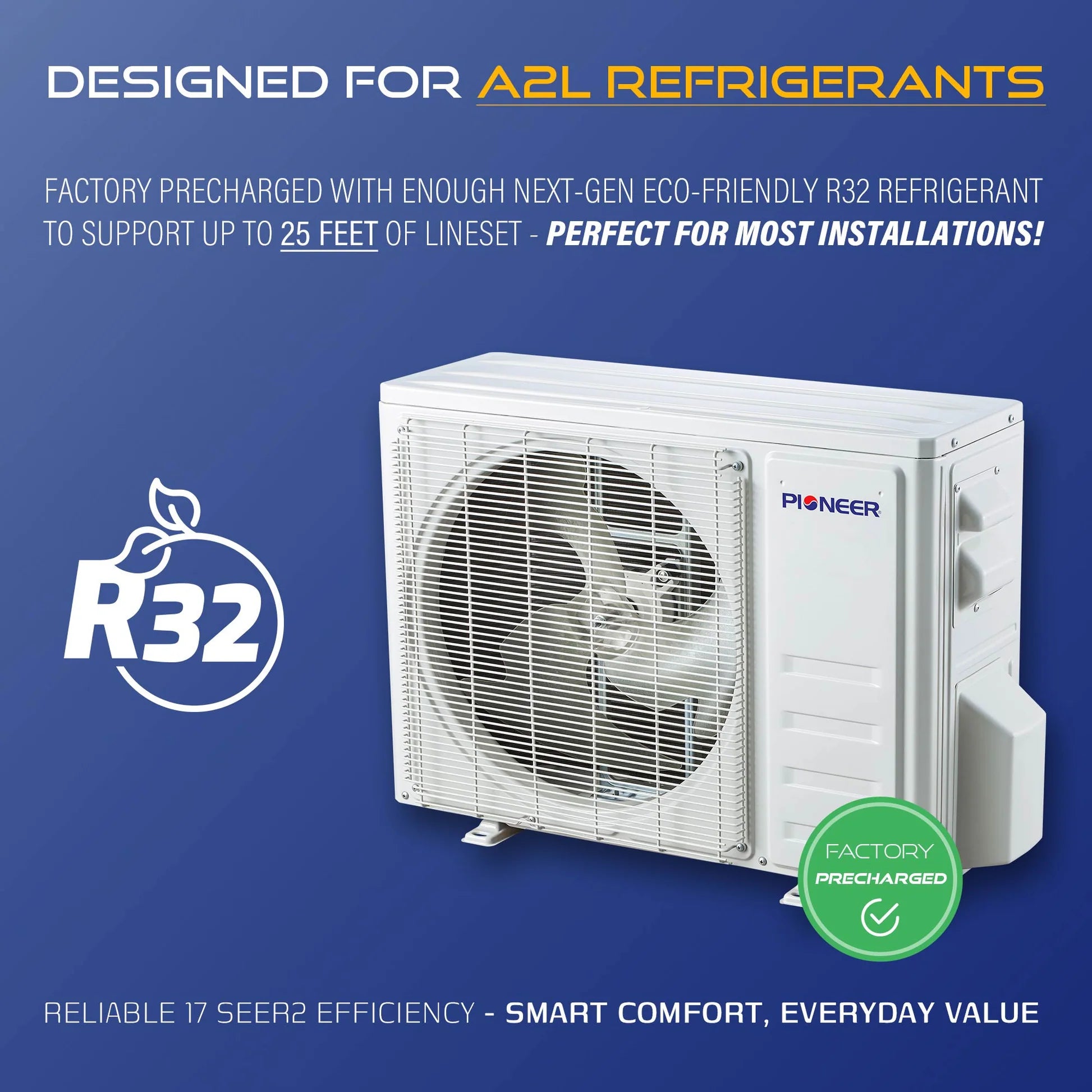

• Outdoor Condenser Unit: Variable-speed DC inverter heat pump rated at 17 SEER2 and 9.5 HSPF2 with reliable operation from 5°F in heating up to 122°F in cooling conditions.
• Wireless Remote Control: Multi-function handheld controller with ECO, SLEEP, TURBO, Timer On/Off, Self-Clean, MEMORY, and IFEEL features for precise comfort customization.

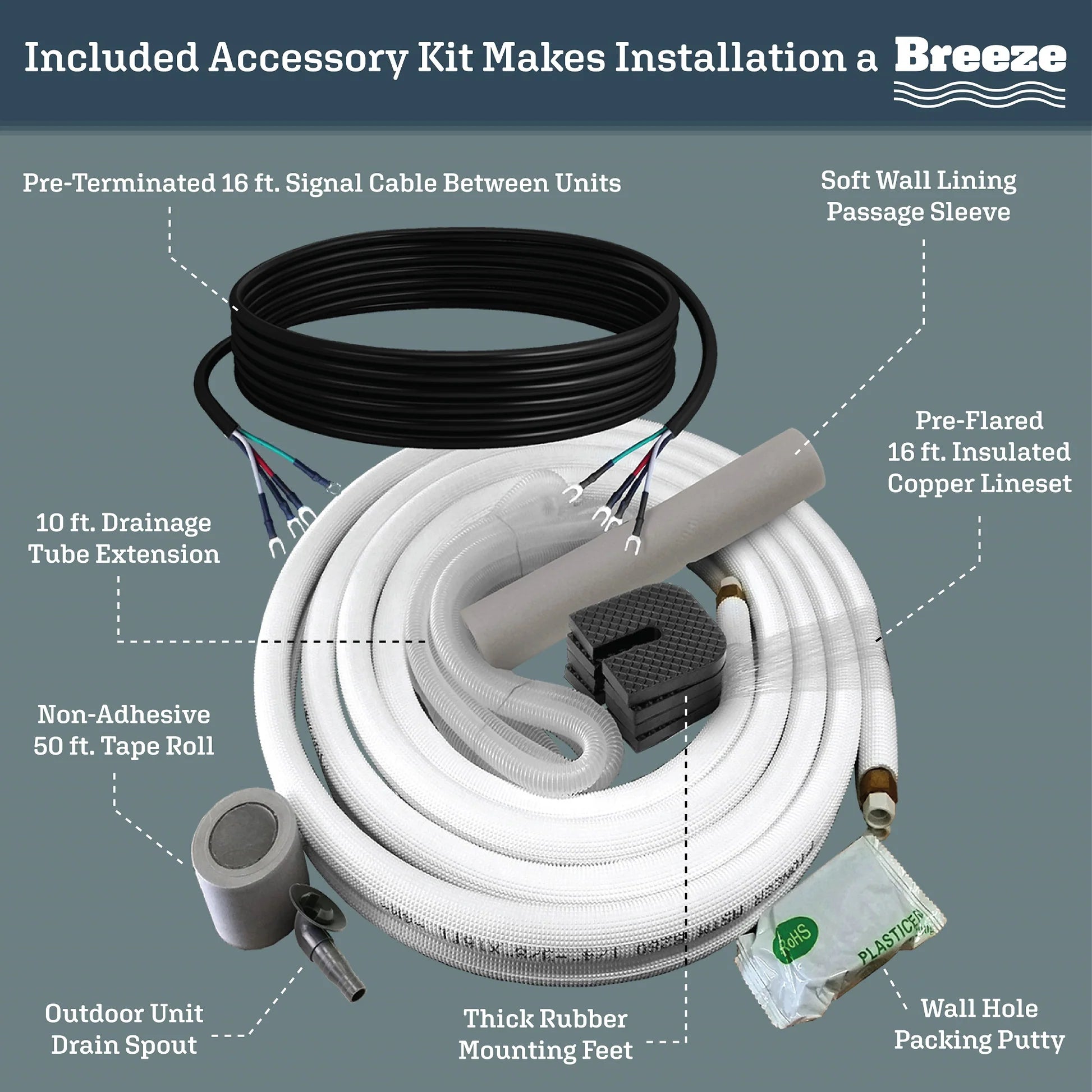

• 16 Ft. Copper Line Set: Insulated copper refrigerant lines designed to support factory-precharged R-32 performance for efficient and secure system operation.
• 16 Ft. Electrical Wire: Communication and power cable compatible with 208/230V, 60Hz, single-phase electrical requirements.
• 10 Ft. Drain Line: Flexible condensate drainage solution suitable for indoor and outdoor routing configurations.
• Installation Accessories: Includes wall passage sleeve, wall hole putty, leak guard sealer, and wrapping tape to help ensure a clean and sealed installation.
• Documentation and Mounting Components: Complete package with installation manual, user’s manual, remote wall holder, and remote batteries for convenient setup and immediate use.

Free Curbside Delivery
All orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

Returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a minimum 15% restocking fee and return shipping fee will be applied to all approved returns.

See our full Return Policy here.
