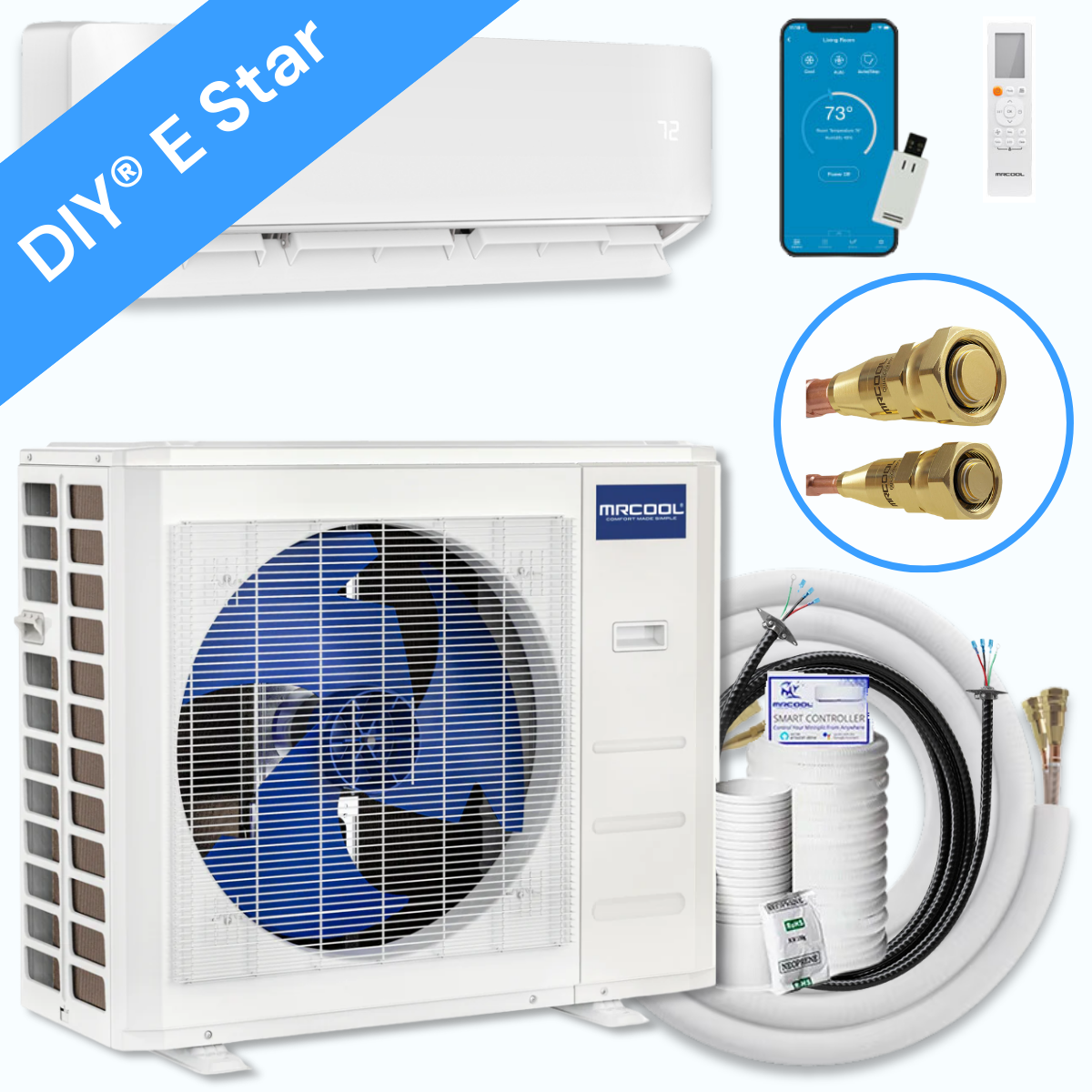

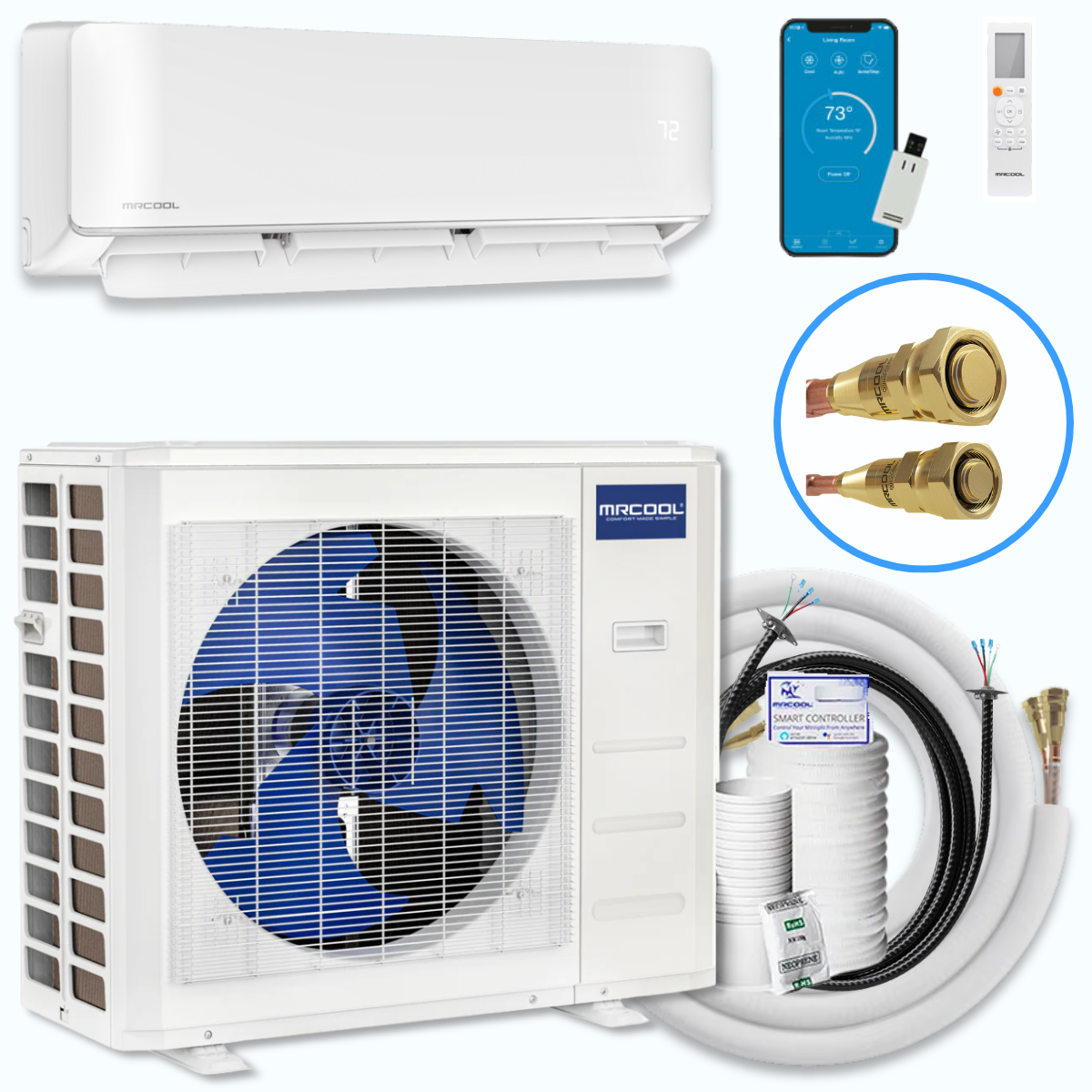

  3. MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O

Model: DIY-36-HP-WM-230D25-O
$3,769.00
$3,769.00 $4,434.00
-15%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 36,000
36,000
9,000
12,000
18,000
24,000
36,000

This item is in stock! Estimated Arrival: Aug 13 to Aug 19

Need a Different Line Set Length?

This system comes with a standard 25 ft pre-charged line set. If you need a shorter or longer line set, you will need to purchase a different one separately. Please note that the included 25 ft line set cannot be returned or exchanged, even if unused.

Available line set lengths: 16 ft, 25 ft, 35 ft, and 50 ft

Be sure to choose the correct size and line set type for your indoor unit:

$3,769.00
$3,769.00 $4,434.00

BETTER TOGETHER

Key Features

Upgrade your space with the 5th Gen MRCOOL® DIY® 36K BTU Single Zone Mini-Split - the ultimate solution for year-round heating and cooling in rooms 1,000 to 1,500 sq. ft. Engineered for effortless DIY installation, this mini split lets you take control of your comfort with an included 25 ft. QuickConnect® line set, DIYPRO® cable, and multiple wireless control options. Whether using the SmartHVAC app, remote, or voice commands, achieving perfect temperature control has never been easier.

With industry-leading energy efficiency, durability, and a best-in-class warranty, MRCOOL® is the trusted name in DIY climate control - giving you professional-grade performance without the hassle or expense of professional installation.

Why Choose MRCOOL® DIY® 5th Gen Mini-Split?

  • America’s #1 DIY Mini Split: The nation’s most trusted DIY mini split, designed for quick, hassle-free installation and exceptional reliability.

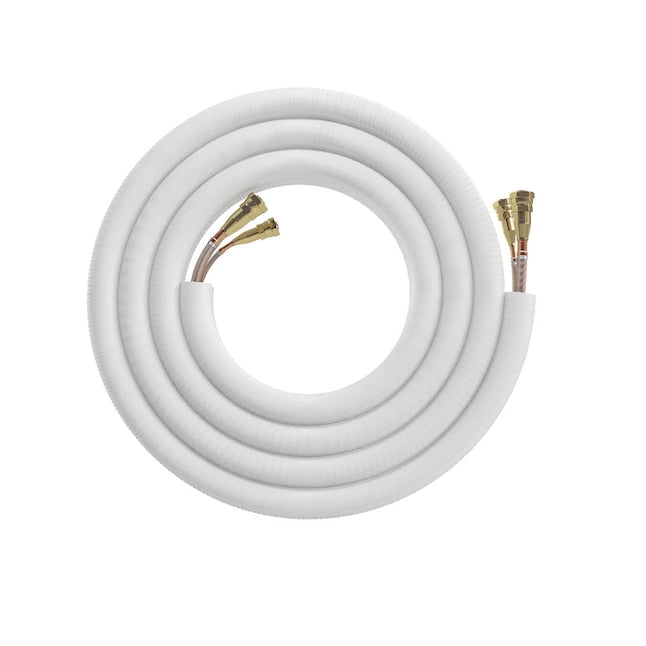

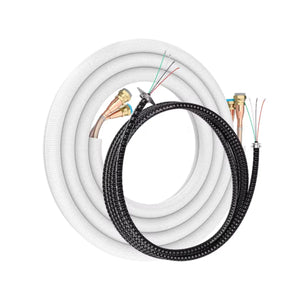

  • DIY® QuickConnect® Line Set: Pre-charged with R-454B refrigerant, this line set ensures a quick, vacuum-free setup, making installation a breeze.
  • Eco-Friendly Refrigerant: R-454B refrigerant offers a lower Global Warming Potential (GWP) than older refrigerants like R-410A, reducing environmental impact while boosting energy efficiency.

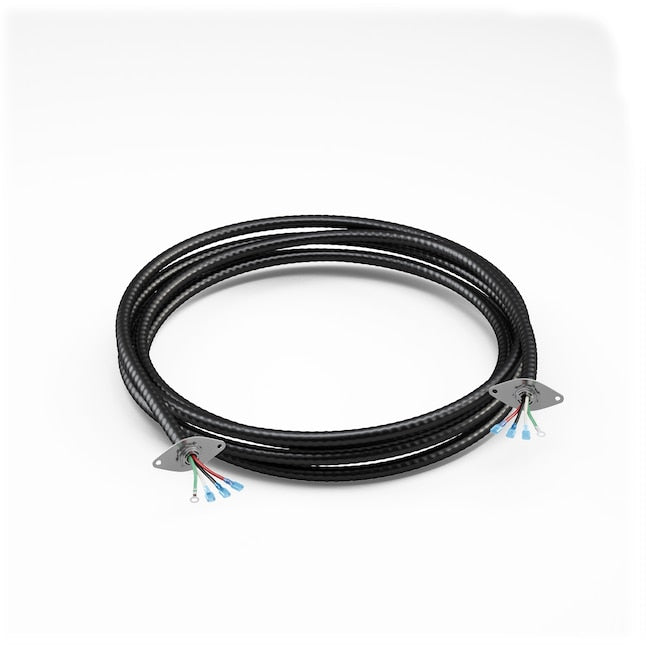

  • DIYPRO® Cable: Say goodbye to electrical conduit - this cable is built for durability and protection against outdoor elements and wildlife, ensuring long-lasting performance.

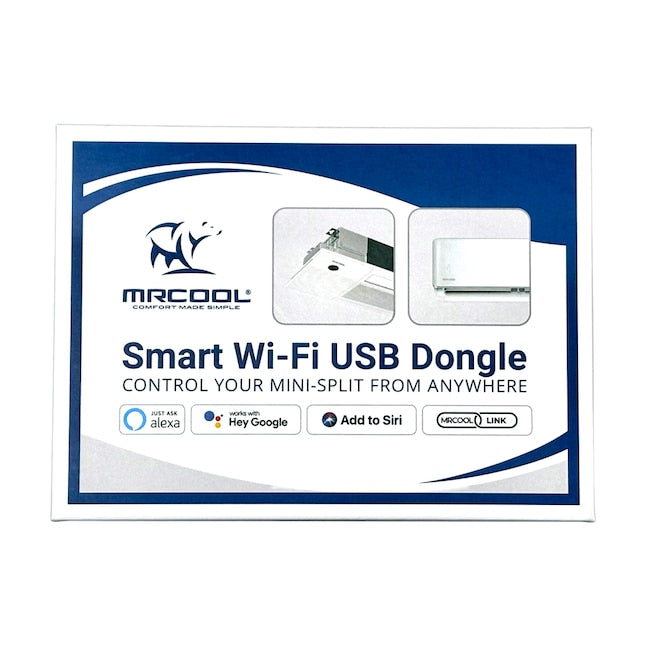

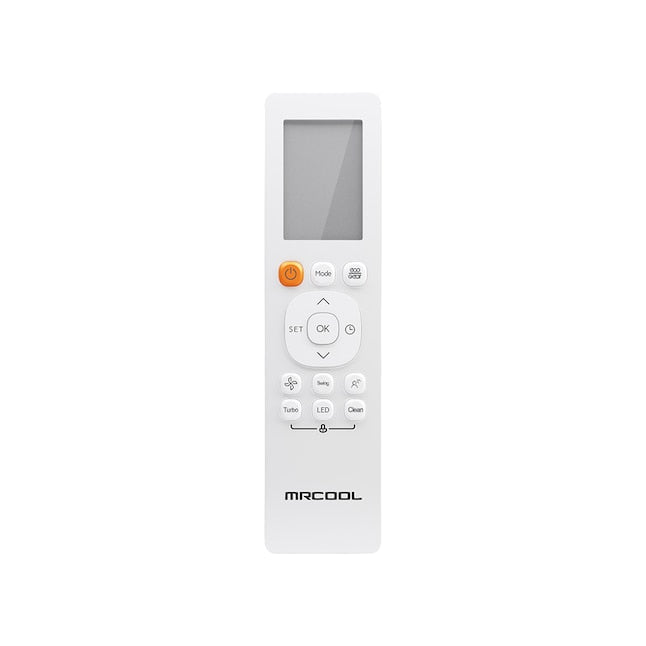

  • Wireless Control Options: Control your comfort with the included remote, the SmartHVAC app (compatible with Apple and Android), or use voice commands with Amazon Alexa or Google Assistant.
  • Follow Me Function: Enjoy consistent comfort with airflow that adjusts based on the remote’s location, ensuring even temperature distribution.
  • Dry Mode: Acts as a dehumidifier to reduce excess moisture, improving indoor air quality and creating a more comfortable environment.

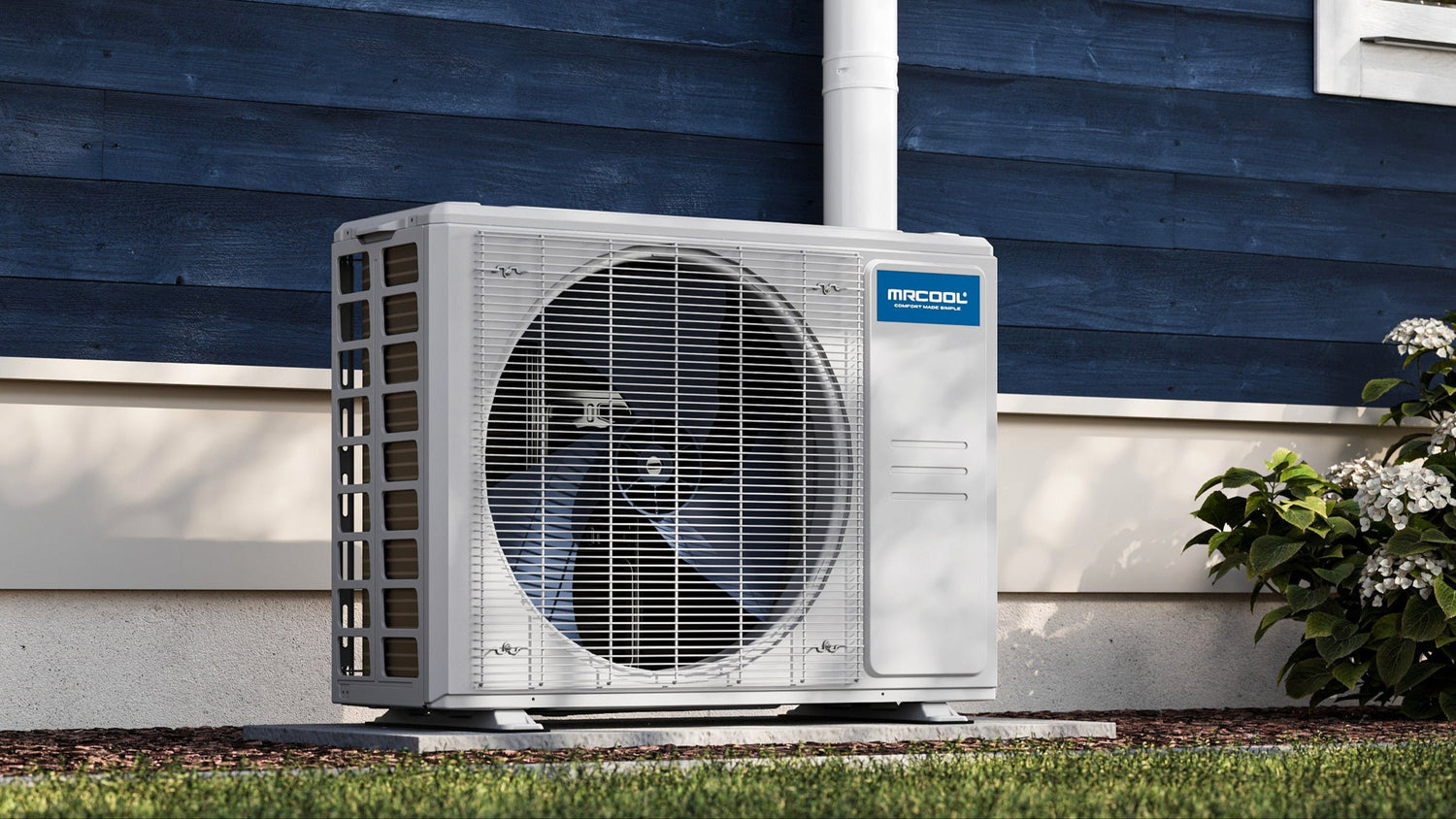

  • Gold Fin® Condenser: Offers superior corrosion resistance, making it perfect for coastal homes and ensuring durability for the long haul.
  • Industry-Leading Warranty: With a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, you can count on your MRCOOL® system for years to come.
  • Certified Excellence: Intertek listed 5031495 for guaranteed reliability and safety.

What's Included

SPECIFICATIONS & DIMENSIONS

  • Dimensions & Weight

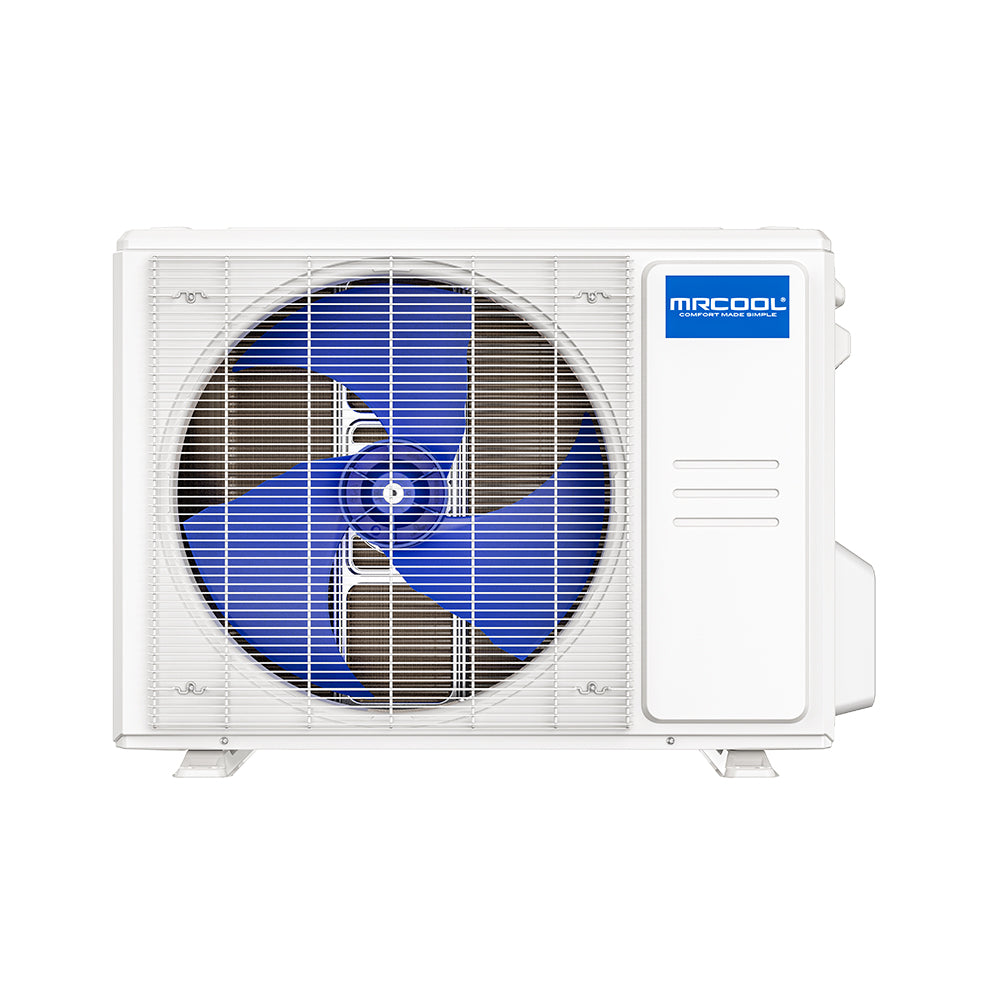

  • Condenser Dimensions: 37.24 W" x 16.14 D" x 31.89 H"
  • Condenser Weight: 152.12 lbs / 69 kg

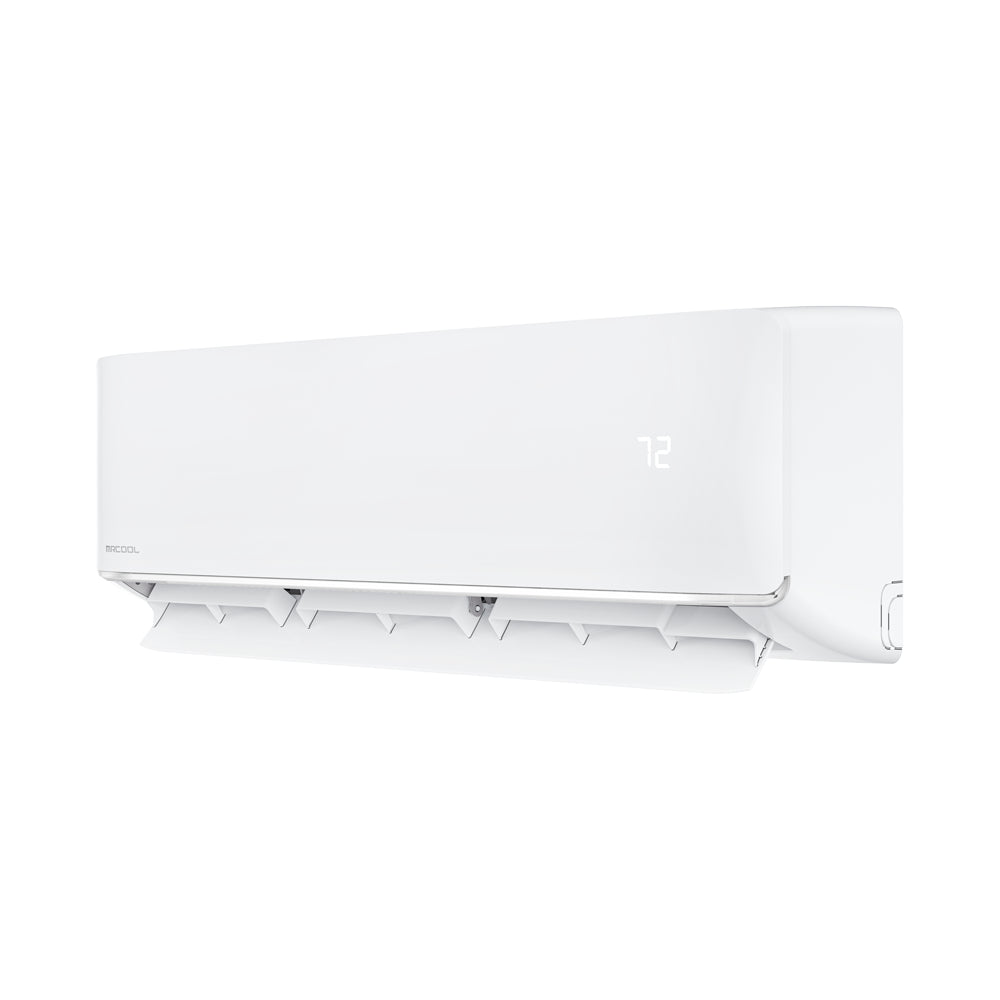

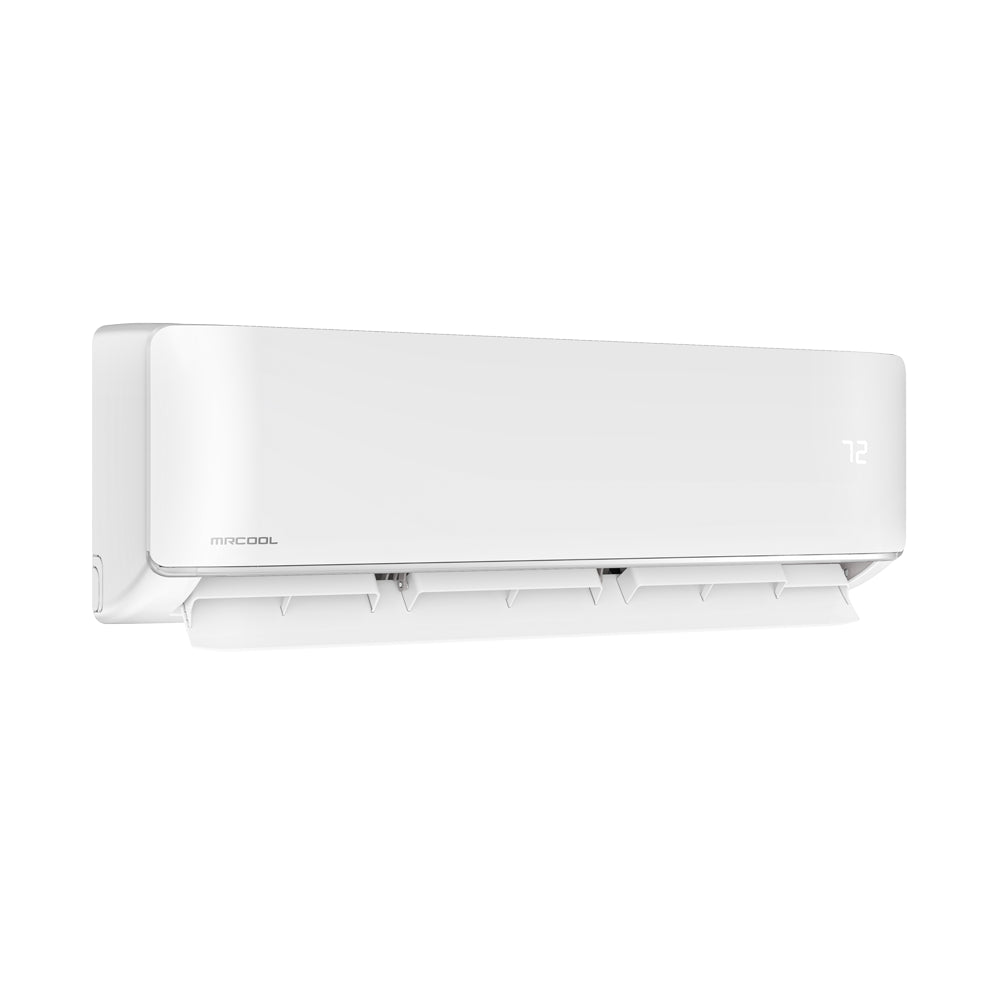

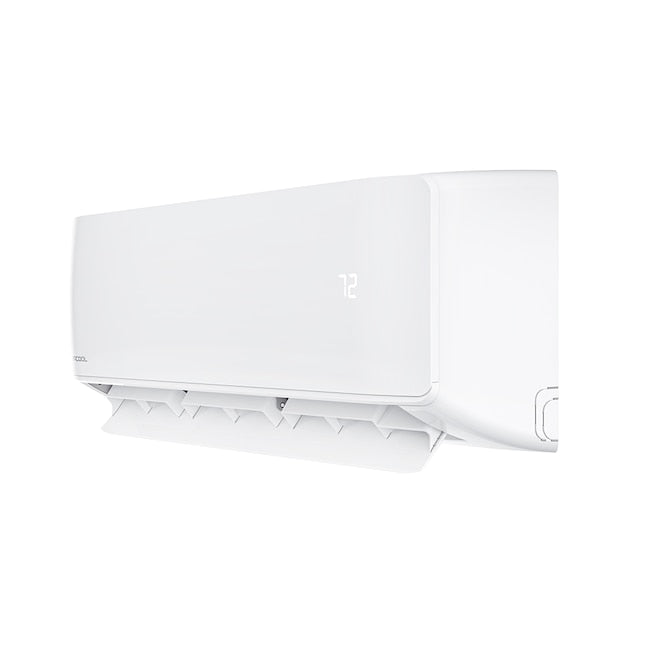

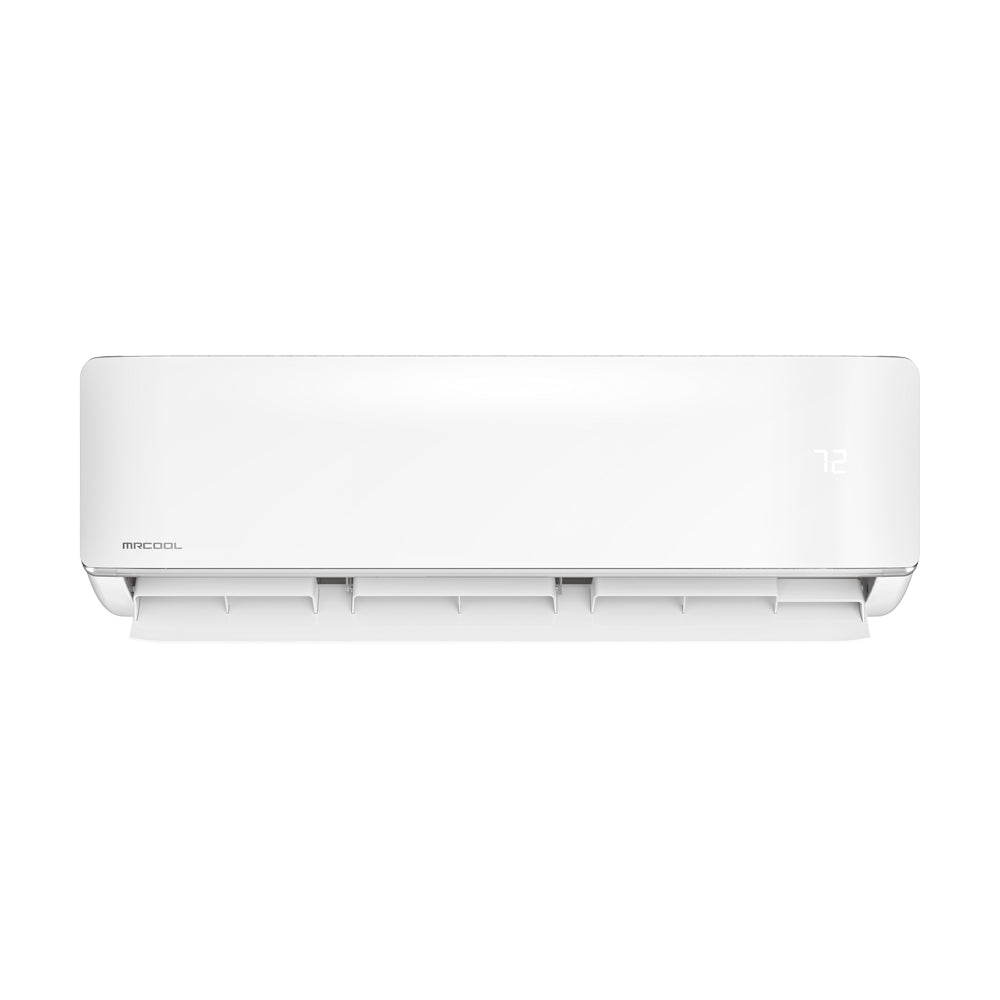

  • Air Handler Dimensions: 49.57 W" x 11.10 D" x 14.25 H"
  • Air Handler Weight: 48.729 lbs / 22.1 kg
  • Capacity & Performance
  • Zone Capacity: 1
  • Cooling Capacity: 36,000 BTU
  • EER2: 8.5
  • SEER2: 18
  • Heating Capacity: 36,000 BTU
  • HSPF2-4: 8.5
  • HSPF2-5: 6.5
  • Coverage Area: 1,000 to 1,500 sq ft.
  • Indoor Noise Level (Hi/Mi/Lo): 55.5/49.5/43.5/38.0/27.5 dB(A)
  • Outdoor Noise Level: 60.5 dB(A)
  • Electrical Requirements
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 35A
  • Min Circuit Ampacity: 33A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 109.70 oz
  • Liquid Line Size: 3/8"
  • Suction Line Size: 5/8"
  • Max Line Set Length: 213.2 ft.
  • Features
  • Inverter: DC
  • Compressor Type: Rotary
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • Certifications & Warranty
  • Certifications: UL Listed, ETL Listed, AHRI Certified
  • Warranty: 7 Years Compressor // 5 Years Parts // Extended Limited Lifetime Replacement // *If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty // **The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.

INSTALLATION & GUIDES

Product Brochure
Installation Manual
Remote Control Manual
Warranty Document
AHRI Certificate
Energy Guide

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.

SHIPPING POLICY

Free Curbside Delivery
MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Restocking Fee
Please note, a 35% restocking fee will be applied to all approved returns.

Non-Returnable Items
Accessories including lineguards, wall mounts, linesets, couplers, and similar items are not eligible for return.

See our full Return Policy here.

Frequently Asked Questions

What's the difference between the 5th Gen and 4th Gen?

The 5th Gen MRCOOL DIY® Mini Split offers several key upgrades over the 4th Gen, focusing on efficiency, advanced technology, and eco-friendliness.

Here’s what’s new with the 5th Gen:

  • Next-Gen R-454B Refrigerant: A more environmentally friendly refrigerant with lower global warming potential (GWP), compliant with the latest HVAC regulations.
  • Higher Energy Efficiency: Improved SEER2 ratings for greater energy savings and optimized performance.
  • Enhanced System Reliability: Upgraded components for better heating and cooling performance.

For a full breakdown, check out our blog.

Is this system DIY-friendly?

Yes! The MRCOOL 5th Gen is designed with pre-charged line sets, making it one of the only multi-zone systems on the market suitable for DIY installation without needing a certified HVAC technician (for most installations).

How do I know what BTU size I need for my rooms?

A general rule of thumb is 20 BTU per square foot of space. Here's a rough guide:

  • 9,000 BTU = 180 - 350 sq ft
  • 12,000 BTU = 351- 500 sq ft
  • 18,000 BTU = 501 – 750 sq ft
  • 24,000 BTU = 751 – 1,000 sq ft
  • 36,000 BTU = 1,001 - 1,500 sq ft

Consider factors like ceiling height, insulation, sunlight exposure, and number of occupants.

Does the 5th Gen qualify for tax credits?

To check if your MRCOOL 5th Gen Single Zone Mini Split qualifies for tax credits, follow these steps:

  1. Verify the Model - Ensure your unit is one of the eligible models: 9K, 12K, 18K, or 24K BTU. The 36K BTU model does not qualify.
  2. Check the AHRI Certificate - Go to the AHRI (Air-Conditioning, Heating, and Refrigeration Institute) Directory and search for your unit’s AHRI number to confirm its eligibility.
  3. Review IRS Guidelines - The IRS requires energy-efficient equipment to meet specific SEER2 (Seasonal Energy Efficiency Ratio) and HSPF2 (Heating Seasonal Performance Factor) standards. Check the latest Energy Star guidelines.
  4. Consult a Tax Professional - To ensure you can claim the credit, consult a tax advisor and review IRS Form 5695 for residential energy credits.
  5. Save Your Purchase Receipt - Keep your proof of purchase and any related documentation to submit with your tax filing.

What if I need a different line set length?

This system comes with a standard 25 ft pre-charged line set. If you need a shorter or longer line set, you will need to purchase a different one separately. Please note that the included 25 ft line set cannot be returned or exchanged, even if unused.

Available line set lengths: 16 ft, 25 ft, 35 ft, and 50 ft

Be sure to choose the correct size and line set type for your indoor unit:

Always verify compatibility with your specific model before ordering an alternative line set.

What is the warranty?

The MRCOOL 5th Generation DIY Mini-Split systems offer the following warranty coverage:

  • Limited Lifetime Compressor Warranty: This warranty provides coverage for the compressor for the lifetime of the unit for the original registered owner. To qualify, the unit must be registered within 60 days of installation, and the owner must enroll in the MRCOOL Care Program within 4 months of installation.
  • 7-Year Compressor Replacement Warranty: This warranty ensures that if the compressor fails within the first seven years, MRCOOL will provide a replacement.
  • 5-Year Parts Warranty: This warranty covers all parts of the system for five years from the date of purchase.

    To activate these warranties, it's essential to register your product promptly after installation. This ensures you receive the full benefits of the warranty coverage.

    Additionally, regular maintenance is crucial to keep your warranty valid. Enrolling in the MRCOOL® Protection Program can help maintain your system's longevity by providing DIY cleaning kits and filters biannually.

View Warranty Document here.
