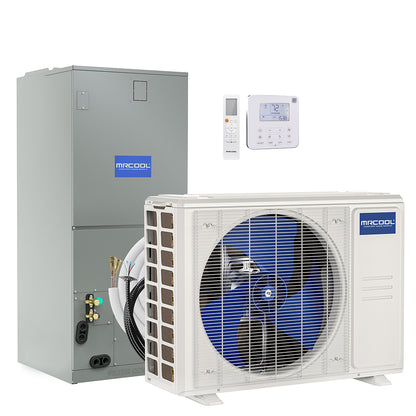

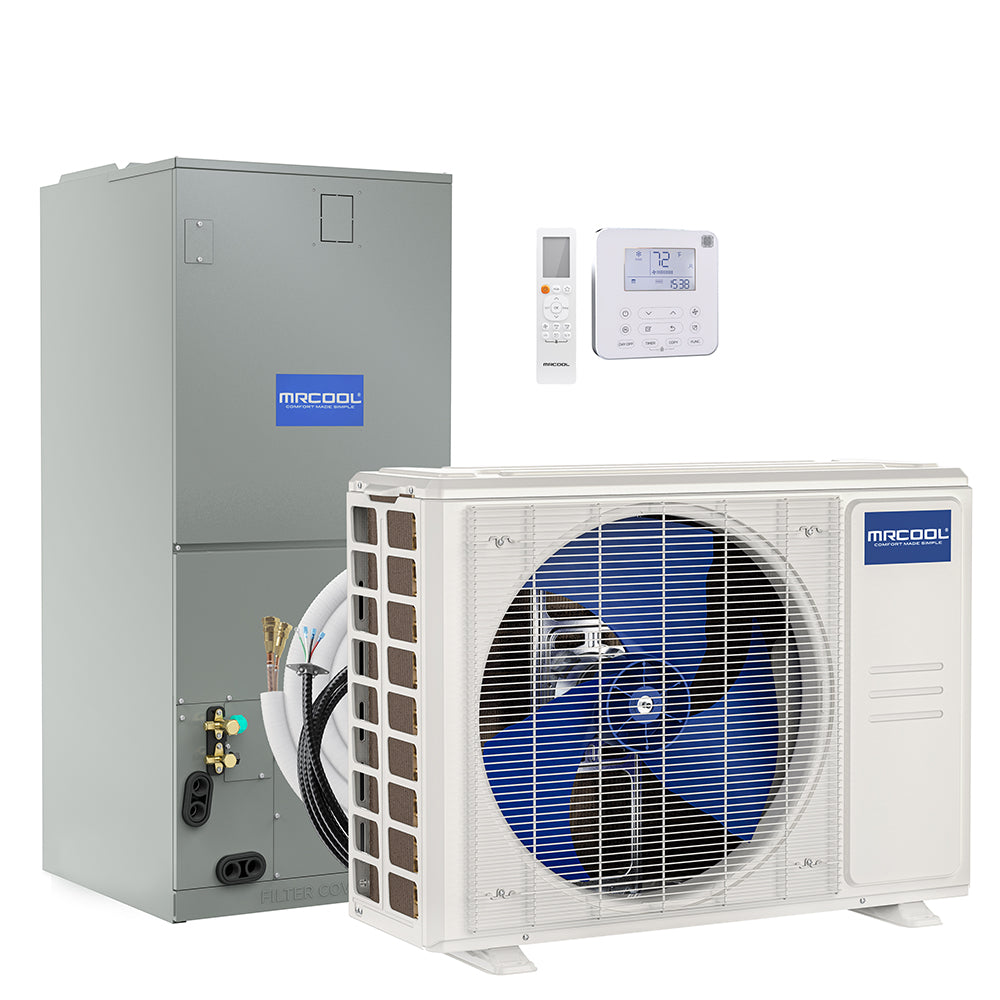

MRCOOL 24K BTU 19.2 SEER Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set, CENTRAL-24-HP-230-25

Model: CENTRAL-24-HP-230-25
Regular price $3,215.80
Sale price $3,215.80 Regular price $3,658.00
-12%
Shipping calculated at checkout.

This item is out of stock. Please contact us for an alternative.

Regular price $3,215.80
Sale price $3,215.80 Regular price $3,658.00

Collapsible content

BETTER TOGETHER

DESCRIPTION

Nothing feels better than ultimate comfort all the time, so why not invest in the affordable MRCOOL 24k BTU up to 19.2 SEER Central Ducted DC Inverter Heat Pump System? With this system, you’ll enjoy a simpler installation and absolute climate control throughout around 1,000 square feet of your home. Installing this system is easy, because it comes with a 25 foot pre-charged MRCOOL line set, which essentially just needs to be plugged into the air handler and the condenser. Time is money, and you’ll be saving both because of the line set in this system. This air handler is multi-position, meaning it can support upflow, downflow, horizontal left and horizontal right airflow needs.

The variable condenser in this system is so efficient, you’ll find yourself saving money in no time. Identify error codes on the thermostat or on the handler’s panel. In case something goes wrong, you’ll be completely covered by a 10 year parts and service warranty. For comfort exactly how you want it, get this MRCOOL 24k BTU 19.2 SEER Central Ducted DC Inverter Heat Pump System.

Key Features

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
  • Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.

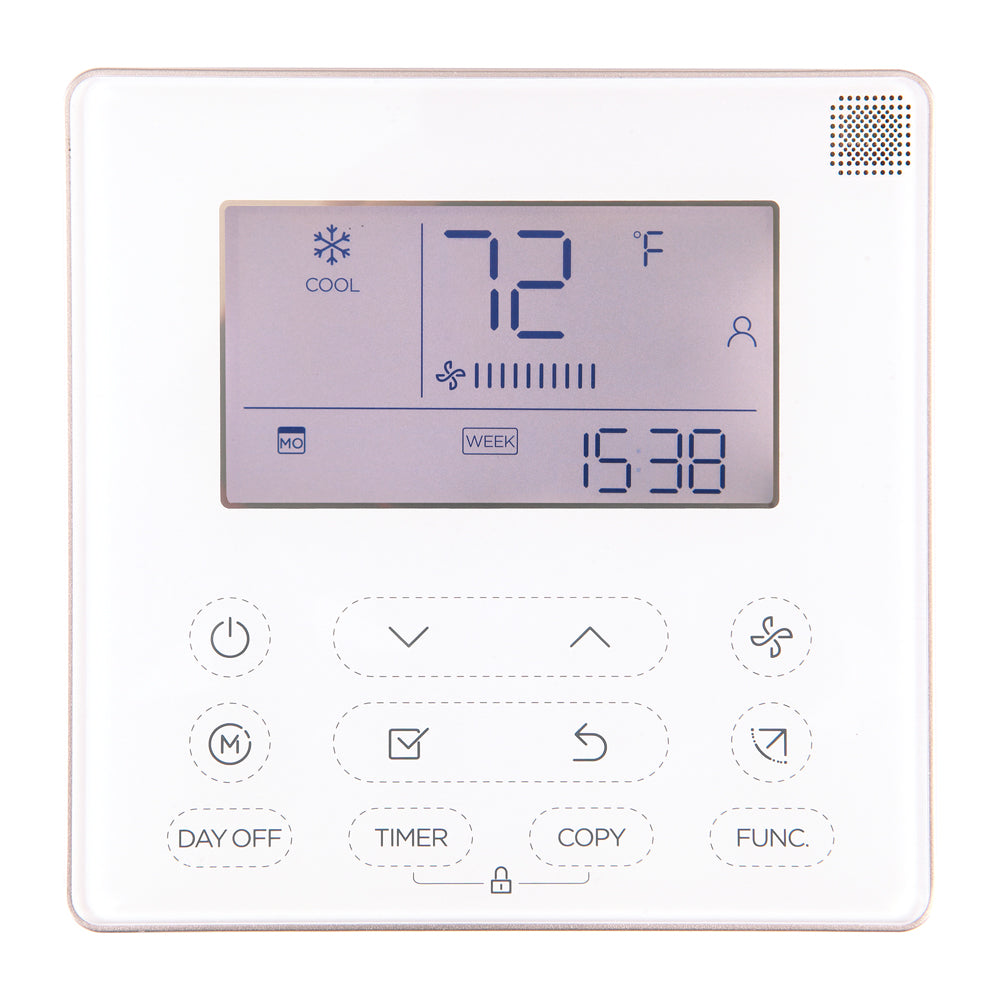

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

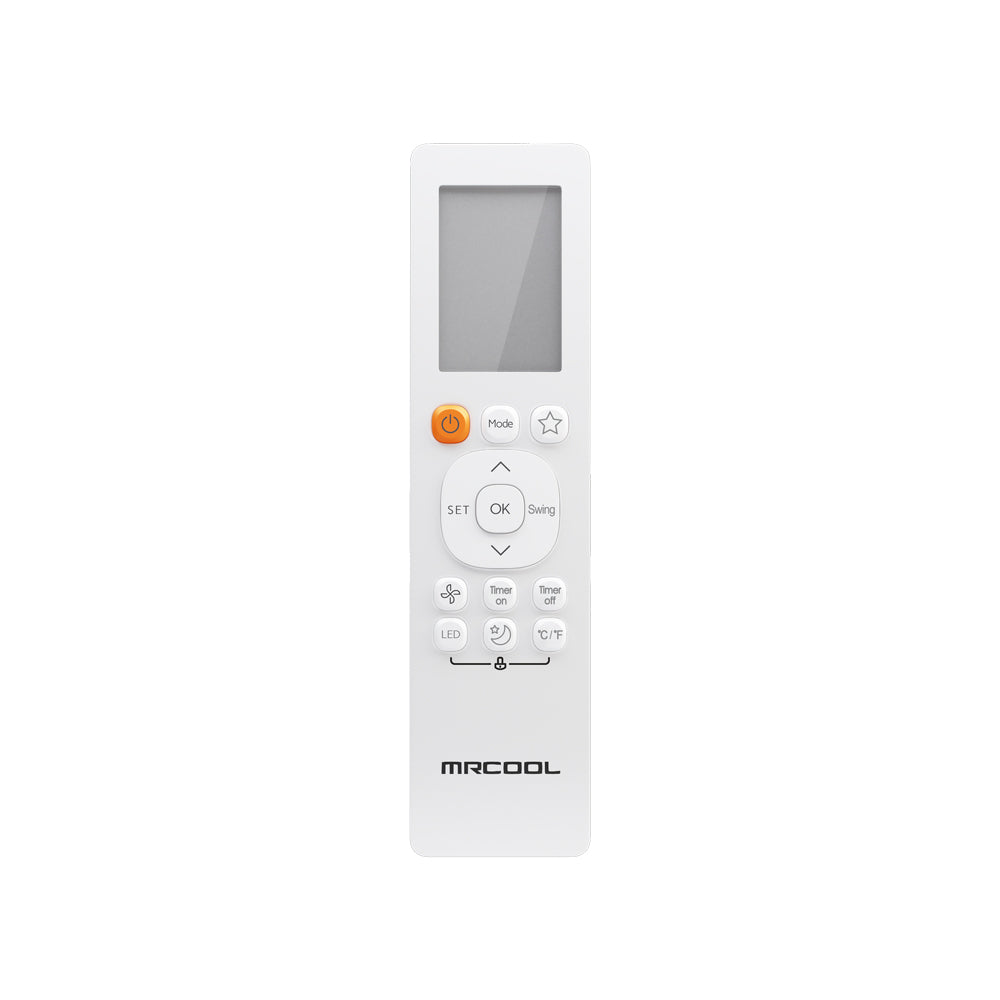

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
  • Optional heating kit available
  • R-410A environmentally friendly refrigerant

SPECIFICATIONS & DIMENSIONS

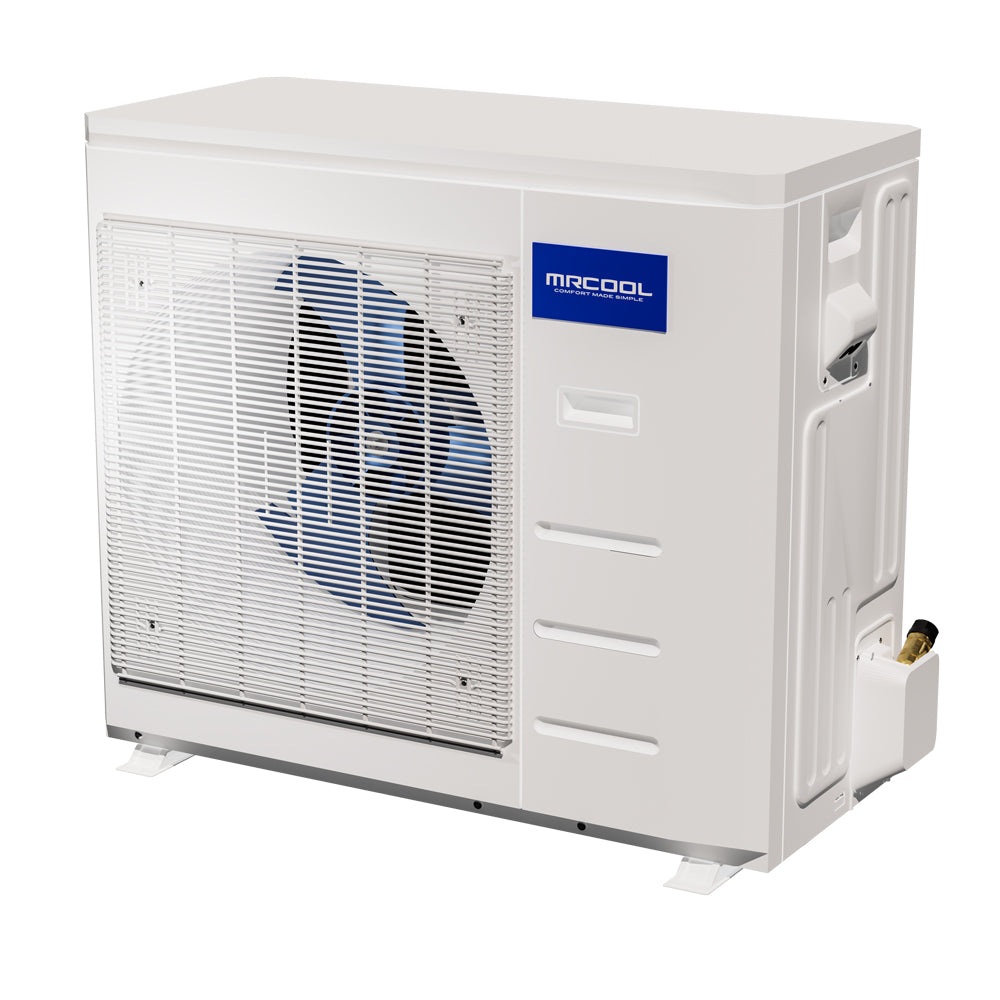

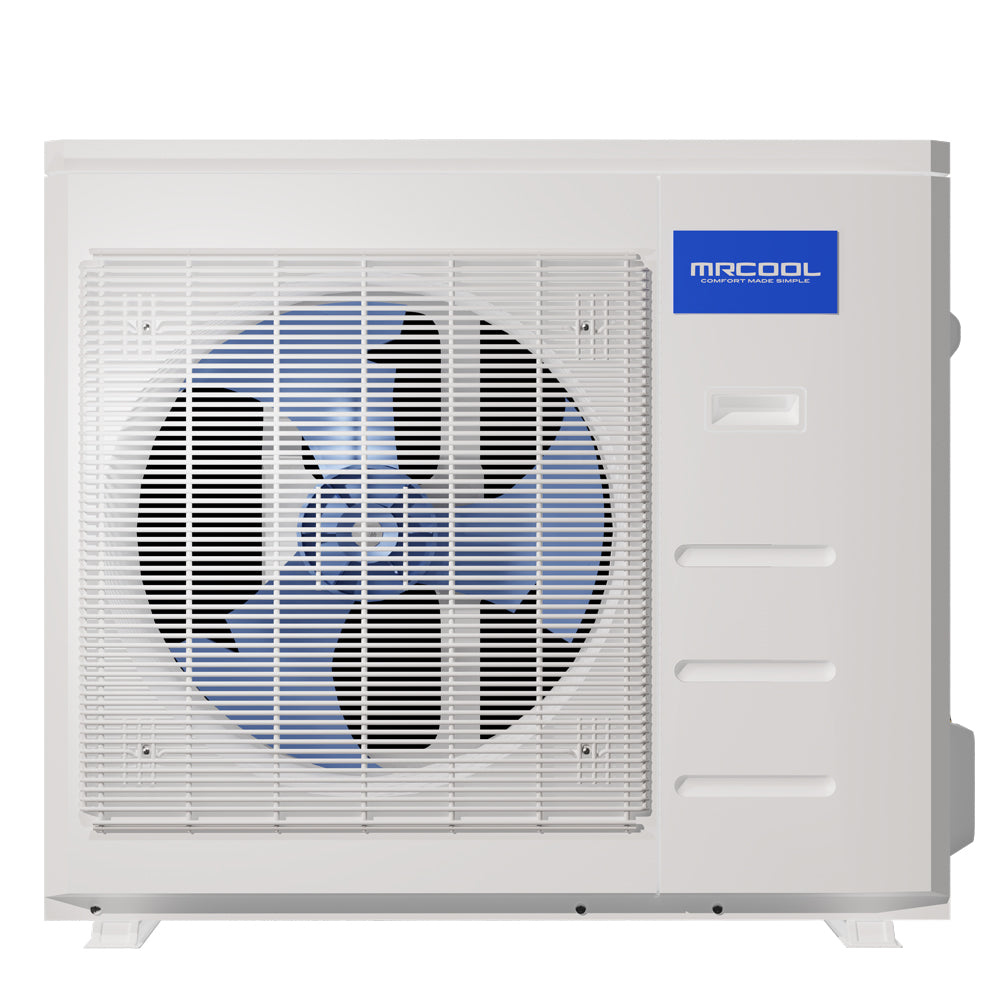

  • Condenser Dimensions: 37.24"W x 16.14"D x 31.89"H
  • Condenser Weight: 125.22 lbs

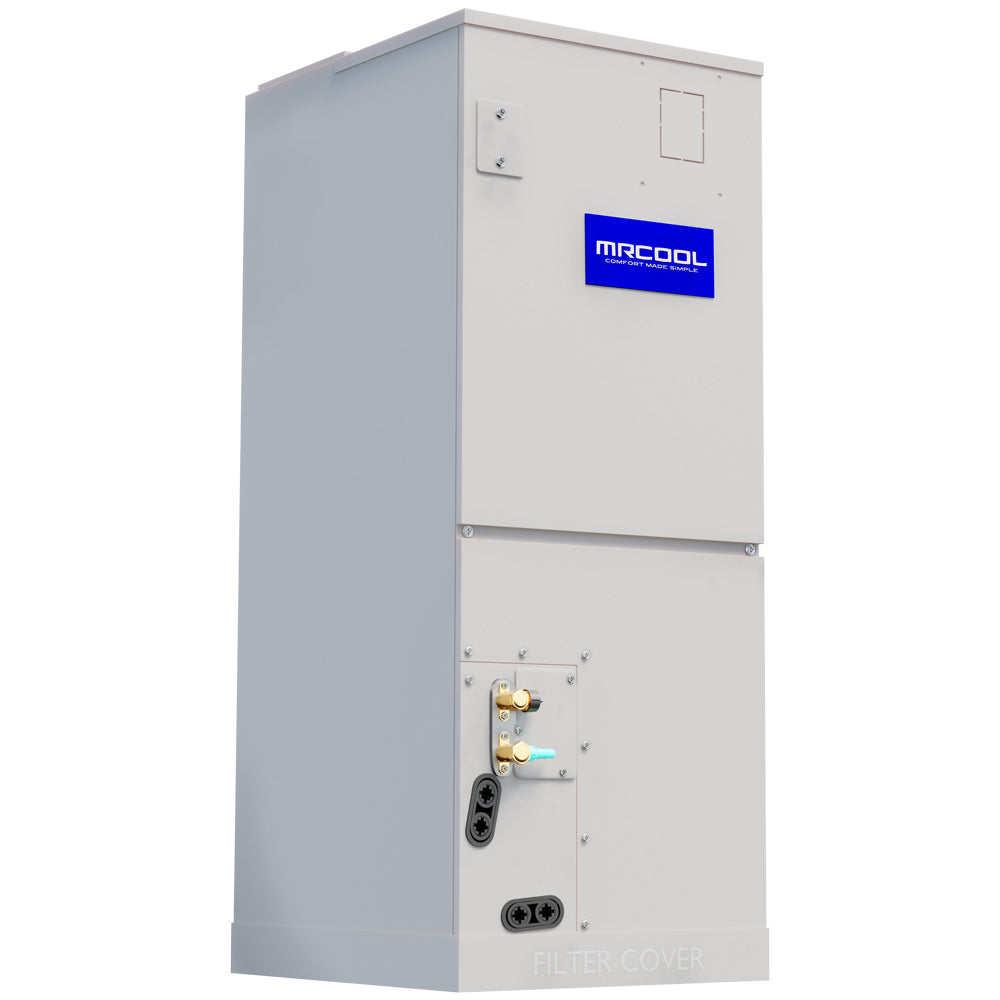

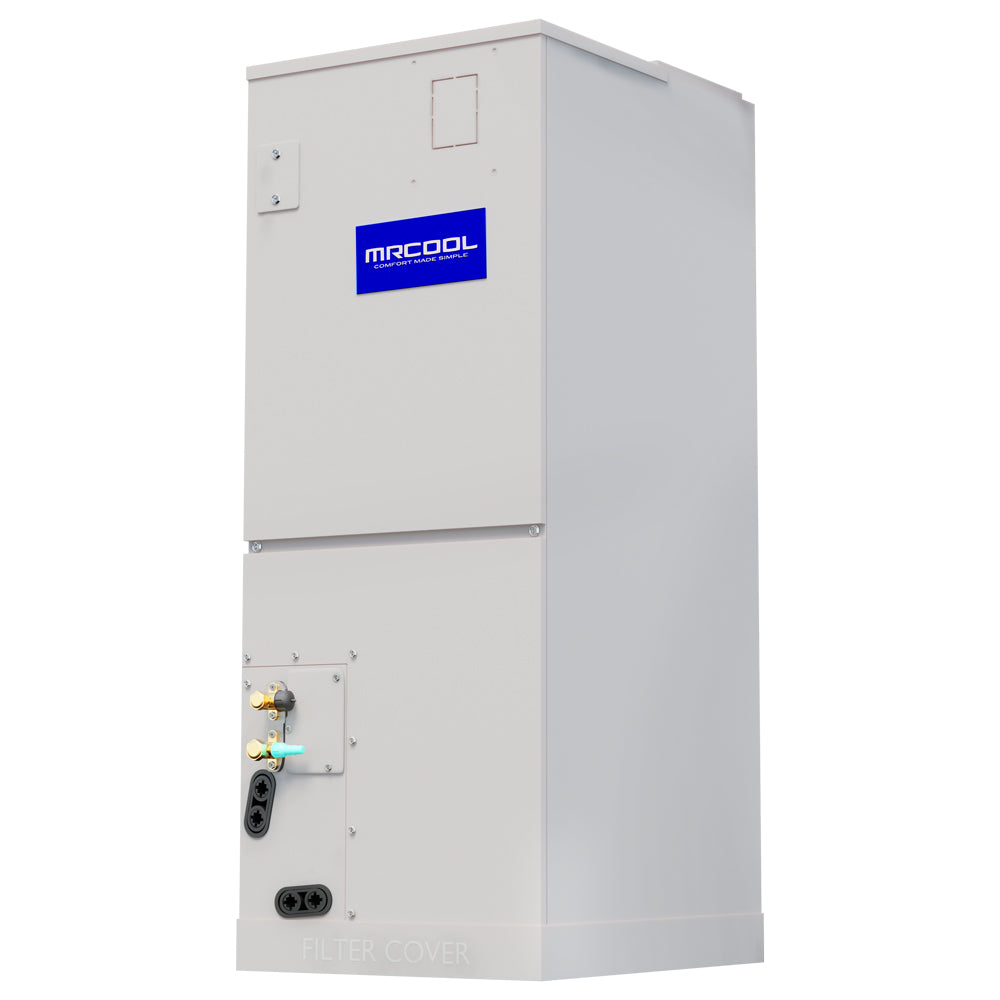

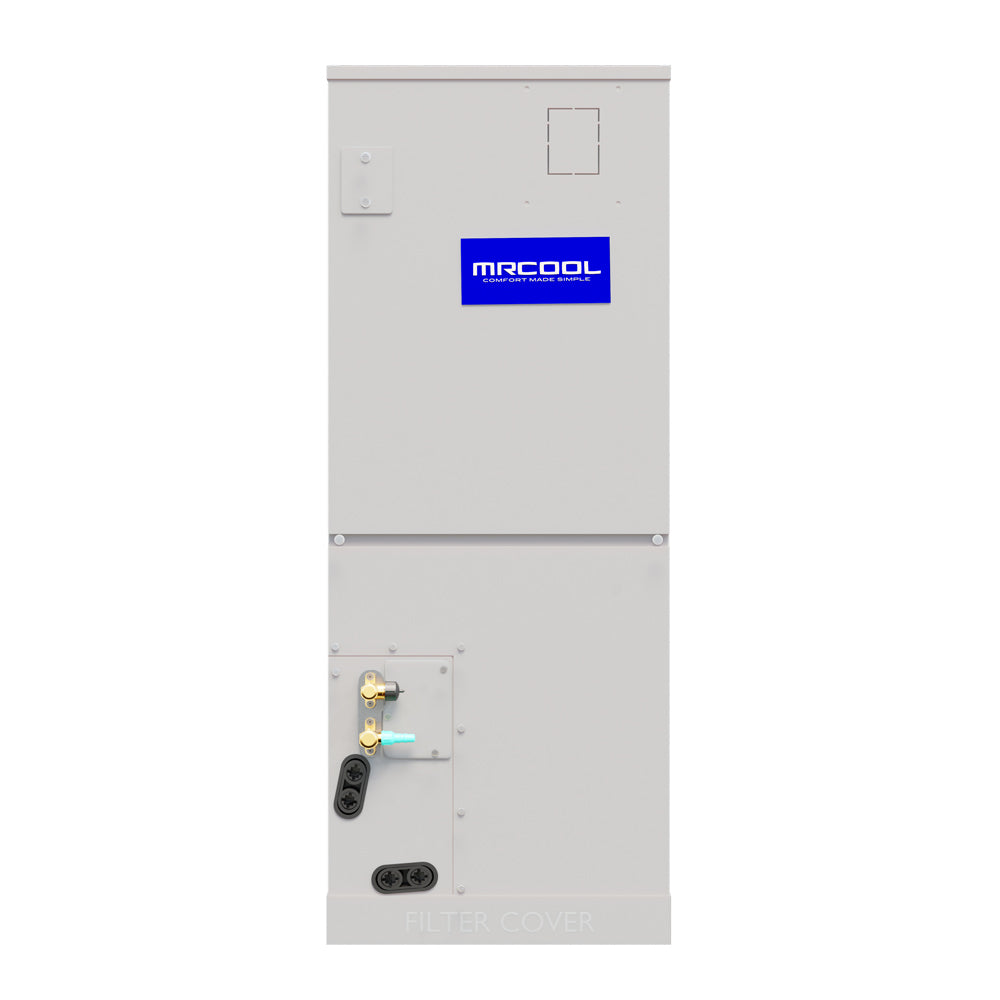

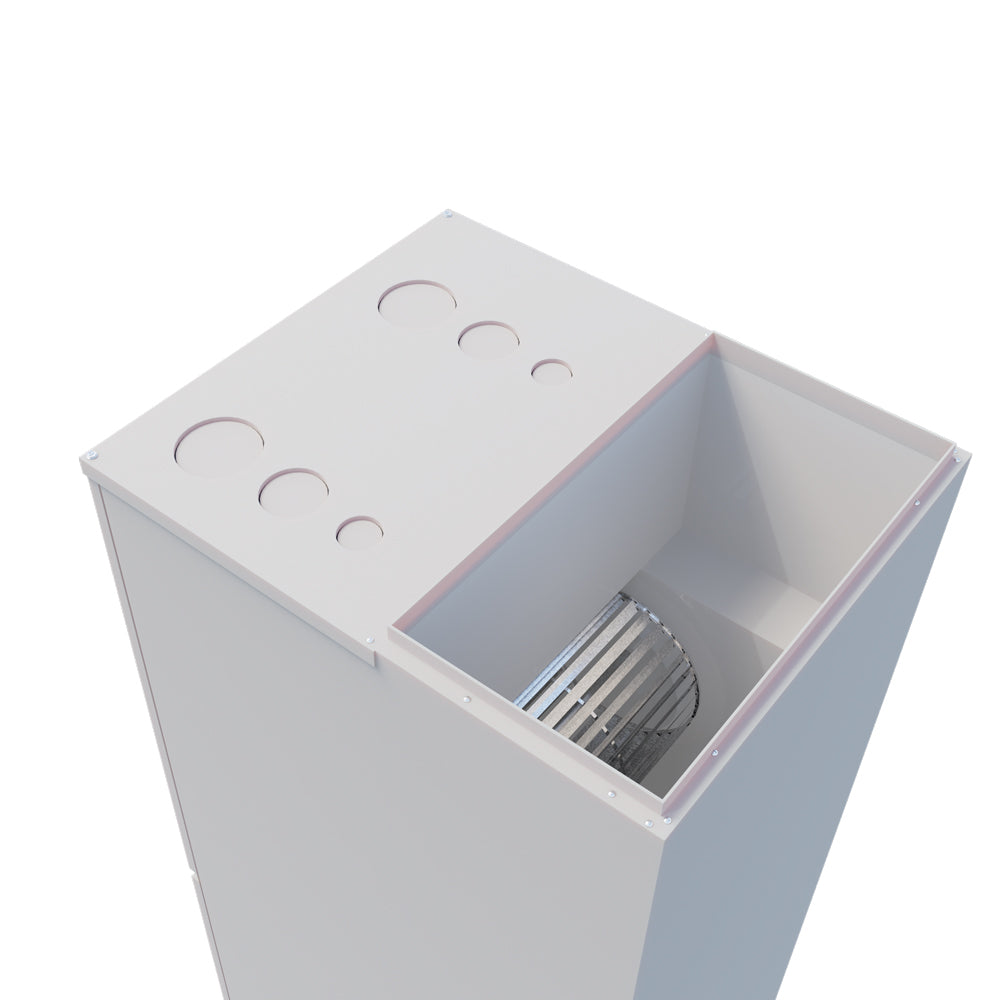

  • Air Handler Dimensions: 21.02"W x 17.52"D x 45"H
  • Air Handler Weight: 106.48 lbs
  • SEER: 19.2
  • EER: 12.5
  • HSPF: hspf4/hspf5: 10/8.5
  • CFM: 752.94/682.35/611.76
  • Cooling Capacity: 24,000 BTU
  • Heating Capacity: 24,000 BTU
  • Voltage: Requires a minimum of 208-230V/60HZ/35A (please check your home meets this electrical requirement prior to purchase)
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 35
  • Min Circuit Ampacity: 22
  • Color: Gray
  • Rate Load: 0.6
  • Zone Capacity: 1
  • Coverage Area: 1,000 square feet
  • Refrigerant Type: R410A
  • Refrigerant Volume: 81.13 oz
  • Decibel Rating: 43.0/41.5/38.0
  • Decibel Rating Low: 38
  • Decibel Rating High: 43
  • Air Flow Direction: Multi-position
  • Min Ambient Cool: -13F~122F
  • Min Ambient Heat: -13~75.2F
  • Lineset Included: Yes
  • Lineset Length: 25ft
  • Liquid Line Size: 3/8 in
  • Suction Line Size: 5/8in
  • Compressor Motor Type: Twin-Rotary
  • Condenser Fan Motor RPM: 850/750/700
  • Filter Type: Replaceable
  • Auxiliary Heater Included: No
  • Auxiliary Heater Available: Yes
  • Auxiliary Heater Sizes: 5kw, 8kw,10kw, 15kw
  • Adjustable Thermostat: Yes
  • Modes: Fan // Sleep // Auto Cool
  • Includes: Remote // Battery
  • App Compatibility: No
  • Certificates: AHRI
  • Warranty: 10 years parts and labor
