Pre-Order the new 5th Gen Series!

MRCOOL DIY Multi-Zone 2-Zone 18K BTU Condenser, 4th Gen Series, DIY-MULTI2-18HP230C

5.0 4 reviews
Model: DIY-MULTI2-18HP230C
$1,920.80
$1,920.80 $2,561.07
-25%
Shipping calculated at checkout.

Buy Now, Pay Later

BTU: 18,000
18,000
18,000
27,000
36,000
48,000

Currently Out of Stock - Contact us for an ETA. Pre-Order Today!

$1,920.80
$1,920.80 $2,561.07

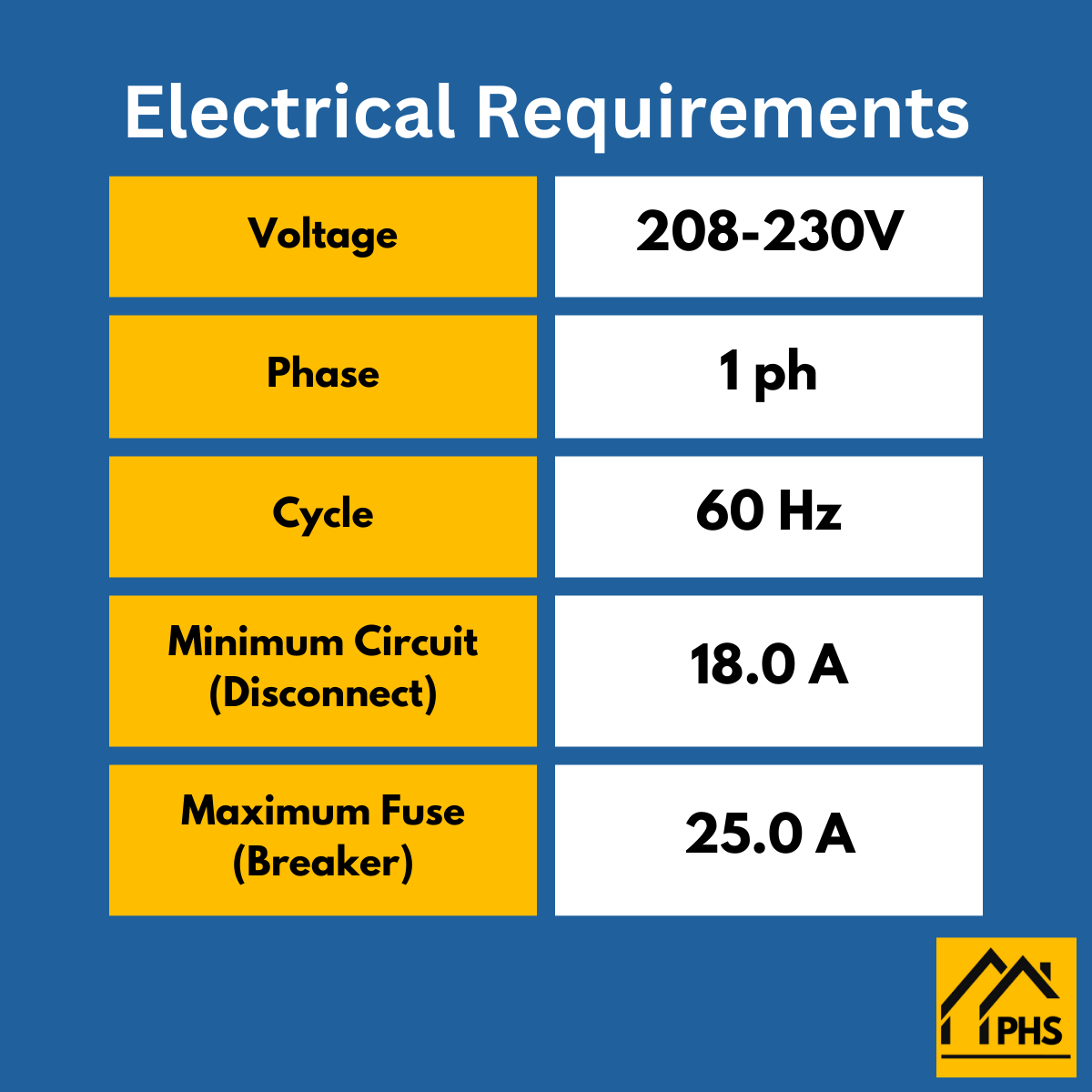

Product Overview

  • Voltage: 208-230V

  • Minimum Circuit (Disconnect): 18A

  • Maximum Fuse (Breaker): 25A

What's Included

BETTER TOGETHER

DESCRIPTION

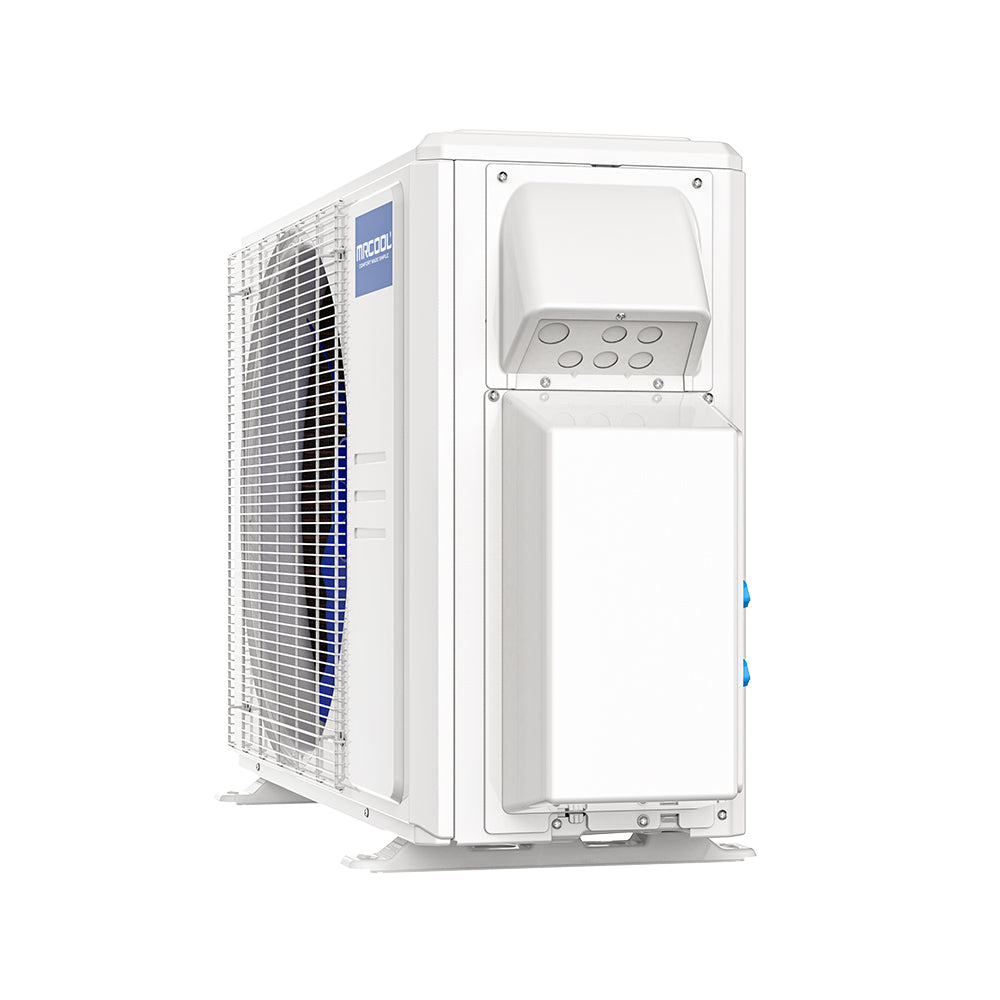

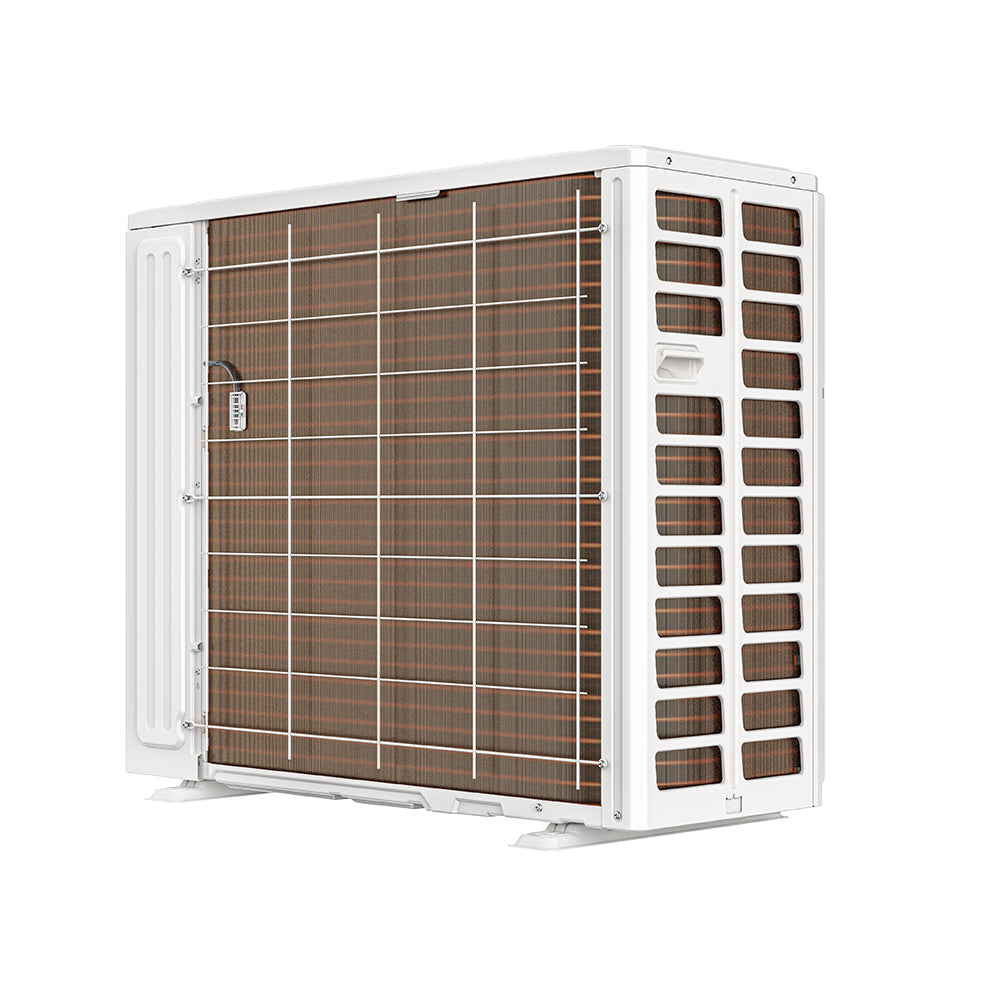

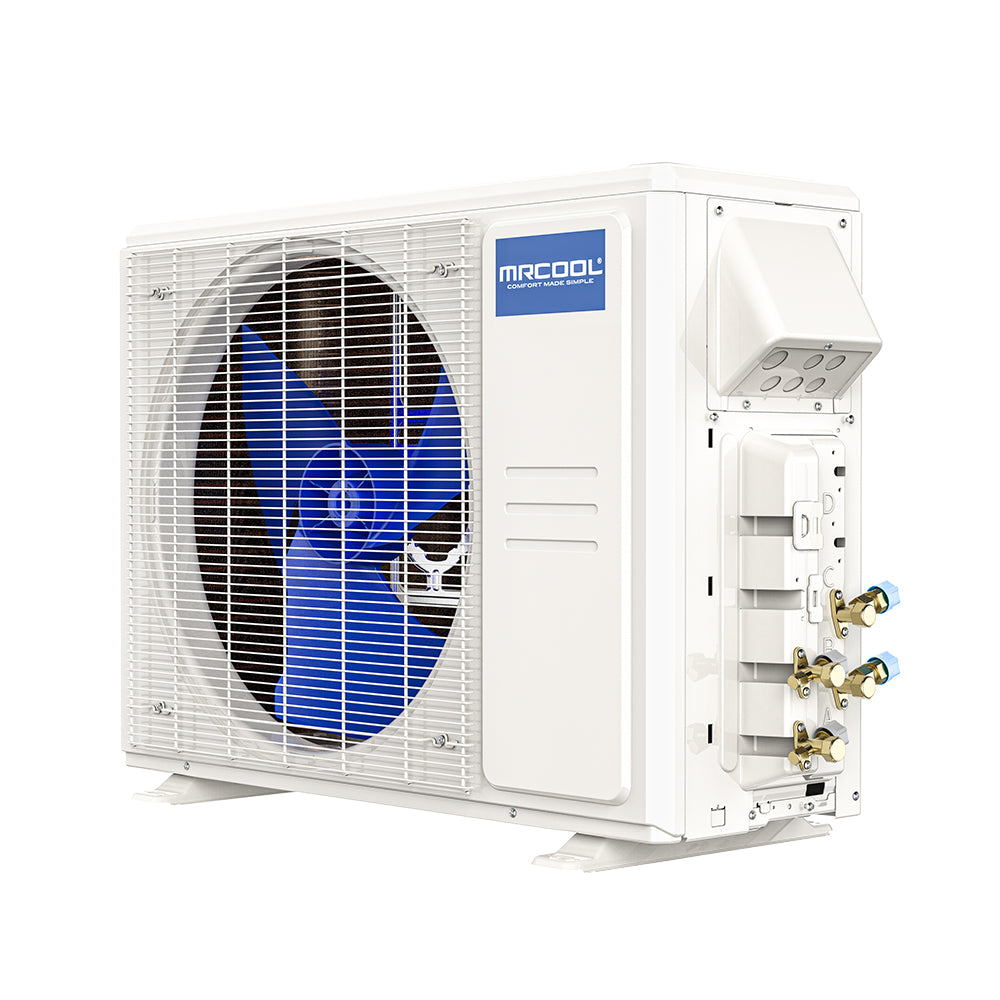

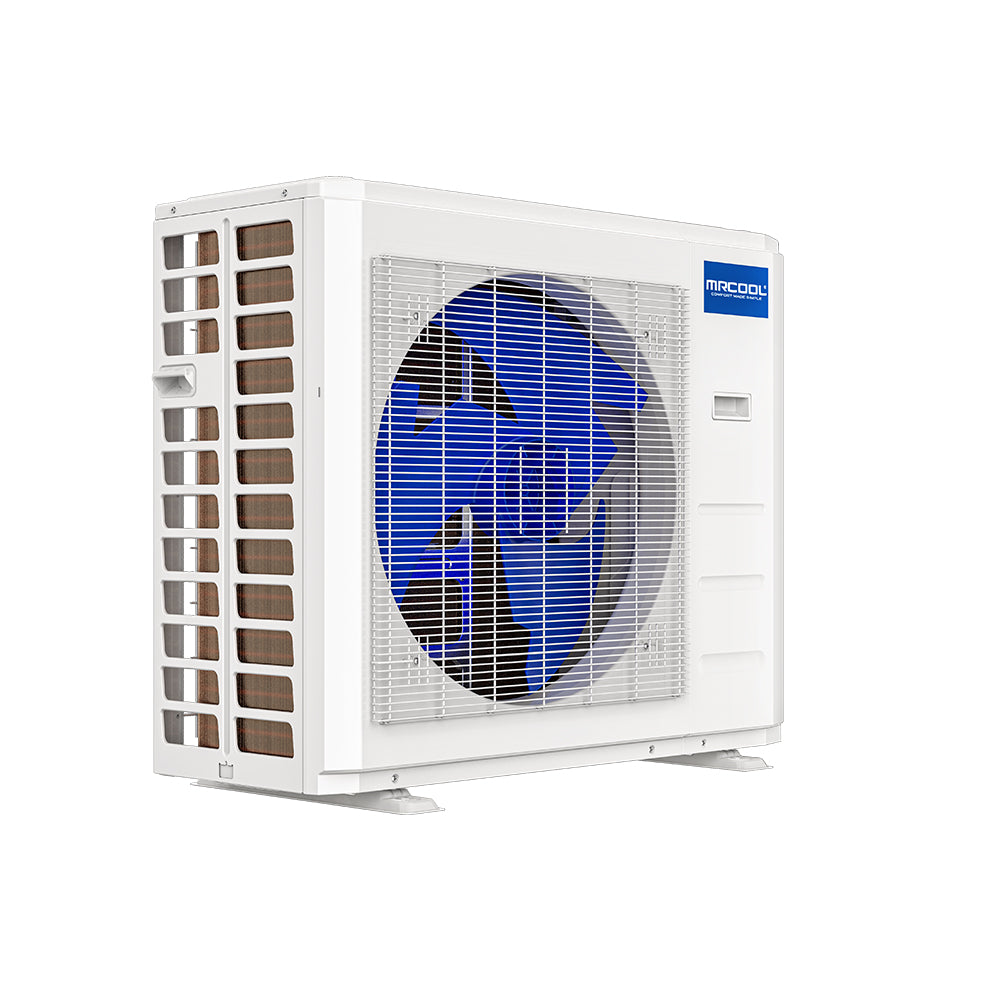

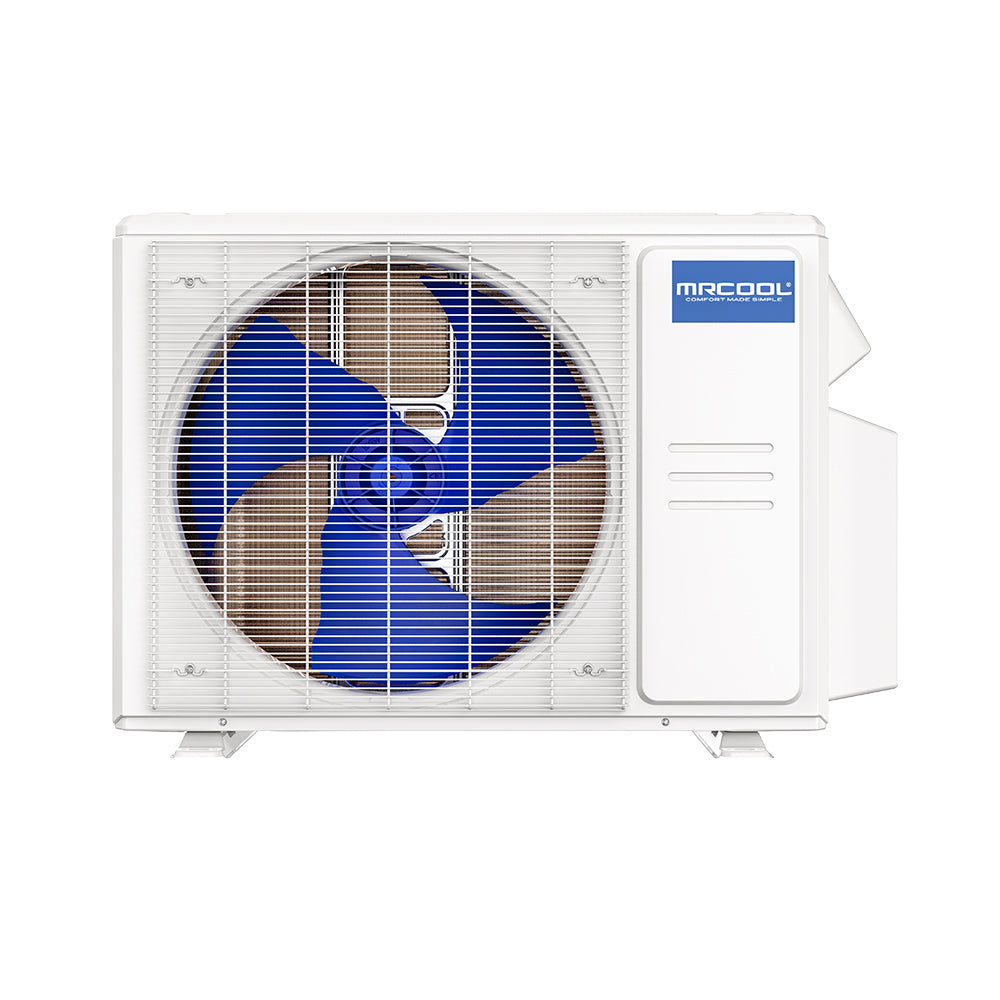

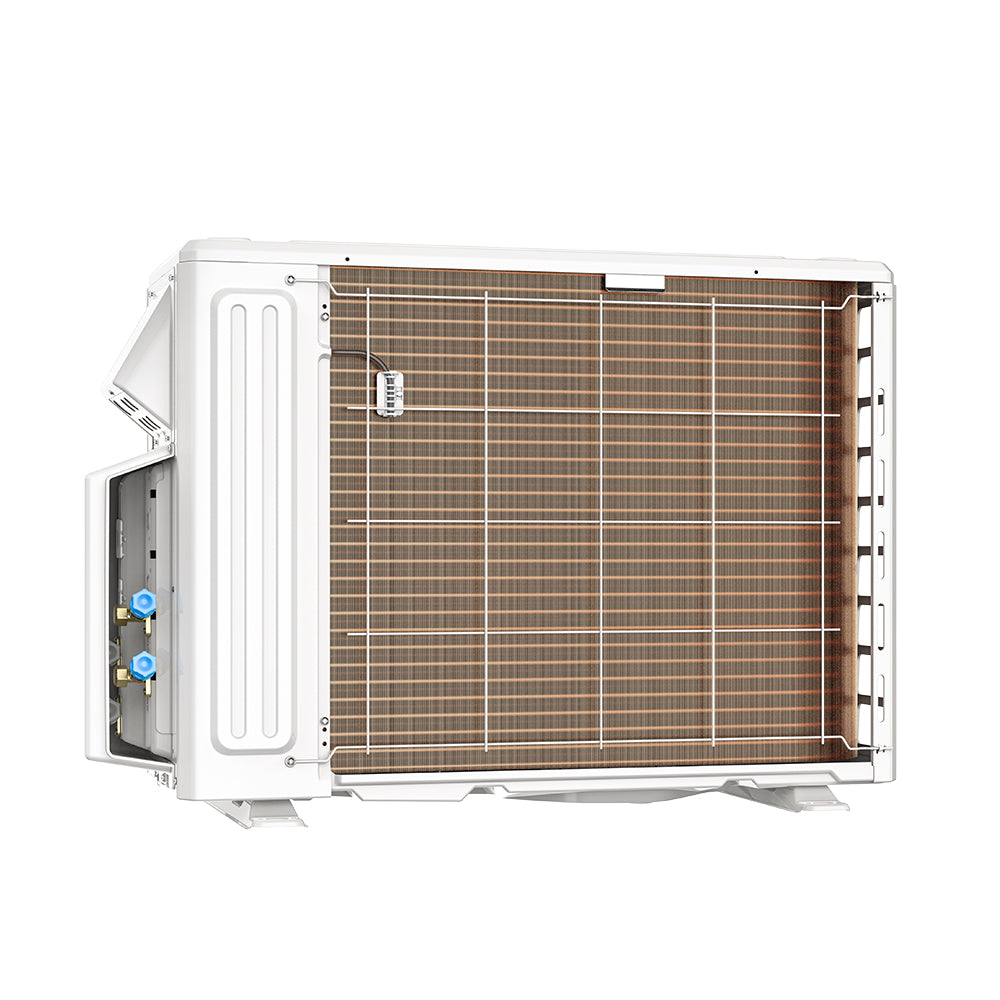

The 4th Generation MRCOOL DIY 18K BTU 2-Zone Ductless Heat Pump Condenser (DIY-MULTI2-18HP230) is the latest in heat pump technology. This 2-zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MRCOOL DIY product, this heat pump is designed specifically to be used with MRCOOL patented Pre-Charged Quick Connect Line Sets.

These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Let the 4th Generation MRCOOL DIY 18K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.

Key Features

  • Up to 21 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

SPECIFICATIONS & DIMENSIONS

  • Product Dimensions: 35.04"W x 13.46"D x 26.50"H
  • Product Weight: 100.53 lbs
  • SEER2: 21.2
  • EER2: 12.5
  • HSPF2: 9.6
  • SEER: 21
  • EER: 12.5
  • HSPF: hspf4/hspf5 : 10.6/8.6
  • CFM: 1764.71
  • Cooling Capacity: 18,000 BTU
  • Heating Capacity: 19,000 BTU
  • Voltage: Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
  • Phase: 1
  • Cycle: 60Hz
  • Min Circuit Ampacity: 18A
  • Color: White
  • Zone Capacity: 2
  • Refrigerant Type: R-410A
  • Refrigerant Volume: 65.26 oz
  • Decibel Rating: 59 dBA
  • Inverter: Yes
  • Min Ambient Cool: 5°F ~ 122°F
  • Min Ambient Heat: -13°F ~ 75.2°F
  • Max Lineset Length: 123 ft TOTAL
  • Liquid Line Size: 1/4in
  • Suction Line Size: 3/8in
  • Compressor Motor Type: Twin - Rotary
  • Condenser Fan Motor RPM: 750/600/500
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Compatible with: IOS // Android
  • Includes: Remote // Batteries
  • Warranty: Limited Lifetime on the Compressor // 5-year Parts on Base Parts

INSTALLATION & GUIDES

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate



SHIPPING POLICY

Free Curbside Delivery
MRCOOL orders include free curbside delivery via FedEx Ground, FedEx Freight, or the most trusted carrier available. Please note that delivery is to the curbside only - be sure to arrange for assistance if needed, as the carrier will not bring items inside your home.

Tracking & Delivery Scheduling
In most cases, you will receive tracking details 3-5 business days after you place your order. When the tracking number is sent, please allow 1-2 business days for the tracking number to populate details.

See our full Shipping Policy here.

RETURN POLICY

MRCOOL returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.

Please note, a 35% restocking fee will be applied to all approved returns.

See our full Return Policy here.

Accessories
See more from MRCOOL

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Steve
Dual Zone 18,000 Mini Split

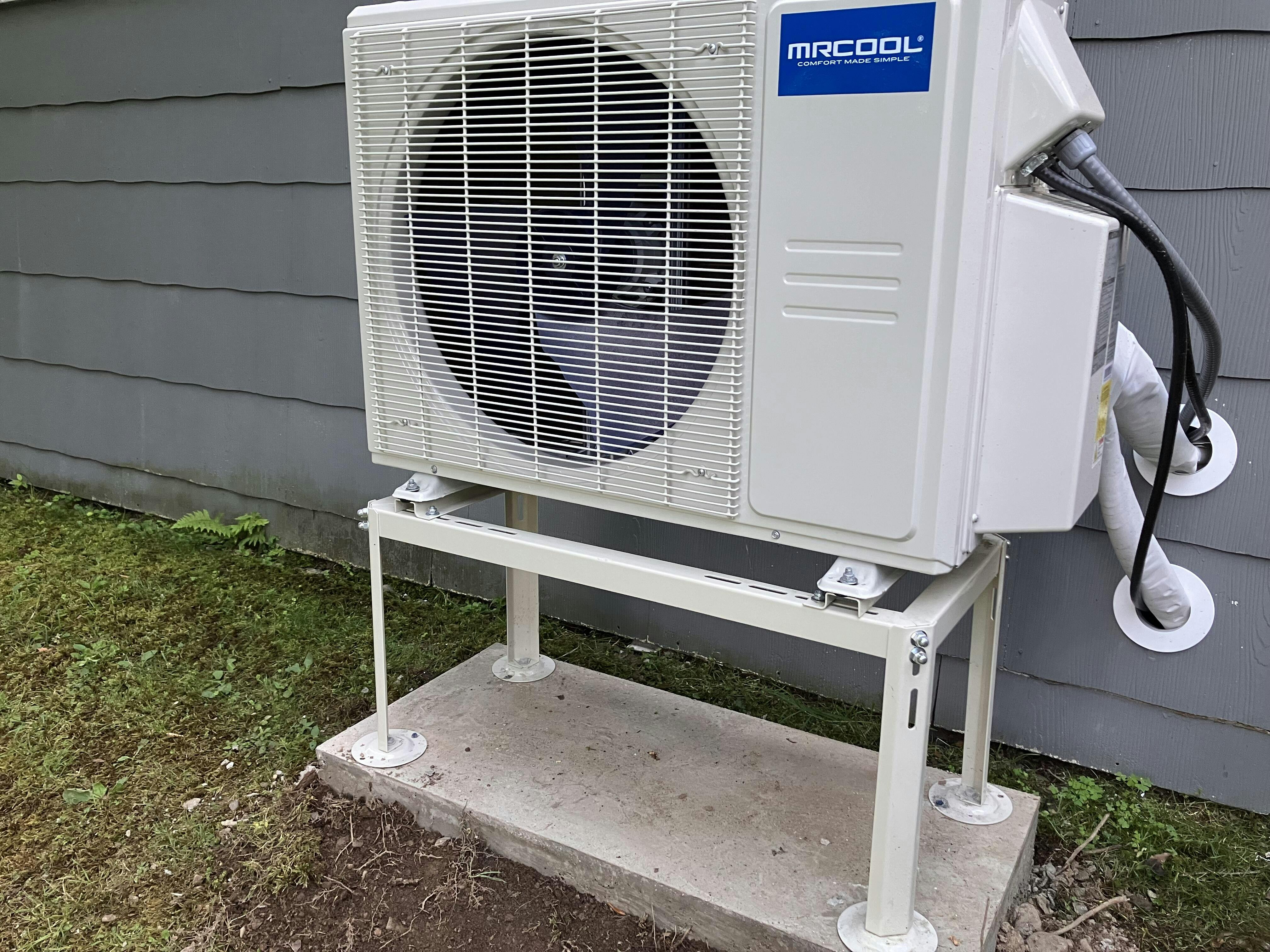

Installed this dual zone 18,000 BTU mini split 10 days ago. I got this condenser, the 12,000 BTU ceiling cassette, and the 9,000 BTU wall air handler.
