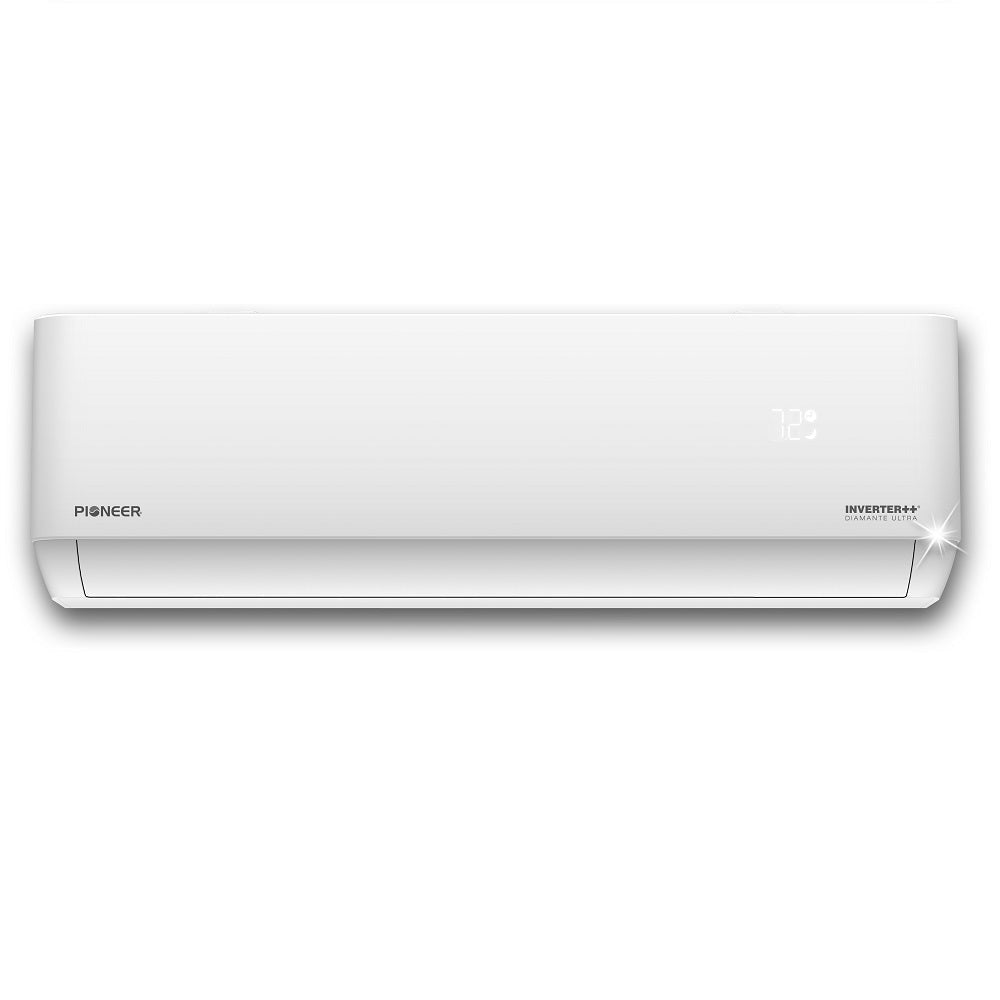

Pioneer® 18,000 BTU Diamante Ultra 21.5 SEER Air Handler, WT018GLFI22HLD-25

Model: WT018GLFI22HLD-25
$558.00
$558.00 $699.00
-20%
Shipping calculated at checkout.

This item is out of stock. Please contact us for an alternative.

$558.00
$558.00 $699.00

What's Included

BETTER TOGETHER

DESCRIPTION

An all-new cutting-edge series of Multi-Zone with up to 4 zones per condenser unit, the Diamante Ultra series is Pioneer®'s latest offering that is both highly efficient and highly smart. Available with ultra-quiet high-wall mount air handlers that come Wi-Fi enabled, and dual-directional louvers to ensure air reaches to all four corners of the room. With a highly attractive matte coating, advanced design for simplified installation, and variable kit length options, these heat pump inverters bring next-level sophistication to multi-room climate control.

What's Included

  • Indoor Unit - Only the Air Handler is included in this. You need to also purchase a compatible outdoor section in order to have a complete working system

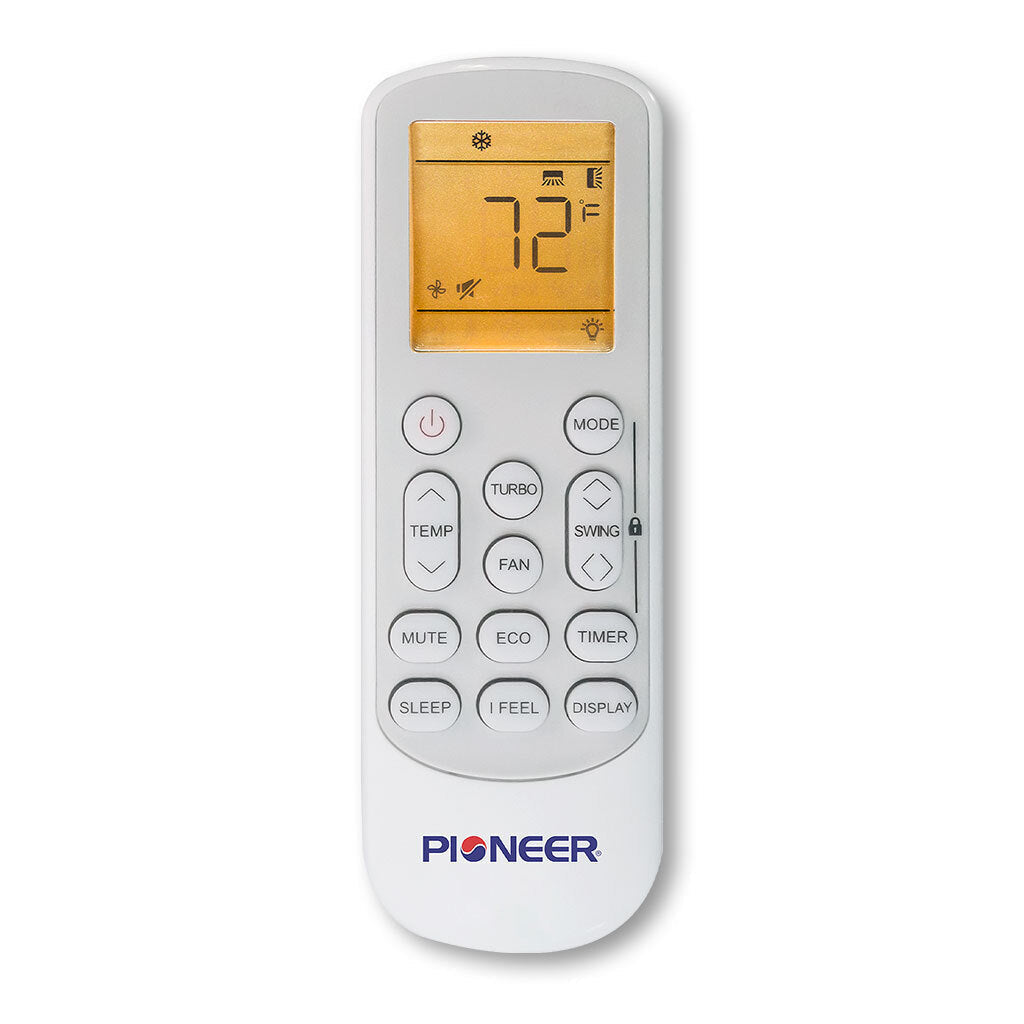

  • Wireless Remote Control
  • Wi-Fi Module w/ Free App
  • 25 Ft. Installation Kit
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

    SPECIFICATIONS & DIMENSIONS

    • Product Dimensions: 43 3/8"W x 8 3/4"D x 13 1/8"H
    • Power Supply: 208-230V, 60Hz, 1Ph
    • Cooling Capacity: 18,000 BTU/h
    • Cooling SEER: 21.5
    • Heating Capacity: 18,000 BTU/h
    • Heating HSPF: 10
    • Suitable Area: 400-650 Sq.F
    • Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
    • Sound Level (Hi/Med/Lo/Mute): 45 / 40/ 35 / 31 dB(A)
    • Weight: 30.9 lbs
    • Warranty: 5 Years Parts
