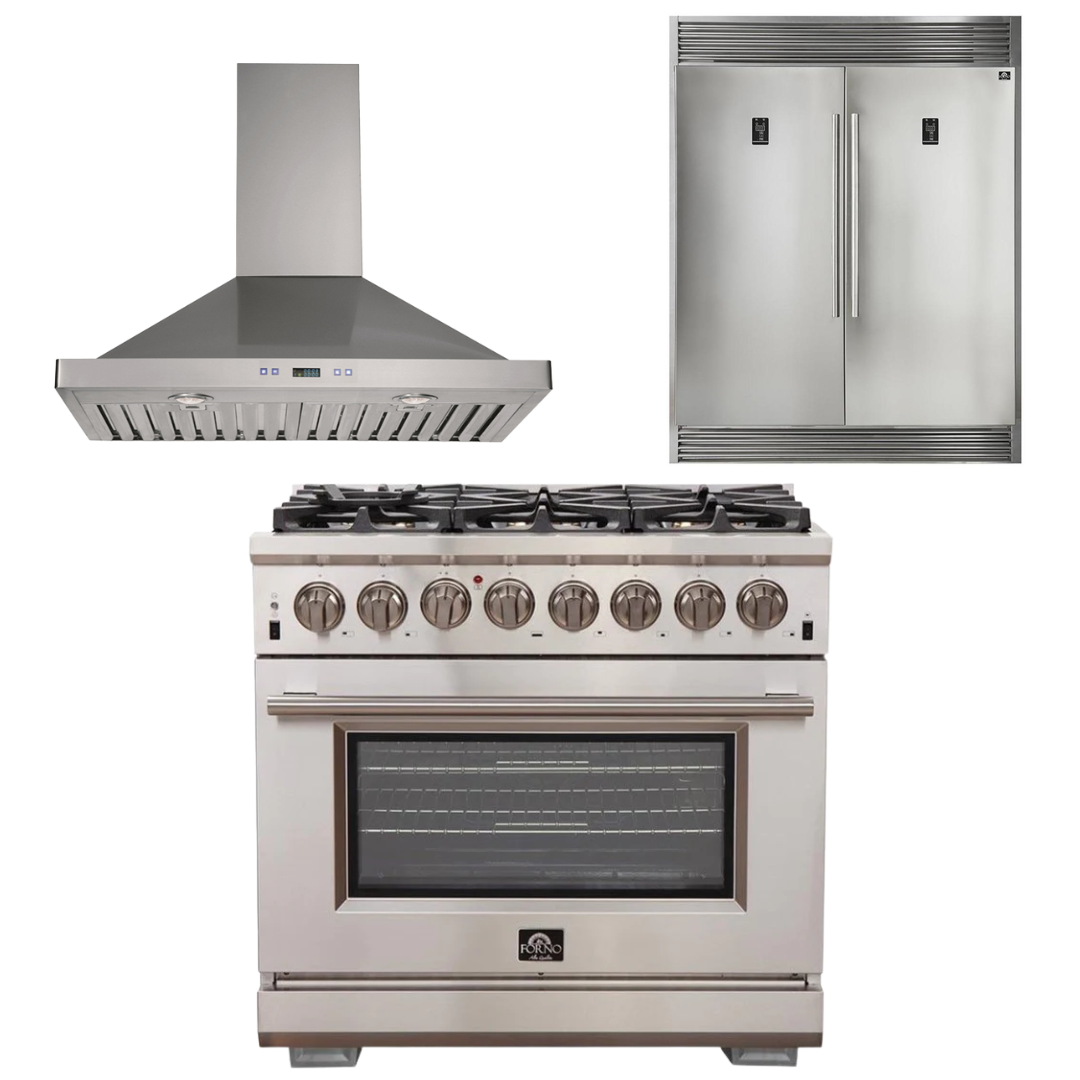

FORNO Appliance Package - 36 Inch Gas Burner/Electric Oven Pro Range, Wall Mount Range Hood, Refrigerator, AP-FFSGS6187-36-W-4

Forno FFSGS618736 Overview

This 36" Pro-Style Dual Fuel Range by Forno offers a 6 Defendi Italian Brass Burner cooktop and a 5.36 cu. ft. oven. The range also features cast iron grates, convection fan and halogen lighting.

Features:

Brass Burners: Elegant brass burners effectively channel heat for desired cooking results.

Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.

Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.

Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.

cETLus: A cETLus certification which complies with the safety standards for the United States and Canada.

Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.

Additional Features:

• Stainless Steel 304
• Control Panel
• Oven Door
• Bottom Front Panel
• Cavity Top Plate
• Stainless Steel 430
• Back Splash
• Side Panel
• Cast Iron Grates Heavy Duty
• Wok Ring
• Black Enameled Cooktop
• Night Light Red LED Automatic Magic Eyes
• Illuminated Zinc Knobs
• Pro-Style Handle
• Oven Door Glass 3 Layers
• Blue Enameled Oven Interior
• 2 Halogen Oven Lights
• Rotisserie kits
• 3 Telescopic Stainless Steel Racks (5mm & 7mm)
• Thermostat, Regulator and SafetyValves
• Adjustable Stainless Steel Legs ( from 37.4” to 38.4”)
• Leg Stainless Steel SquareCover
• LP Kit Included
• Fuel Type: Natural Gas/PL
• Automatic Ignition

Cooktop Features:

• 6 Italian Defendi BrassBurner
• Sealed Dual Burner BTU: 20,000 /Sim 1,000BTU*6

Oven Features:

• Oven 36” Capacity: 5.36 cu. ft
• Power: Broil Inside 1000 W
• Outside 1800W Bake 2000 W
• True Convection Fan 1500 W
• 240 Volt60Hz
• Circuit Breaker 30 Amps

2 Year Warranty

The Orvieto 36" STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 1200 CFM motor and four-speed touch control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.

• Powerful and Efficient Ventilation. Equipped with a powerful and energy-efficient 1200 CFM motor designed to capture smoke, gases, steam, and grease, ensuring a clean and odor-free cooking area. Washable Stainless-Steel filters with a baffle design effectively capture grease, smoke, and odors from the air
• Convenient Control and Illumination. 4-speed touch control provides easy operation, allowing you to adjust the fan speed settings for optimal air flow and ventilation levels according to your needs. Two surface lights offer bright illumination for the cooktop surface, enhancing visibility during cooking
• Elegant and Modern Design. The chimney includes a stainless steel decorative molding trim, adding an elegant and modern feel to your kitchen while providing a beautiful finishing touch
• Quiet and Effective Operation. Maximum power ventilation operates at a low noise level of 65dB, allowing you to enjoy an effective ventilation system without disruptive noise. The low setting delivers a sound level of only 25dB, providing an exceptionally quiet experience while maintaining efficient ventilation

Upgrade your kitchen with the Forno Rizzuto 56" 27.6 cu. ft. Refrigerator/Freezer Combo, designed for both form and function. With dual convertible zones, this premium appliance adapts to your lifestyle, effortlessly switching between refrigeration and freezing. Whether you’re storing fresh produce or preserving bulk grocery hauls, it delivers flexible, energy-efficient performance with a sleek built-in look.

• Dual Convertible Zones
  Seamlessly switch between refrigerator and freezer modes to suit your changing storage needs.
• Generous Capacity: Two 13.8 cu. ft. units combine to offer an expansive 27.6 cu. ft. of total storage space.
• Quick Freeze Function: Rapidly freezes fresh foods to lock in nutrients, preserve texture, and maintain quality—perfect after a big grocery run.
• Electronic Control Panel: Features a clear LED display with real-time temperature readings and Fahrenheit/Celsius conversion for precision control.
• ENERGY STAR Certified: Engineered for energy efficiency, helping reduce utility bills while supporting a more sustainable home.
• Built-In Design: Includes a decorative trim grill that extends the total width to 60 inches, giving it a sleek, built-in appearance.
• Flexible Shelving and Storage: The left unit includes four metal wire shelves (two adjustable) and one spacious drawer for easy organization.
• Two Independent Cooling Zones: Keep fresh and frozen items at their ideal temperatures with separately adjustable compartments.
• Door Ajar Alarm: Built-in alert system prevents energy waste and spoilage by warning you when a door is left open.
• Adjustable Leveling Legs: Ensures a perfect fit and balance in any kitchen layout.

Installation Disclaimer: This side-by-side refrigerator is a built-in system composed of three separate components, delivered as follows:

• FFFFD1933-28LS – Left Swing Unit
• FFFFD1933-28RS – Right Swing Unit
• F1933-60MTK – Decorative Trim Kit


Electrical Requirements: Each refrigeration unit must be connected to its own dedicated 15-amp circuit breaker (2 x 15A total). Please ensure the proper electrical infrastructure is in place prior to installation.

Platform Base Requirement: To ensure proper installation and optimal performance, this unit requires a vented platform base that extends fully beyond the cabinet opening. The extended platform is essential for correct installation of the lower trim kit and for maintaining adequate airflow. Failure to construct the platform as specified may result in improper fitment or compromised unit operation. This installation must be completed as part of the overall cabinet assembly to support proper ventilation and temperature regulation.

Installation Resources: Before installation, please review the following resources available in the Installation & Guides section:

Important: Failure to follow these installation requirements may result in:

• Improper setup or alignment
• Inability to install trim kit components
• Potential voiding of the product warranty
