MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V with 25 ft. DIY Quick Connect Line Set, DIY-24-HP-C-230D25-O

Model: DIY-24-HP-C-230D25-O
$2,364.00
$2,364.00 $2,781.00
-15%
Shipping calculated at checkout.
BTU: 24,000
24,000
9,000 (Sold out)
12,000 (Sold out)
18,000 (Sold out)
24,000 (Sold out)
36,000 (Sold out)

This item is out of stock. Please contact us for an alternative.

$2,364.00
$2,364.00 $2,781.00

Product Overview

  • Covers 1,000 sq ft.

  • DIY Installation

  • ENERGY STAR Certified

  • Voltage: 208-230V

DESCRIPTION

Introducing the 5th Gen MRCOOL® DIY® 24K BTU Single Zone Mini-Split Condenser for year-round heating and cooling in spaces 750 to 1,000 sq. ft. Easy DIY installation with included 25 ft. QuickConnect® line set and DIYPRO® cable. Customize comfort with wireless remote, SmartHVAC app, or voice commands. For coastal homes, the Gold Fin Condenser provides superior corrosion resistance, ensuring long-lasting performance Industry-leading warranty for reliable, energy-efficient performance.

  • DIY Installation: Easy, tool-free setup with no prior experience required.
  • DIY® QuickConnect® Line Set: Pre-charged with R-454B refrigerant for quick and vacuum-free installation.
  • Environmentally Friendly Refrigerant: R-454B refrigerant has a lower Global Warming Potential (GWP) than older refrigerants like R-410A, reducing environmental impact while improving energy efficiency.
  • DIYPRO® Cable: Eliminates the need for electrical conduit, offering enhanced durability against outdoor elements and wildlife.
  • Gold Fin® Condenser: Provides corrosion resistance for coastal homes, ensuring long-lasting performance.
  • Industry-Leading Warranty: Limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty.
  • Certified Quality: Intertek listed 5031495 for reliable performance and safety.

SPECIFICATIONS & DIMENSIONS

  • Dimensions & Weight
  • Dimensions: 37.24 W" x 16.14 D" x 31.89 H"
  • Weight: 112.8 lbs / 55.7 kg
  • Capacity & Performance
  • Zone Capacity: 1
  • Cooling Capacity: 23,000 BTU
  • EER2: 12.7
  • SEER2: 22.7
  • Heating Capacity: 23,000 BTU
  • HSPF2-4: 9.6
  • HSPF2-5: 7.1
  • Coverage Area: 750 to 1,000 sq ft.
  • Outdoor Noise Level: 58.5 dB(A)

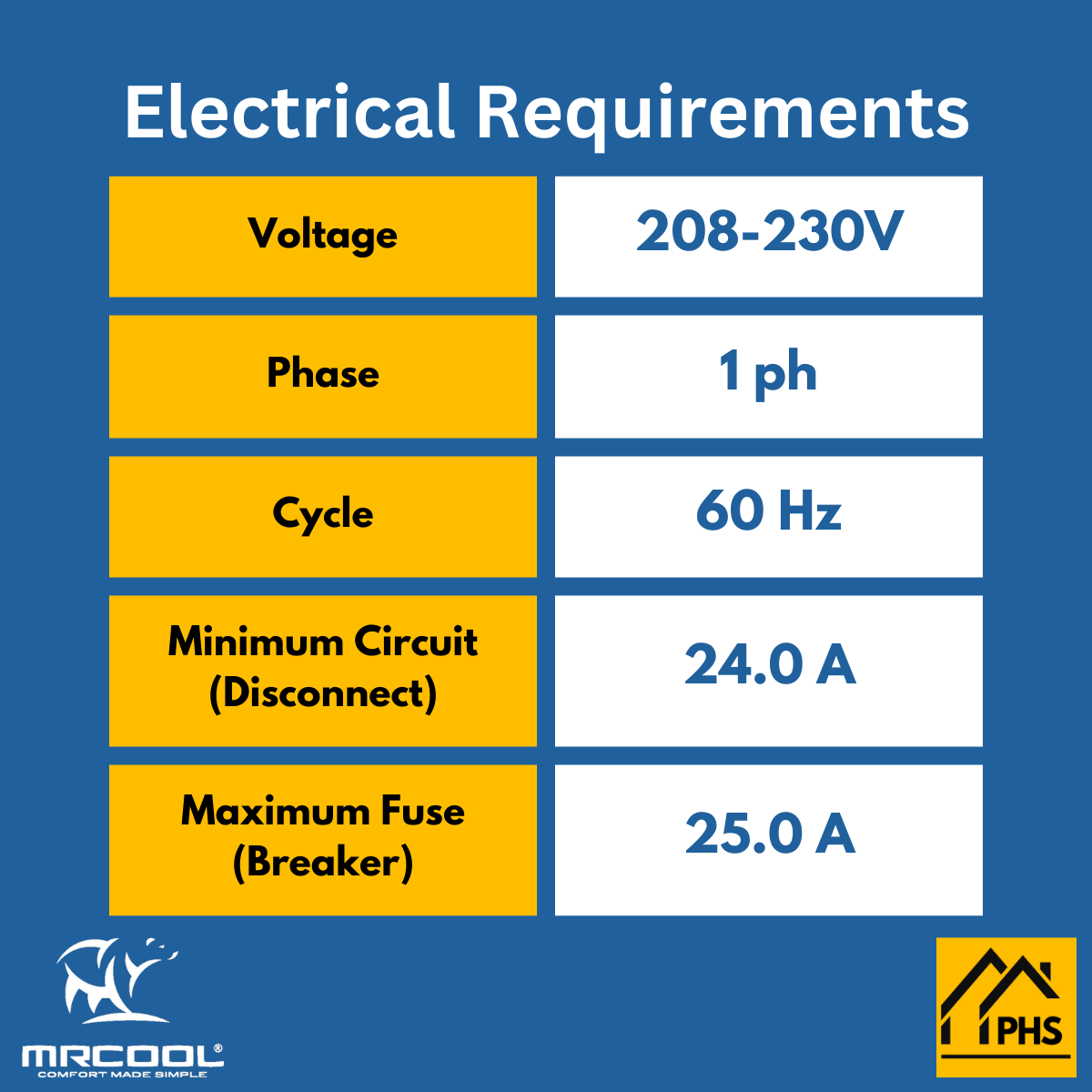

  • Electrical Requirements
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 25A
  • Min Circuit Ampacity: 24A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 67.37 oz
  • Liquid Line Size: 3/8"
  • Suction Line Size: 5/8"
  • Max Line Set Length: 164 ft.
  • Features
  • Inverter: DC
  • Compressor Type: Rotary
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • Certifications & Warranty
  • Certifications: UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
  • Warranty: 7 Years Compressor // 5 Years Parts // Extended Limited Lifetime Replacement // *If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty // **The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.

INSTALLATION & GUIDES

Product Brochure
Installation Manual
Remote Control Manual
Warranty Document
AHRI Certificate
Energy Guide
