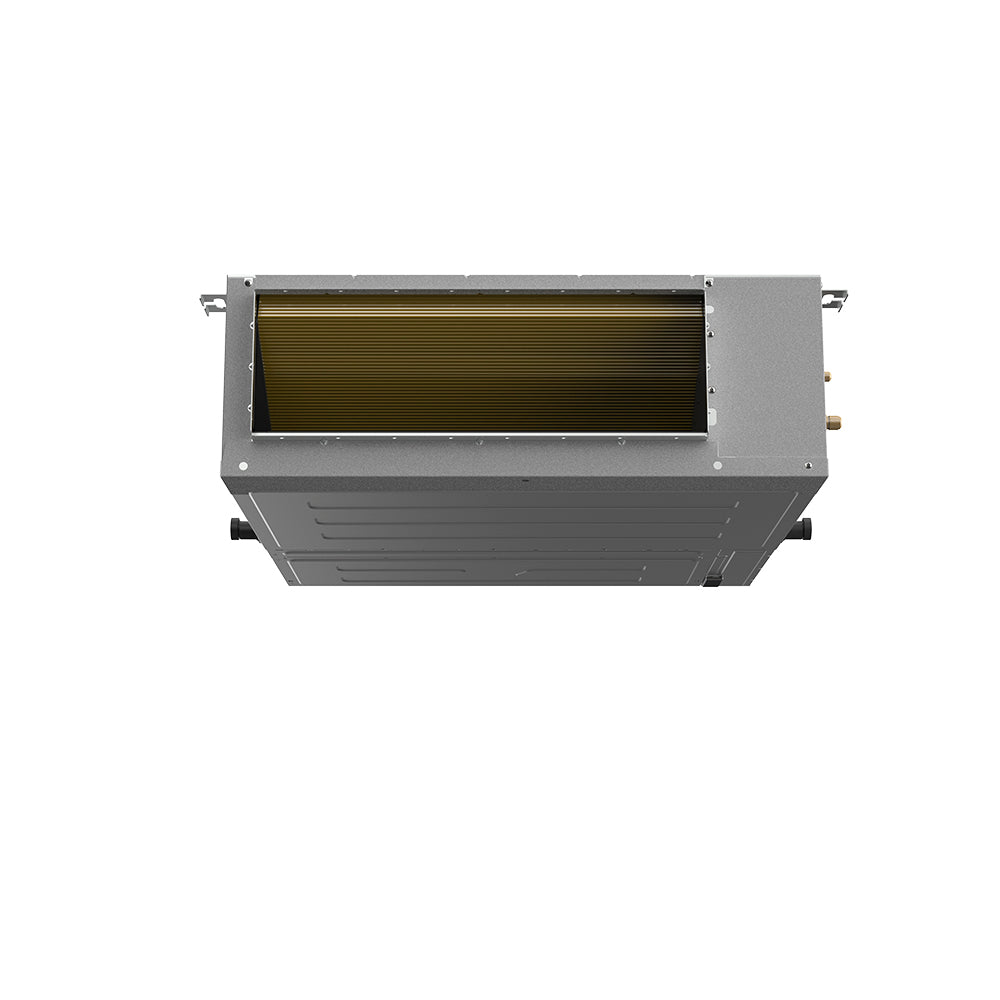

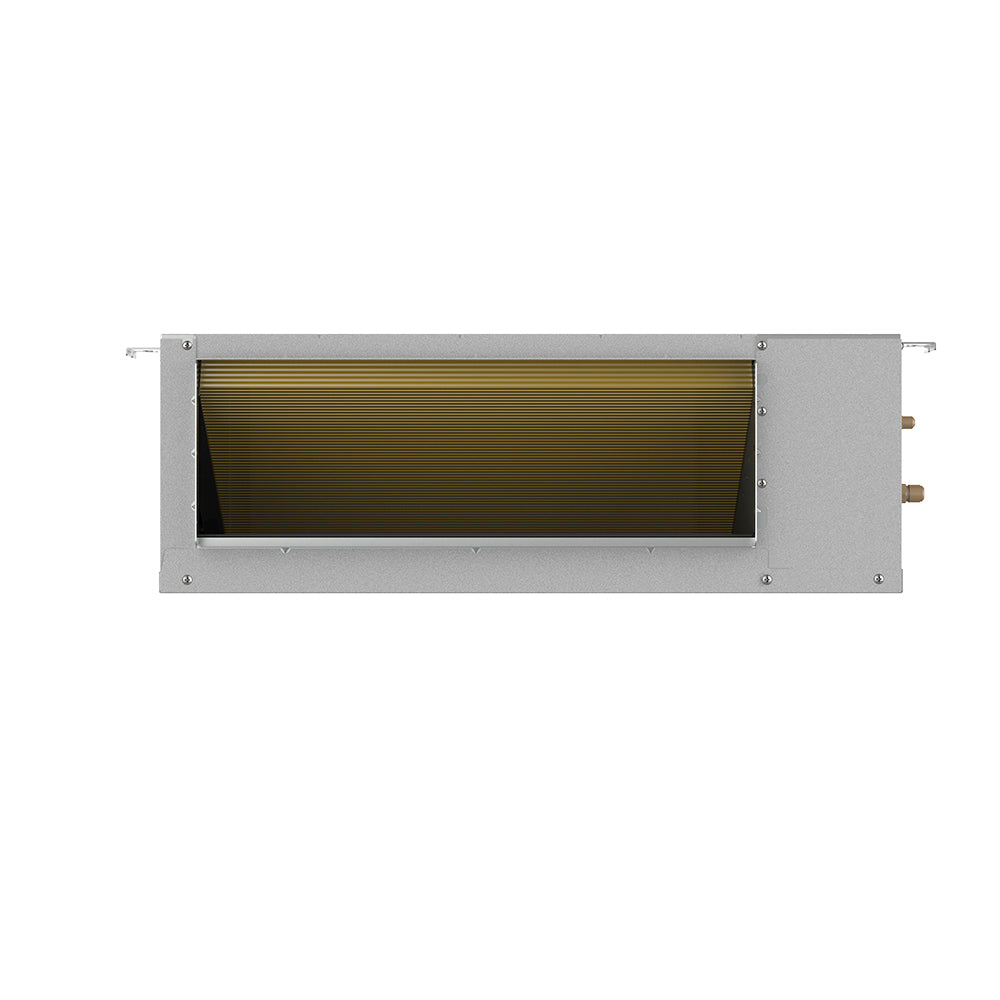

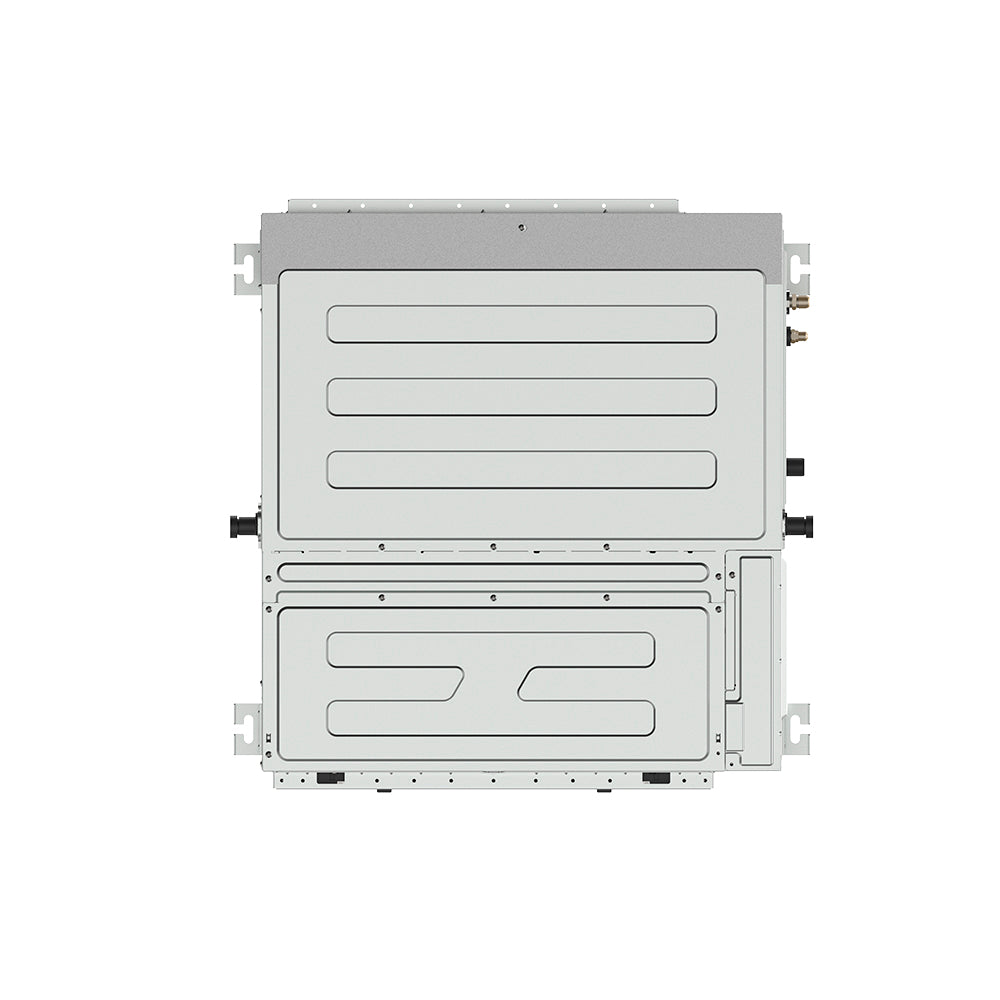

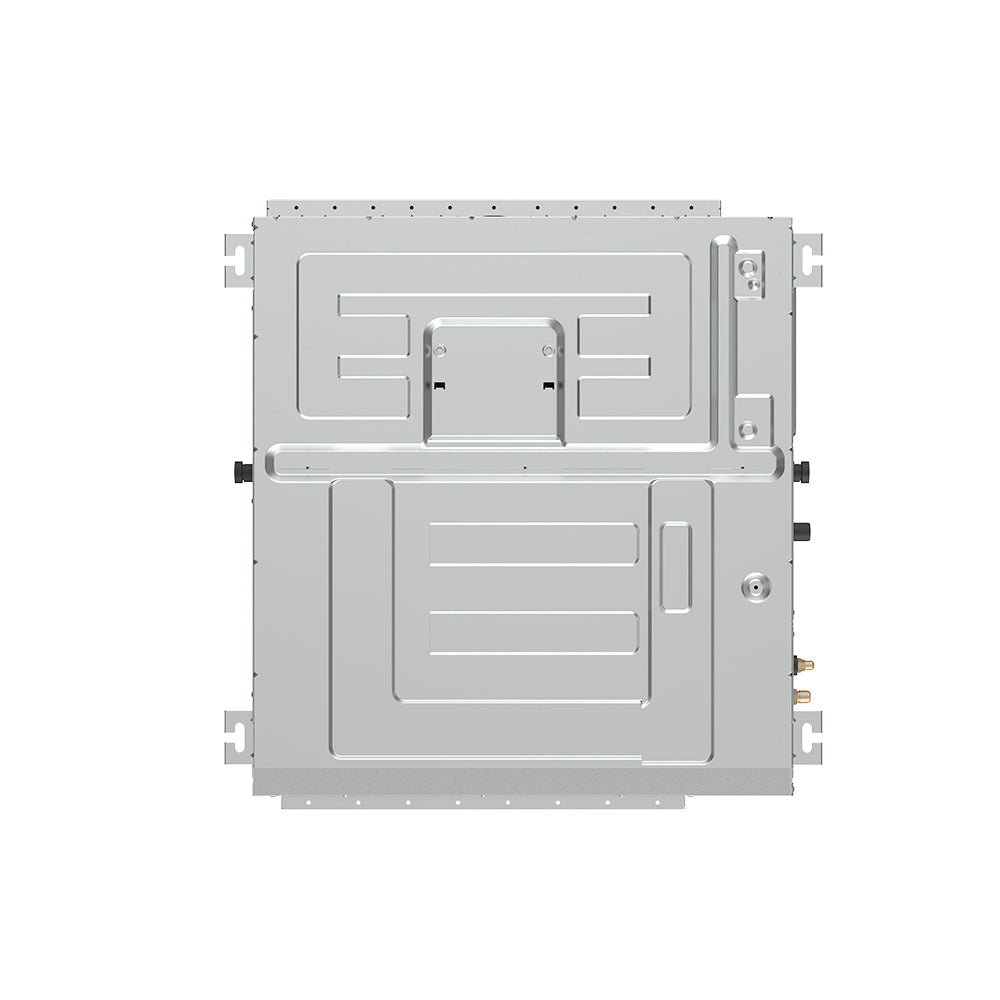

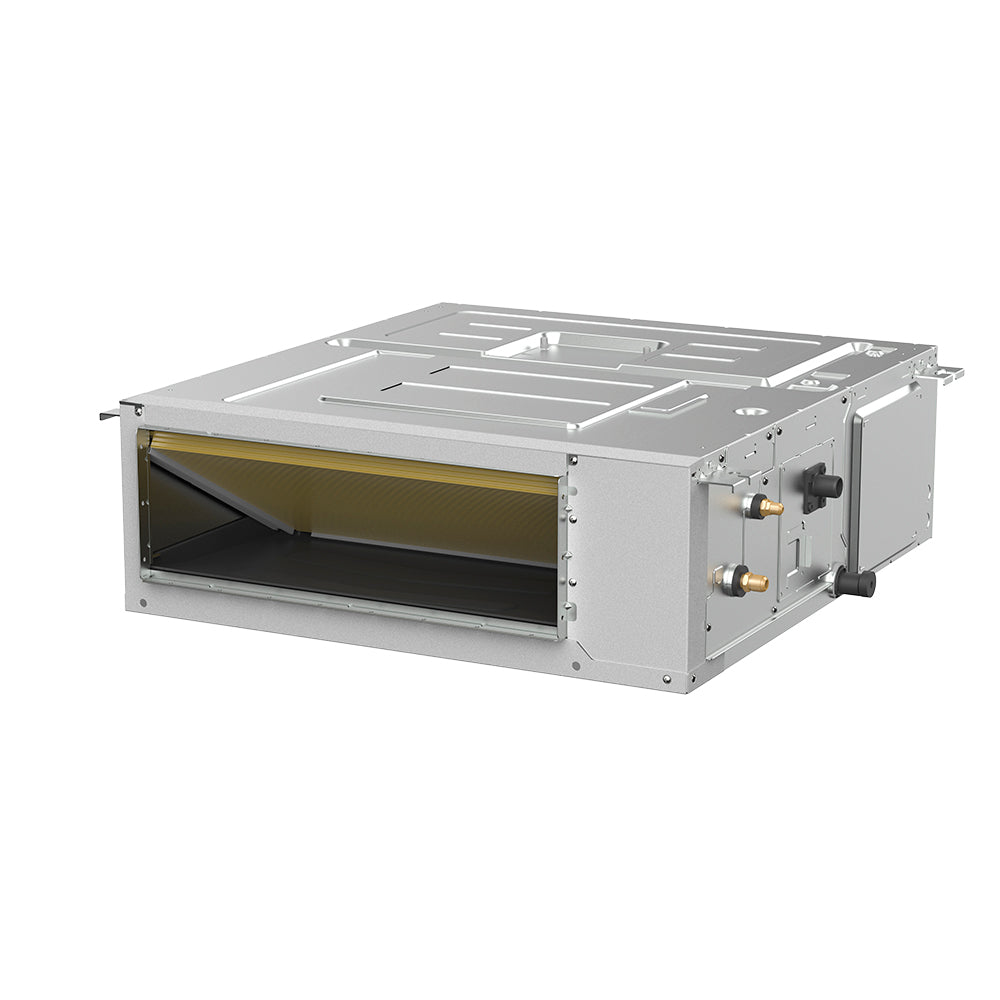

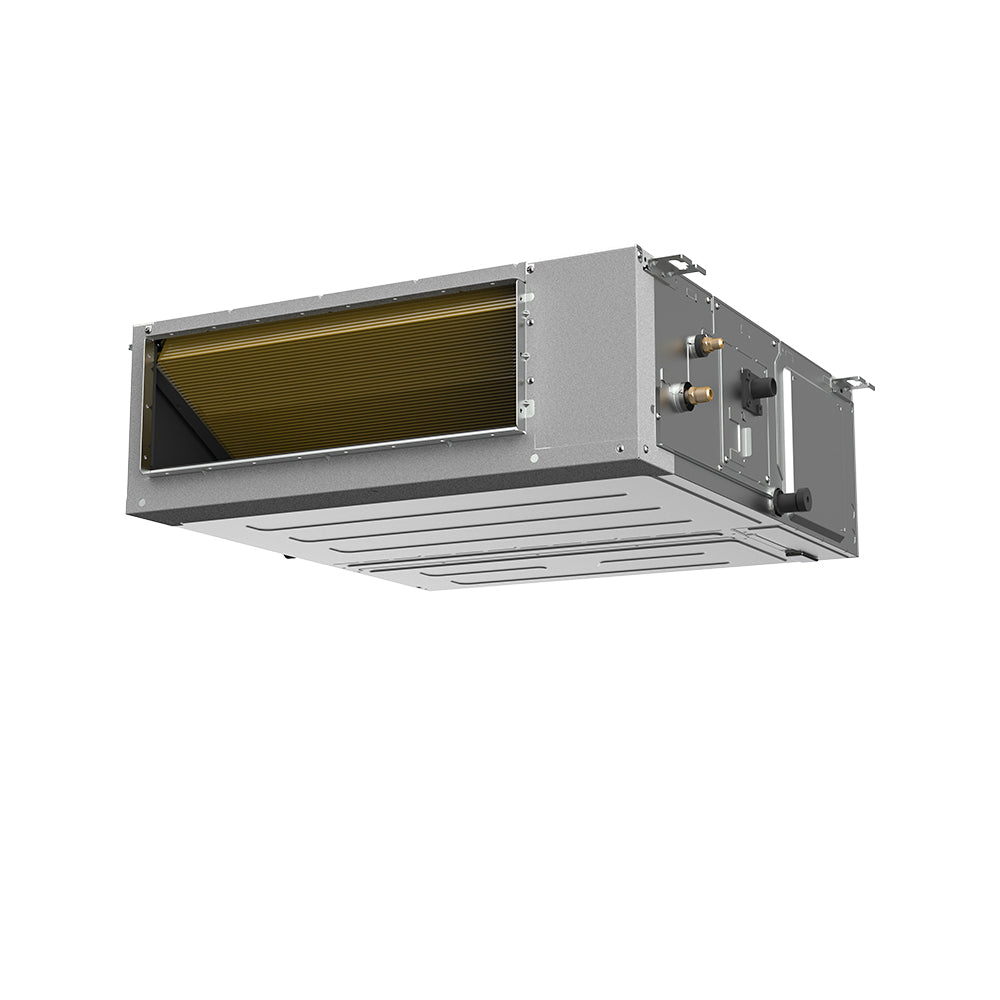

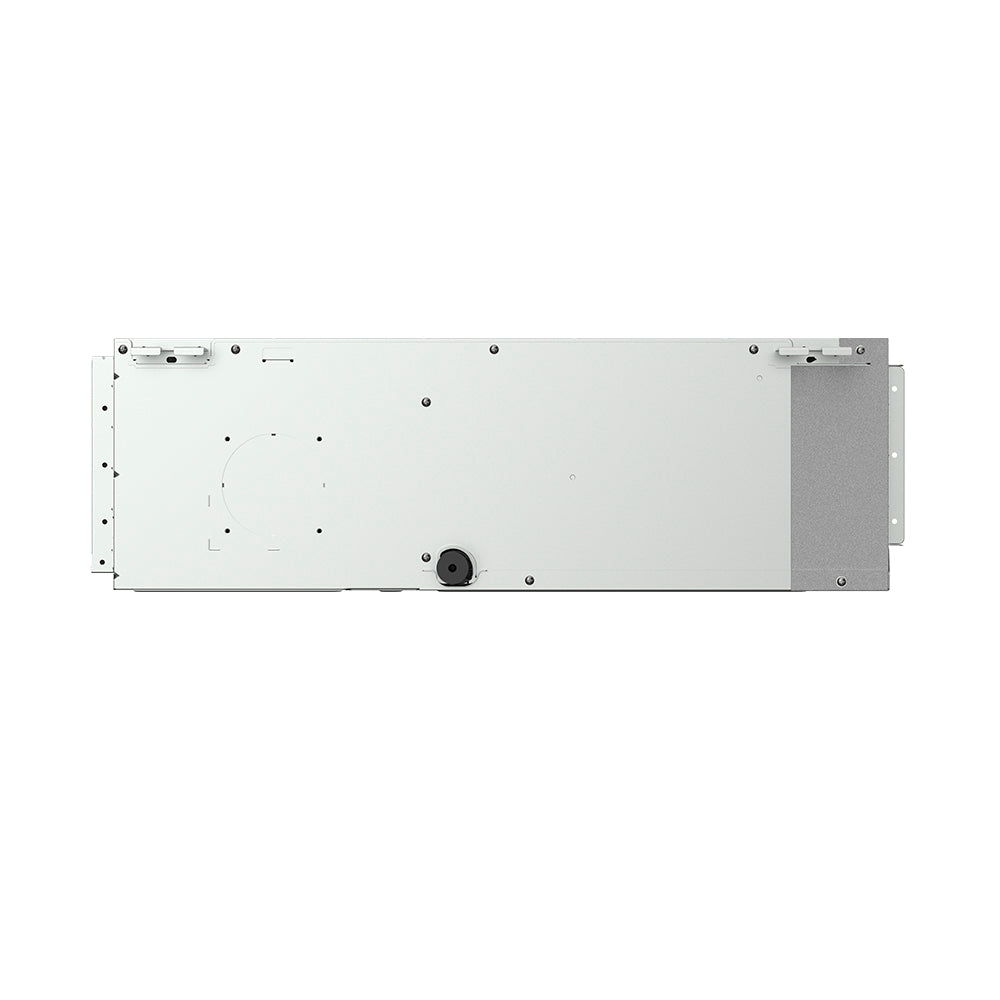

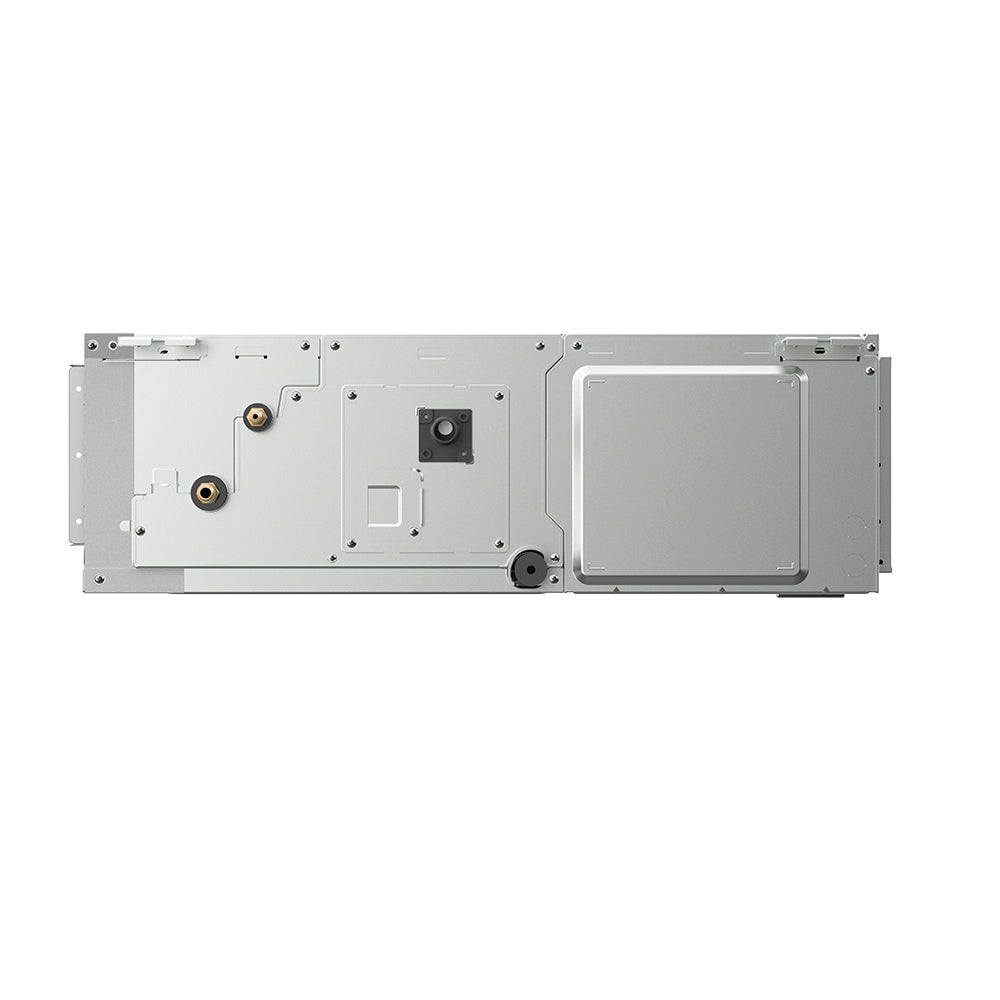

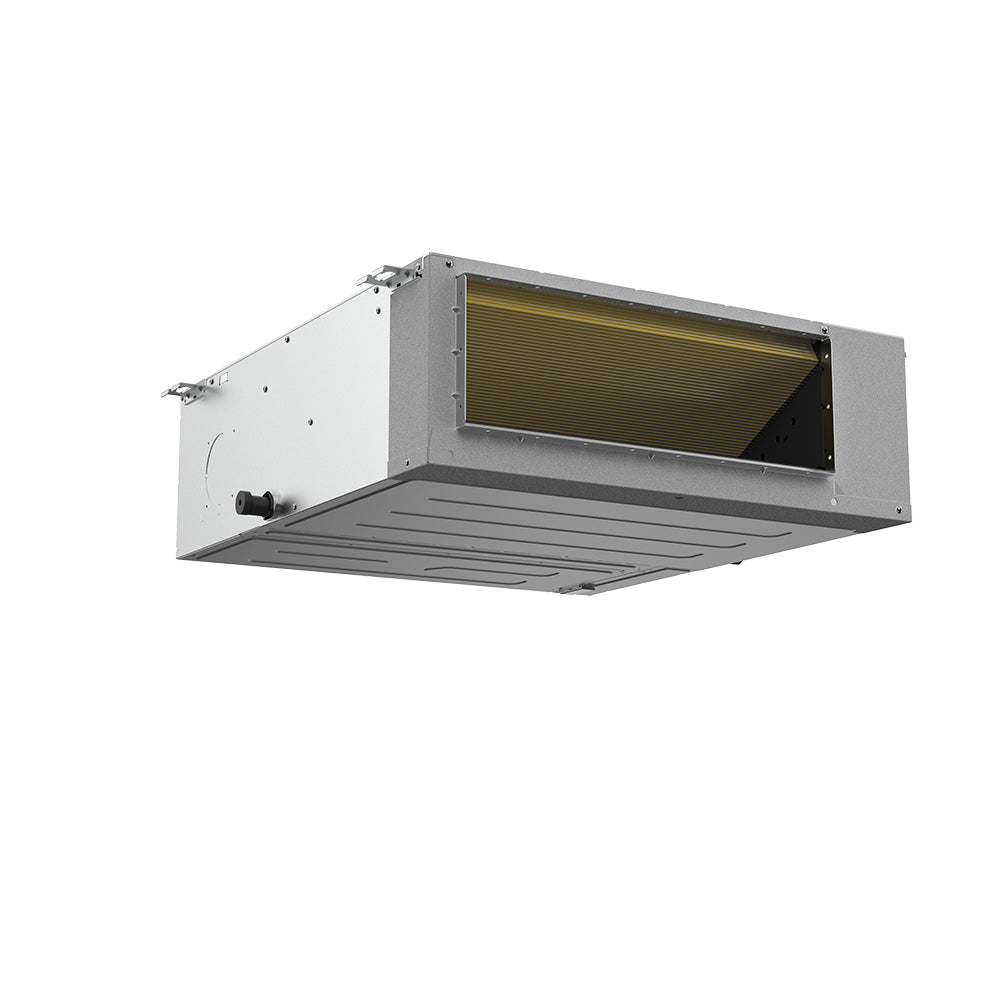

MRCOOL Olympus 24,000 BTU 2 Ton Ducted Mini Split Air Handler 230V/60Hz, DUCT-24HP-230B-O

Brand: MRCOOL
Model: DUCT-24HP-230B-O
$1,038.00
$1,038.00 $1,141.80
You save $103.80
Shipping calculated at checkout.

Payment Plans Available

Mount type: Ducted
BTU: 24,000
24,000
9,000
12,000
18,000
24,000
In stock - Ready to Ship
Free Curbside Delivery
Curbside shipping means your order will be delivered to the curb or driveway outside your home. The driver will not bring it inside or set it up. Please arrange for help if needed!
Estimated Arrival: Nov 01 to Nov 07
$1,038.00
$1,038.00 $1,141.80

What's Included

DESCRIPTION

The MRCOOL® OLYMPUS 24K DUCT Air Handler is a compact and efficient heating and cooling solution designed for spaces up to 1,000 square feet. Its ceiling-integrated design ensures a seamless, modern look that fits effortlessly into both residential and light commercial spaces. With easy-to-use controls, eco-friendly refrigerant, and dependable performance, this unit offers a perfect balance of comfort, style, and sustainability.

  • Discreet Design: Ceiling-integrated setup allows for a flush, modern installation that complements any interior space.
  • Ideal Coverage: Designed to efficiently heat and cool rooms up to 1,000 sq. ft., making it perfect for bedrooms, offices, or small living areas.
  • Convenient Controls: Includes both a wired wall-mounted controller and a handheld remote for flexible, easy operation.
  • Eco-Friendly Refrigerant: Utilizes R-454B refrigerant with low global warming potential, combining environmental responsibility with strong performance.
  • Quiet Operation: Engineered for minimal noise, maintaining a peaceful atmosphere while delivering consistent comfort.
  • Reliable Warranty: Protected by a 5-year parts warranty for long-term peace of mind.

SPECIFICATIONS & DIMENSIONS

  • DIMENSIONS
  • Dimensions: 39.37" W x 29.53" D x 9.65" H
  • Mount Type: Ducted
  • Weight: 80.47 lbs
  • CAPACITY & PERFORMANCE
  • Tonnage: 2 Ton
  • Capacity: 24,000 BTU
  • Coverage Area: 751 to 1,000 sq ft.
  • ELECTRICAL REQUIREMENTS
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 3A
  • REFRIGERANT & PIPING
  • Refrigerant Type: R-454B
  • Liquid Line Size: 3/8"
  • Suction Line Size: 5/8"
  • FEATURES
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: No
  • App Compatibility: No
  • Works with IOS: No
  • Works with Android: No
  • Remote Control Included: Yes
  • CERTIFICATION & WARRANTY
  • Certifications: UL Listed, ETL Listed, CSA Listed
  • Warranty: 5 Year Parts
