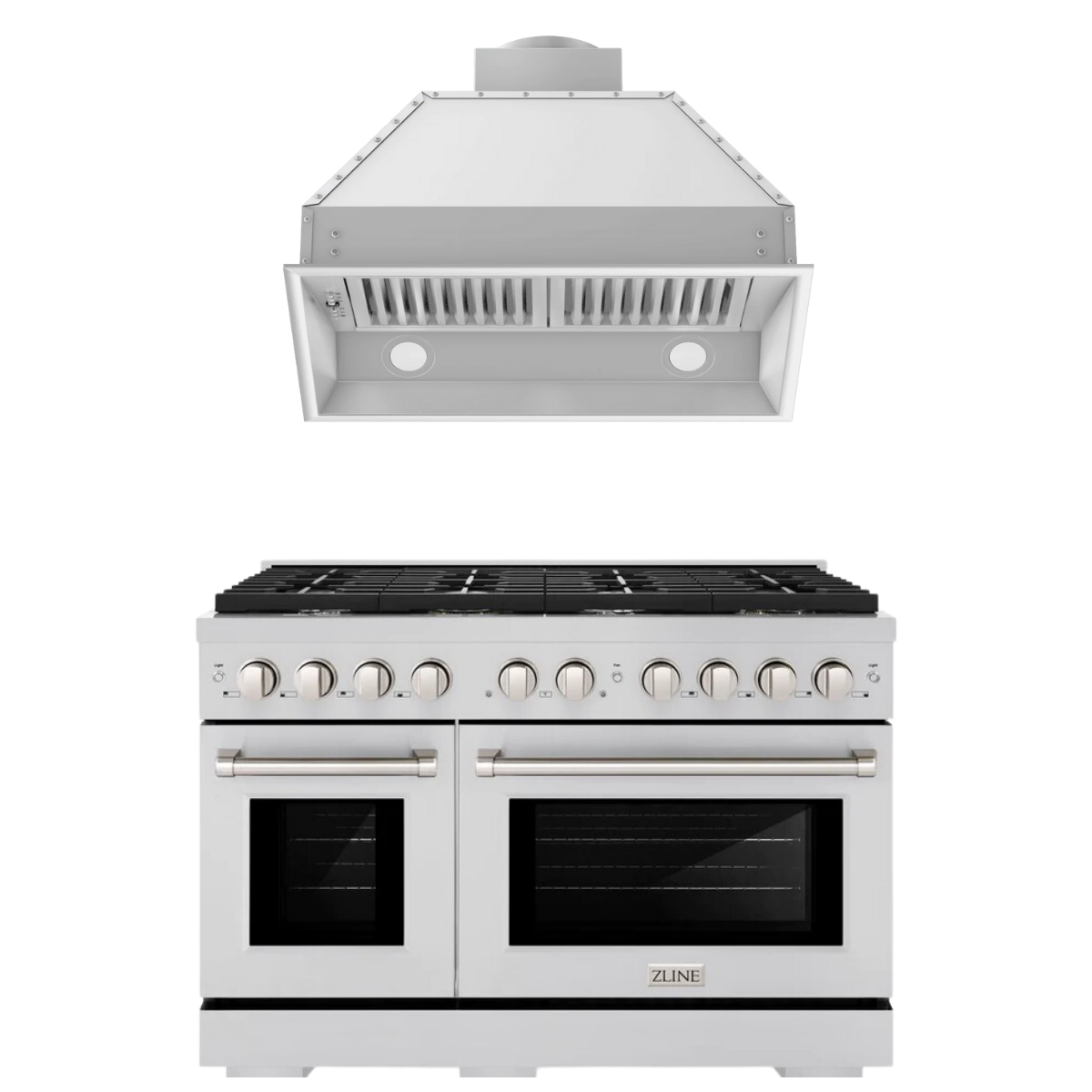

Luxury meets attainable with the ZLINE 48” 6.7 cu. ft. 8 Burner Double Oven Gas Range in Stainless Steel. Crafted with a commitment to both modern style and functional excellence, this professional gas range offers a sophisticated culinary experience for home chefs.

Italian-Made Auto-Reignition Burners
8 Italian-made gas burners effortlessly ignite and automatically reignite for enhanced temperature control and safety.

Dual Function Burner
Experience versatility with a single Dual Function Burner, allowing simmering at 1,000 BTUs or perfect searing at 20,000 BTUs.

Convection Gas Oven
Standard bake, broil, and convection bake modes with a BTU output of 22,000 elevate your culinary endeavors.

Large Oven Capacity
A spacious 6.7 cu. ft. oven (4.2 cu. ft. + 2.5 cu. ft.) accommodates pans up to 20 inches wide, providing maximum space for everyday cooking.

StayPut Oven Door Hinges
Designed to support the full weight of the oven door, offering additional convenience and safety.

Premium Oven Insulation
3-layered glass and aluminum mesh seal for superior heat retention and consistent temperatures, ensuring perfect dishes every time.

Smooth Glide Ball-Bearing Oven Racks
Durable ball-bearing oven racks provide extra convenience and ease when handling larger dishes.

Dual Oven Lights
Illuminate your oven space with dual halogen lighting, controlled by a switch on the front control panel.

Professionally Crafted
Crafted with 430-grade stainless steel and durable cast iron grates that exceed industry standards for a true professional experience.

Minimal Cleaning
Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance.

LP Conversion Kit
Equipped with an LP conversion kit for versatility in converting from natural gas to liquid propane (must be done by a professional).

Manufacturer Warranty
Backed by a 1-year parts and service warranty for added peace of mind. Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if proven defective in materials or workmanship.

ZLINE 46" Width Wall Mount Range Hood Insert (18" Depth), 698-46

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - No
Crown Molding(s) - NA
Certified Outdoor Use - No
Also available in 28"(698-28), 34"(698-34), 40"(698-40)

PRODUCT DESCRIPTION:

The ZLINE 698-46 is a 46-inch professional range hood insert designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:
• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor with speeds up to 700 CFM

All ZLINE range hoods are ETL Listed and come equipped with everything needed to easily install and use.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 698-46 ships next business day when in stock.

PRODUCT SPECIFICATIONS:

Brand:	ZLINE Kitchen and Bath
Dimension:	46" W x 18" D x 14.2" H
Venting Size:	8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H):	280/460/670/700 (CFM)
Lighting:	4 Directional LED Lights (3-Watt)
Noise Level:	30/42/51/56 (Decibels)
Voltage:	110V/60HZ
Motor:	High Performance 700 CFM/4-Speed Dual Motor
Mount Type:	Range Hood Insert (For Wall Mount Hoods)
Speeds:	4 speeds
Control Type:	Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:	Stainless Steel Baffle Filters (Dishwasher Safe)
Material:	21g #430 Stainless Steel
Warranty:	3 Year Parts Warranty
Features:	Model No. 698-46 (ETL Listed)
UPC:	855187005085
Certifications:	ETL Certified

INSTALLATION INSTRUCTIONS

Range Hood Decibel Levels:

ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.

Chimney Sizing:

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
