ZLINE Autograph Package - 48 In. Dual Fuel Range, Range Hood, Dishwasher in White Matte with Champagne Bronze Accents, 3AKP-RAWMRHDWM48-CB

Name: ZLINE Autograph Package - 48 In. Dual Fuel Range, Range Hood, Dishwasher in White Matte with Champagne Bronze Accents, 3AKP-RAWMRHDWM48-CB
Brand: ZLINE
SKU: 3AKP-RAWMRHDWM48-CB
Price: 8999.88 USD
Availability: InStock

5.0 8 reviews

Model: 3AKP-RAWMRHDWM48-CB

$8,999.88

$8,999.88 ~~$9,999.85~~

-10%

Shipping calculated at checkout.

Financing Options

This item is in stock! Estimated Arrival: Oct 18 to Oct 25

$8,999.88

$8,999.88 ~~$9,999.85~~

What's in the Package

Range

Model: RAZ-WM-48-CB
Range Hood

Model: 8654STZ-WM48-CB
Dishwasher

Model: DWMTZ-WM-24-CB

Package Information

Range

The ZLINE Autograph Edition 48" Dual Fuel Range offers professional cooking with a gas stove and electric oven. Designed in Lake Tahoe, USA, it features elegant finishes and personalized touches. The Autograph Edition Series is a luxurious choice with high-quality materials and innovative features. Experience dual fuel cooking, Italian-made sealed brass burners, and a spacious oven.

Dual Fuel Cooking: Combines the high-performance benefits of a gas cooktop with the consistent, even heating of an electric convection oven.
Italian-Made Sealed Brass Burners: ZLINE's Italian brass burners add a sophisticated, timeless touch of color to this range, while offering enhanced cooking benefits like superior heat retention and even flame distribution.
Spacious Oven Capacity: The 6.0 cu. ft. oven can accommodate pans up to 23 inches in the large oven and 9 inches in the smaller oven, providing ample space for all your cooking needs.
Superior Insulation: The triple-layered glass and aluminum mesh seal ensure excellent heat retention and consistent cooking temperatures.
Smooth Glide Racks: Ball-bearing racks ensure easy access to your dishes, even when handling heavy cookware.
Durable StayPut Hinges: Heavy-duty hinges offer smooth, stable operation and can support the full weight of the oven door.
Bright Dual Oven Lights: Dual lighting system illuminates the oven interior, making it easy to monitor cooking progress
Adjustable Oven Height: Easy adjustable legs allow you to adjust the total range height anywhere from 36 inches to 38.5 inches.

Product Dimensions: 47.75" W x 27.5" D x 36.125"-38.5" H
Open Door Depth: 41.8"
Material: Stainless Steel
Fuel Type: Dual Fuel // Cooktop - Gas // Oven - Electric
Gas Type: Natural Gas // Propane Gas (LP Conversion Kit Included)
Electrical Requirements: Requires a minimum of 240V/60Hz/30A (please check your kitchen meets this electrical requirement prior to purchase)
Mount Type: Freestanding
Control Type: Manual Front
Lighting: Halogen
Oven Dimensions: Primary Oven: 26.8" W x 14" D x 18.5" H // Secondary Oven: 12.6" W x 14" D x 18.5" H
Oven Capacity: Total: 6 cu. ft. // Primary Oven: 4 cu. ft. // Secondary Oven: 2 cu. ft.
Oven Settings: Preheat/High Bake // Bake/Low Bake // Convection Bake // Broil // Convection Broil
Convection Fan: Yes
Number of Burners: 7
Burner Settings: Burners with Porcelain Cook Top with electronic spark ignition for all burners
Cooktop BTU: (1) Back Left: Semi-Rapid 10,000 BTU // (2) Front Left: Dual Wok 18,000 BTU // (3) Back Right: Semi-Rapid 10,000 BTU // (4) Front Right: Dual Wok 18,000 BTU // (5) Back Left: Rapid 12,500 BTU // (6) Front Left: Auxiliary 8,500 BTU // (7) Fish Burner: 12,500 BTU
Certifications: ETL Listed
Warranty: 1 year parts and service, limited lifetime warranty on burners

User Manual
Installation Guide

Range Hood

The ZLINE 48 Inch Range Hood (8654STZ-WM48-CB) comes fully equipped with a powerful, yet quiet motor with a stunning Champagne Bronze Handle. Cook like a pro with this ZLINE Range Hood!

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with stunning champagne bronze accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a champagne bronze handle.

Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.

PRODUCT FEATURES:

Champagne Bronze handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents
Easy-to-use push button controls let's you easily control fan speed and lighting
4-speed fan control (280/420/580/700 CFM) let's you choose the appropriate air flow for your cooking situation
700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
Fixed vent with ductwork that easily connects to the top of the range hood for external venting
Dishwasher-safe stainless steel baffle filters
LED lighting illuminates the cooktop beneath the hood
Designed to fit standard (circular) ductwork for simple installation
Handle is for cosmetic purposes only and should not be used for hanging items
3 year parts warranty, life-time motor warranty
Brushed 430 grade stainless steel

Dimension: 48 in. W x 23.75 in. D x 16 in. H
Chimney: 13.25 in. W x 11.75 in. D x 35.5 in. H
Ceiling Height: 7.7 to 9.5 Feet
Airflow (Q/L/M/H): 280/420/580/700 (CFM)
Duct Size: 8 Inches
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level: 51/55/58/61 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: Stainless Steel - Outdoor Approved
Warranty: 3 Year Parts Warranty

Installation Instructions

Dishwasher

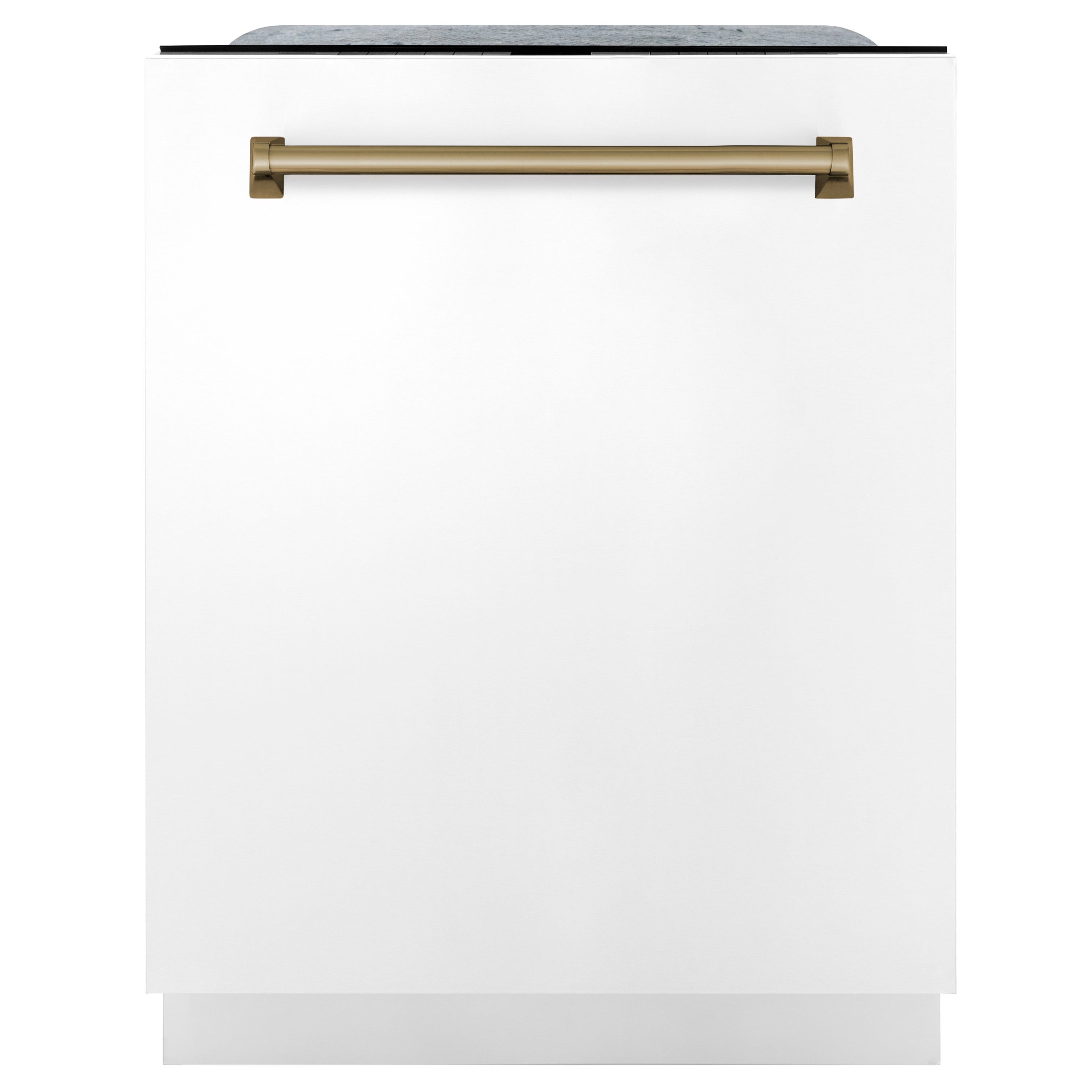

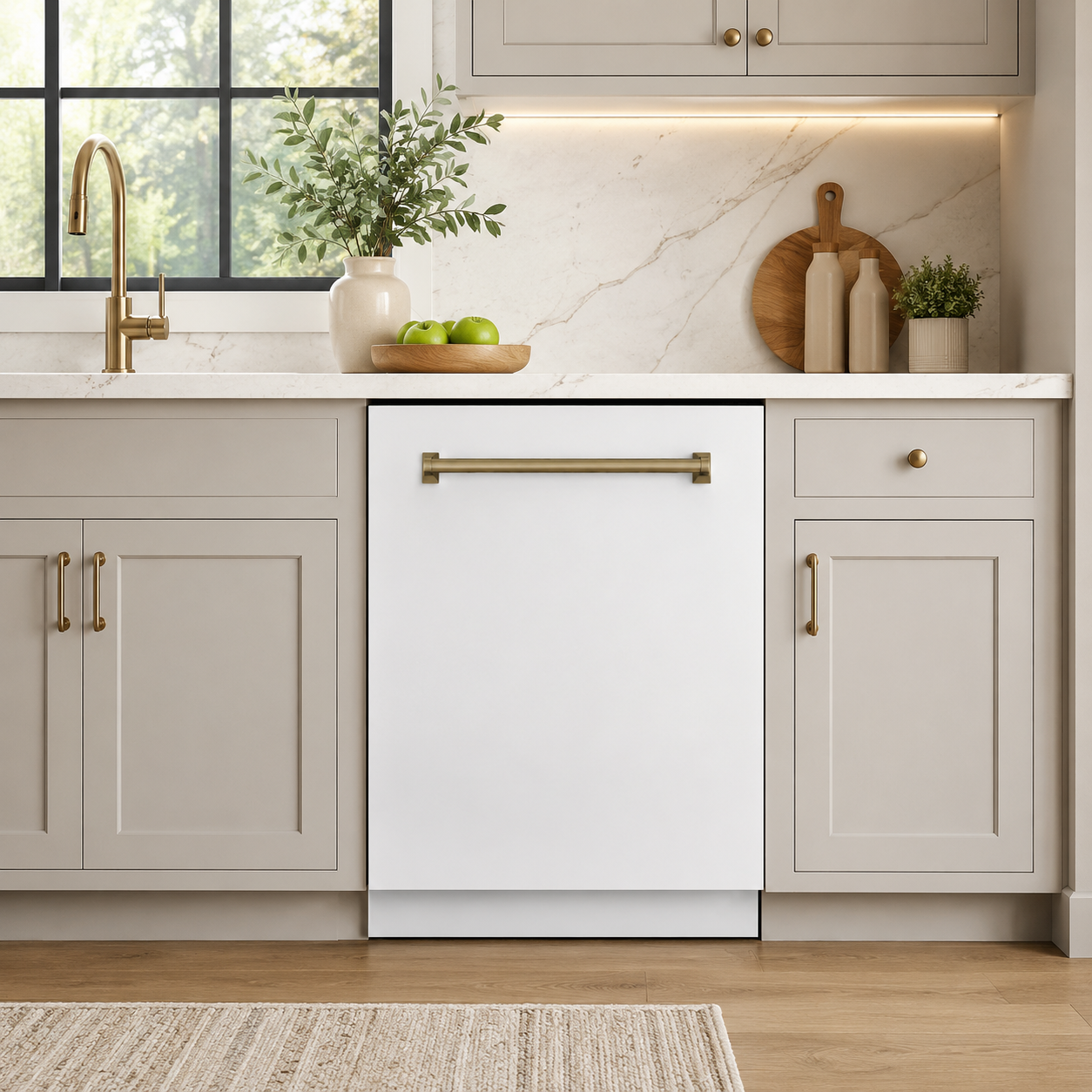

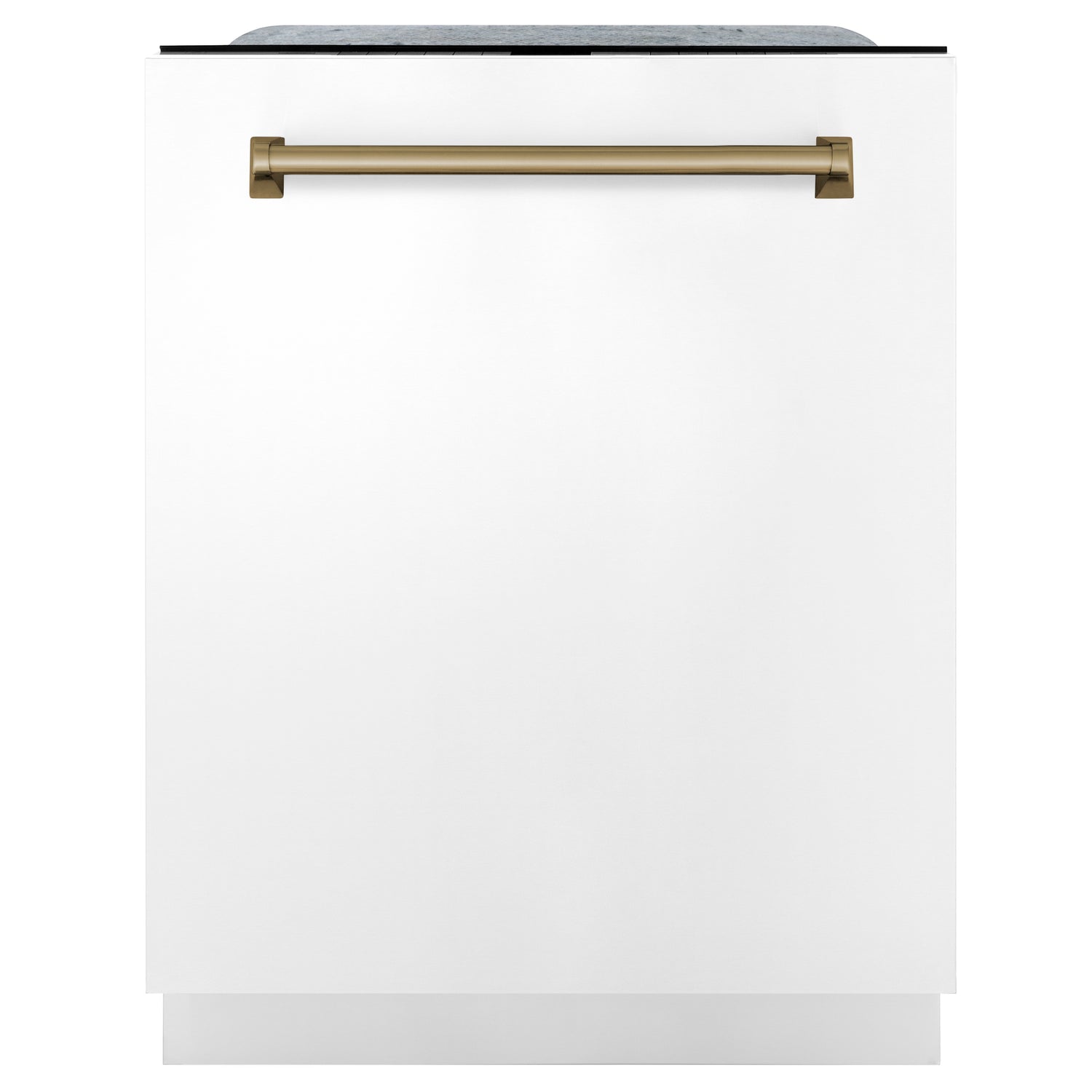

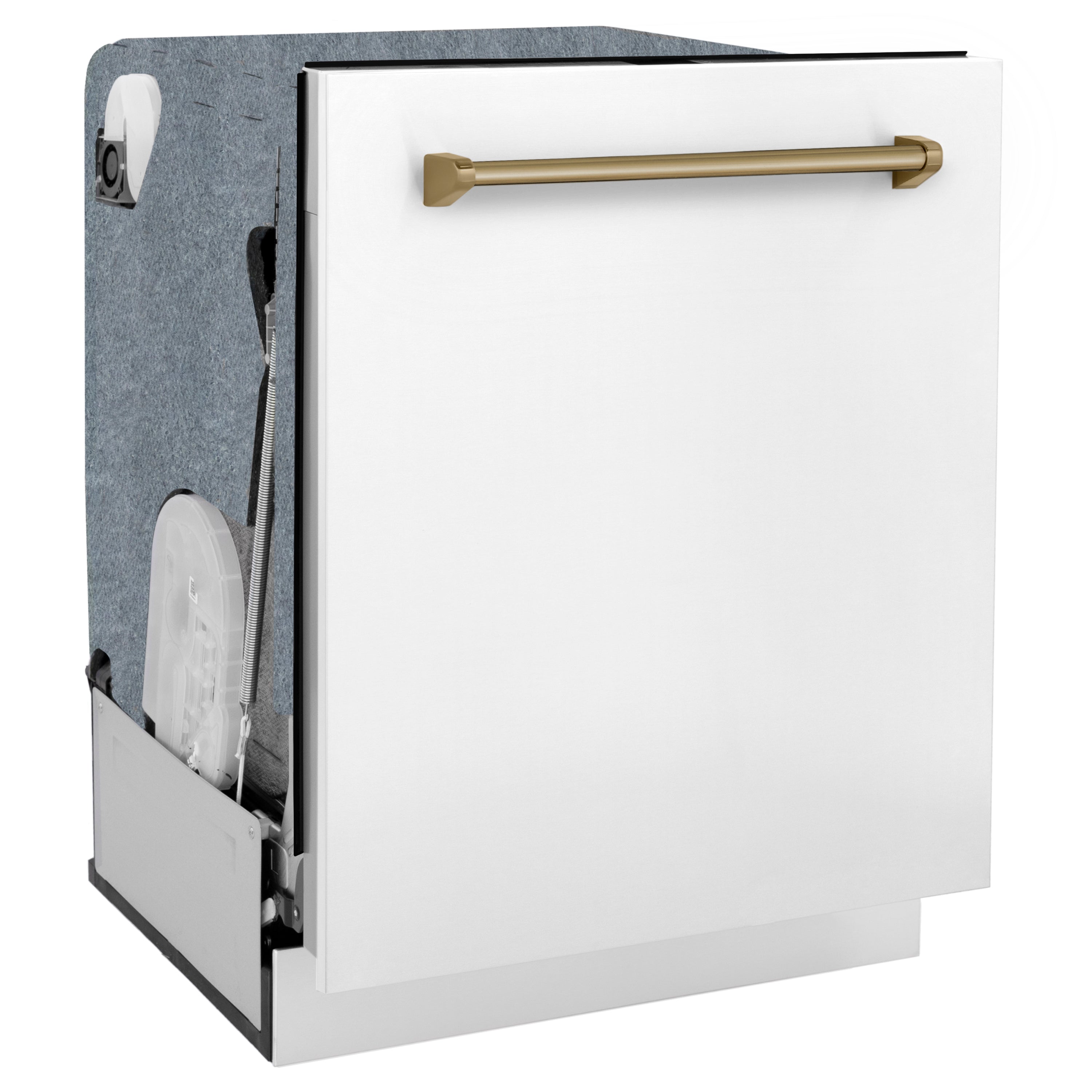

Experience attainable luxury with the ZLINE Autograph Edition 24 inch Tall Dishwasher, Touch Control, in White Matte with Champagne Bronze Handle. DuraWash technology uses a multi-motion system creating powerful clean from multiple angles. 14 place settings, three racks, and a stunning Champagne Bronze handle make a stunningly elegant statement. The digital touch panel control is easy to use and the two adjustable racks plus utensil rack provide flexibility. ENERGYSTAR Certified, this dishwasher is professionally powerful, energy conscious, and customizable. Get a high performance, professional quality product with the ZLINE DWVMTZ-24 - shipping next business day when in stock.

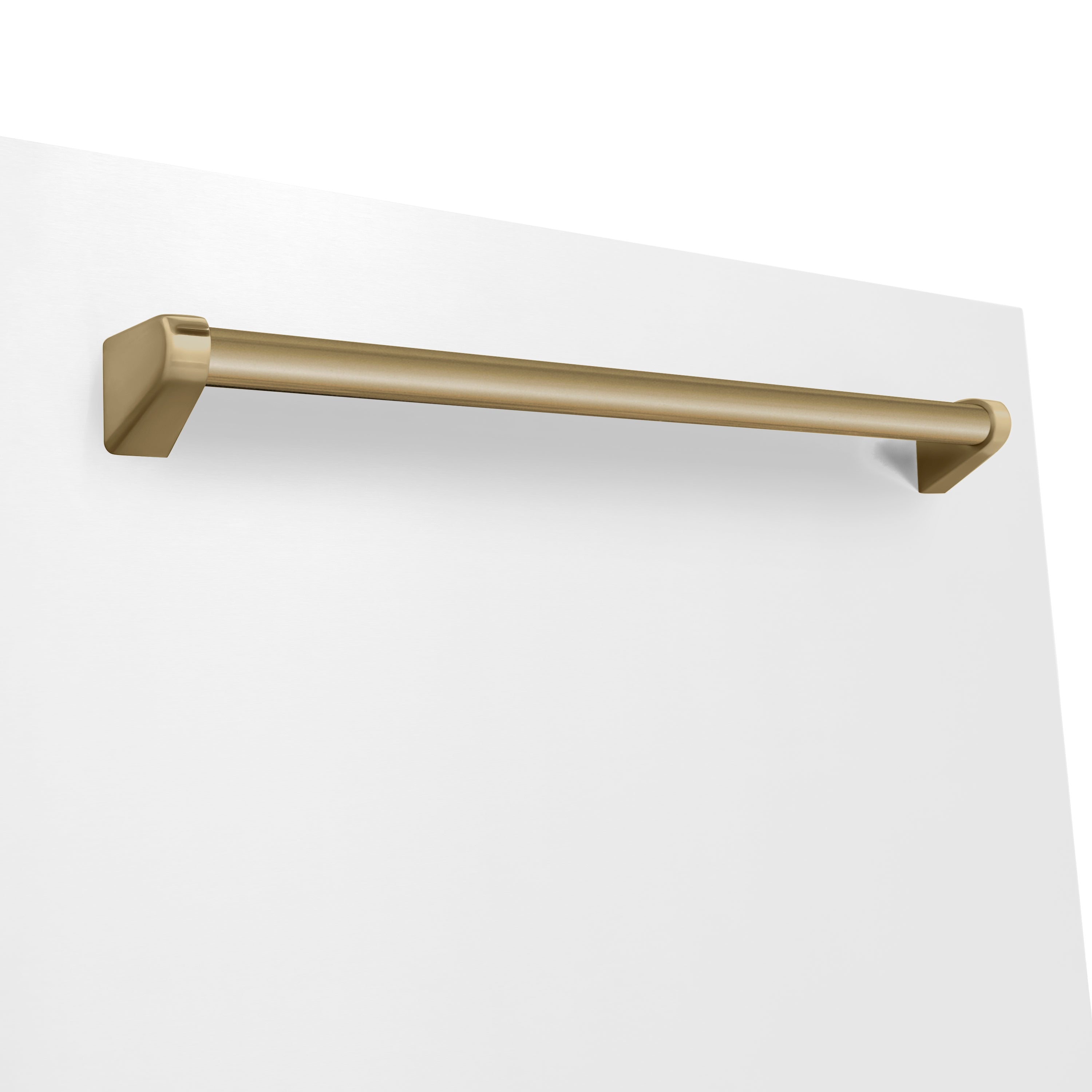

Champagne Bronze Handle. The handle is designed to match the ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents, enhancing the overall kitchen aesthetics
DuraWash Technology. Ensures a consistently superior clean with every use, delivering high cleaning performance
Professional-Grade Stainless Steel Panel. Includes a 304-grade Stainless Steel dishwasher panel for durability and a sleek appearance
Convenient Hidden Control Panel. Utilize the top control digital touch panel, discreetly positioned for easy function selection with a gentle touch
Auto Cycle. The dishwasher automatically detects and adjusts the right water temperature and pressure needed for your specific load
Illuminating LED Lights. Two LED lights inside the tub automatically illuminate when opened, offering clear visibility for loading and unloading
Flexible Cleaning Options. Features settings for sanitizing, high-temperature washing, extra drying, and a speed wash cycle for everyday use, providing added flexibility
Whisper-Quiet Operation. Operating at just 45 decibels (dBA), this dishwasher ensures a peaceful kitchen environment while delivering spotless dishes
Ample Capacity. Accommodates up to 14 place settings, complete with a 3rd rack for utensils, making it suitable for large loads
Adjustable Racks. Racks can be customized to provide the flexibility to load large dishes, including those up to 13 inches in height.
Professional-Grade Durability. Constructed with a professional 304-grade stainless steel tub, delivering both precision and long-lasting durability
Exceptional Energy Efficiency. Holds an ENERGY STAR certification with a CEE Tier 1 rating, surpassing industry standards for water and energy efficiency through advanced eco-wash technology
NSF Certified Sanitize Cycle. Provides peace of mind with NSF certification for effective sanitization
Professional Installation Required. This product ships in multiple boxes and necessitates professional installation by an expert
Warranty Assurance. Comes with a 1-year parts warranty for added peace of mind

Dimensions (Minimum Height): 23.875" W x27" D x 33.75" H
Dimensions (Maximum Height): 23.875" W x27" D x 35" H
Cutout Dimensions: 24" W x 25" D x 34" H
Interior Dimensions: 21.65" W x 22.17" D x 26.61" H
Material: 304 Grade Stainless Steel
Panel Finish: White Matte
Handle Finish: Champagne Bronze
Number of Cycles: 6
Number of Place Settings: 14
Number of Racks: 3
Wash Cycles: DuraWash, Rinse Aid, Sanitize, Delay Wash, Heated Dry, Hi-Temp Wash
Energy Efficient Tier: 1
Noise Level: 45 Decibel
Voltage: 120V
Control Type: Touch Panel
Control Location: Top
Handle Type: Traditional Style
Silverware Basket: In Rack
Warranty: 1 year on the Parts
Certifications: UL Listed, Energy Star Certified

Installation Manual
User Manual
