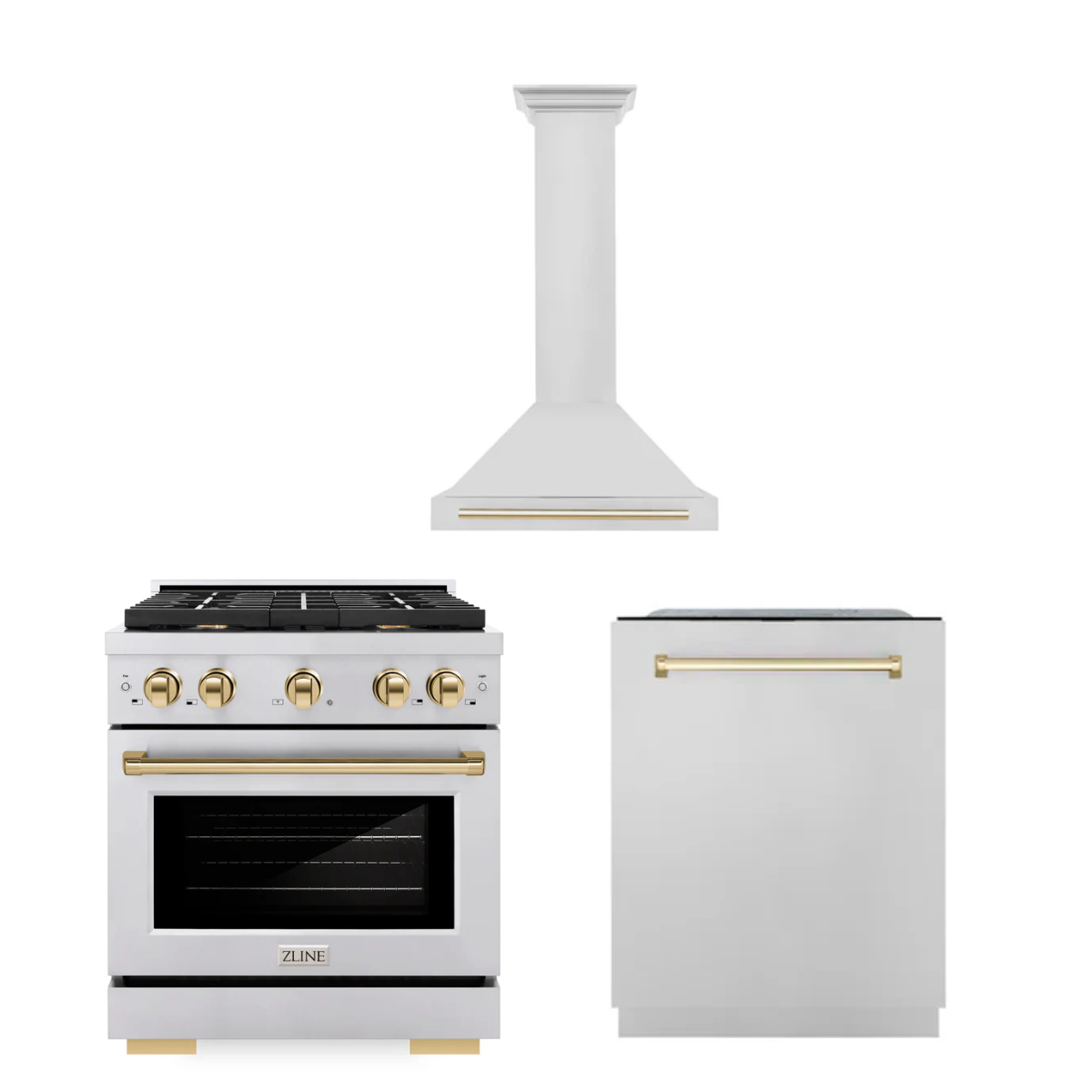

ZLINE Autograph Package - 30 In. Gas Range, Range Hood, Dishwasher in Stainless Steel with Gold Accents, 3AKP-RGRHDWM30-G

5.0 13 reviews
Model: 3AKP-SGRRHDWM30-G
$6,044.87
$6,044.87 $6,549.85
-8%
Shipping calculated at checkout.

Buy Now, Pay Later

Fuel type: Gas
Color: Stainless Steel
Accent: Gold

This item is in stock! Estimated Arrival: May 23 to May 30

$6,044.87
$6,044.87 $6,549.85

What's in the Package

Product Overview

  • Appliances: 3

  • Fuel Type: Gas

  • Gas Type: Natural Gas

  • LP Convertible

Package Information

Range

Luxury isn't meant to be desired - it's meant to be attainable. The ZLINE Autograph Edition 30 in. 4.2 cu. ft. Paramount Gas Range with 4 Burner Cooktop and Convection Gas Oven in Stainless Steel and Polished Gold Accents (SGRZ-30-G) features a versatile gas cooktop with 4 Italian-made auto-reignition burners, a high-performing gas convection oven, enhanced cast iron grates, a Horizon oven door window design, and elegant polished gold knobs and handle allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Paramount Gas Ranges are masterfully crafted to deliver an elevated culinary experience.

  • ZLINE Paramount Series: The ZLINE Paramount Professional Range Series provides a polished look that aligns with any kitchen layout or style
  • Exclusive Knobs and Handle: Customize your ZLINE Autograph Edition Gas Range with elegant Polished Gold knob and handle accents
  • Italian-Made Auto-Reignition Burners: 4 Italian-made gas burners utilize automatic reignition innovation for improved temperature control and cooktop safety
  • Convection Gas Oven: Elevate your culinary endeavors with standard bake, broil, and convection bake modes with a maximum BTU output of 22,000
  • Horizon Oven Window: Keep a watchful eye on your baking dishes through ZLINE's Horizon oven door design that features a large viewing window
  • Dual Function Burner: Expand your cooking capabilities with a single Dual Function Burner that allows you to simmer at 800 BTUs or perfectly sear at 20,000 BTUs
  • Stainless Steel Oven Burners: Tubular bake and broil burners are designed for optimal gas combustion that allows for even heat distribution for an ideal baking experience
  • Large Oven Capacity: An expansive oven capacity of 4.2 cu. ft. fits pans up to 20 in. wide for maximum space and convenience with everyday cooking
  • StayPut Oven Door Hinges: Designed to support the full weight of the oven door, offering additional convenience and safety
  • Premium Oven Insulation: A 3-layered glass oven door with a large viewing window and aluminum mesh seal offers superior heat retention and consistent temperatures
  • Smooth Glide Ball-Bearing Oven Racks: 2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
  • Stunning Stainless Steel: Featuring 430-grade stainless steel and a dependable cast iron grate design that exceed standards for a true professional experience
  • Dual Oven Lights: Illuminate your oven space with dual halogen lighting, located in the upper and lower sections of the oven and controlled by a switch conveniently located on the front control panel
  • Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
  • LP Conversion Kit: Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
  • Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
  • Manufacturer Warranty: 1-year parts and service warranty
  • DIMENSIONS
  • Product Dimensions: 30" W x 27.75" D x 36" H
  • Cutout Dimensions: 30.25" W x 24.75" D x 36" H
  • Interior Oven Dimensions: 24.875" W x 17.75" D x 16.00" H
  • Oven Capacity: 4.2 cu. ft.
  • Open Door Depth: 45.1"
  • Weight: 218 lbs
  • ELECTRICAL REQUIREMENTS
  • Voltage: 240V
  • Frequency: 60 Hz
  • Amps: 25A
  • FUEL TYPE
  • Fuel Type: Cooktop - Gas // Oven - Gas
  • Gas Type: Natural Gas // Propane Gas (LP Conversion Kit Included)
  • FEATURES
  • Mount Type: Free Standing
  • Base Finish: Stainless Steel
  • Parts Finish (Handle, Legs, Knobs): Gold
  • Material: 430 Stainless Steel
  • Cooktop Features: (4) Brass Burners with Porcelain Cook Top with electronic spark ignition for all burners
  • Burner #1: Semi-Rapid: 9,000 BTU
  • Burner #2: Rapid Burner: 15,000 BTU
  • Burner #3: Semi-Rapid: 9,000 BTU
  • Burner #4: Dual Burner: 20,000 BTU
  • Total Burner BTU: 53,000 BTU
  • Oven Features: Manual Clean - Convection Electric Oven - 4.2 cu. ft. deep oven
  • Large Oven Broil: 10,000 BTU
  • Large Oven Bake: 22,000 BTU
  • Convection: Yes
  • Oven Lighting: Halogen
  • Number of Racks: 2
  • Control Type: Manual Front Control
  • Timer: No
  • Self-Clean: No
  • Air-Fry: No
  • WARRANTY & CERTIFICATIONS
  • Warranty: 1 year parts and service, limited lifetime warranty on burners
  • Certifications: ETL Listed

User Manual
Installation Guide

Range Hood

The ZLINE 30 Inch Range Hood (8654STZ-30-G) comes fully equipped with a powerful, yet quiet motor with a stunning Gold Handle. Cook like a pro with this ZLINE Range Hood!

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with stunning Gold accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a Gold handle.

Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.

PRODUCT FEATURES:

  • Gold handle matches ZLINE Autograph Edition Range or Rangetop with Gold Accents
  • Easy-to-use push button controls let's you easily control fan speed and lighting
  • 4-speed fan control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
  • 400 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
  • Fixed vent with ductwork that easily connects to the top of the range hood for external venting
  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • Handle is for cosmetic purposes only and should not be used for hanging items
  • 3 year parts warranty, life-time motor warranty
  • Brushed 430 grade stainless steel

Note: Chimney can be cut to fit, but ceiling height must be in the range of 7.7 to 9.5 feet.

  • Dimension: 30 in. W x 23.75 in. D x 16 in. H
  • Chimney: 13.25 in. W x 11.75 in. D x 35.5 in. H
  • Ceiling Height: 7.7 to 9.5 Feet
  • Airflow (Q/L/M/H): 120/240/320/400 (CFM)
  • Duct Size: 6 Inches
  • Lighting: 2 Directional LED Lights (3-Watt)
  • Noise Level: 51/55/58/61 (Decibels)
  • Voltage: 110V/60HZ
  • Motor: High Performance 400 CFM/4-Speed Motor
  • Mount Type: Wall Mounted
  • Speeds: 4 Speeds
  • Control Type: Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
  • Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
  • Material: Stainless Steel - Outdoor Approved
  • Warranty: 3 Year Parts Warranty

Installation Instructions

Dishwasher

Introducing the ZLINE Autograph Edition 24" Dishwasher in Stainless Steel with a Gold Handle. Experience Attainable Luxury with this sophisticated professional dishwasher offering 6 wash cycles, 3 racks, 14 place settings and a stunning Gold Handle. DuraWash technology provides a powerful multi-motion clean, while the digital touch control panel makes operation a breeze. Two adjustable racks and a third utensil rack offer added flexibility, and ENERGYSTAR certification ensures an environment-friendly, optimized performance. Get unbeatable quality that's high-performing and customizable, and enjoy next day shipping when in stock. Discover the ultimate dishwashing experience with the Autograph Edition DWMTZ-304-24-G!

  • Gold Handle. Matches ZLINE Autograph Edition Range with Gold Accents
  • DuraWash Technology. Ensures consistently superior cleaning
  • Stainless Steel Panel. Features a 304-grade stainless steel dishwasher panel
  • Hidden Top Control Panel. Intuitive digital touch panel for easy function selection
  • Auto Cycle. Adjusts water temperature and pressure automatically
  • LED Interior Lights. Illuminate the tub for easy loading and unloading
  • Flexible Settings. Includes sanitize, high temperature, and extra dry options
  • Ultra-Quiet Operation. Operates quietly at just 45 dBA
  • Generous Capacity. Accommodates up to 14 place settings with a 3rd rack for utensils
  • Adjustable Racks. Flexibility to load large dishes, up to 13 inches in height
  • Speed Wash Cycle. Quick 50-minute daily washing for convenience
  • Professional Stainless Steel Tub. Crafted with precision and durability using 304-grade steel
  • Energy Efficiency. ENERGY STAR certified with CEE Tier 1 rating, exceeding industry standards
  • NSF Certified Sanitize Cycle. Ensures hygiene and peace of mind
  • Professional Installation Required. Ships in multiple boxes and demands expert setup
  • 1-Year Parts Warranty. Additional assurance for your purchase

        • Dimensions (Minimum Height): 23.875" W x27" D x 33.75" H
        • Dimensions (Maximum Height): 23.875" W x27" D x 35" H
        • Cut-out Dimensions: 24" W x 25" D x 34" H
        • Interior Dimensions: 21.65" W x 22.17" D x 26.61" H
        • Material: 304 Grade Stainless Steel
        • Panel Finish: Stainless Steel
        • Handle Finish: Gold
        • Number of Cycles: 6
        • Number of Place Settings: 14
        • Number of Racks: 3
        • Wash Cycles: DuraWash, Rinse Aid, Sanitize, Delay Wash, Heated Dry, Hi-Temp Wash
        • Energy Efficient Tier: 1
        • Noise Level: 45 Decibel
        • Voltage: 120V
        • Control Type: Touch Panel
        • Control Location: Top
        • Handle Type: Traditional Style
        • Silverware Basket: In Rack
        • Warranty: 1 year on the Parts
        • Certifications: UL Listed, Energy Star Certified

        Installation Manual
        User Manual
