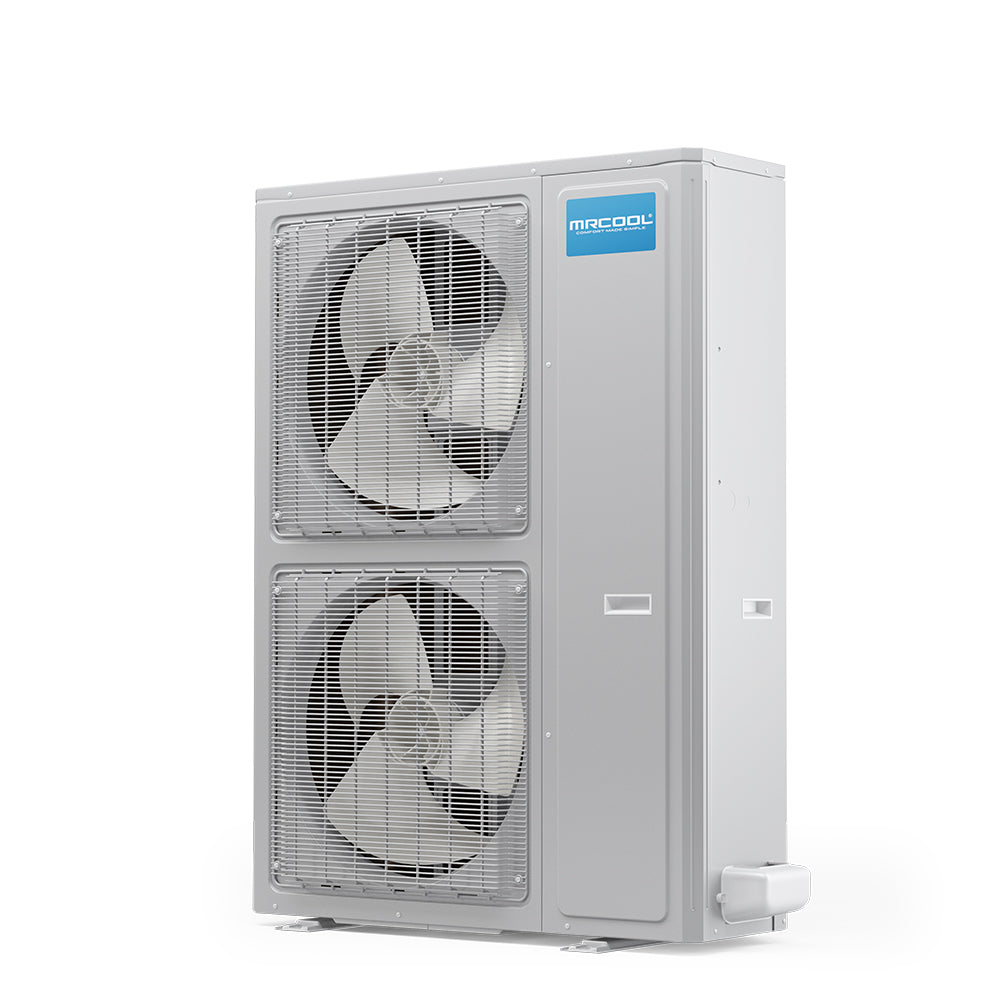

MRCOOL Universal Series Heat Pump Condenser 4-5 Ton, MDUO18048060
This item is in stock! Estimated Arrival: Apr 29 to May 05
-
Free
Shipping -
30-Day
Returns* -
Authorized
Dealer -
Professional
Services
Exclusive Offers Just For You!
🔨Angi: Enjoy affordable installation services across the country. Schedule Now!
🚚 1-800-GOT-JUNK: 10% discounts on haul away services for your outdated appliances. Request a Quote Today!
Have a question or want to build your own package?
Talk with one of our trusted appliance experts today!
MRCOOL would like to introduce you to the future of HVAC with its new 18 SEER Ultra-Heat Inverter Unitary Condensing Unit. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end. Don't be stuck in the past with your traditional system, think ahead with MRCOOL.
Key Features
- Up to 18 SEER
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Slim design allows more storage for warehouse inventory
- Compatible with any third party air handler and thermostat including WiFi/Nest
- Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Maximum savings while running
- Factory Charged
- ETL and AHRI certified
| Product Dimensions | 39 3/8"W x 14 1/2"D x 53 3/4"H |
| Product Weight | 308.7 lbs |
| SEER | up to 18 |
| Max SEER | 18 |
| EER | 10.5 |
| HSPF | 10 |
| CFM | 4700 |
| Tonnage | 4-5 Ton |
| Cooling Capacity | 54,000 BTU |
| Heating Capacity | 54,000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/35A-45A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 24 A |
| Color | Gray |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 220.48 oz |
| Decibel Rating | 58 dBA |
| Inverter | DC |
| Min Ambient Cool | 5F - 129.2F |
| Min Ambient Heat | -22F - 75.2F |
| Lineset Included | No |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Lineset Length | 164 FT / 5 |
| Lineset Fitting Type | Pre-Flared/Sweat & Quick Connect |
| Liquid Line Size | 3/8 in. |
| Suction Line Size | 3/4 in. |
| Compressor Motor Type | Inverter Rotary |
| Condenser Fan Motor Type | Direct Drive |
| Metering Device | EEV |
| Auxiliary Heater Available | Yes |
| Certifications | ETL Energy Star AHRI |
| Warranty |
10 Year Registered Limited Warranty 5 Years Parts |
| Restricted States | No |
Customer Reviews
I bought the MRCOOL Universal Series Heat Pump Condenser 4-5 Ton, MDUO18048060 as part of a heat pump system I installed myself, and based on a quote from a local HVAC contractor for their 18 SEER system, I saved $25,000 too! The original 100,000 BTU 80+ furnace was retained as a blower and emergency heat only. Integrated backup heat was not required, because this new system is still more efficient than my furnace down to -5 degrees, which we will never see in my area. However, I still have the option to switch to my 120 volt gas heat furnace if I am running on a generator due to a power loss, because the 240 volt heat pump is too much for it. The actual equipment install was easy compared to pouring a pad and crawling about under my house to pull and hang 50’ of the two refrigerant lines. Instructions were very clear to follow, and I highly recommend using a torque wrench for the line set fittings. Now we enjoy a more efficient heat source and AC too. Would I do it again? Yes!
This unit replaced a 1st generation mr cool. This one is much more robust and quieter. Very simple to install.
