  3. MRCOOL Hyper Heat 2nd Gen 60K BTU 2.5 Ton 16 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-60-HP-C-230B00-O

NEW R-454B Refrigerant!

MRCOOL Hyper Heat 2nd Gen 60K BTU 2.5 Ton 16 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-60-HP-C-230B00-O

Model: CENTRAL-60-HP-C-230B00-O
$2,907.96
$2,907.96 $3,500.00
-17%
Shipping calculated at checkout.
BTU: 60,000
60,000
24,000
30,000
36,000
48,000
60,000

This item is in stock! Estimated Arrival: Mar 22 to Mar 28

Buy Now, Pay Later

$2,907.96
$2,907.96 $3,500.00

Product Overview

  • HVAC Technician Required

  • Voltage: 208-230V

  • 10 Years Compressor Warranty

  • 10 Years Parts Warranty

  • 10 Years Labor Warranty

What's Included

BETTER TOGETHER

DESCRIPTION

Keep your home comfortable all year round with the 60K MRCOOL® Hyper Heat Central Ducted Condenser. Engineered for extreme temperatures, this high-efficiency unit uses advanced technology and has a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9. The MRCOOL® Smart thermostat allows easy temperature control, while compatibility with the 60K MRCOOL® VersaPro® Central Ducted Air Handler offers versatile installation options. With an environmentally friendly refrigerant, durable construction, and a 10-year warranty, this system is a reliable choice for any home.

  • Year-Round Performance: Functions efficiently in both freezing and scorching temperatures.
  • Energy Efficiency: Features a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9 for optimized heating and cooling.
  • Smart Control: Comes with an MRCOOL® Smart thermostat for easy and precise temperature adjustments.
  • Versatile Compatibility: Designed to work seamlessly with the 60K MRCOOL® VersaPro® Central Ducted Air Handler.
  • Flexible Installation: Supports multiple configurations and can be equipped with an optional heat kit.
  • Eco-Friendly Refrigerant: Uses R-454B refrigerant for reduced environmental impact.
  • Built to Last: Outdoor heat pump features a painted galvanized steel exterior for long-term durability.
  • Convenient Maintenance: Air handler includes a compact design, slide-out blower, and self-diagnostics panel.
  • Comprehensive Warranty: 10-year coverage on compressor, parts, and labor, with automatic labor warranty activation at installation.

Note: These units are designed for use with No Vac Quick Connect Line Sets, which come pre-charged with R-454B refrigerant for a quicker and easier installation. Line sets are not included but can be purchased separately. If you prefer the traditional flare nut configuration, you're in luck—stub pipes and copper nuts are included.

SPECIFICATIONS & DIMENSIONS

  • Dimensions: 37.48" W x 16.34" D x 52.48" H
  • Weight: 242.95 lbs

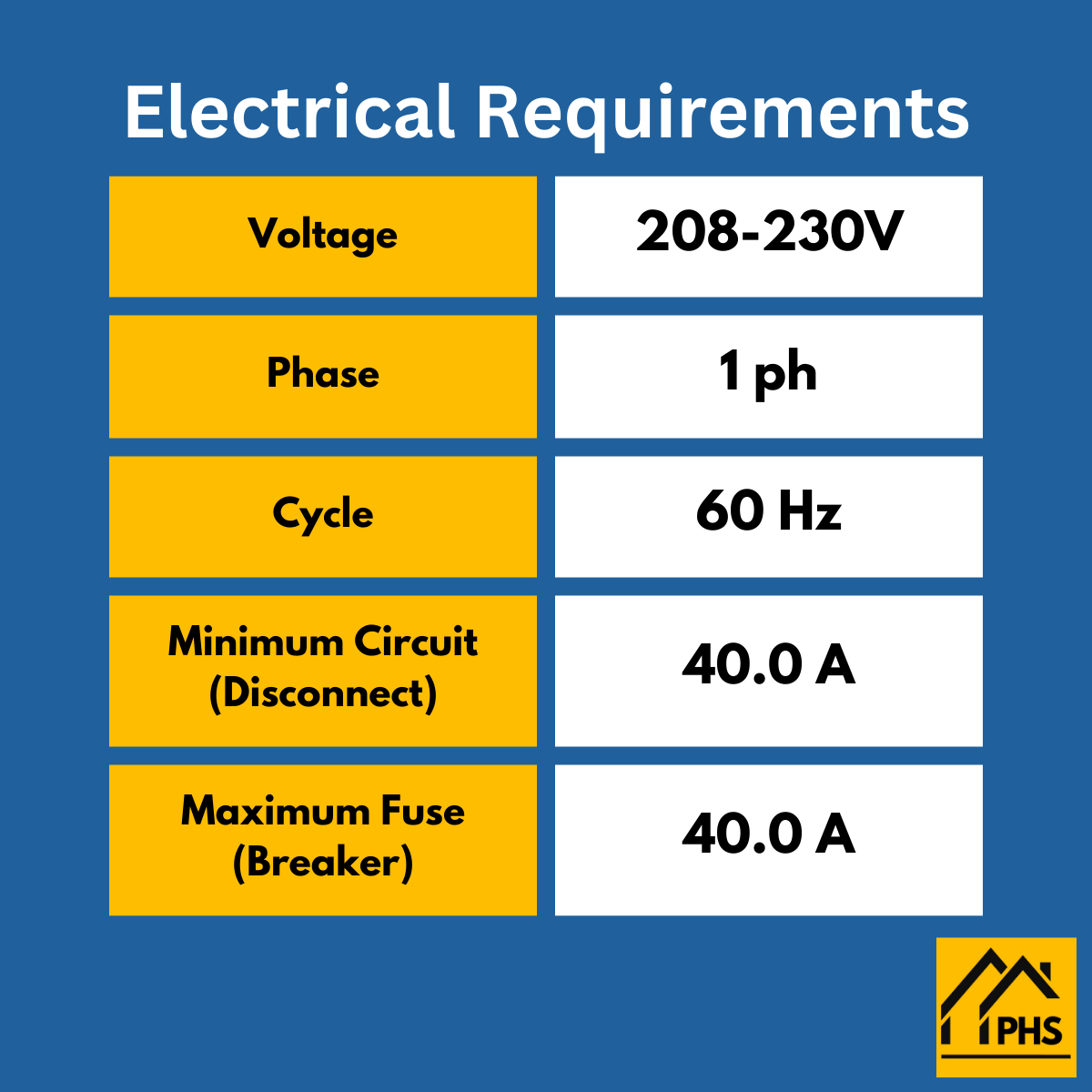

  • Electrical Requirements: Requires a minimum of 208-230V/60Hz/40-40A (please check your home meets this electrical requirement prior to purchase)
  • Cooling Capacity: 54,000 BTU
  • Heating Capacity: 56,000 BTU
  • Tonnage: 5
  • Outdoor Airflow: 2648.6 CFM
  • SEER2: 16
  • EER2: 10
  • HSPF4: 9.0
  • HSPF5: 8.0
  • Noise Level: 65 dB(A)
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 183.42 oz
  • Liquid Line Size: 3/8"
  • Suction Line Size: 3/4"
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Certifications: ETL Certified, AHRI Certified, Energy Star Certified
  • Warranty: 10 Years Compressor, 10 Years Parts & Labor
