MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-24-HP-WMAH-230C25

$824.00

$1,219.00

Save 32%

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More

MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-24-HP-WMAH-230C25

See more from MRCOOL Model: DIY-24-HP-WMAH-230C25

Model: DIY-24-HP-WMAH-230C25

$824.00

$1,219.00

Save 32%

Financing:

This item is in stock! Estimated Arrival: Dec 18 to Dec 22

  • Free
    Shipping
  • 30-Day
    Returns*
  • Authorized
    Dealer
  • Installation
    Services

    Premium Home Source has partnered exclusively with Angi to offer affordable installation and repair services nationwide!

    Learn More
Contact Us

Have a question or want to build your own package?

Talk with one of our trusted appliance experts today!

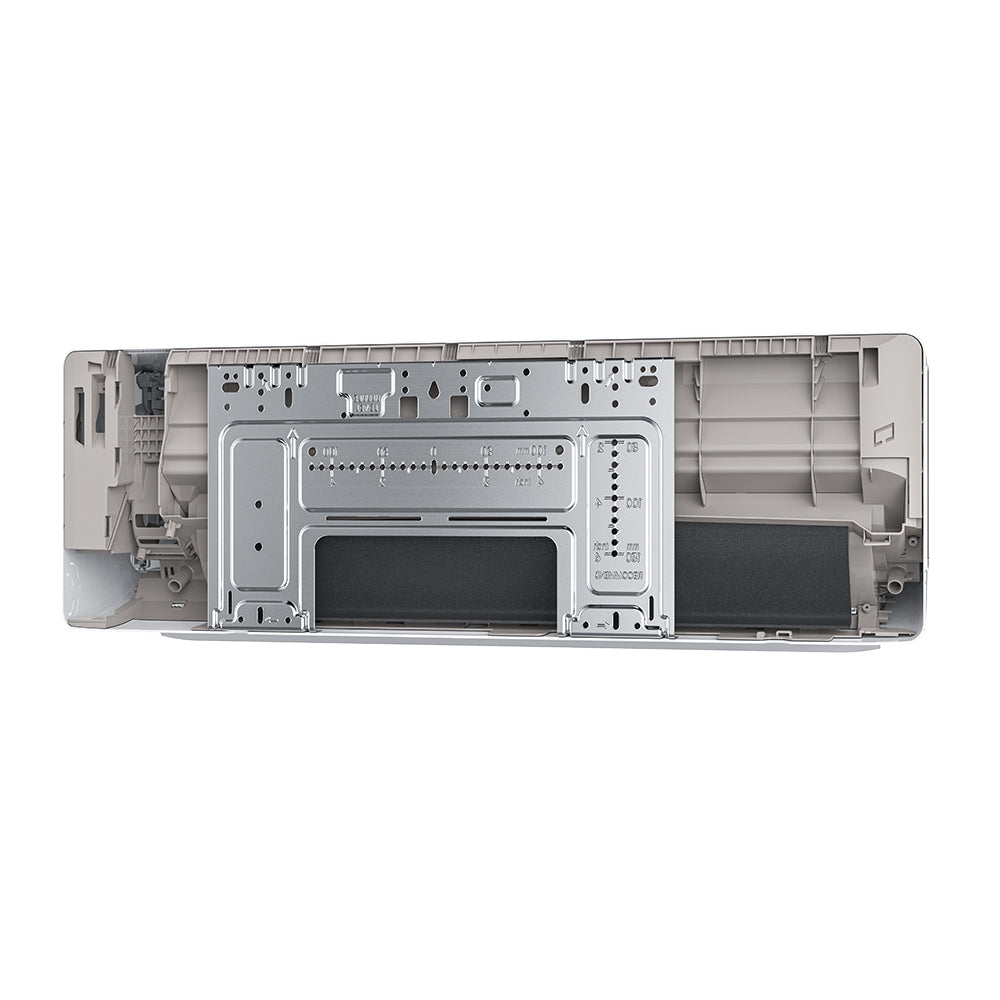

The MRCOOL 4th Generation DIY 24K BTU Ductless Wall Mounted Air Handler offers the performance you need to compliment your MrCool DIY system. When connected to a MRCOOL condenser, this air handler has the ability to reach a 20.5 SEER efficiency rating. It also has the power to deliver air to an area of up to 1,000 sq. ft.To make sure it can handle your needs, it is also equipped with multiple operating modes which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. With the use of the Smart HVAC app, it also has the ability to be operated from your Apple or Android smartphone. With its compact design and easy to use mounting plate, this air handler can be mounted to most interior walls.

It is also meant to be used with the MRCOOL Pre-Charged Quick Connect Line Set to further the ease of installation. This line set is equipped with MRCOOL's patented quick connectors, so it can be connected with use of only simple hand tools. It also precharged from the factory with the correct amount of R-410A refrigerant and requires no vacuuming once connected. The MRCOOL 4th Generation DIY 24 BTU Ductless Wall Mounted Air Handler is equipped with the power and performance to satisfy air conditioning needs of your home.

Key Features

  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 35.27 lbs
Cooling Capacity 23,000 BTU
Heating Capacity 25,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 1000 sqft
Refrigerant Type R-410A
Decibel Rating 48.5/43.5/33
Decibel Rating Low 33 dBA
Decibel Rating High 48.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 3/8 in
Suction Line Size 5/8 in
Blower Motor RPM 1200/1000/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Register for limited lifetime compressor warranty!
Restricted States GU;PR;VI

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
F
Freddie Boyd
No issues at all

Works well. No installation problems

D
David Bush
Air handlers work well

Great Quality powerful and techy advanced

R
Ricky Medina
Air Handlers Look Great

Not only does this mini split system do a great job, the air handler looks great too! Thanks Premium Home Source and MrCool for such an amazing product!!
