MRCOOL DIY 4th Gen 2 Zone-18,000 BTU Outdoor Unit 21 SEER2 (9K+9K) Ductless Mini Split and Heat Pump System

Model: DIY-B-218HP0909
$2,255.00
$2,255.00 $2,729.00
-17%
Shipping calculated at checkout.

Choose your Line Set and Communication Wires:

Total Price: $2,255.00

This item is out of stock. The estimated shipping date is May 2025! Be the first to own the brand-new 5th Gen Series and Pre-order now!

Buy Now, Pay Later

$2,255.00
$2,255.00 $2,729.00

Product Overview

  • Zones: 2

  • DIY Installation

  • Voltage: 208-230V

  • Outdoor Operating Temp (Cool): 5°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

What's Included

System also includes Communication Wires, Drain Hose Pipes, Wall Sleeves, Remote Controls and Wifi Dongles. This system DOES NOT include Line Sets. Don't forget to scroll up and add them!

System Details

DESCRIPTION

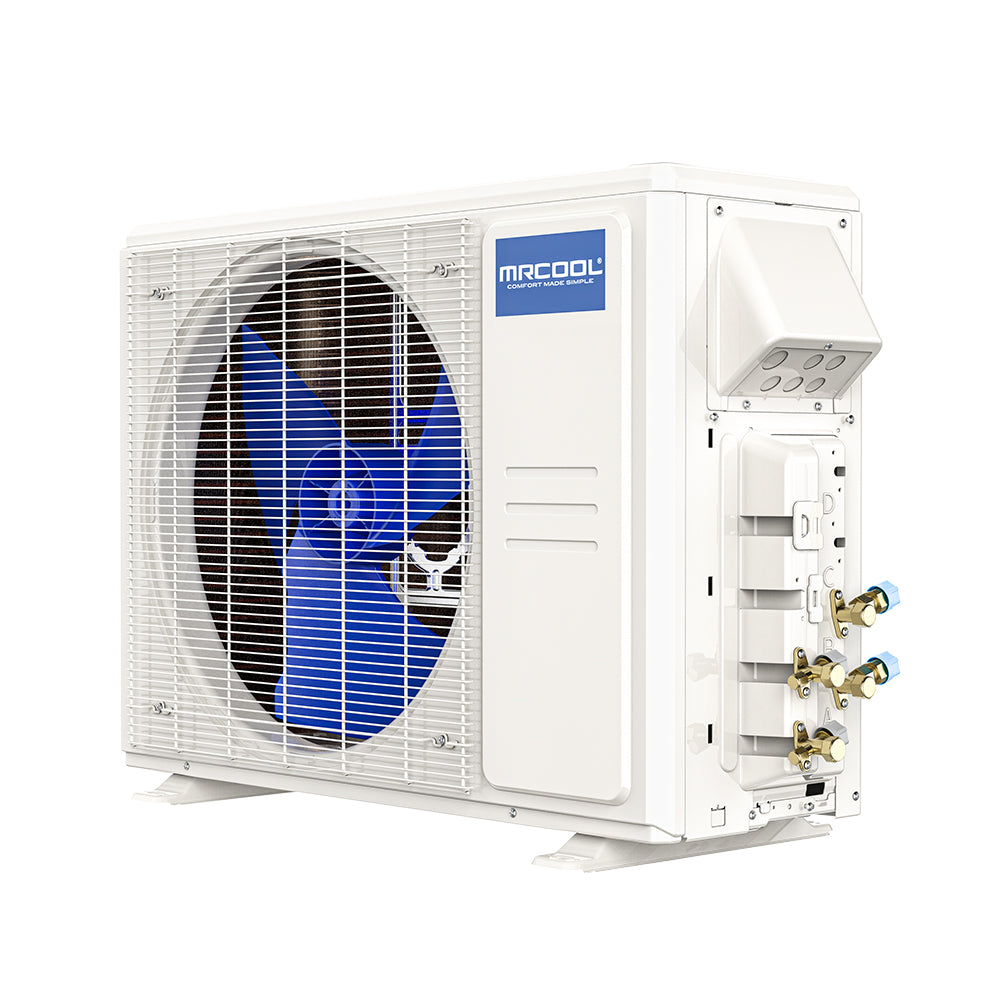

18K BTU Condenser

  • Exceptional Energy Efficiency: Paired with select MRCOOL air handlers, this 2-zone condenser delivers an impressive SEER2 efficiency rating of up to 21.2.
  • All-Weather Performance: Operates reliably in extreme conditions, heating even when temperatures plummet to -13°F.
  • Unmatched Warranty: Enjoy peace of mind with a 7-year compressor replacement warranty and a 5-year parts warranty. Simply register through the MRCOOL Care Program to activate coverage.

9K BTU Air Handler

  • Ideal for Smaller Spaces: Efficiently covers areas up to 375 sq. ft.
  • Multi-Mode Functionality: Offers COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP modes for year-round comfort.
  • Smart Control: Easily manage settings from your Apple or Android device using the Smart HVAC app.
  • Effortless Installation: Compact and lightweight design with an included mounting plate for simple wall installation.

SPECIFICATIONS & DIMENSIONS

  • Condenser
  • Product Dimensions: 35.04"W x 13.46"D x 26.50"H
  • Cooling Capacity: 18,000 BTU
  • Heating Capacity: 19,000 BTU
  • Zone Capacity: 2
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F
  • SEER: 21
  • SEER2: 21.2
  • EER: 12.5
  • EER2: 12.5
  • HSPF-4: 10.6
  • HSPF-5: 8.6
  • Voltage: Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
  • Registered Warranty: 7 Years Replacement on Compressor, 5 Years Parts
  • Air Handler 9K BTU
  • Product Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Mount Type: Wall
  • Cooling Capacity: 9,000 BTU
  • Heating Capacity: 9,000 BTU
  • Modes: Auto - auto selects from Cool, Heat or Fan-Only // Dry - dehumidify // Cool // Heat // Fan Only // Quiet // Sleep
  • Registered Warranty: 5 Years Parts

WHAT'S INCLUDED

INSTALLATION & GUIDES

COVERAGE AREA

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

BTU  Square Feet
9,000 BTU 180 - 375 Sq Ft.
12,000 BTU 376 - 500 Sq Ft.
18,000 BTU 501 - 750 Sq Ft.
24,000 BTU 751 - 1,000 Sq Ft.
36,000 BTU 1,001 - 1,500 Sq Ft.

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Product Experts.
