DIY® 5th GEN E STAR

R-454B Refrigerant

MRCOOL DIY® 5th Gen E Star 18,000 BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V, DIY-18-HP-WM-230D25-O

Model: DIY-18-HP-WM-230D25-O
Regular price $2,379.00
Sale price $2,379.00 Regular price $2,679.00
-11%
Shipping calculated at checkout.
BTU: 18,000
18,000
9,000
12,000
18,000
24,000
36,000

This item is in stock! Estimated Arrival: Mar 19 to Mar 25


Buy Now, Pay Later

Regular price $2,379.00
Sale price $2,379.00 Regular price $2,679.00

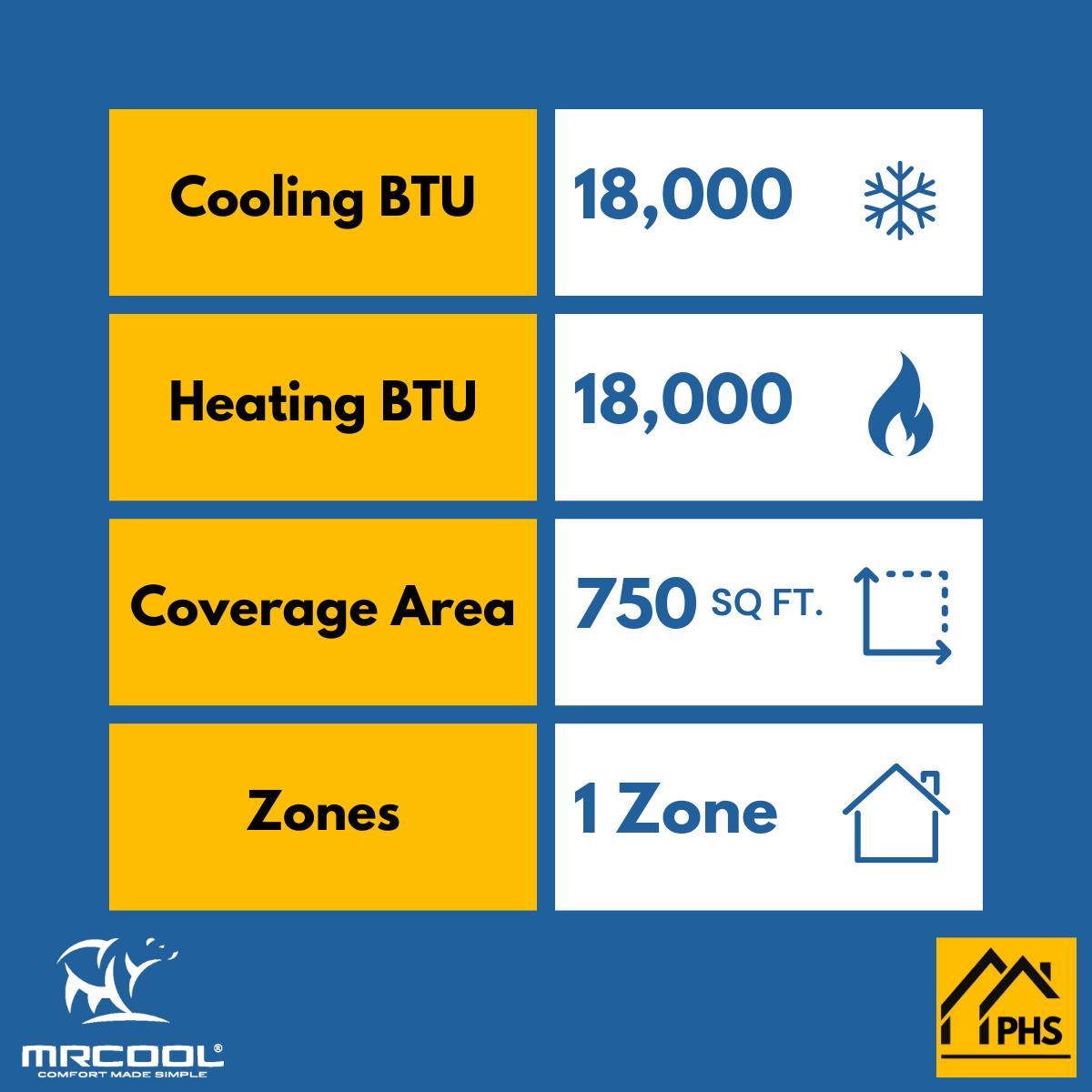

Product Overview

  • Zones: 1

  • Covers 750 sq ft.

  • DIY Installation

  • Voltage: 208-230V

  • ENERGY STAR Certified

  • Outdoor Operating Temp (Cool): -13°F to 122°F

  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Collapsible content

BETTER TOGETHER

DESCRIPTION

Introducing the 5th Gen MRCOOL® DIY® 18K BTU Single Zone Mini-Split Air Handler for year-round heating and cooling in spaces 500 to 750 sq. ft. Easy DIY installation with included 25 ft. QuickConnect® line set and DIYPRO® cable. Customize comfort with wireless remote, SmartHVAC app, or voice commands. Industry-leading warranty for reliable, energy-efficient performance.

  • DIY Installation: Easy, tool-free setup with no prior experience required.
  • DIY® QuickConnect® Line Set: Pre-charged with R-454B refrigerant for quick and vacuum-free installation.
  • Environmentally Friendly Refrigerant: R-454B refrigerant has a lower Global Warming Potential (GWP) than older refrigerants like R-410A, reducing environmental impact while improving energy efficiency.
  • DIYPRO® Cable: Eliminates the need for electrical conduit, offering enhanced durability against outdoor elements and wildlife.
  • Wireless Control Options: Use the included remote, SmartHVAC app (Apple and Android), or voice commands via Amazon Alexa and Google Assistant.
  • Follow Me Function: Maintains consistent comfort by adjusting airflow based on the remote’s location.
  • Dry Mode: Acts as a dehumidifier to reduce excess moisture and improve indoor air quality.
  • Gold Fin® Condenser: Provides corrosion resistance for coastal homes, ensuring long-lasting performance.
  • Industry-Leading Warranty: Limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty.
  • Certified Quality: Intertek listed 5031495 for reliable performance and safety.

SPECIFICATIONS & DIMENSIONS

  • Dimensions & Weight
  • Condenser Dimensions: 35.04 W" x 13.46 D" x 26.50 H"
  • Air Handler Dimensions: 42.52 W" x 8.90 D" x 13.19 H"
  • Condenser Weight: 93.48 lbs / 42.4 kg
  • Air Handler Weight: 35.49 lbs / 16.1 kg
  • Capacity & Performance
  • Zone Capacity: 1
  • Cooling Capacity: 18,000 BTU
  • EER2: 13.7
  • SEER2: 22.5
  • Heating Capacity: 18,000 BTU
  • HSPF2-4: 11.5
  • HSPF2-5: 8.5
  • Coverage Area: 500 to 750 sq ft.
  • Outdoor Noise Level: 58.5 dB(A)
  • Indoor Noise Level (Hi/Mi/Lo): 54.5/44.5/40.5/30.5/19.0 dB(A)
  • Electrical Requirements
  • Voltage: 208-230V
  • Phase: 1
  • Cycle: 60 Hz
  • Max Fuse Breaker: 20A
  • Min Circuit Ampacity: 18A
  • Refrigerant & Piping
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 44.80 oz
  • Liquid Line Size: 1/4"
  • Suction Line Size: 1/2"
  • Max Line Set Length: 98.4 ft.
  • Features
  • Inverter: DC
  • Compressor Type: Rotary
  • Fan Only Option: Yes
  • Quiet Mode: Yes
  • Auto Cool: Yes
  • Wifi Compatibility: Yes
  • App Compatibility: Yes
  • Works with IOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • Certifications & Warranty
  • Certifications: UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
  • Warranty: 7 Years Compressor // 5 Years Parts // Extended Limited Lifetime Replacement // *If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty // **The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
